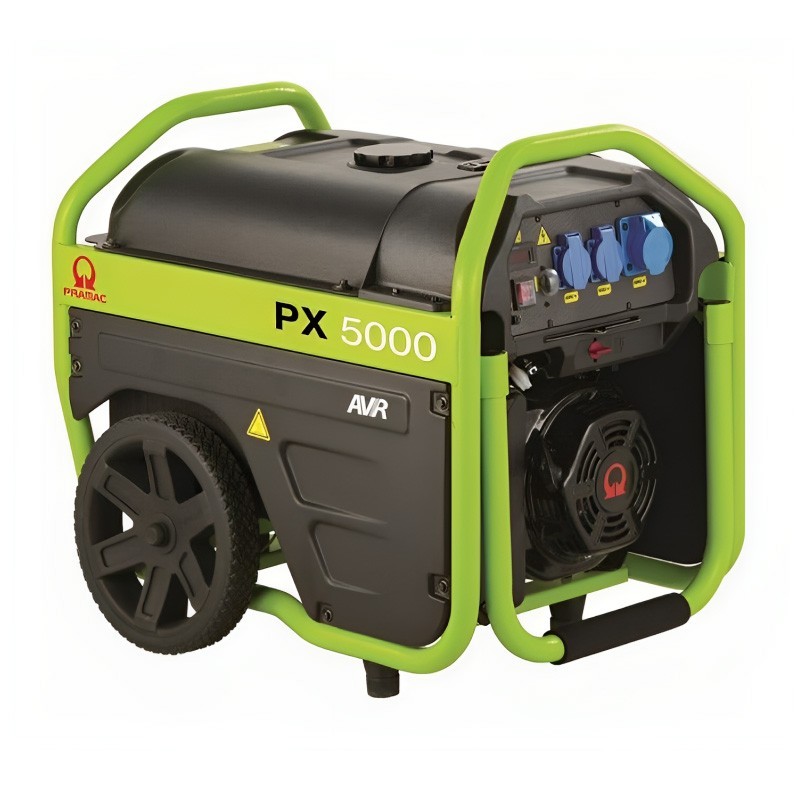

The Pramac PX5000 Gasoline Electric Generator with complete instrumentation including a voltmeter, frequency meter, hour meter and fuel level indicator, this generator allows you to monitor and control your electrical supply with precision.
With an operating frequency of 50 Hz and a voltage of 230 V, the PX5000 is capable of providing a maximum power of 3800 W and a rated power of 3500 W with a power factor of 0.9 cos ϕ, making it suitable for a variety of applications, from domestic use to industrial projects.

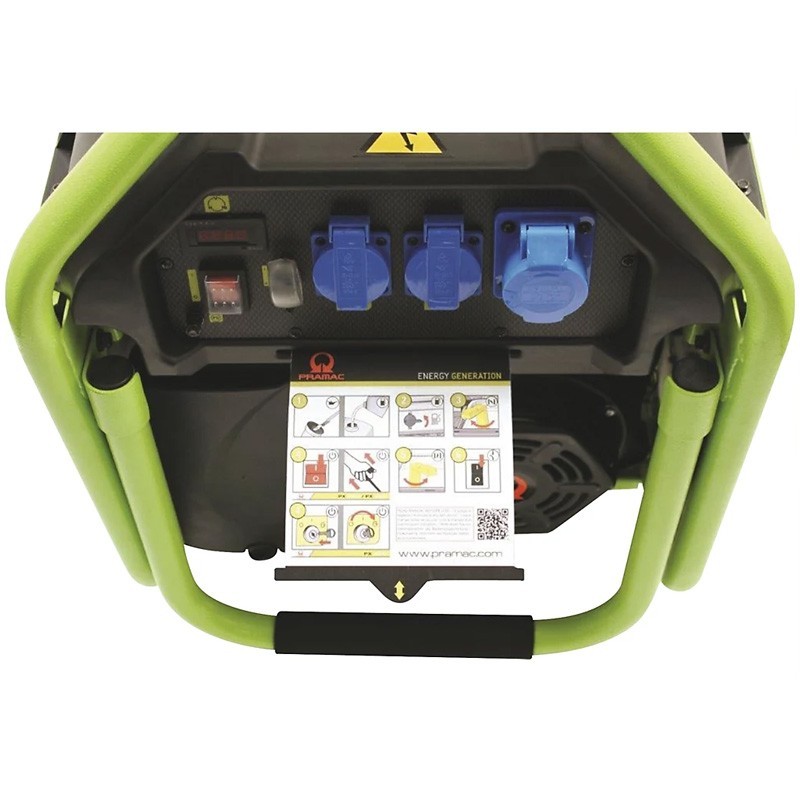

This generator also features essential protections, such as thermal protection and an oil level alarm, to ensure safe and reliable operation. Its compact design with dimensions of 727 x 515 x 670 mm and a dry weight of 79 kg makes it easy to transport and store. In addition, it offers a convenient variety of sockets, including two 230V 16A SCHUKO IP54 and one 230V 16A 2P+T CEE IP44, ensuring easy connectivity with different devices and equipment
| Frequency | 50 Hz |
| Voltage | 230 V |
| Power factor | 0.9 cos ϕ |
| Phases | 1 |
| Maximum power | 3800 W |
| Nominal power | 3500 W |
| Model | SR188F |
| Cooling System | Air |
| Aspiration | Natural |
| Speed regulator | Mechanical |
| Nominal operating speed | 3000 rpm |
| Fuel | Gasoline |
| Starting system | Manual |
| Oil tank | 1.1 l |
| Displacement | 389 cc |
| Alternator type | - |
| Class | H |
| IP protection | 23/44 |
| Poles | 2 |
| Voltage regulation system | Electronic |
| Stabilization | AVR |
| Guaranteed sound level (LWA) | 97 dBA |
| Noise pressure level @ 7 mt | 69 dB(A) |
| Fuel tank capacity | 27 l |
| Fuel consumption at 75% load | 1.44 l/h |
| Fuel consumption at 100% load | 1.92 l/h |
| Autonomy at 75% load | 18.75 h |
| Autonomy at 100% load | 14.06 h |
| Dimensions | 727 x 515 x 670 |
| Dry weight | 79 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
