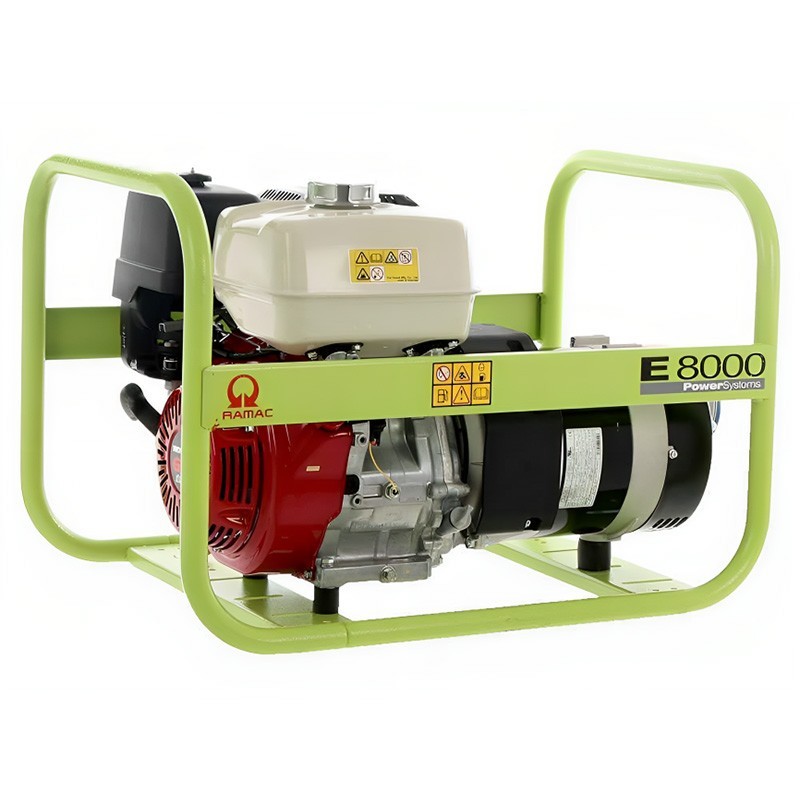

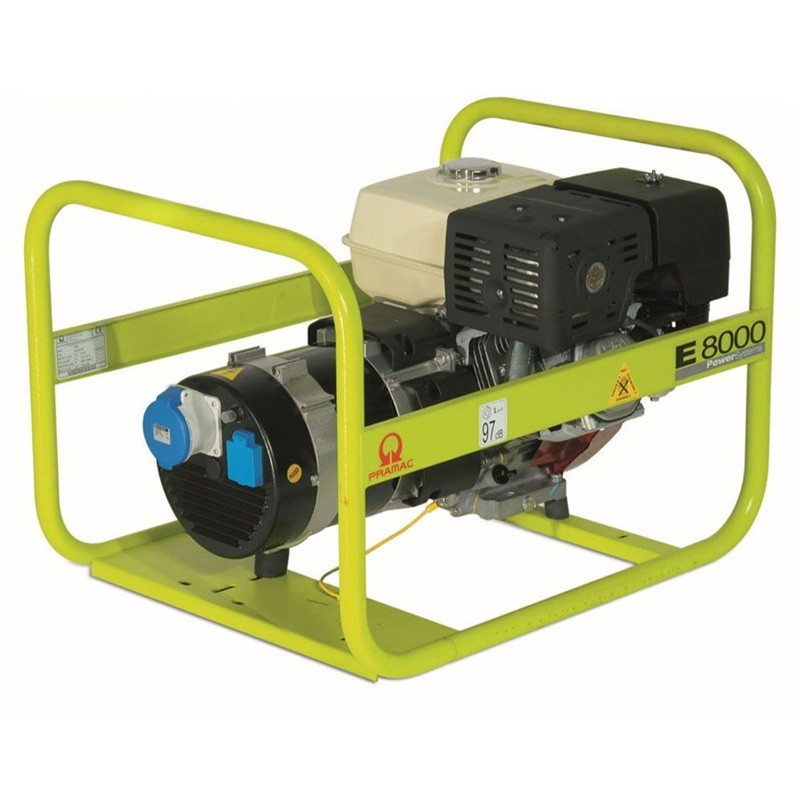

The Gasoline Electric Generator Pramac E8000, equipped with a reliable Honda GX390 Recoil engine, is a powerful power source designed to provide a reliable power supply in a wide range of situations. With an intuitive control panel, this generator offers simple operation through commands such as on/off switch, manual start and a fuel key for efficient operation.

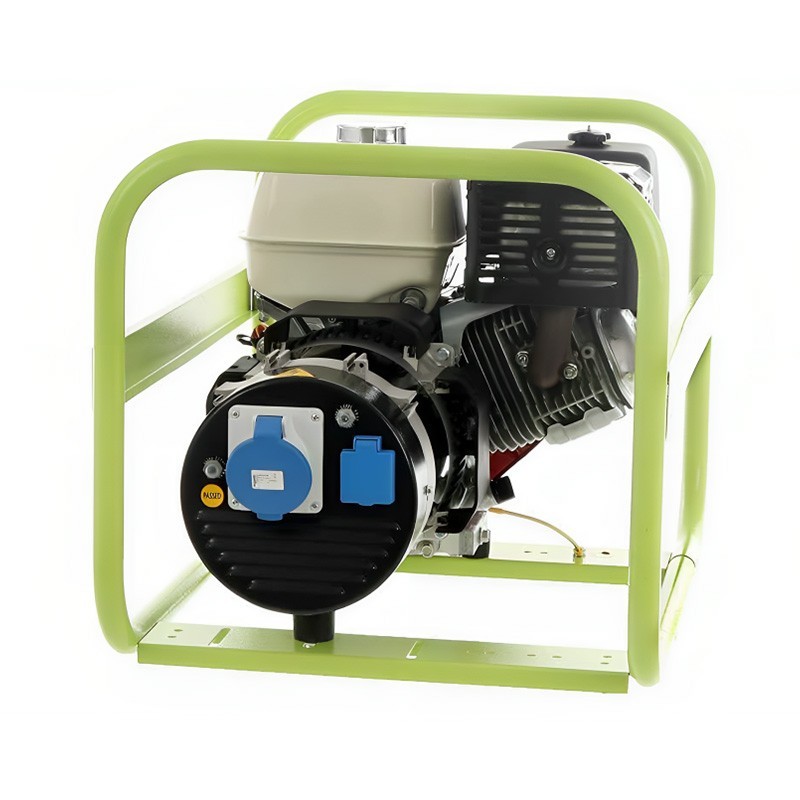

The generator also comes with essential protection features, including thermal protection and an oil level alarm, ensuring safe and long-lasting performance. Its 230V 16A SCHUKO and 230V 32A 2P+T CEE sockets make it versatile for use in a variety of electrical applications.

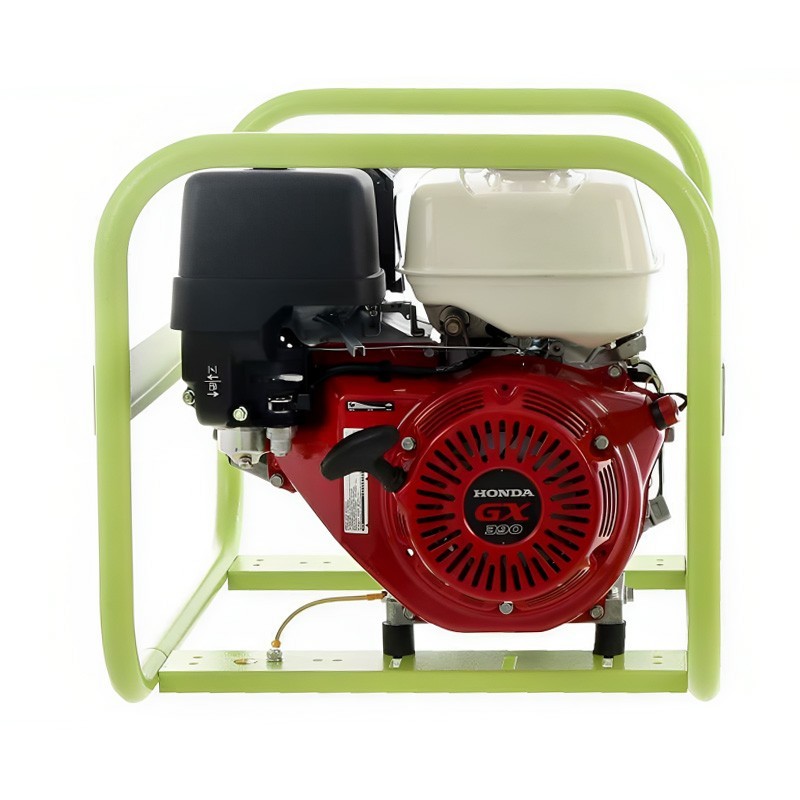

With a maximum power rating of 6400W and a power rating of 5500W, this generator ensures a constant power supply. Its Honda engine and air cooling system provide reliability and efficiency, while the mechanical speed governor maintains operation at 3000 rpm.
In addition, with a fuel tank capacity of 6.1 liters and low fuel consumption, it offers an autonomy of up to 2.85 hours at 75% load, making it an excellent choice for situations where portable and reliable power is required.
| Frequency | 50 Hz |
| Voltage | 230 V |
| Power factor | 0.9 cos ϕ |
| Phases | 1 |
| Maximum power | 6400 W |
| Nominal power | 5500 W |
| Engine Brand | Honda |
| Model | GX390 Recoil |
| Cooling System | Air |
| Aspiration | Natural |
| Speed regulator | Mechanical |
| Nominal operating speed | 3000 rpm |
| Fuel | Gasoline |
| Starting system | Manual |
| Oil tank | 1.1 l |
| Displacement | 389 cc |
| Alternator type | Brushless |
| Class | H |
| IP protection | 23 |
| Poles | 2 |
| Voltage regulation system | Compound |
| Guaranteed sound level (LWA) | 97 dBA |
| Noise pressure level @ 7 mt | 69 dB(A) |
| Fuel tank capacity | 6.1 l |
| Fuel consumption at 75% load | 2.14 l/h |
| Fuel consumption at 100% load | 2.87 l/h |
| Autonomy at 75% load | 2.85 h |
| Autonomy at 100% load | 2.13 h |
| Dimensions | 750 x 578 x 531 |
| Dry weight | 72 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
