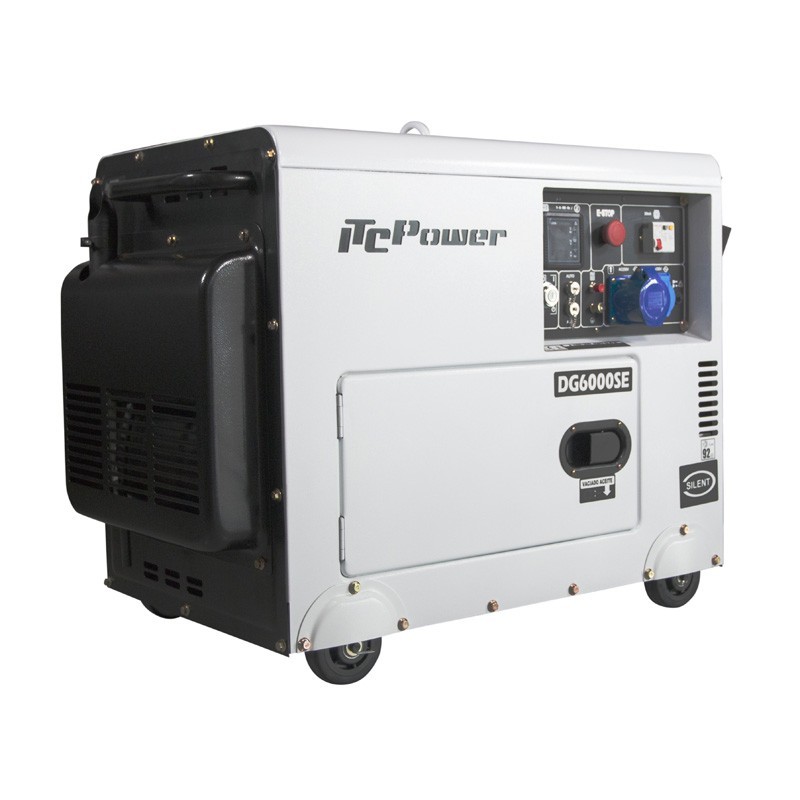

The electric generator ITCPower DG6000SE has a nominal power of 4500 W and a maximum power of 5300 W. It also works with a frequency of 50 Hz and a voltage of 230 V.
The machine has a D400E engine with a power of 10 HP and a displacement of 418 cc. This generator operates at 3000 RPM and has an oil capacity of 1.65 L.
The ITCPower DG6000SE generator also features the A5S single-phase alternator with an AVR stabilization and a power rating of 5 kVA.
| Model | DG6000SE |
| Voltage | 230 V |
| Maximum Power | 5300 W |
| Nominal Power | 4500 W |
| Nominal current | 23,9 A |
| Outputs | 2 x 16A |
| Display | LED5 |

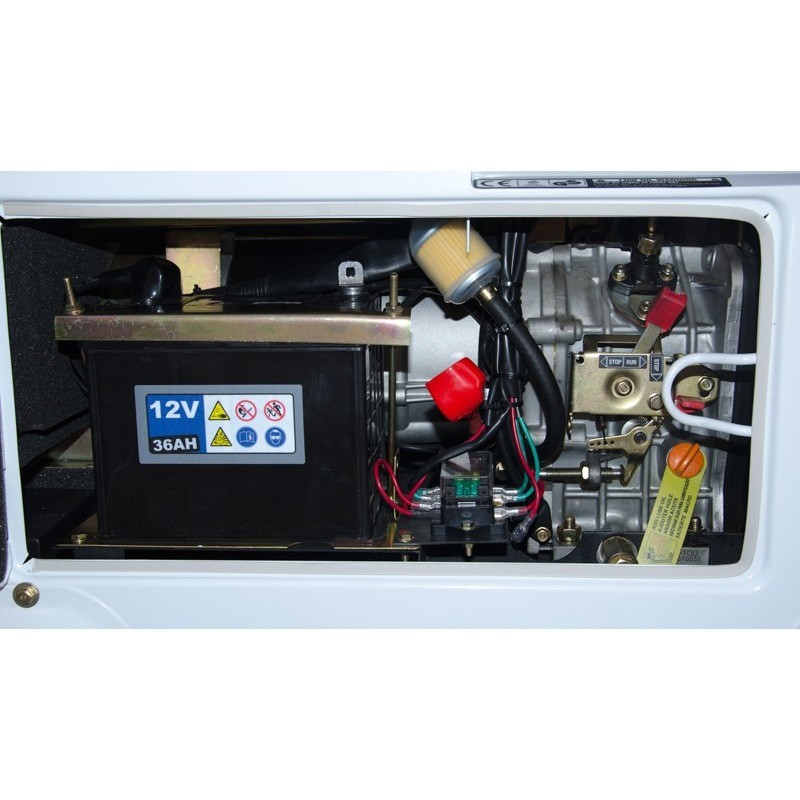

| Battery | 36 Ah |
| DC output | 12V / 8.3 A |
| Fuel Capacity | 12 L |
| Autonomy at 50% load | 11 H |
| Motor - Nominal Power | 10 HP |
| Engine - Revolutions | 3.000 RPM |
| Engine - Starting Mode | Electric |
| Engine - Displacement | 418cc |
| Engine - Oil Capacity | 1,65 L |
| Alternator - Model | A5S |
| Alternator - Rated Power | 5 kVA |
| Alternator - Power Factor | 1 |
| Alternator - Voltage Regulation | AVR / Brush |
| Net Weight | 152 Kg |
| Gross Weight | 168 Kg |
| Product Dimensions | 920x520x760 mm |
| Box Dimensions | 950x570x790 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
