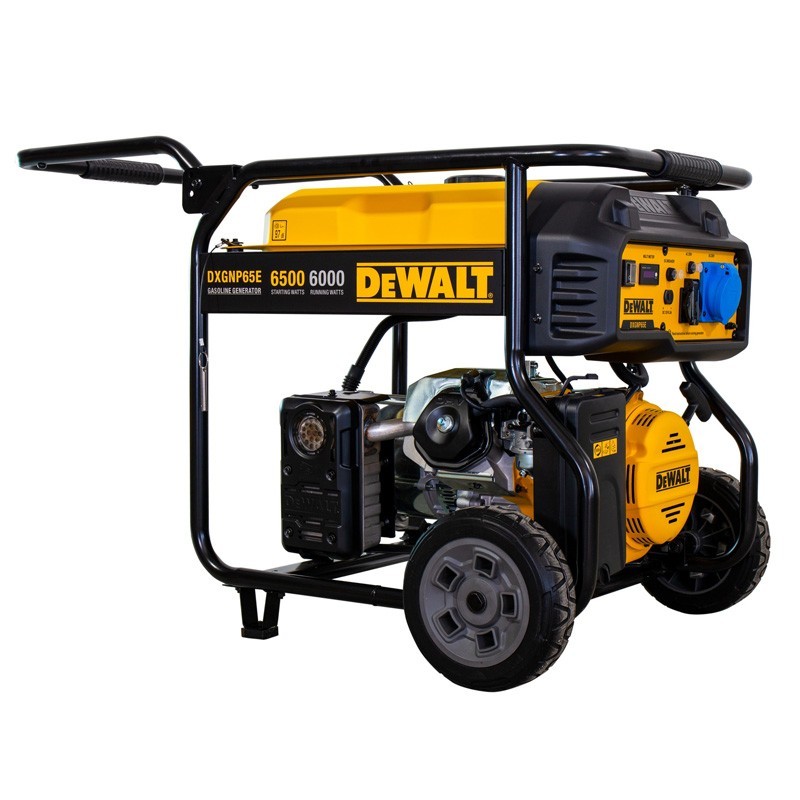

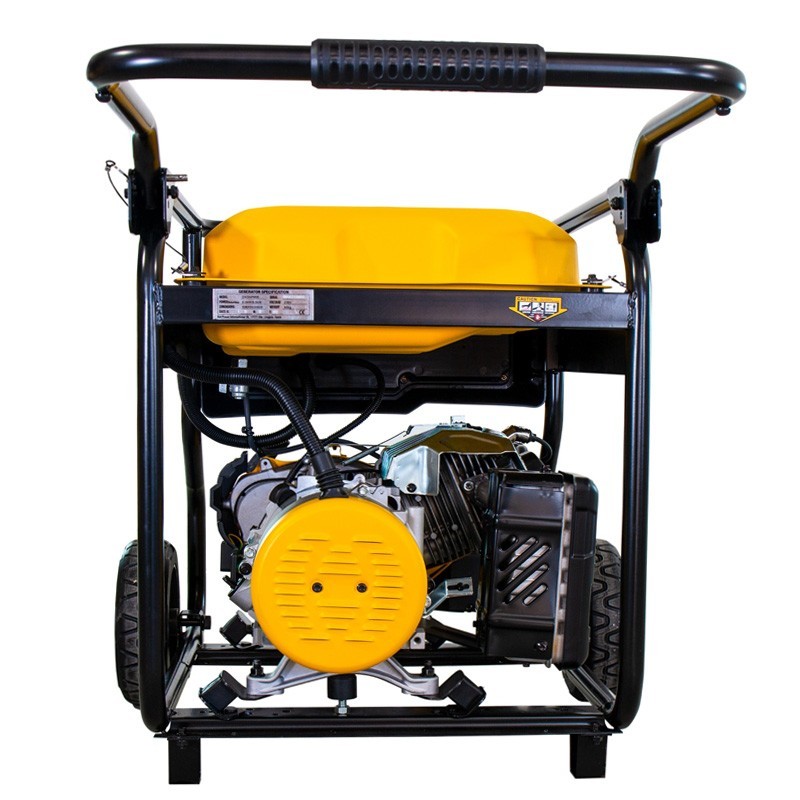

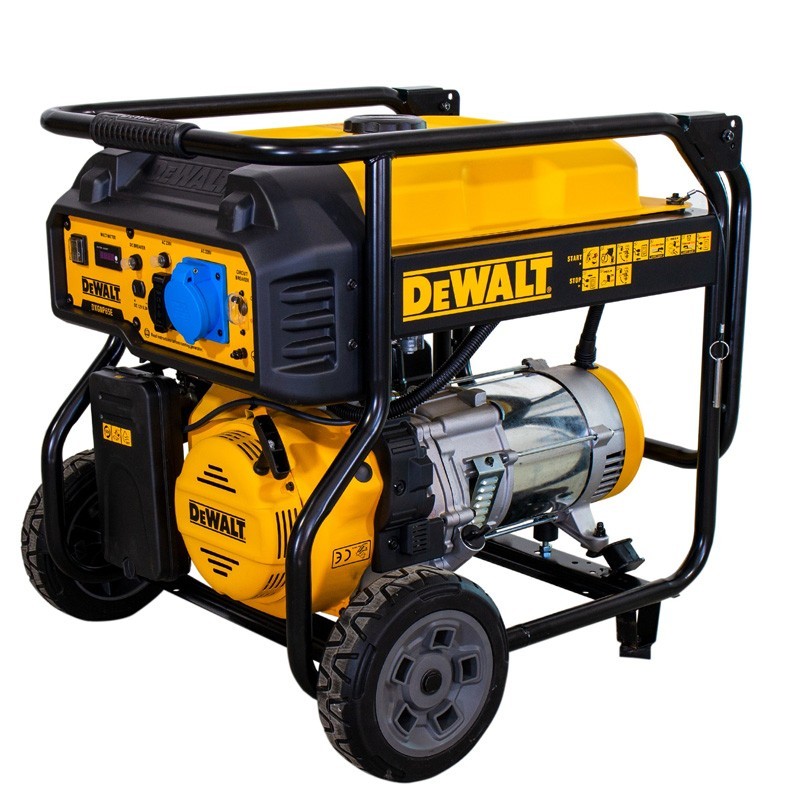

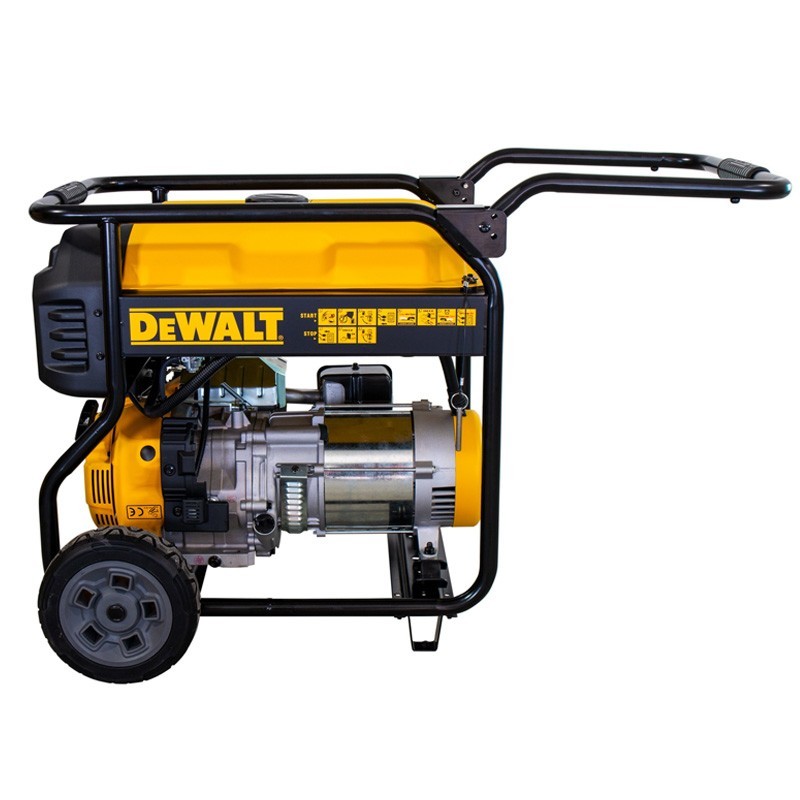

The Dewalt DXGNP65E electric generator is a powerful power source with a rated power of 6 kW and a maximum capacity of 6.5 kW, driven by a 15 Hp OHV 4T gasoline engine that ensures reliable performance.
Its 420 cc displacement and a manual starting system make it suitable for various applications, while its AVR stabilization ensures a stable power supply at 230 V and 50 Hz.
With a power factor of 1 cos φ and an ignition system T.C.I, this generator features a robust design that prioritizes safety, with oil alarms to prevent damage due to lack of lubrication and an overload alarm to protect both equipment and connected devices.
The combination of a 28 L fuel tank and efficient fuel consumption supports its ability to operate for long periods, offering a durable and versatile solution for a variety of power needs.
| Power rating | 6 kW |
| Maximum power rating | 6.5 kW |
| Displacement | 420 cc |
| Voltage | 230 V |
| Frequency | 50 hz |
| Power factor | 1 cos φ |
| Stabilization | AVR |
| Engine | 4-stroke OHV gasoline |
| Power | 15 Hp |
| Model | DW420(E) |
| Bore x stroke | 90x66 mm |
| Condensation ratio | 8.5:1 |
| Starting system | Manual |
| Ignition system | T.C.I |
| Fuel tank capacity | 28 L |
| Oil tank capacity | 1,1 L |
| Insulation grade | F |
| Performance grade | G1 |

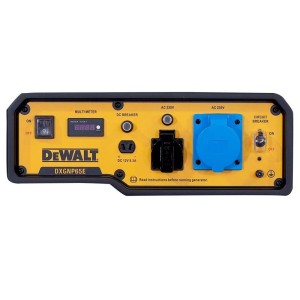

| Outputs | 230 V (16 A), (32 A) |
| DC outputs | 12 V (8.3 A) |
| Weight | 85 / 91 Kg |
| Dimensions | 696x553x628 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
