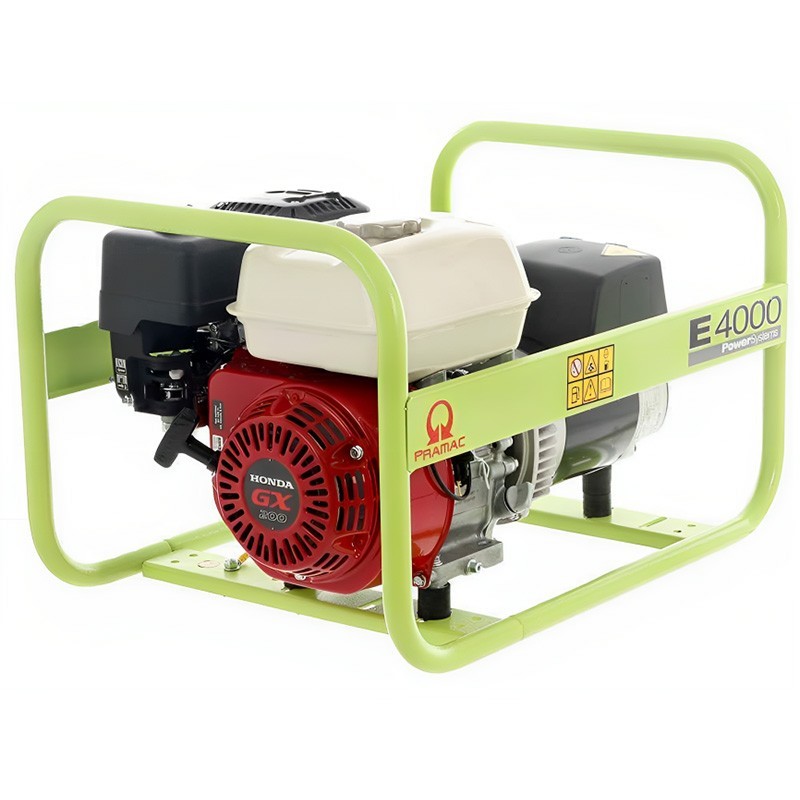

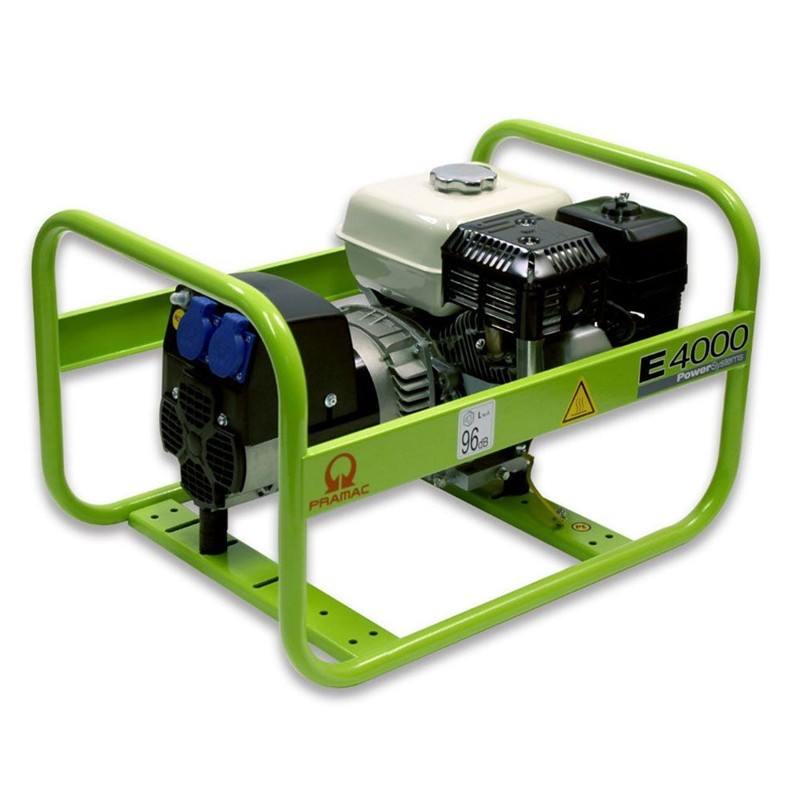

The gasoline electric generator Pramac E4000 offers a maximum power of 3100 W and a nominal power of 2600 W with a Honda GX200 engine and air cooling system. Its starting system is manual, with an oil tank of 0.6 liters and a displacement of 196 cc. Voltage regulation is inverter type, providing 230 V at 50 Hz, with a power factor of 0.9 cos ϕ.
The Pramac E4000 generator has a class H brushless alternator and IP23 protection. It offers a voltage tolerance of +5; -10 (cosϕ1) % and uses a compound to regulate the voltage. Noise-wise, it has a guaranteed sound level (LWA) of 96 dBA and a noise pressure level of 68 dBA at 7 meters. The fuel tank has a capacity of 3.1 liters, with a consumption of 1.18 liters per hour at 75% load and 1.57 liters per hour at 100% load.

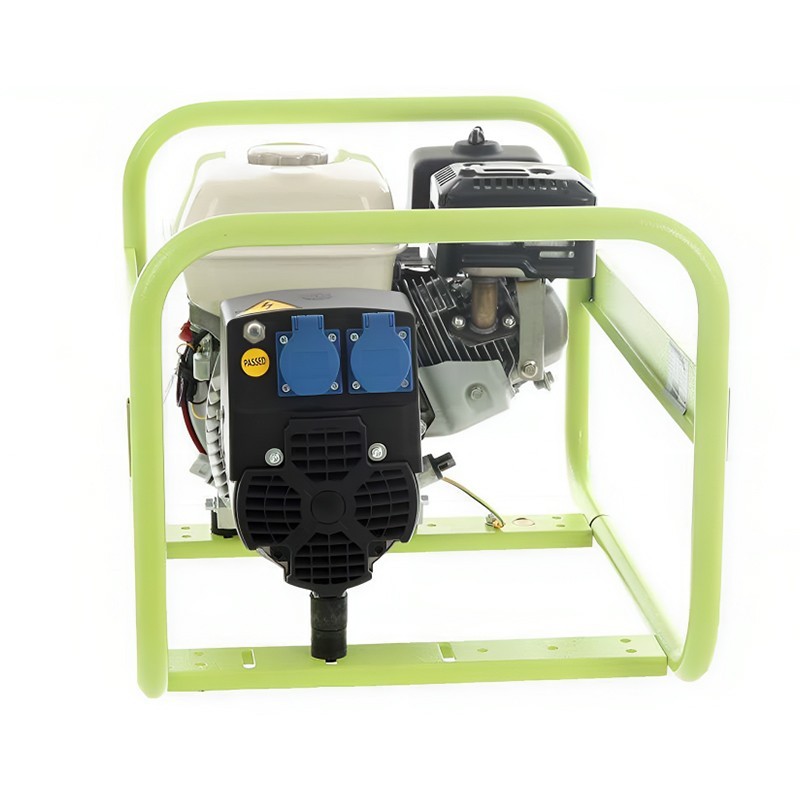

In terms of controls, the Pramac E4000 generator includes a start switch with OFF and ON options, manual start and a fuel tap. It is also equipped with protections, such as a circuit breaker and low oil level protection. For the connection of devices, it has 2-inch SCHUKO 230V 16A IP54 sockets.
| Frequency | 50 Hz |
| Voltage | 230 V |
| Power factor | 0.9 cos ϕ |
| Phases | 1 |
| Maximum power | 3100 W |
| Nominal power | 2600 W |
| Engine Brand | Honda |
| Model | GX200 |
| Cooling system | Air |
| Aspiration | Natural |
| Speed regulator | Mechanical |
| Nominal operating speed | 3000 rpm |
| Fuel | Gasoline |
| Starting system | Manual |
| Oil tank | 0.6 l |
| Displacement | 196 cc |
| Alternator type | Brushless |
| Class | H |
| IP protection | 23 |
| Poles | 2 |
| Voltage tolerance | +5; -10 (cosϕ1) % |
| Voltage regulation system | Compound |
| Guaranteed sound level (LWA) | 96 dBA |
| Noise pressure level @ 7 mt | 68 dB(A) |
| Fuel tank capacity | 3.1 l |
| Fuel consumption at 75% load | 1.18 l/h |
| Fuel consumption at 100% load | 1.57 l/h |
| Autonomy at 75% load | 2.63 h |
| Autonomy at 100% load | 1.97 h |
| Dimensions | 640 x 458 x 400 |
| Dry weight | 38 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
