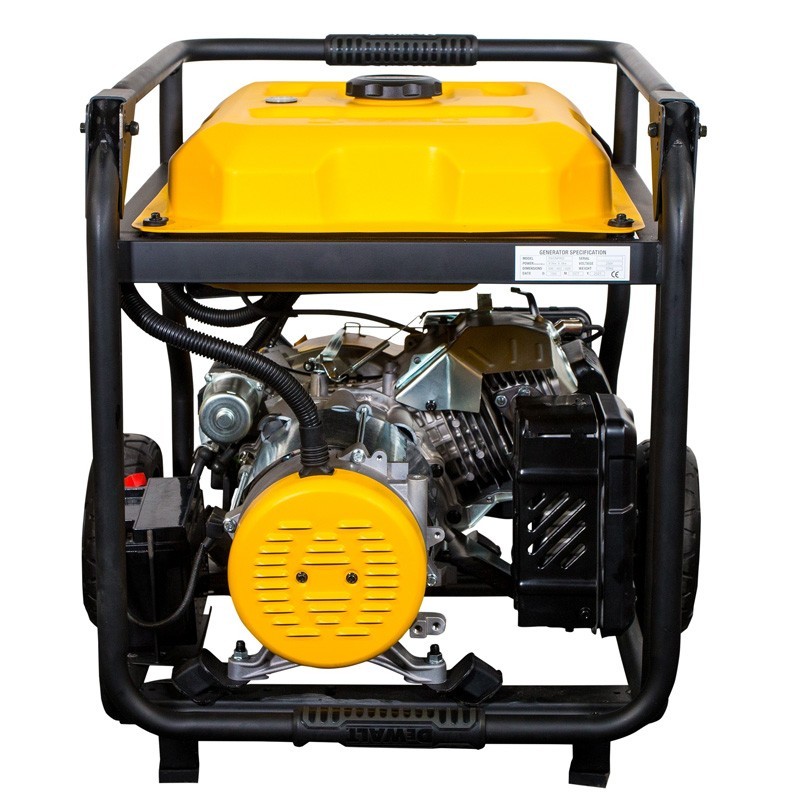

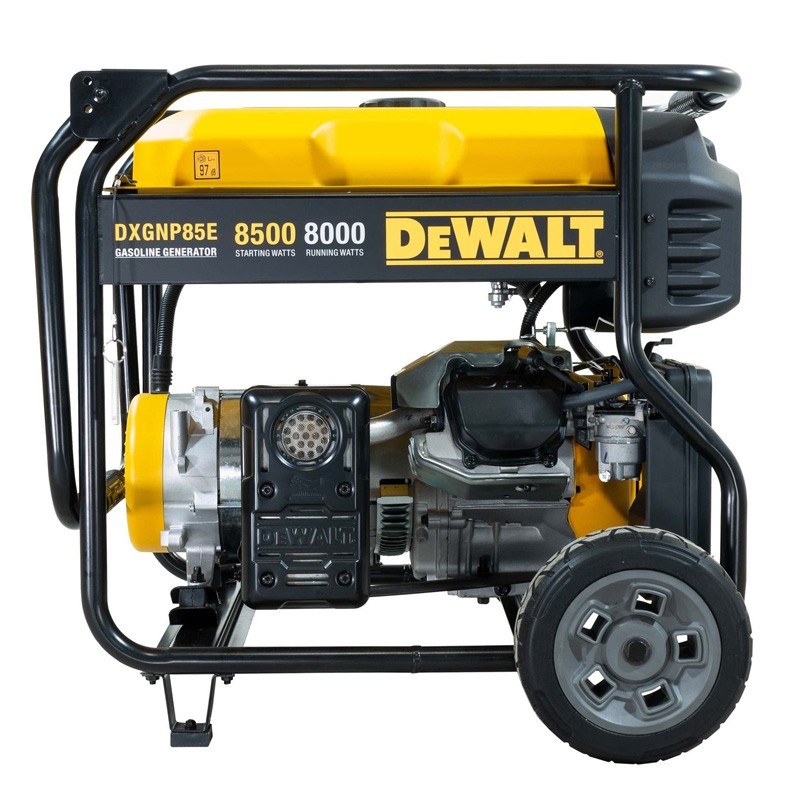

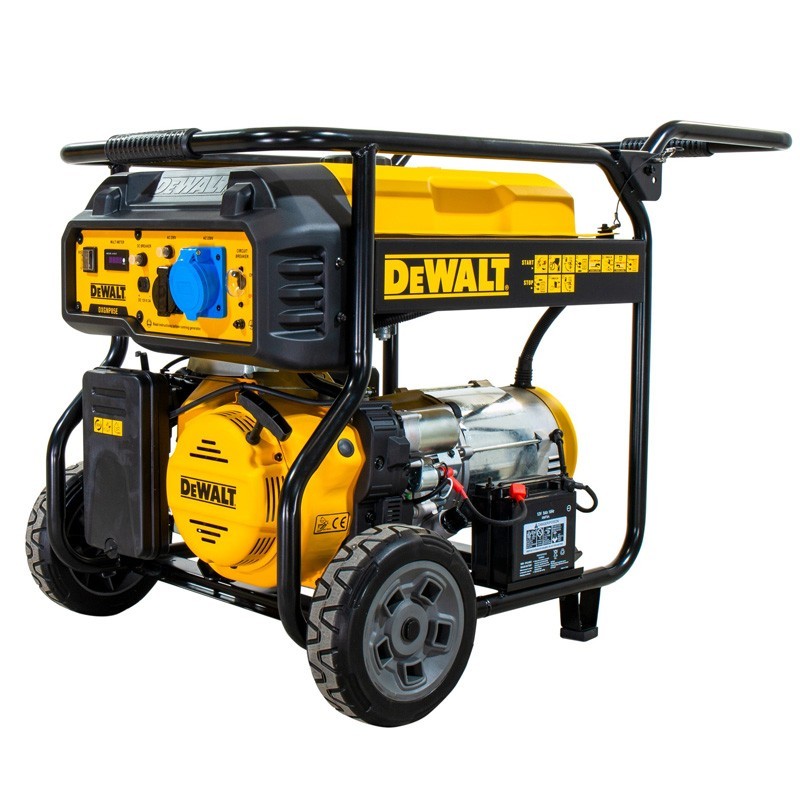

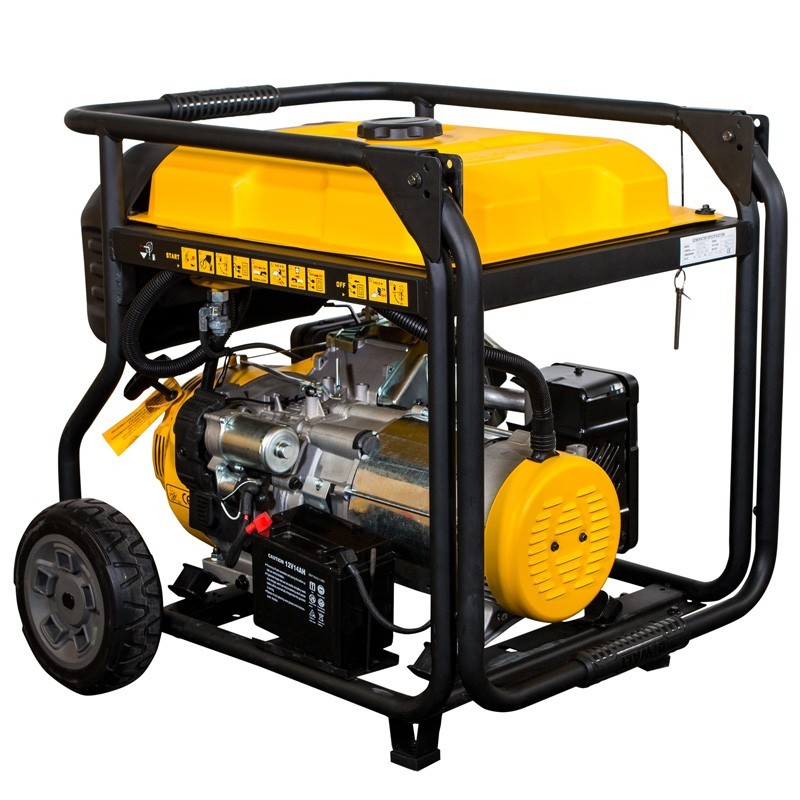

The Dewalt DXGNP85E electric generator is a powerful power source, driven by a robust 16 Hp OHV gasoline engine that ensures reliable performance. With a dual start system, either manual or electric, it offers versatility and convenience in operation.
Its trouble-shooting capability, such as the oil alarm with automatic shutdown in case of oil shortage, ensures equipment protection and prolongs its service life.

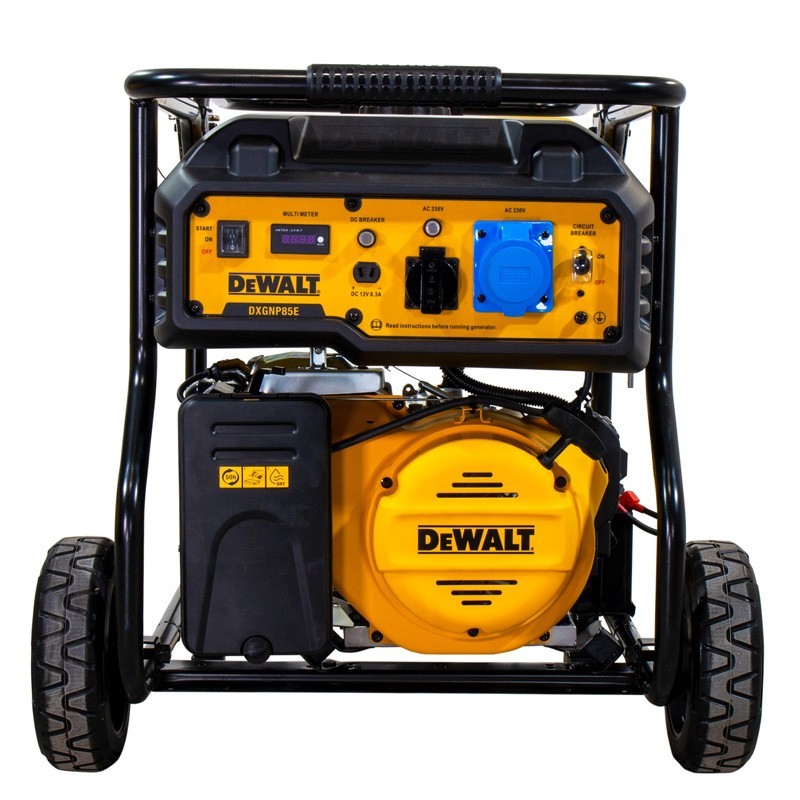

In addition, its digital panel provides crucial information for monitoring its operation, with accurate readings of voltage, frequency and working hours.
With a rated power of 8 kW and a maximum power of 8.5 kW, along with a displacement of 456 cc, this generator is capable of meeting power demands in a variety of situations.
| Power rating | 8 kW |
| Maximum power rating | 8.5 kW |
| Displacement | 456 cc |
| Voltage | 230 V |
| Frequency | 50 hz |
| Power factor | 1 cos φ |
| Stabilization | AVR |
| Engine | 4-stroke OHV gasoline |
| Power | 16 Hp |
| Model | DW460(E)-V |
| Bore x stroke | 92x69 mm |
| Condensation ratio | 8.5:1 |
| Starting system | Manual/electric |
| Ignition system | T.C.I |
| Fuel tank capacity | 28 L |
| Oil tank capacity | 1,1 L |
| Insulation grade | F |
| Performance grade | G1 |
| Outputs | 230 V (16 A), (32 A) |
| DC outputs | 12 V (8.3 A) |
| Weight | 89 / 95 Kg |
| Dimensions | 696x553x628 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
