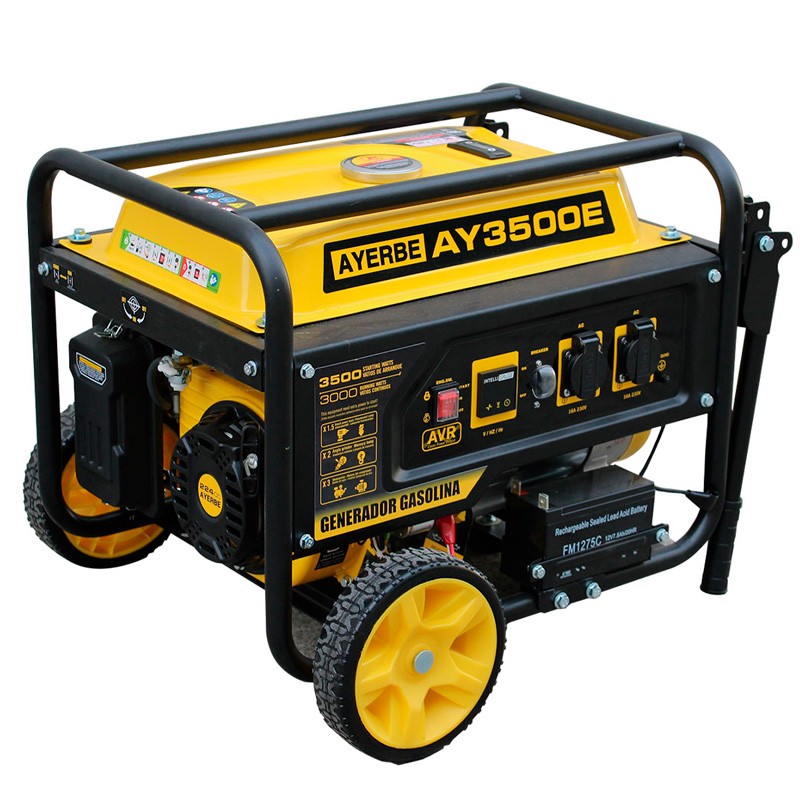

The Ayerbe 3500 delivers 3,500 W maximum and 3,000 W nominal at 230 V 50 Hz with power factor 0.8. It is powered by a 224 cc KIOTSU engine at 3,600 rpm with air cooling and electric start for quick starts. The set operates at 3,000 rpm and maintains a sound level of 68 dB at 7 meters.
The AYERBE 3500 alternator incorporates AVR with voltage tolerance of 1 percent to protect tools and electronic equipment. It uses class H insulation and IP23 protection with a 2-pole design that ensures stability under continuous load.
Autonomy is one of its strong points thanks to the 15-liter tank and a consumption of 1.2 L per hour at 75 percent that reaches up to 12.5 hours per refueling. It is easy to transport at 47 kg and measures 710 x 465 x 465 mm. Maintenance is simple with recommended SAE 20W40 oil and index of 0.6 L and accessible filter.
| Generator - Main data | |
| Engine brand | KIOTSU |
| Maximum power | 3.500 W |
| Rated power | 3.000 W |
| Rated speed | 3.000 r.p.m. |
| Voltage / Frequency | 230 V / 50 Hz |
| Soundproof booth | No |
| Starter | Manual / Electric |
| Power factor | Cos φ 0.8 |
| Noise level | 92 LwA / 68 LpA at 7 m |
| Motor - Characteristics | |
| Manufacturer | KIOTSU |
| Model | KT |
| Displacement | 224 cc |
| Cooling System | Air |
| Recommended oil | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. of engine | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Consumption at 75% | 1.2 L/h |
| Oil capacity | 0,6 L |
| Starting system | Manual / Electric |
| Alternator | |
| Brand | AYERBE |
| Model | 3500 |
| Type | Electronic regulation |
| Insulation class | Class H |
| IP protection | IP 23 |
| Excitation system | A.V.R. |
| Voltage tolerance | ± 1% |
| No. of poles | 2 |
| Voltage / Frequency | 230 V / 50 Hz |
| Coating | Standard (without impregnation) |
| Dimensions and weight | |
| Length (L) | 710 mm |
| Height (H) | 465 mm |
| Width (W) | 465 mm |
| Packing volume | 0,15 m³ |
| Weight | 47 kg |
| Tank capacity | 15 L |
| Autonomy at 75% | 12,5 hours |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
