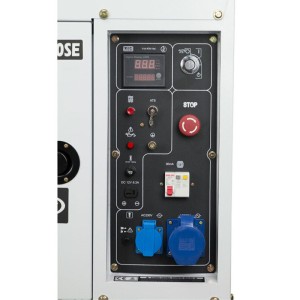

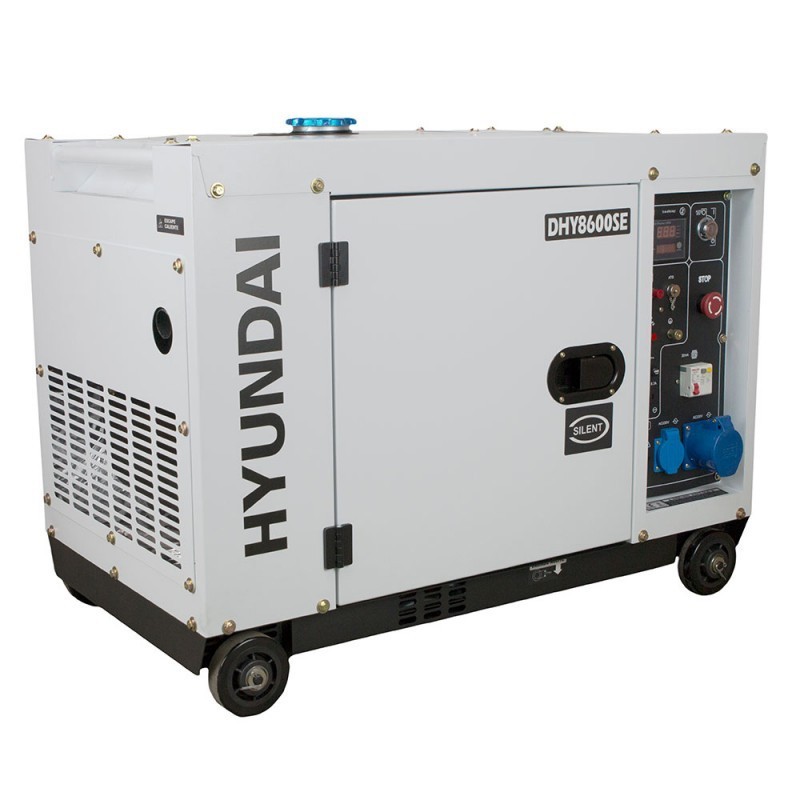

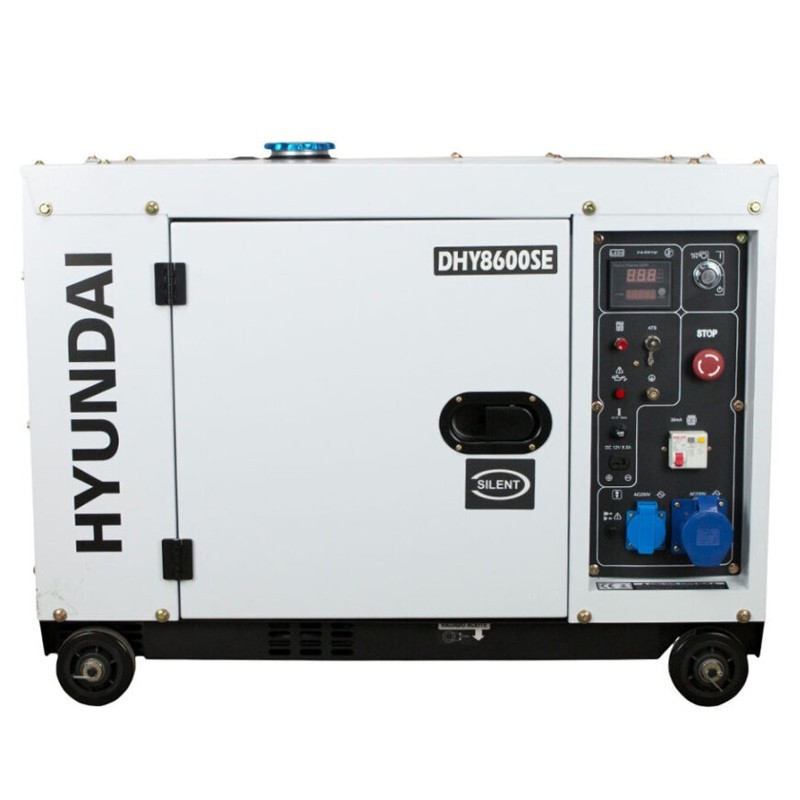

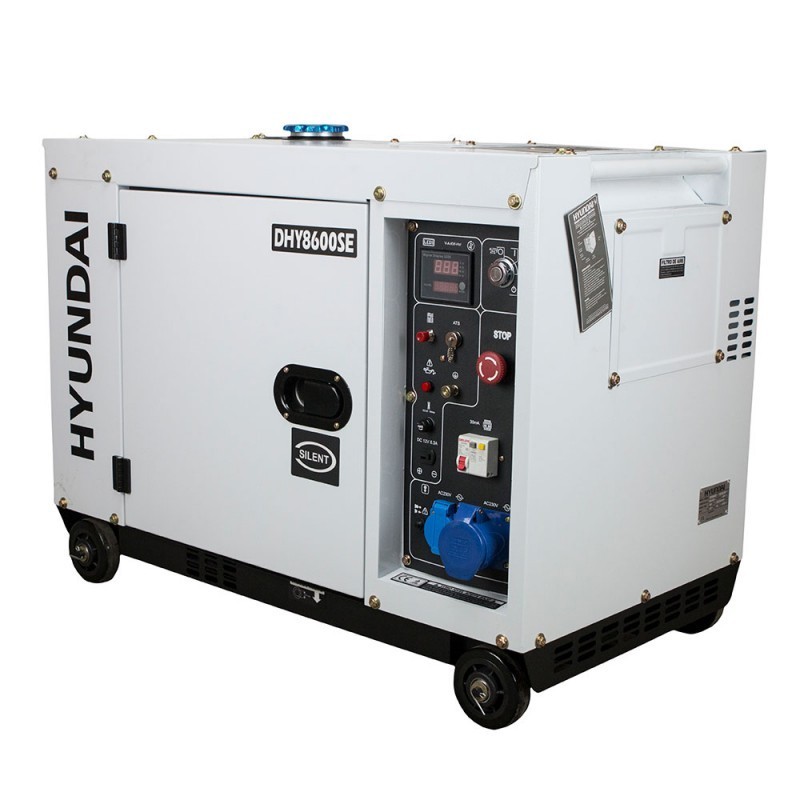

The HYUNDAI DHY8600SE diesel electric generator with a control panel includes protective measures such as overload detection by current measurement, an LED display6 that provides clear and useful information, a pre-heating system for trouble-free starting and a 30 mA differential for safety against current leakage.
In addition, this single-phase model has two 16A and 32A sockets, low oil level alarm and automatic shutdown, grounding, ATS connection for automatic transfer and battery status reading.

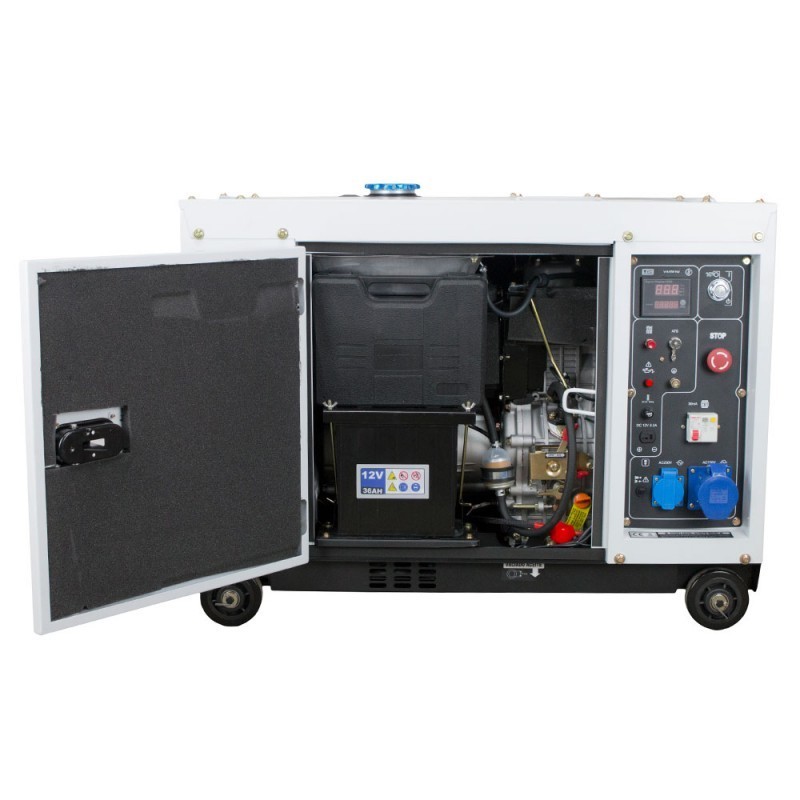

As for its technical characteristics, the generator is equipped with a 4-stroke air-cooled diesel engine with direct injection and a rated power of 6 kW, with the capacity to reach up to 6.3 kW in maximum power. Its 12-liter tank capacity allows it to run for 10 hours at 50% load.
In addition, the generator is quite quiet, with a noise level of 72 dBA at 7 meters. Its 13 HP HYUNDAI D500E engine ensures a smooth and fast start, and its compact design makes it easy to install and requires low maintenance and fuel consumption.
The alternator of this generator is compact and uses AVR voltage regulation for stable operation and reliable power output.
In addition, 100% of its winding is made of copper, which improves the efficiency and durability of the generator. With product dimensions of 920x520x760 mm and a net weight of 152 kg, this HYUNDAI DHY8600SE diesel electric generator is a robust and reliable choice to meet your power supply needs in various applications.
| Frequency | 50 Hz |
| Rated Power | 6 kW |
| Maximum Power | 6,3 kW |
| Voltage | 230 V |
| Current | 28 A |
| Sockets | 1x16A / 1x32A |
| Digital display | LED6 |
| Tank capacity | 12 L |
| Operation at 50% load | 10 h |
| Noise level at 7 Mts; 50% | 72 dBA |
| Battery | 36 Ah |
| Engine Type | Diesel |
| HYUNDAI engine model | D500E |
| Power | 13 HP |
| Starting mode | Electric |
| Displacement | 498 cc |
| Oil capacity | 1,65 L |
| Alternator | A6S |
| Rated power | 6 kVA |
| Power factor | 1 Cos φ |
| Voltage regulation type | AVR |
| Net Weight | 152 Kg |
| Gross Weight | 168 Kg |
| Product Dimensions | 920x520x760 mm |
| Packing Dimensions | 950x570x790 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
