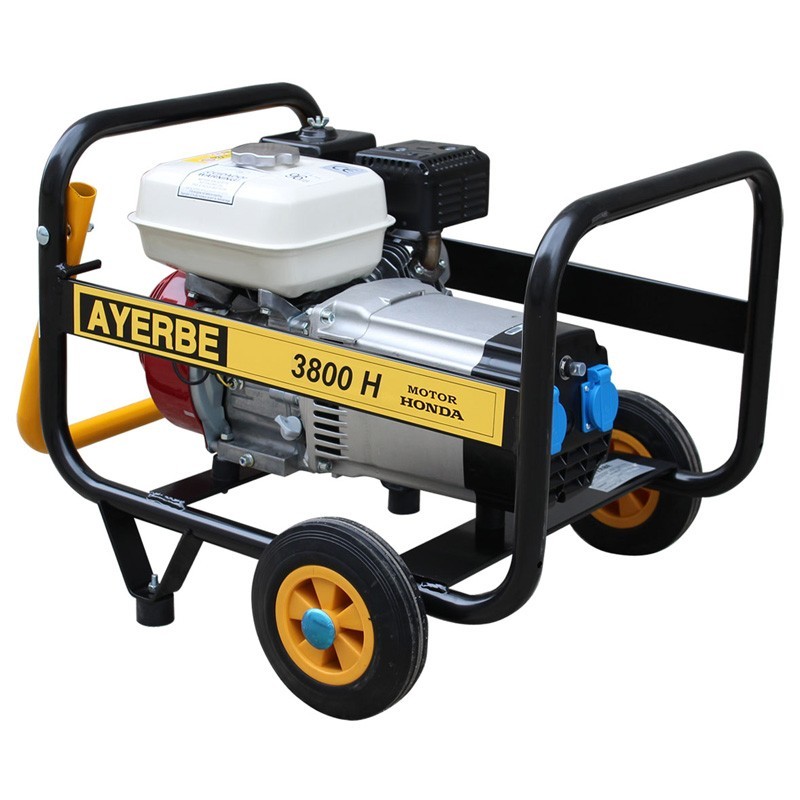

The Gasoline Electric Generator Ayerbe AY 3800 H MN is a reliable and versatile power source. With a maximum power output of 3.8 KVA and a rated output of 3.2 KVA, this generator is capable of providing the power needed for a variety of applications. Its 5.5 HP HONDA engine with 162 cc displacement ensures exceptional performance and efficient cooling thanks to its air system.
This generator has a manual starting system and a mechanical speed regulator that ensures optimum performance. Its gasoline fuel gives it an autonomy of 2.8 hours at 75% load, making it a long-lasting power source.
The LINZ brushless alternator guarantees stable power output, with IP 23 protection and a voltage tolerance of +/- 5%. With a sound level of 96 LwA at 73 LpA at 7 meters, it is a quiet option for your power needs. With a tank capacity of 3.1 liters, this generator is the ideal choice for applications that require a reliable, long-lasting power source.
| Maximum power | 3.8 KVA - 3,000 WATTS |
| Rated power | 3,2 KVA - 2.500 W |
| R.p.m. | 3.000 r.p.m. |
| Voltage / Frequency | 230 V. / 50 Hz. |
| Starting | Manual |
| Power factor | Cos phi 0,8 |
| Noise level | 96 LwA / 73 LpA@7m |
| Motor | |
| Brand | HONDA |
| Model | GX 160 |
| Power | 5.5 HP |
| Displacement | 162 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 1.1 L/H |
| Oil capacity | 0,58 L |
| Starting system | Manual |
| Alternator | |
| Brand | LINZ |
| Model | SP 10 SE |
| Type | Brushless |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Self-excited brushless |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 3,1 l |
| Autonomy at 75% | 2.8 hours |
| Weight | 50 kg |
| Dimensions | 650 x 540 x 630 mm |
| Packing volume | 0,22 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
