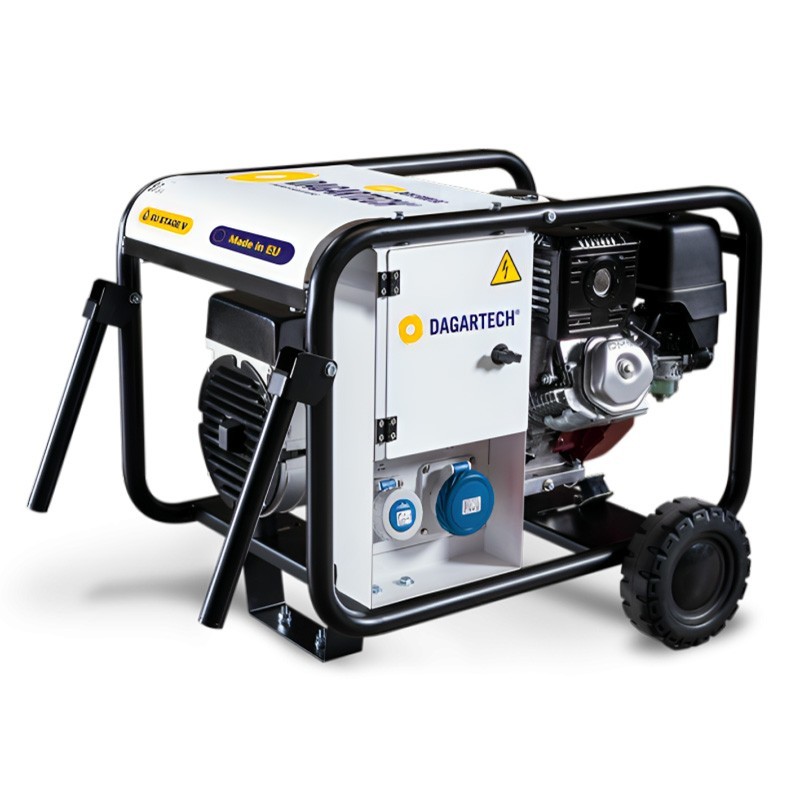

The electric generator Dagartech DGH 5000 BC includes essential features such as individual magneto-thermal and differential protection, as well as thermal protection, which provides an additional layer of safety during operation. In addition, its hour meter allows accurate recording of operating time, which is essential for maintenance and performance monitoring.
Equipped with a high-quality Honda GX 390 engine , this generator offers a continuous power output of 8.2 kW at 3000 rpm, making it capable of powering a wide variety of devices and equipment with ease. Its manual start system and 6.1-liter capacity tank ensure simple and continuous operation.
The engine is also fuel efficient, extending the generator's autonomy, with up to 3.4 hours of operation at 75-100% load.
The LINZ E1C11M B alternator provides a PRP output of 10 kVA, with an insulation class H and a mechanical protection rating of IP23. This electrical generator is suitable for a wide variety of applications, from emergency power supply in homes and businesses to use in construction projects and outdoor events.
| Frequency | 50Hz |
| Voltage | 230V |
| Working speed | 3000 rpm |
| Power factor | 1 cos φ |
| Tank | 6,1 L |
| Starting type | Manual |
| Nominal power | 8000 W |
| ENGINE | |
| Model | HONDA GX 390 |
| Continuous power 3000 rpm | 8,2 kW |
| Net power 3600 rpm | 8,7 kW |
| Fuel | Gasoline |
| No. of cylinders | 1 cylinder |
| Displacement | 390 cc |
| Compression ratio | 8,2:1 |
| Maximum torque | 25.1 Nm (2500 r.p.m.) |
| Cooling system | Air-cooled |
| Starting | Manual |
| Fuel tank capacity | 6,1 L |
| Consumption at 75 - 100% load | 1,8 l/h - 2,4 l/h |
| Autonomy 75 - 100% charge | 3,4 h - 2,5 h |
| Total oil capacity | 1,1 L |
| Oil type | 15W40 |
| ALTERNATOR | |
| Model | LINZ E1C11M B |
| No. of poles | 2 |
| Insulation class | H |
| Mechanical protection rating | IP23 |
| Voltage regulator | Compound |
| Power PRP 40ºC | 10 kVA |
| No. of phases | 1 |
| Power factor | 1 cos φ |
| Dimensions with casters | 856 x 696 x 652 mm |
| Weight with casters | 108.3 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
