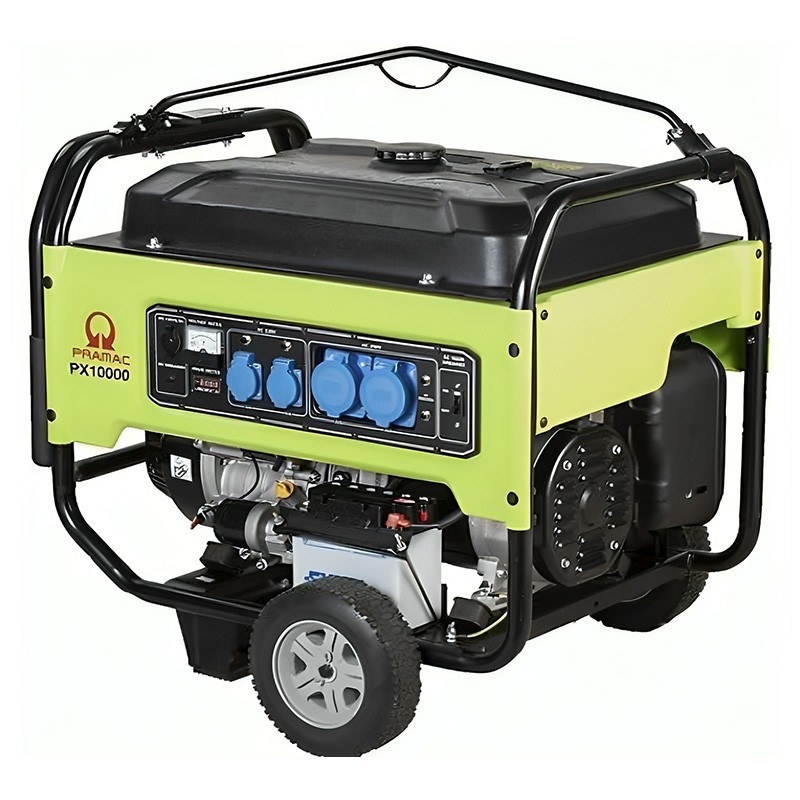

The gasoline electric generator Pramac PX10000 with an electric start system and manual start option, this generator is easy to start. It offers a frequency of 50 Hz and a voltage of 230 V, making it suitable for a wide range of electrical equipment and devices.
In addition to its powerful 230 V output, the PX10000 also features a 12V DC output at 8.3A, allowing you to charge batteries and use low-voltage devices. As for sockets, it has two 230V SCHUKO at 16A IP44 and two 2P+T CEE 230V at 32A IP44, providing versatile connection options.
The Model LC196FD engine of the Pramac PX10000 generator has been designed with optimized exhaust emission, meeting emissions standards, which is essential for both efficiency and the environment. The air-cooling system ensures optimal operation even under heavy-duty conditions.
In addition, the generator is equipped with important protections, such as a circuit breaker and low oil level protection, to keep it operating safely and reliably at all times.
| Frequency | 50 Hz |
| Voltage | 230 V |
| Power factor | 0.9 cos ϕ |
| Phases | 1 |
| Maximum power | 9300 W |
| Nominal power | 8500 W |
| Model | LC196FD |
| Exhaust emission optimized for 97/68 50Hz (COM) | Stage V |
| Cooling system | Air |
| Intake | Natural |
| Speed regulator | Mechanical |
| Nominal operating speed | 3000 rpm |
| Fuel | Gasoline |
| Starting system | Electric (+Manual) |
| Oil tank | 1.6 l |
| Displacement | 622 cc |
| Class | H |
| Poles | 2 |
| Voltage regulation system | AVR |
| Guaranteed sound level (LWA) | 101 dBA |
| Noise pressure level @ 7 mt | 73 dB(A) |
| Fuel tank capacity | 48 l |
| Fuel consumption at 75% load | 4.29 l/h |
| Autonomy at 75% load | 11.19 h |
| Dimensions | 837 x 785 x 924 |
| Dry weight | 143 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
