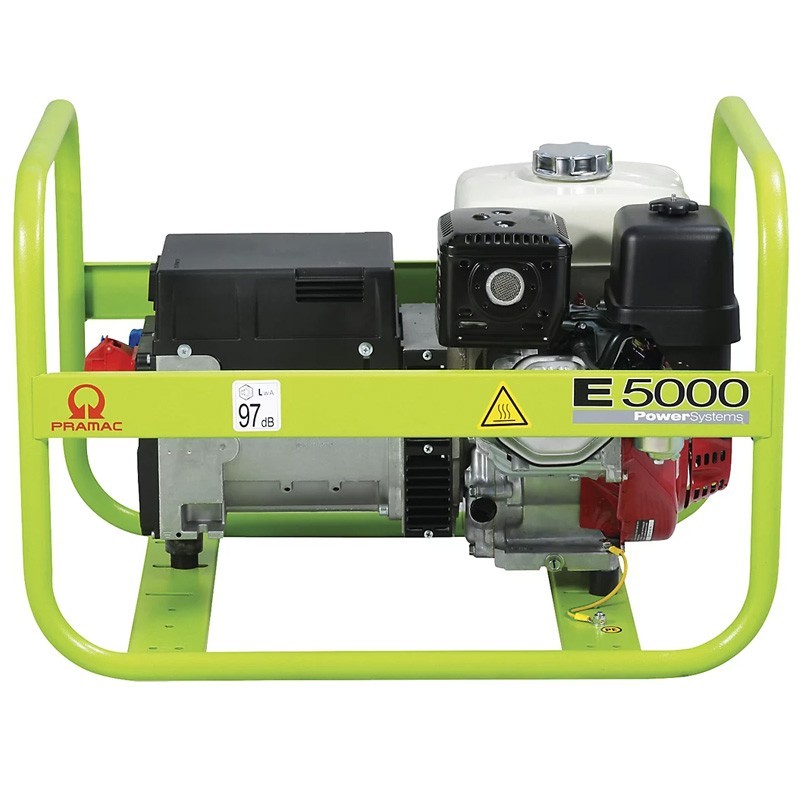

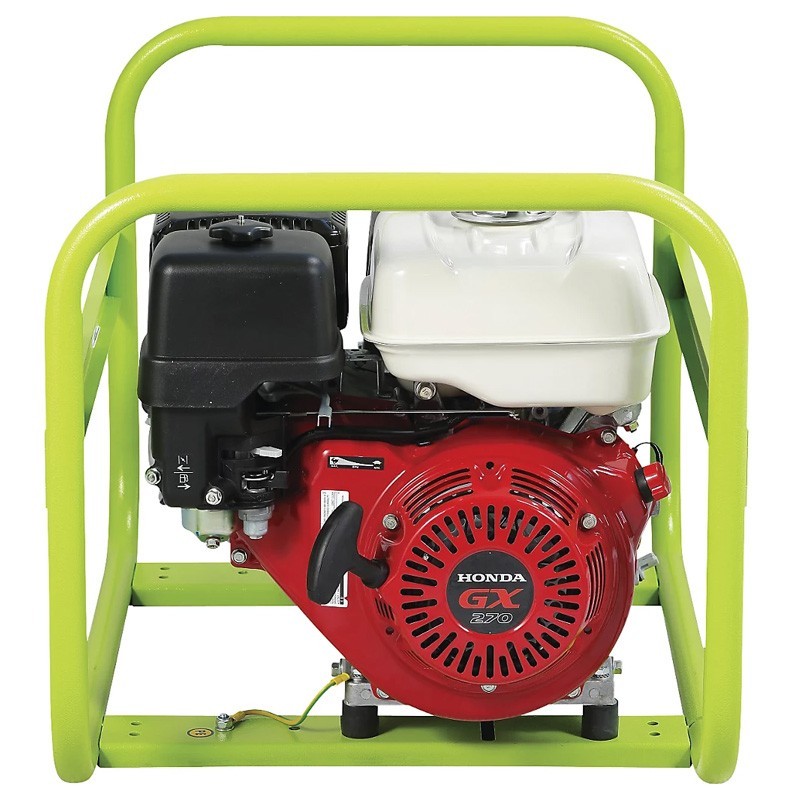

The Gasoline Electric Generator Pramac E5000 three -phase has a Honda GX270 Recoil engine that runs on gasoline and a naturally aspirated air cooling system, making it suitable for various applications. Its mechanical speed controller maintains constant operation at 3000 rpm.
With a frequency of 50 Hz and a voltage of 400/230 V, this three-phase generator is capable of providing a maximum power output of 5000 W and a three-phase power rating of 4300 W. In addition, it offers the versatility of operating in single-phase mode, with a maximum power rating of 3800 kVA and a single-phase power rating of 3500 kVA.

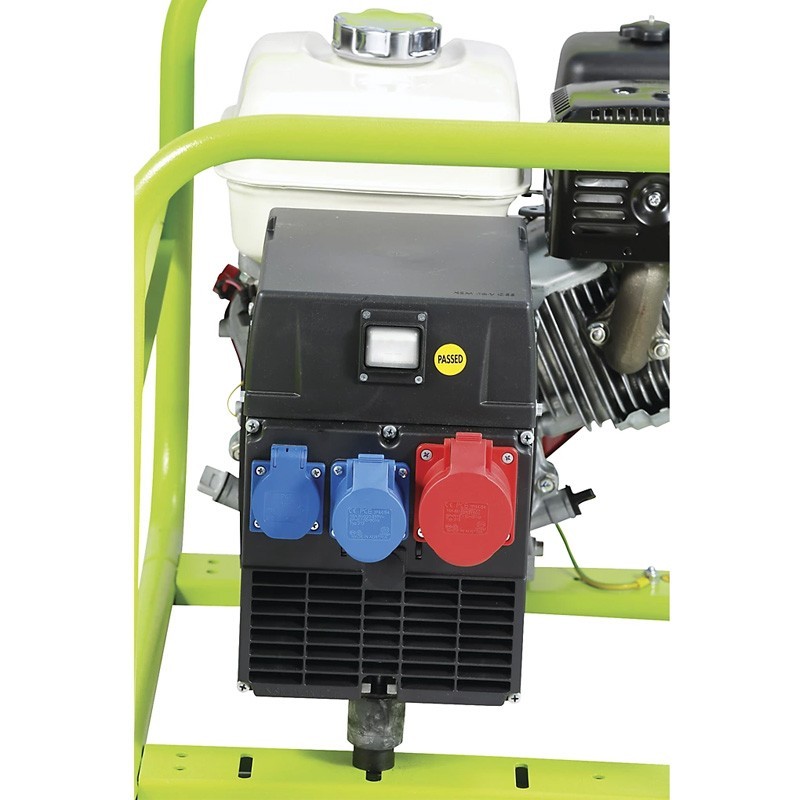

The generator's control panel is intuitive and offers essential commands such as on/off switch, manual start and a fuel key for easy operation. It is also equipped with vital protections, including thermal protection and an oil level alarm. It features a variety of sockets, such as 230V 16A IP54 SCHUKO, 230V 16A IP44 2P+T CEE and 400V 16A IP44 3P+N+T CEE.
| Frequency | 50 Hz |
| Voltage | 400/230 V |
| Power factor | 0.8 cos ϕ |
| Phases | 3 |
| Maximum three-phase power | 5000 W |
| Nominal three-phase power | 4300 W |
| Maximum single-phase power | 3800 kVA |
| Single-phase rated power | 3500 kVA |
| Engine Brand | Honda |
| Model | GX270 Recoil |
| Cooling system | Air |
| Aspiration | Natural |
| Speed regulator | Mechanical |
| Nominal operating speed | 3000 rpm |
| Fuel | Gasoline |
| Starting system | Manual |
| Oil tank | 1.1 l |
| Displacement | 270 cc |
| Alternator type | With brushes |
| Class | H |
| IP protection | 23 |
| Poles | 2 |
| Voltage tolerance | 6 % |
| Voltage regulation system | Compound |
| Guaranteed sound level (LWA) | 97 dBA |
| Noise pressure level @ 7 mt | 69 dB(A) |
| Fuel tank capacity | 5.3 l |
| Fuel consumption at 75% load | 1.66 l/h |
| Fuel consumption at 100% load | 2.22 l/h |
| Autonomy at 75% load | 3.19 h |
| Autonomy at 100% load | 2.39 h |
| Dimensions | 715 x 540 x 490 |
| Dry weight | 74 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
