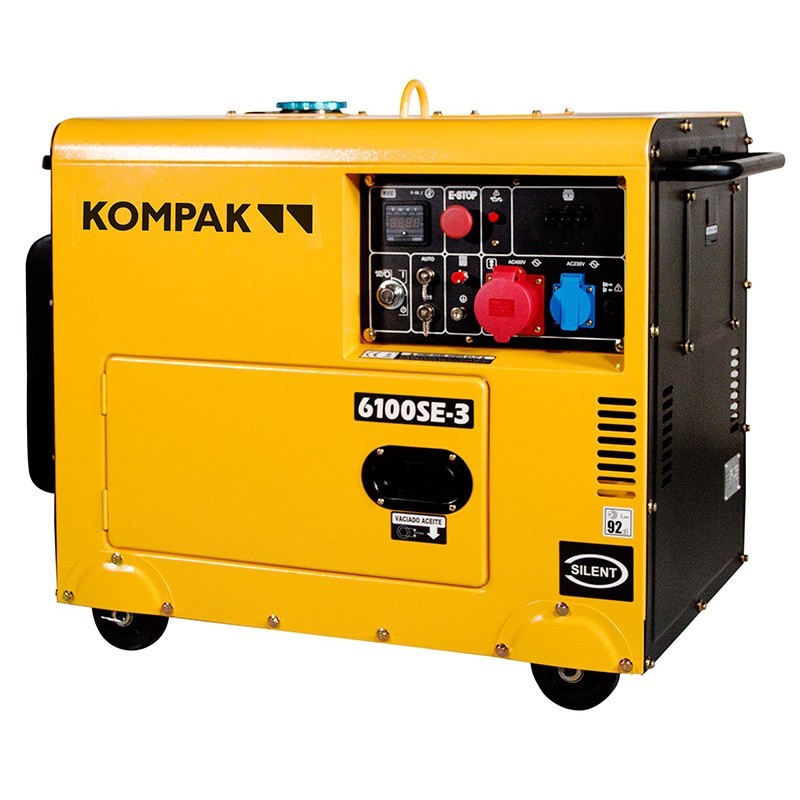

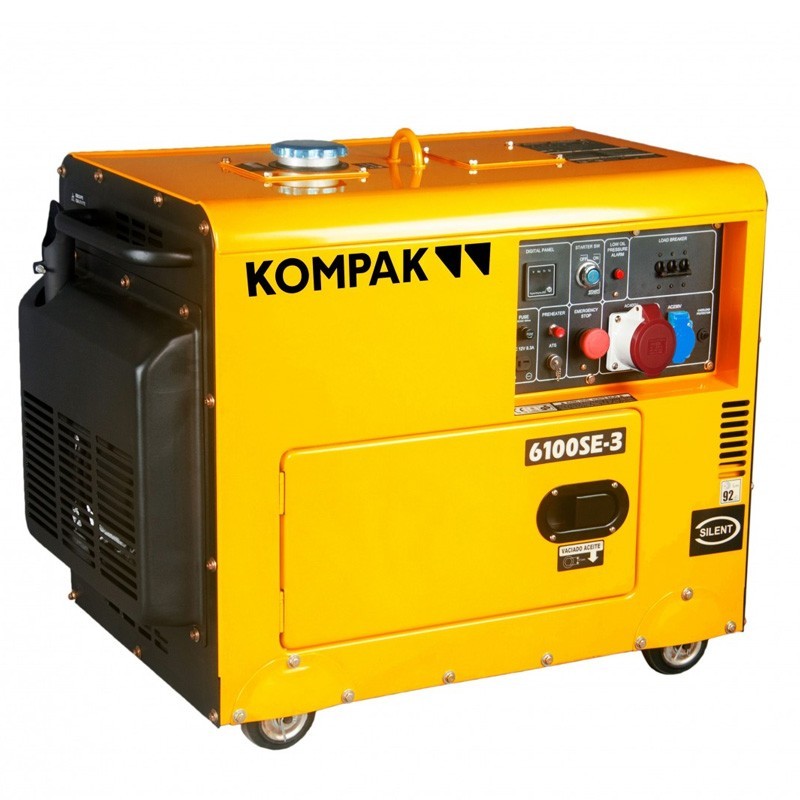

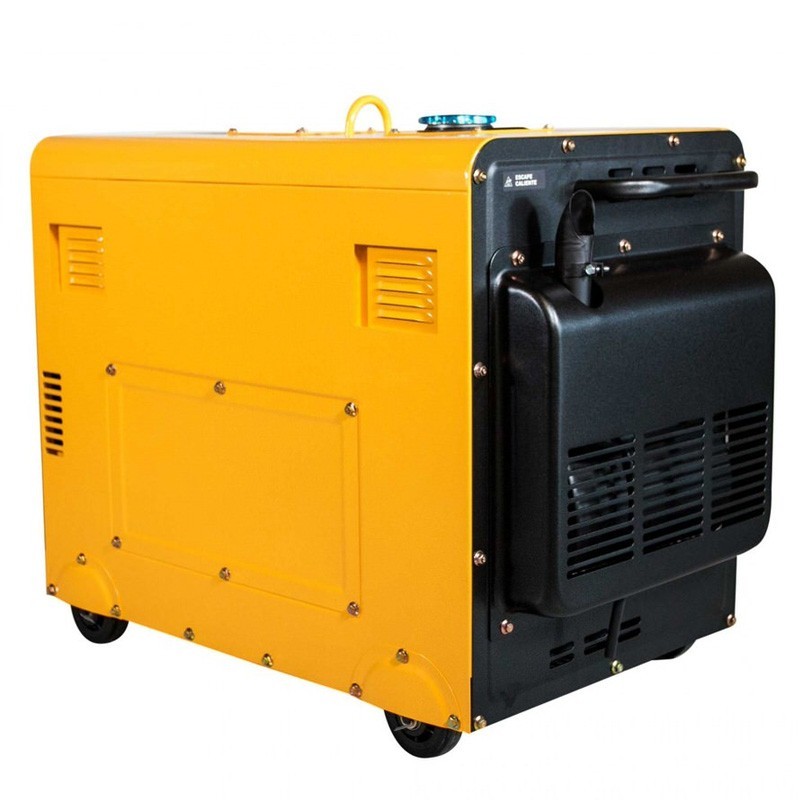

The diesel electric generator Kompak K6100SE-3 stands out for its versatility and exceptional performance. With a frequency of 50 Hz and a power rating of 6.25 kVA in three-phase and 2.2 kVA in single-phase, this generator easily adapts to a variety of electrical needs.
Its 4-stroke, air-cooled, direct-injection engine ensures optimum efficiency and long service life. This generator not only offers reliable power, but also safe operation thanks to its low oil level alarm with automatic engine shutdown, ensuring equipment protection.
Its compact design facilitates easy installation with low maintenance and efficient fuel consumption, allowing up to 10 hours of operation at 50% load. Additional features include a double support base to reduce vibration. Ready for signal start, this generator is positioned as a reliable and convenient option for various applications.
| Frequency | 50 Hz |
| Rated Power | 6.25 kVA / 2.2 kVA |
| Maximum Power | 6.60 kVA / 2.8 kVA |
| Voltage | 400 / 230 V |
| Sockets | 1xPCE5p(16A) / 1x16A(220) |
| Alternator | A5S-3 |
| Alternator Type | AVR |
| Engine | 4-stroke |
| Engine Model | D400E |
| Fuel Type | Diesel |
| Displacement | 418 cc |
| Power | 10 Hp |
| Starter | Electric |
| Tank capacity | 12 L |
| Noise level at 7 mts (dB) | 72 dB |
| Dimensions | 920x520x760 mm |
| Weight | 152 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
