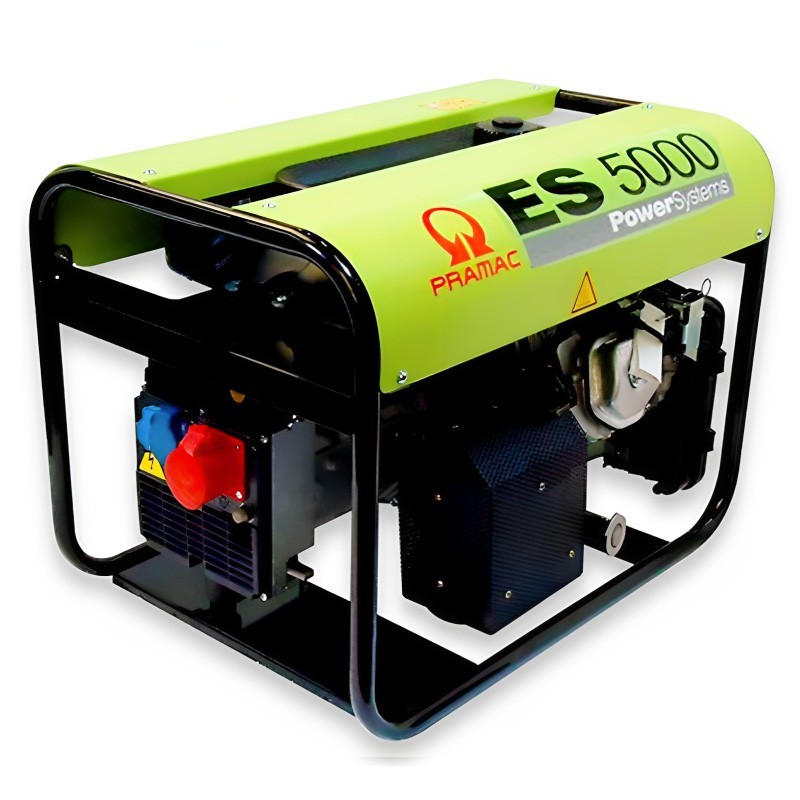

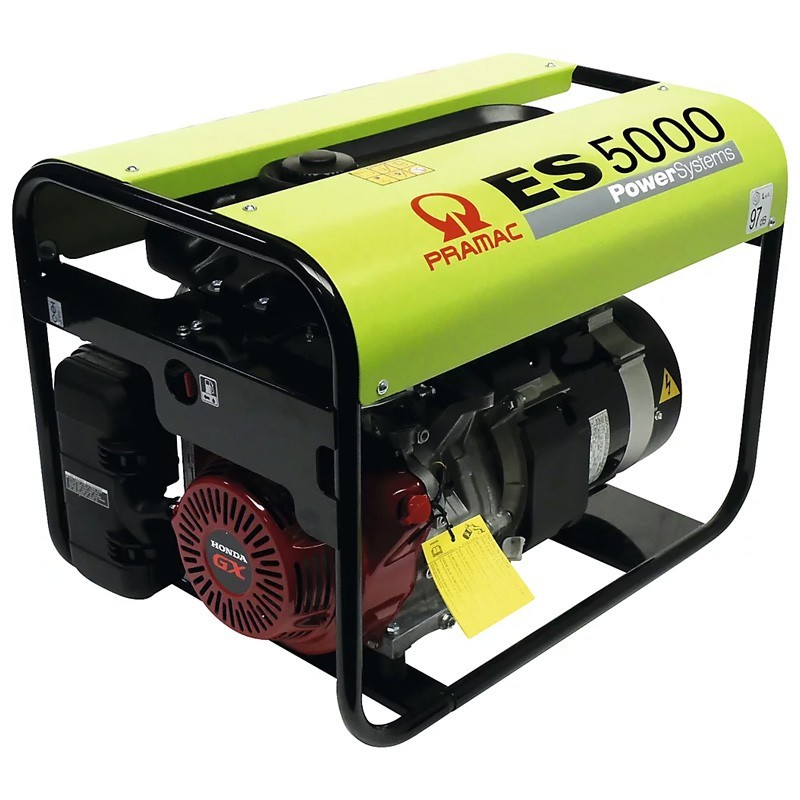

The Gasoline Electric Generator Pramac ES5000 three-phase this generator features two models available, one equipped with the AVR stabilization system and another without it, providing flexibility to adapt to the specific needs of each user.
With a 11-liter fuel tank, The ES5000 is fuel-efficient, consuming only 1.66 liters per hour at 75% load and providing a range of 6.63 hours under these conditions. At full load (100%), the consumption rises to 2.22 liters per hour, which still ensures a 4.95 hours of autonomy.
The generator's control panel is intuitive, with commands that include an on/off switch, manual start and fuel valve. Additionally, the generator is equipped with essential protections, such as thermal protection and oil level alarm, which ensure its safe and reliable operation.
The SCHUKO 230V 16A IP54 plugs, 2P+T CEE 230V 16A IP44, and 3P+N+T CEE 400V 16A IP44 provide a variety of connection options to suit different devices and electrical needs.
| Model | Without AVR | With AVR |
| Frequency | 50 Hz | |
| Voltage | 400/230 V | |
| Power factor | 0.8 cos ϕ | |
| Phases | 3 | |
| Maximum three-phase power | 5000 W | |
| Three-phase nominal power | 4300 W | |
| Maximum single-phase power | 3800 kVA | |
| Single-phase nominal power | 3500 kVA | |
| Motor Brand | Honda | |
| Model | GX270 Recoil | |
| Cooling system | Air | |
| Aspiration | Natural | |
| Speed regulator | Mechanics | |
| Nominal operating speed | 3000 rpm | |
| Fuel | Gasoline | |
| Starting system | Manual | |
| Oil deposit | 1.1 l | |
| Displacement | 270 cc | |
| Alternator type | Brushless | With brushes |
| Class | H | |
| IP Protection | 23 | |
| Polos | 2 | |
| Voltage tolerance | 6% | 1.5% |
| Voltage regulation system | Compound | Electronic |
| Standard AVR regulation | AVR 860 | |
| Fuel consumption at 75% load | 1.66 l/h | |
| Autonomy at 75% charge | 6.63 h | |
| Fuel consumption at 100% load | 2.22 l/h | |
| 100% charge autonomy | 4.95 h | |
| Fuel tank capacity | 11 l | |
| Guaranteed sound level (LWA) | 97 dBA | |
| Noise pressure level @ 7 m | 69 dB(A) | |
| Dimensions | 729 x 500 x 536 | |
| Dry weight | 75 kg | |
| Plugs | SCHUKO 230V 16A IP54 | |
| 2P+T CEE 230V 16A IP44 | ||
| 3P+N+T CEE 400V 16A IP44 | ||
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before starting. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
| The batteries that are included with some machines are a complimentary gift, so they remain exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
