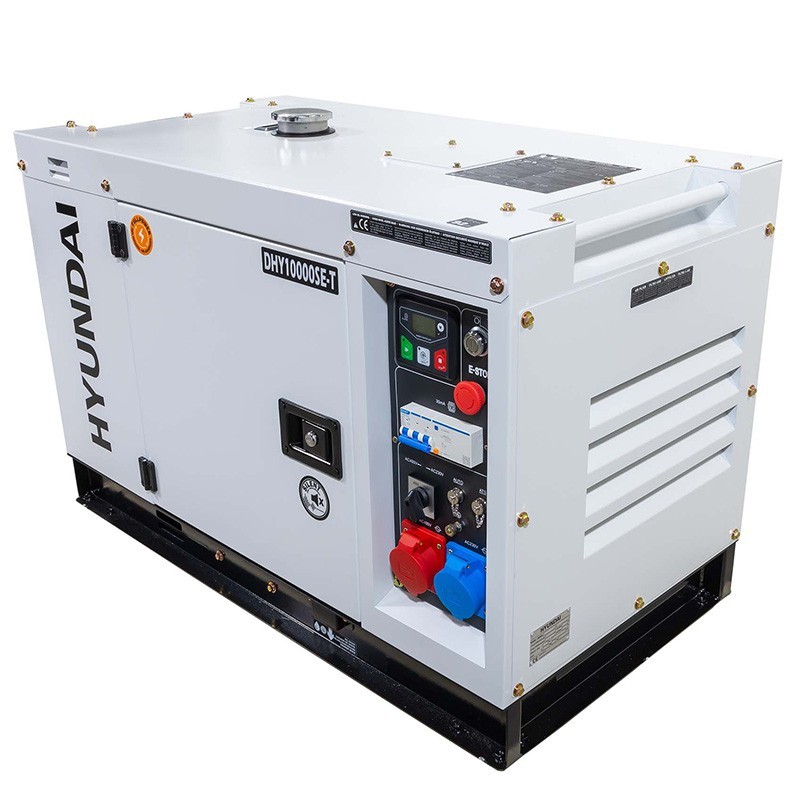

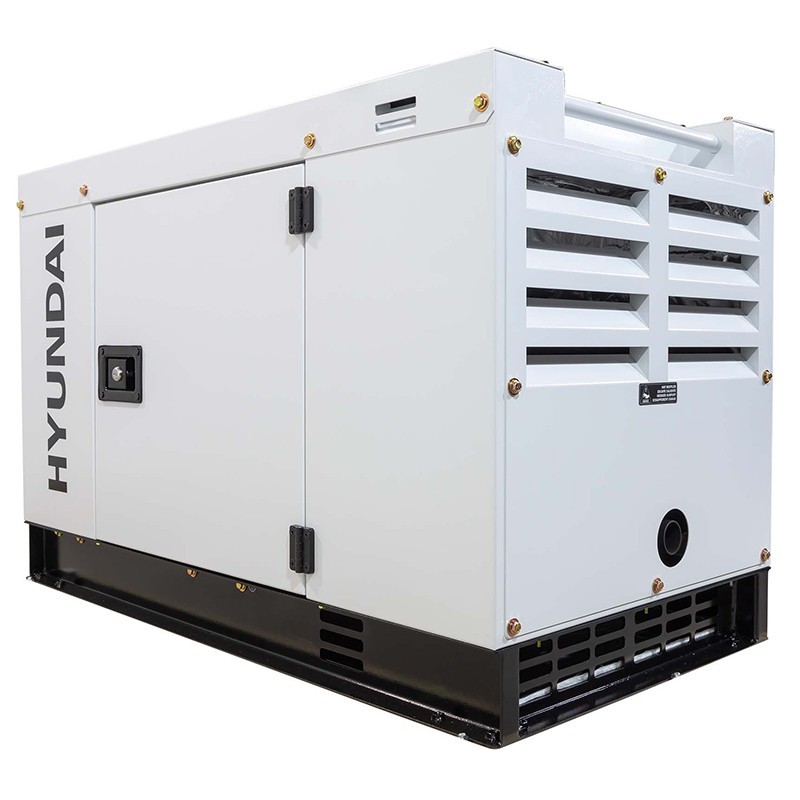

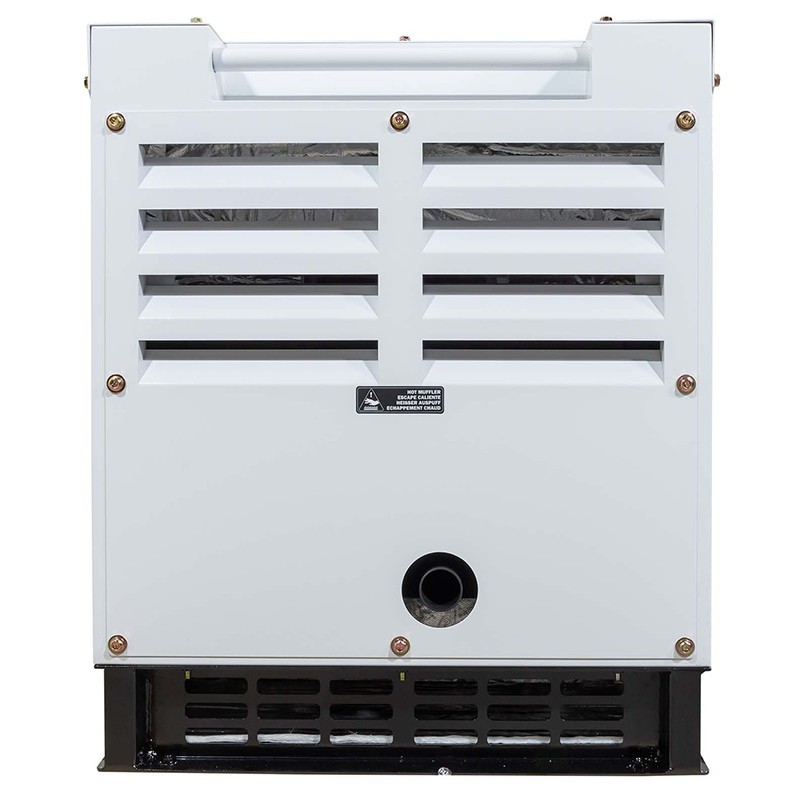

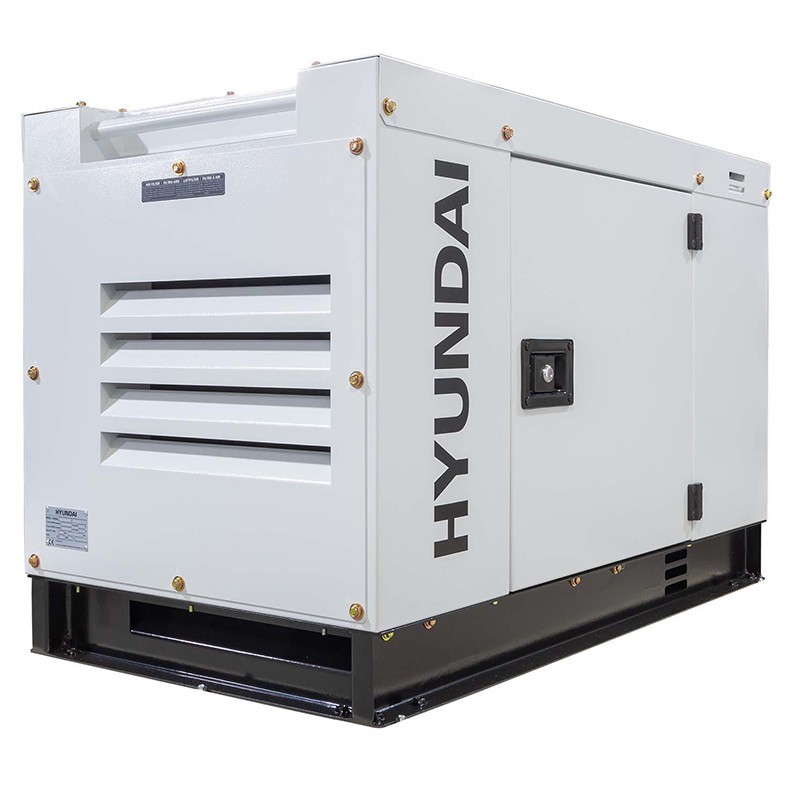

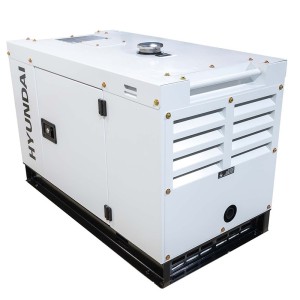

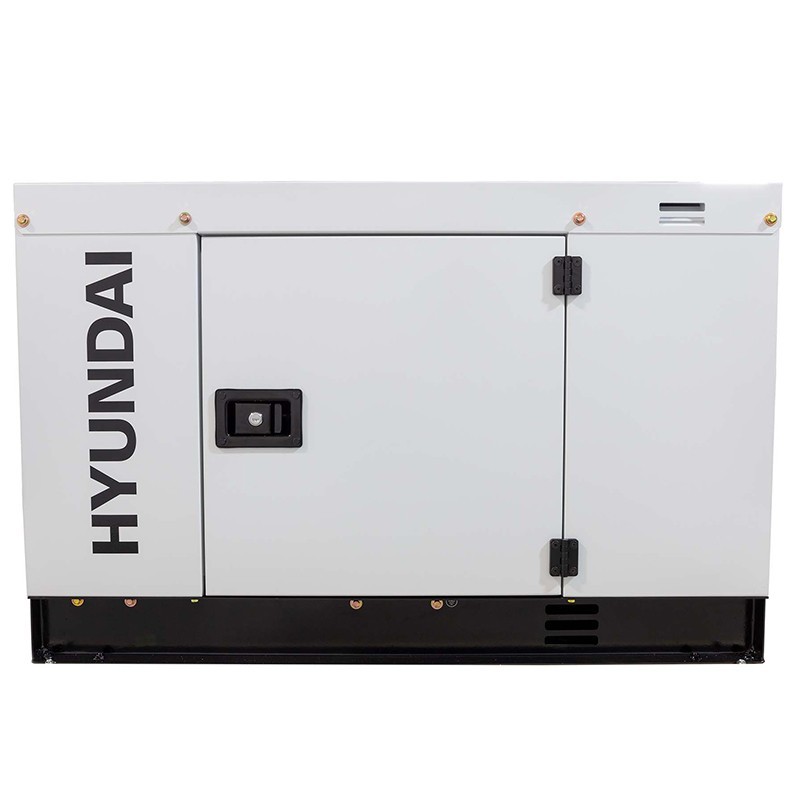

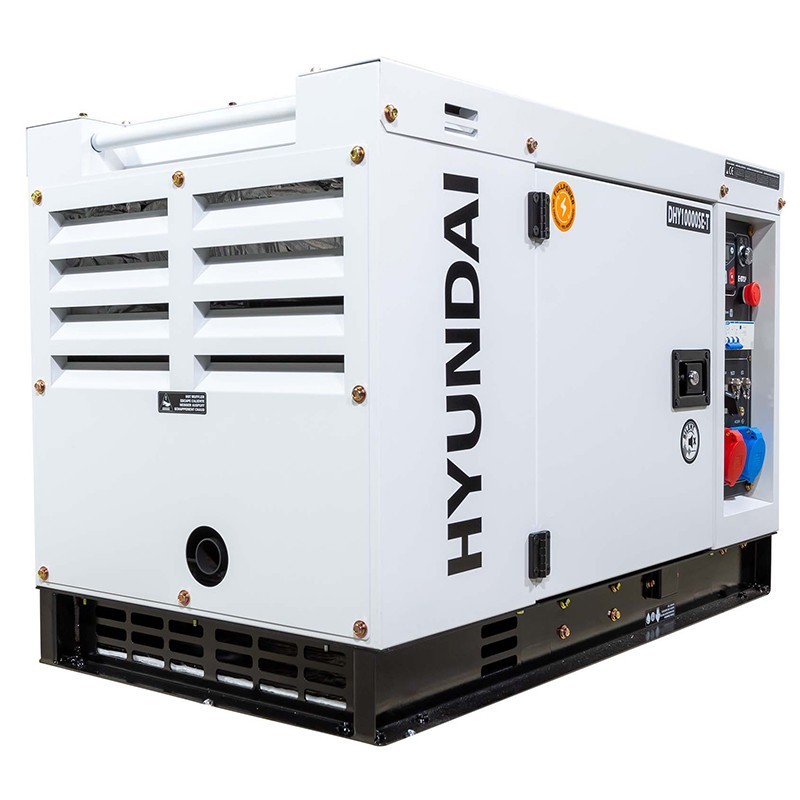

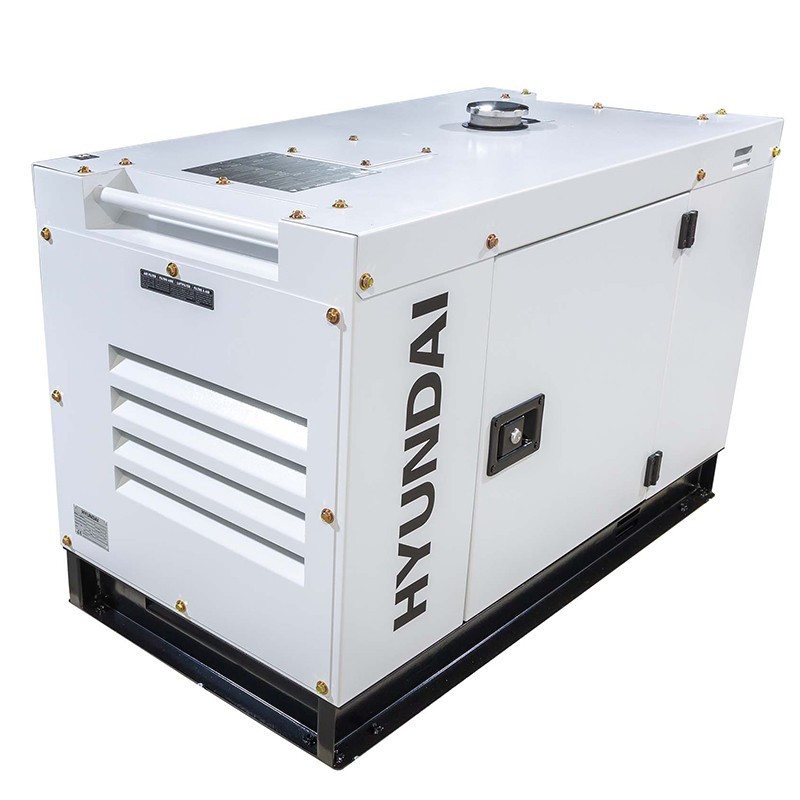

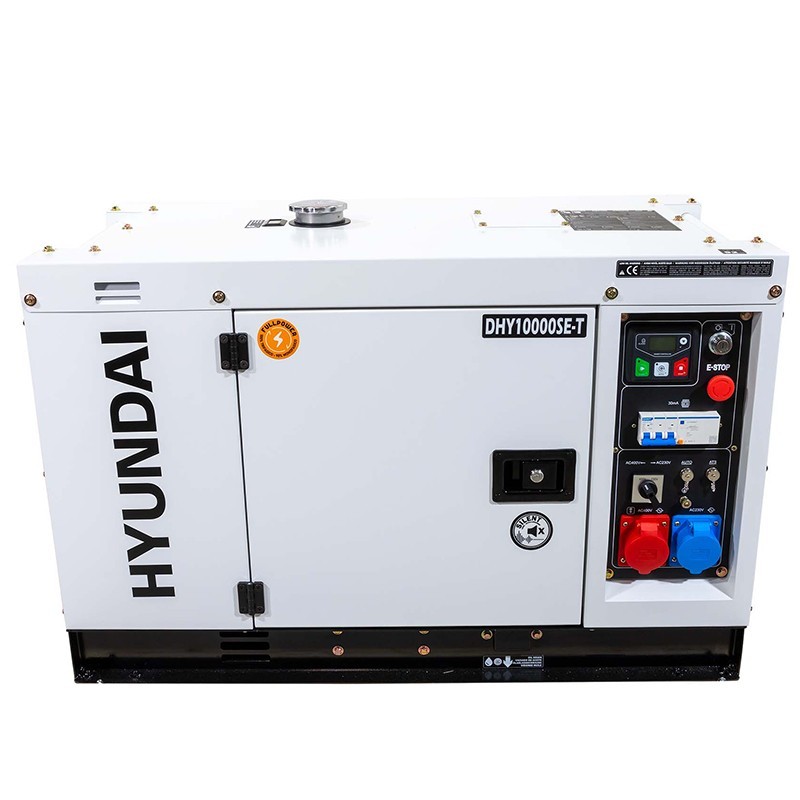

The HYUNDAI DHY10000SE-T generator equipped with an electric start system and ATS, this generator ensures fast and reliable starting. Its 678 cc engine, together with an oil capacity of 2.4 liters, ensures long and stable operation.
This model features an AL8-T alternator and AVR type voltage regulation, which allows it to maintain a constant and safe power output. The rated power of the generator is 10 kVA at 400 V and 5.5 kW at 230 V, while its maximum power output reaches 10.6 kVA at 400 V and 7.6 kW at 230 V.

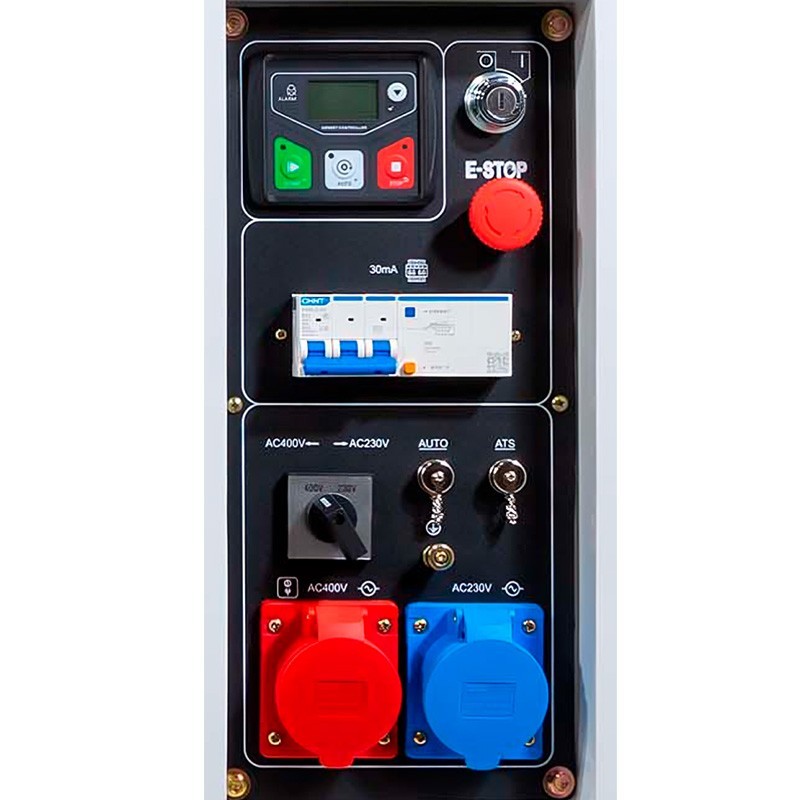

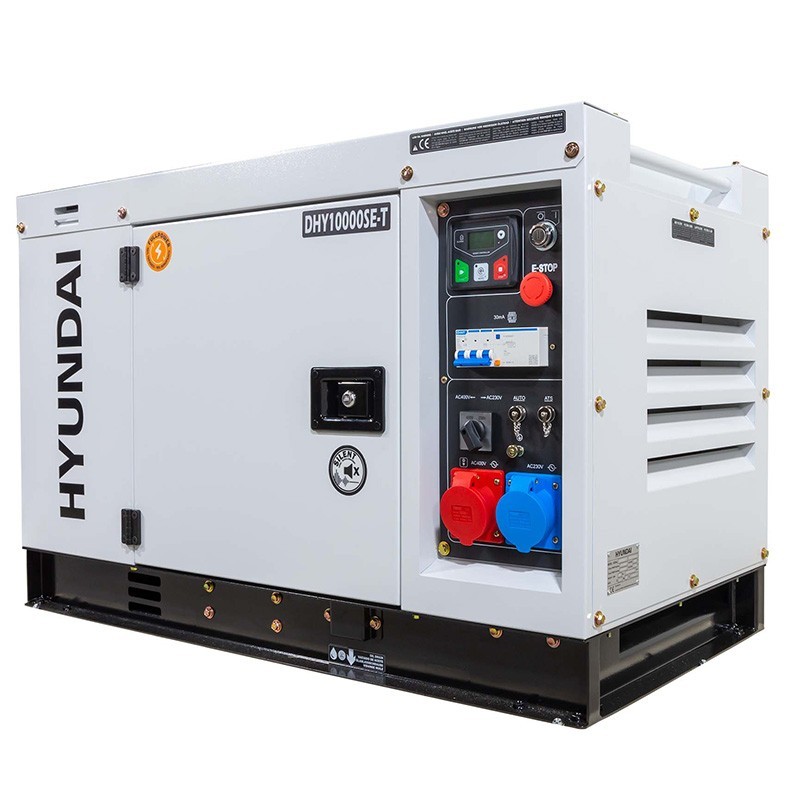

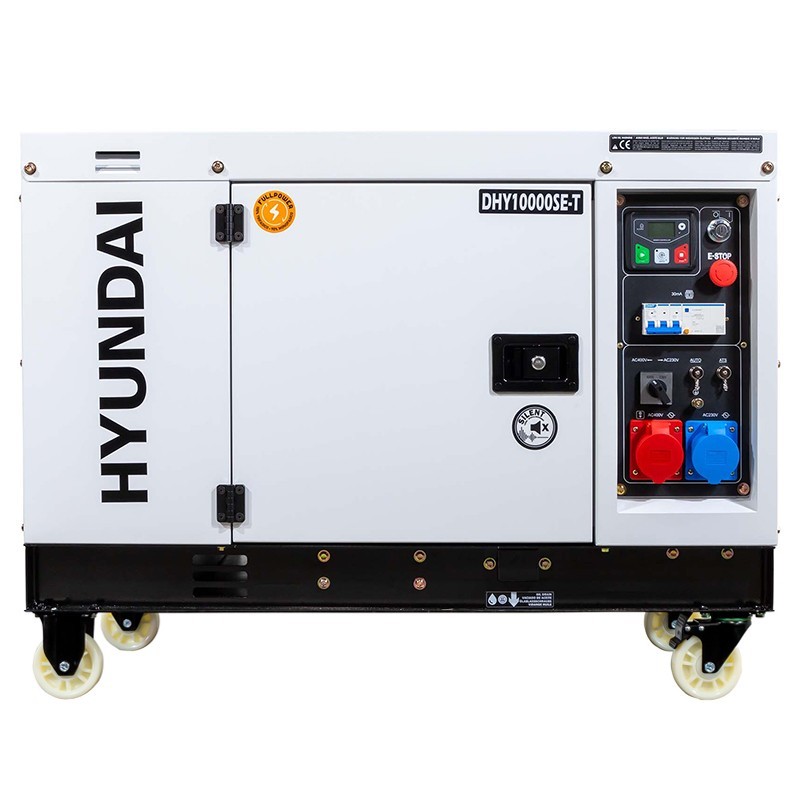

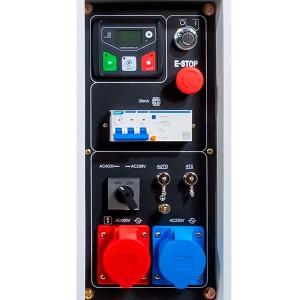

The generator features a current rating of 14.4 A at 400 V and 31 A at 230 V, with dedicated 1xPCE5p 16A (400 V) and 1x32A (230 V) sockets for easy connection of various equipment. The 6" digital LED display provides a clear visualization of the operating parameters
Features
| Frequency | 50 Hz |
| Rated Power | 10 kVA (400) / 5.5 kW (230) |
| Maximum Power | 10.6 kVA (400) / 7.6 kW (230) |
| Voltage | 400 V-230 V |
| Current | 14,4 (400) / 31 (230) |

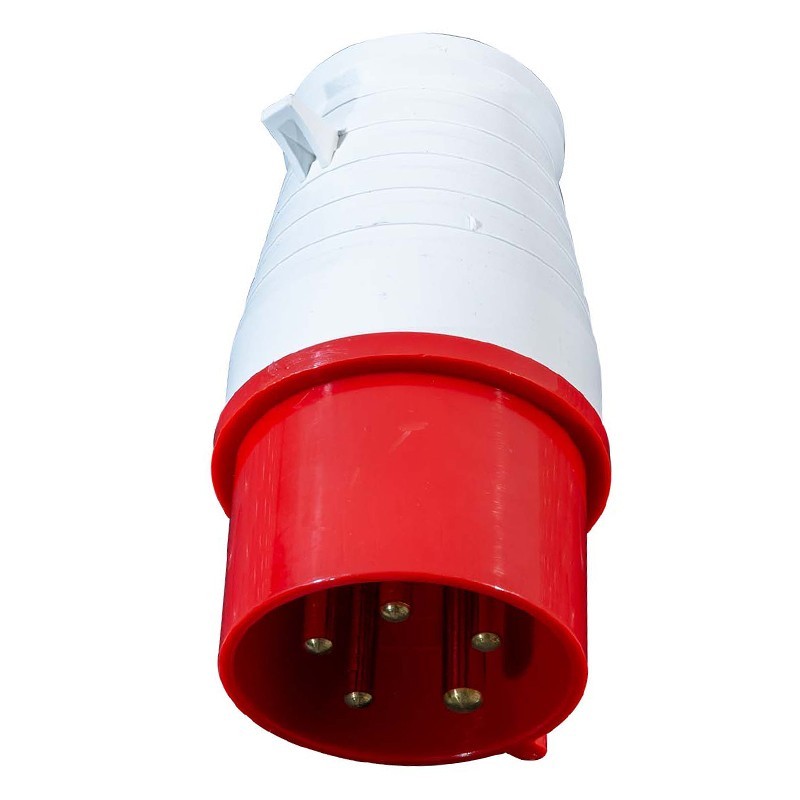

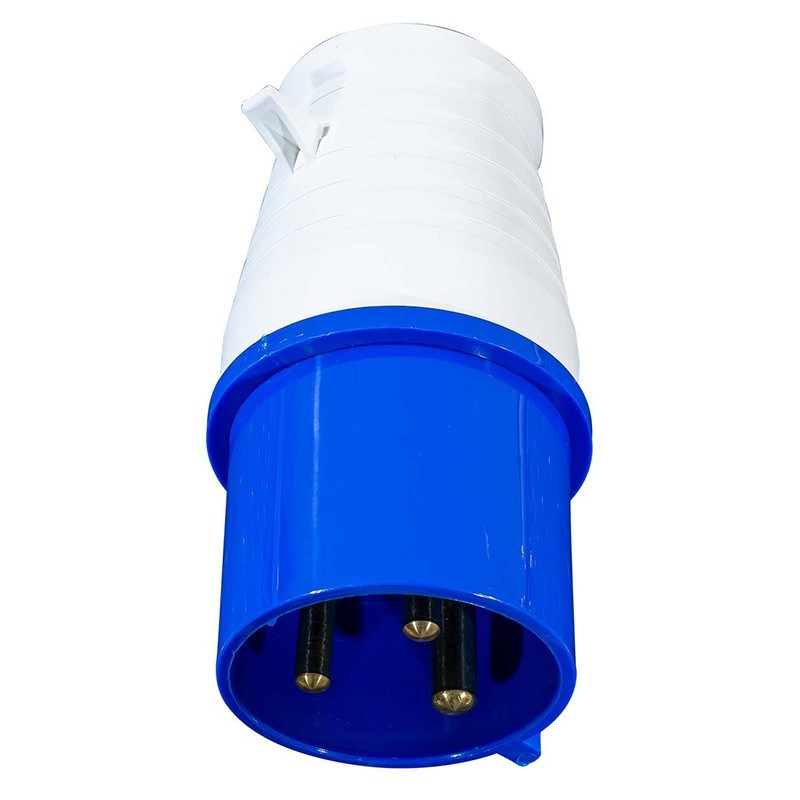

| Sockets | 1xPCE5p 16A (400) / 1x32A (230) |
| Digital display | LED6 |
| Tank capacity | 25 L |
| Operation at 50% load | 10 h |
| Noise level at 7 Mts; 50% | 72 dBA |
| Battery | 36 Ah |
| Engine Type | Diesel |
| HYUNDAI engine model | D680E |
| Power | 14.4 HP |
| Starting mode | Electric/ATS |
| Displacement | 678 cc |
| Oil capacity | 2,4 L |
| Alternator | AL8-T |
| Rated power | 8 kVA |
| Power factor | 0.8 / 1 Cos φ |
| Voltage regulation type | AVR |
| Net Weight | 225 Kg |
| Gross Weight | 240 Kg |
| Product Dimensions | 1080 x 560 x 750 mm |
| Packing Dimensions | 1120 x 600 x 830 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
