This generator has a 4-stroke engine that is air-cooled and diesel with direct injection, and includes a low oil level alarm with automatic shutdown.

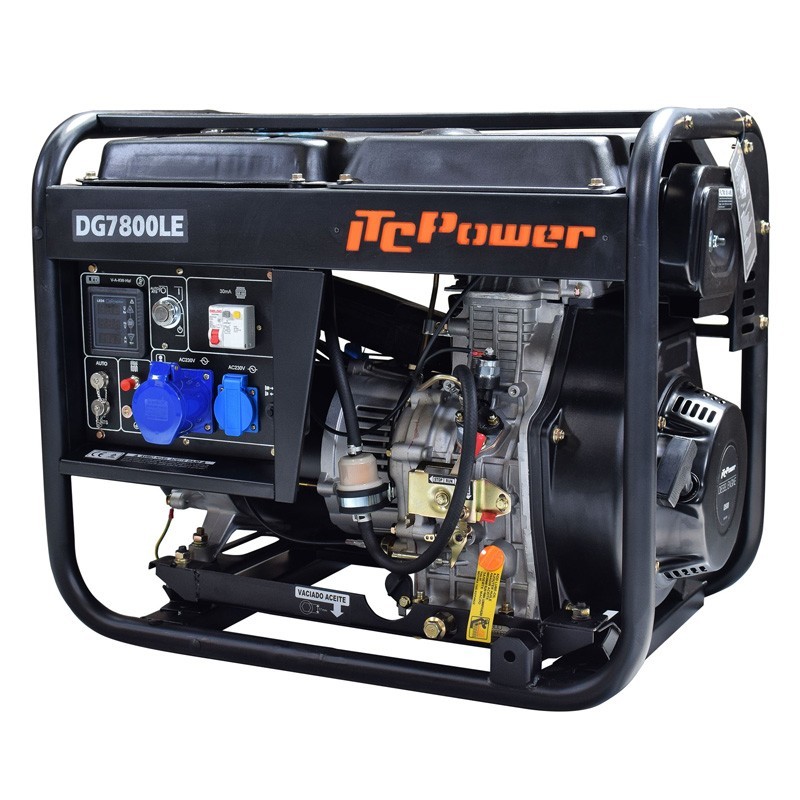

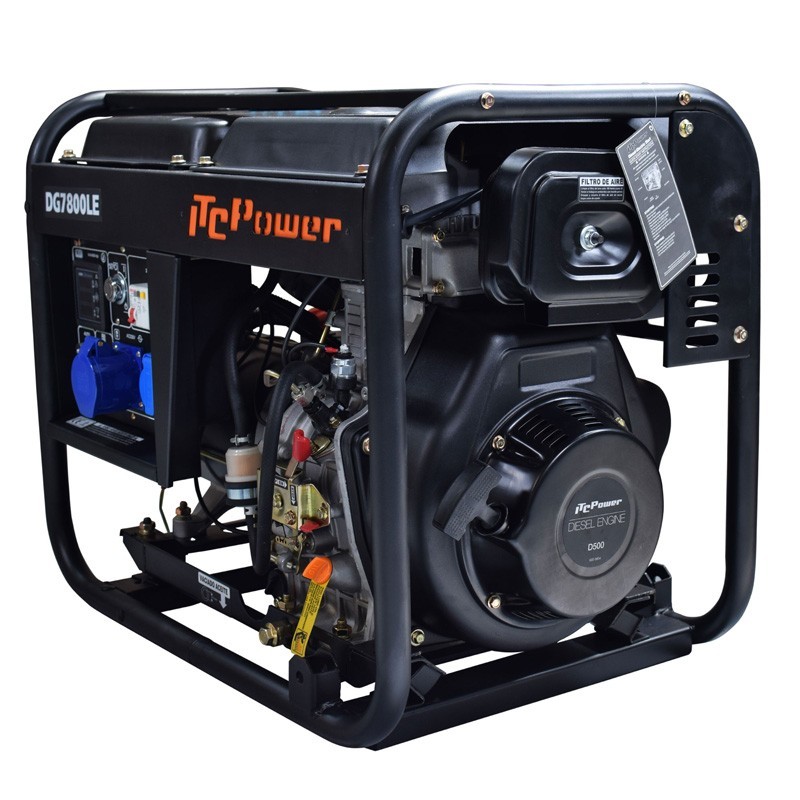

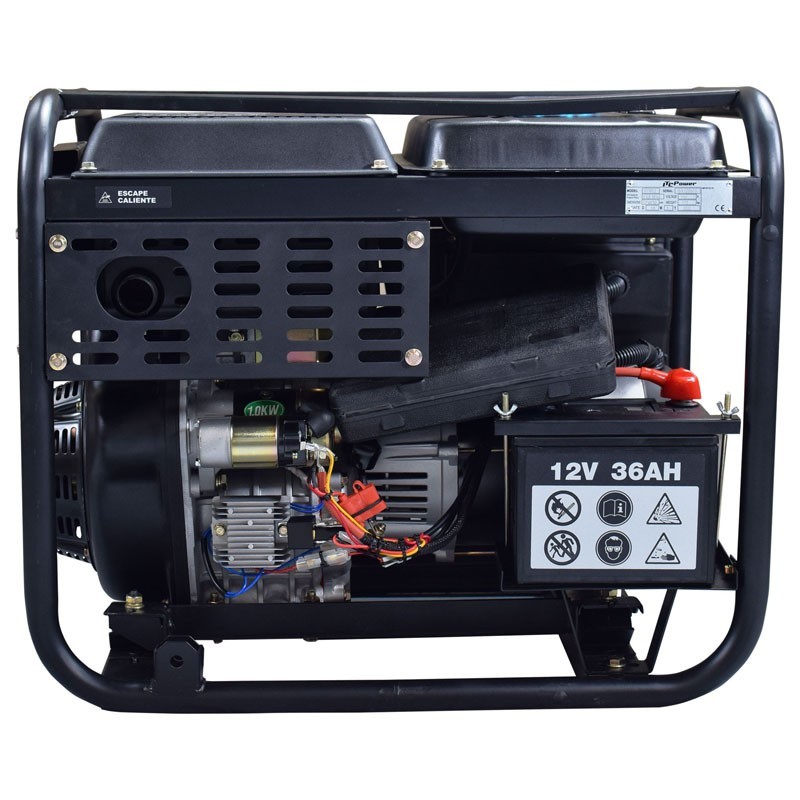

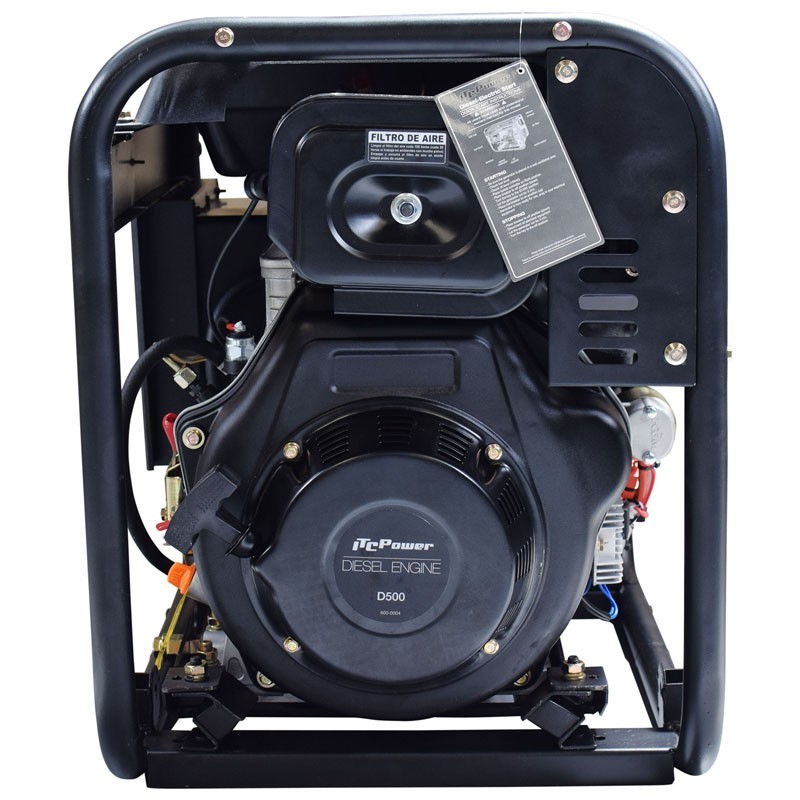

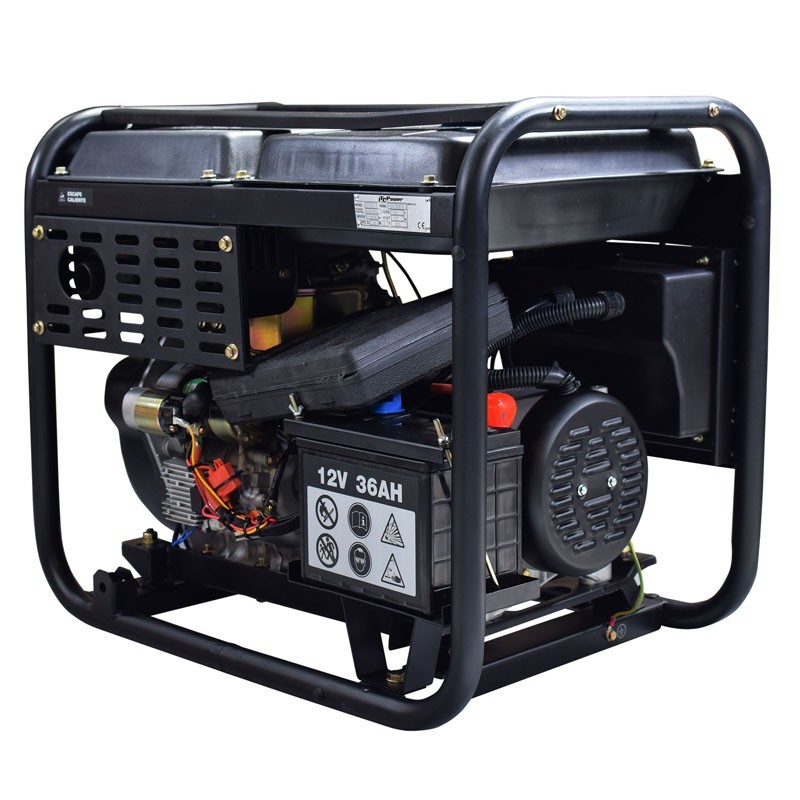

The ITCPower DG7800LE generator has a 12 V battery, the fuel capacity of the machine is a maximum of 14 L and the rated engine power is 13 Hp.
The starting mode of this generator is both manual and electric, besides it has a displacement of about 498 cc and can reach 3000 rpm.
| Model | DG7800LE |
| Voltage | 230 V |
| Maximum Power | 6300 W |
| Nominal Power | 6000 W |
| Rated current | 28 A |
| Outputs | 1 x 16A / 1 x 32A |
| Display | LED5 |
| Battery | 12 V |
| DC output | 12 V / 8.3 A |
| Fuel Capacity | 14 L |
| Autonomy at 50% load | 12 H |
| Noise level at 7 meters | 77 dBA |
| Engine model | D500E |
| Engine - Rated Power | 13 Hp |
| Engine - Revolutions | 3000 RPM |
| Engine - Starting Mode | Electric / Manual |
| Engine - Displacement | 498 cc |
| Engine - Oil Capacity | 1,65 L |
| Alternator - Model | A6L |
| Alternator - Rated Power | 6 kVA |
| Alternator - Power Factor | 1 |
| Alternator - Voltage Regulation | Brush / AVR |
| Net Weight | 116 Kg |
| Gross Weight | 120 Kg |
| Product Dimensions | 720 x 480 x 500 mm |
| Box Dimensions | 740 x 500 x 645 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
