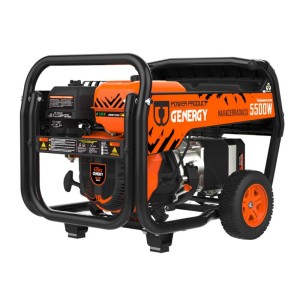

The Gasoline Electric Generator Genergy Navacerrada S 5500W has a nominal power of 5000 W and a maximum power of 5500 W. It has an electronic stabilization system "SVR" and a displacement of 420 cc.
It has dimensions of 787x623x640 mm, a weight of 89 kg and is equipped with a 4-stroke OHV air-cooled gasoline engine and a copper coil.
The gasoline electric generator Genergy Navacerrada S 5500W operates with a voltage of 230 V and a frequency of 50 Hz. In addition, it has an oil capacity and oil grade of 1.1L - SAE10W40.
| Stabilization system | SVR" electronics |
| Voltage - Frequency | 230V - 50Hz |
| Maximum Power | 5500 W |
| Nominal Power | 5000 W |
| Type by number of phases | Single-phase |
| Power factor | 1 |
| Motor Model | SGB420PRO |
| Displacement | 420 cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 67 dB - 74 dB |
| Guaranteed sound power level LwA | 97 dB |
| Starting type | Manual |
| Fuel tank capacity | 6 L |
| Consumption at 25-50-75% load | 1.5 L/H - 1.8L/H - 2.3L/H |
| Autonomy 25-50-75% load | 4.0H - 3.3H - 2.6H |
| Oil capacity and grade | 1.1L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Performance class | G1 |
| Standard | ISO 8528-13:2016 |
| Transport kit | Integrated with 10" wheels |
| Dimensions | 787x623x640 mm |
| Weight | 89 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
