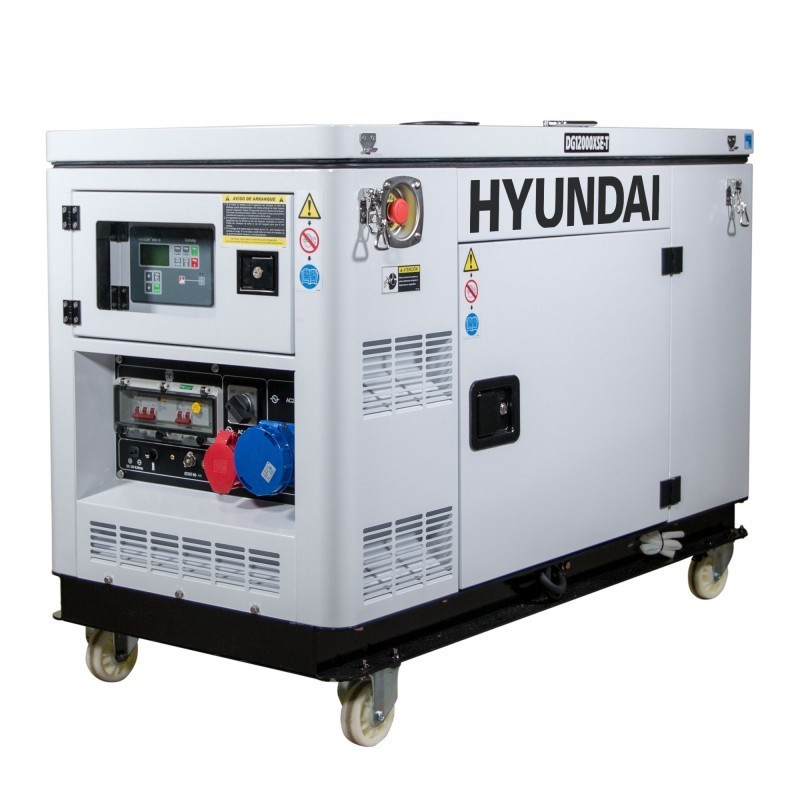

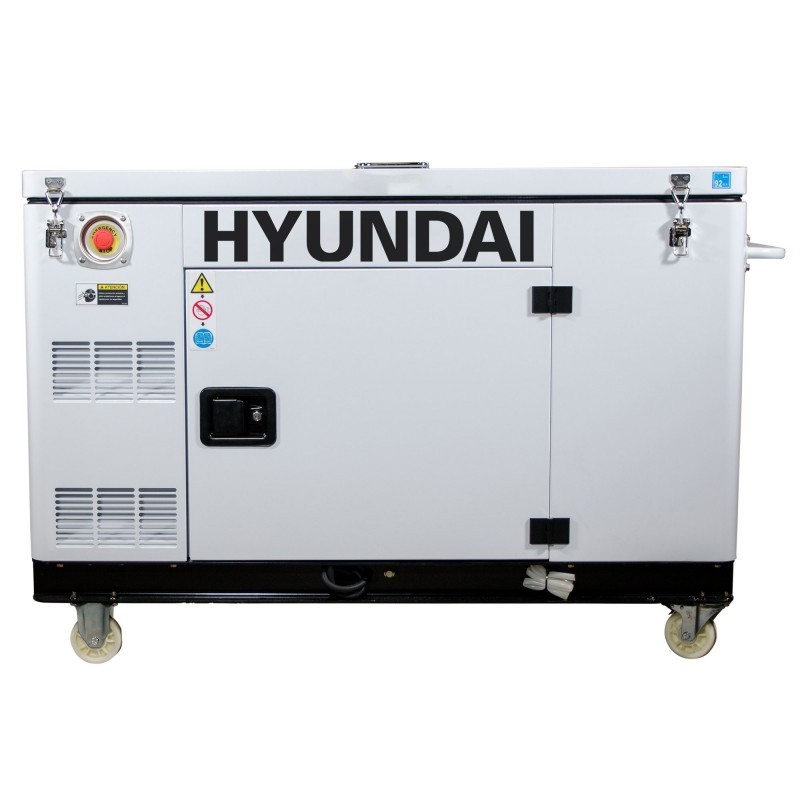

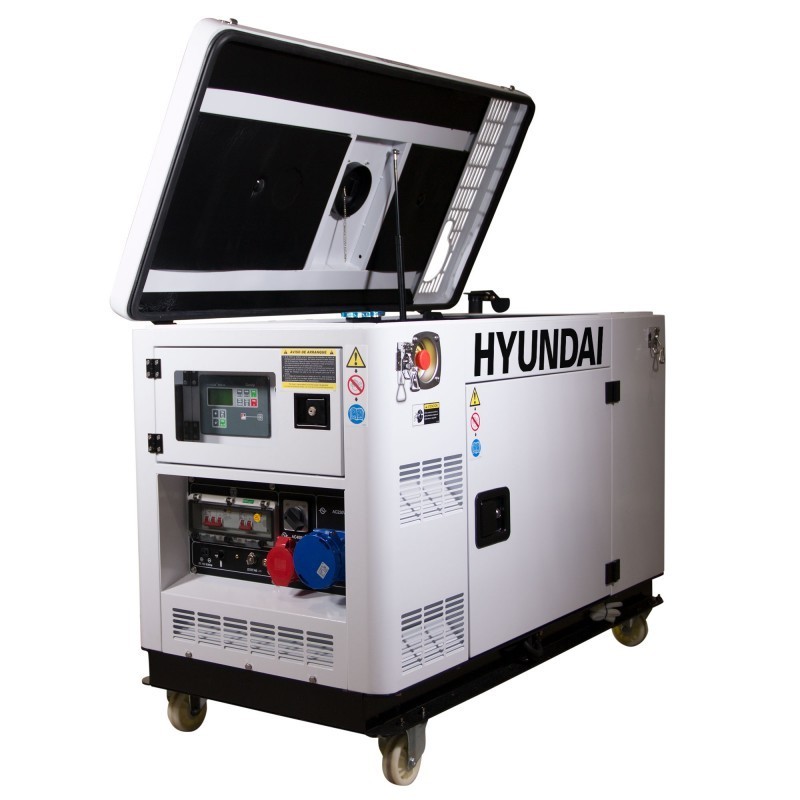

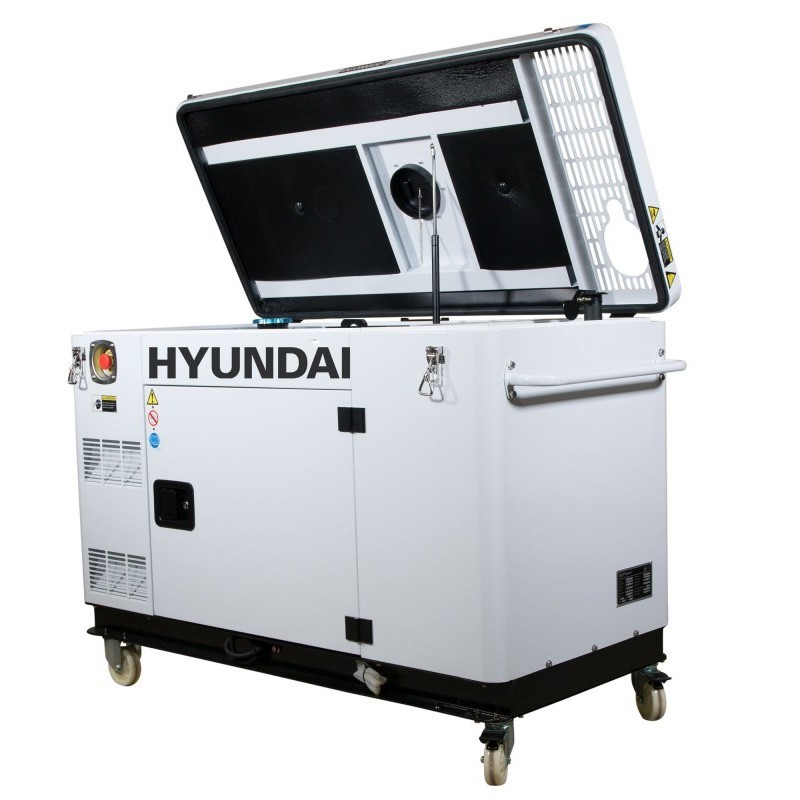

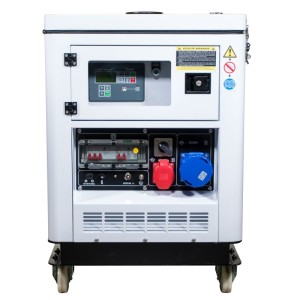

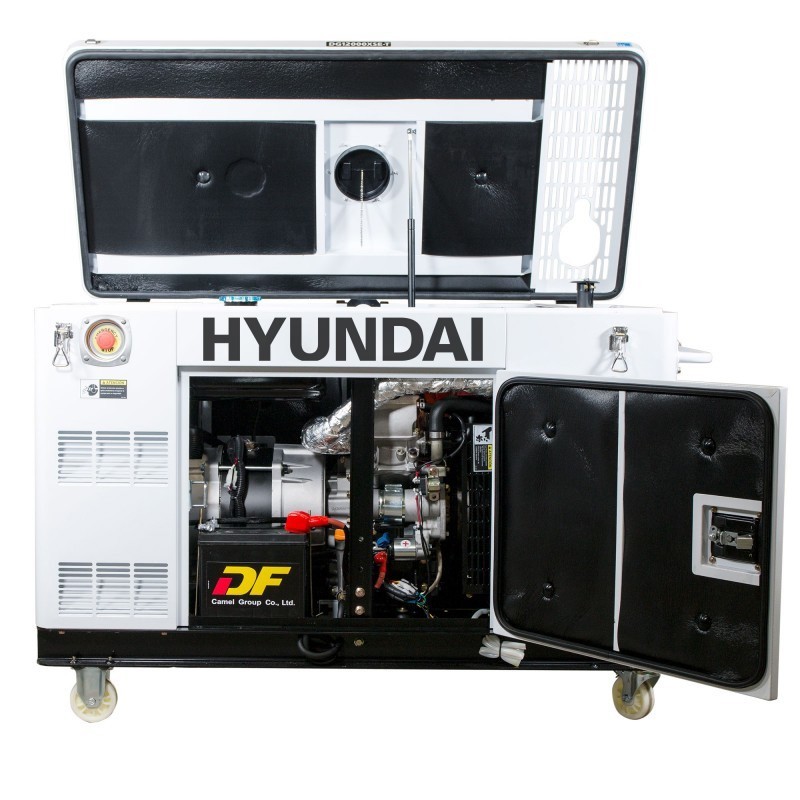

The HYUNDAI DHY12000XSET electric generator is a powerful power source with a twin-cylinder diesel engine model EV80 that guarantees reliable performance.
This generator has a FULL POWER alternator that provides 100% power in both three-phase and single-phase configurations, thanks to a built-in selector. In addition, its water cooling system ensures optimal operation even in high-demand conditions.
An outstanding feature of the DHY12000XSET is its ATS (automatic transfer system) connection capability, which facilitates switching between the main power source and the generator in the event of power outages. It also features a quick connector that simplifies maintenance, saving time and effort. To reduce vibrations and ensure quieter operation, this generator is equipped with a double support base, making it a robust and efficient choice for various applications.
| Frequency | 50Hz |
| Rated power | 1.4 kVA (400 V) / 10.8 kVA (230 V) |
| Maximum power rating | 12.5 kVA (400 V) / 1200 kVA (230 V ) |
| Voltage | 400/230 V |
| Current | 18 A (400) / 42 A (230) |

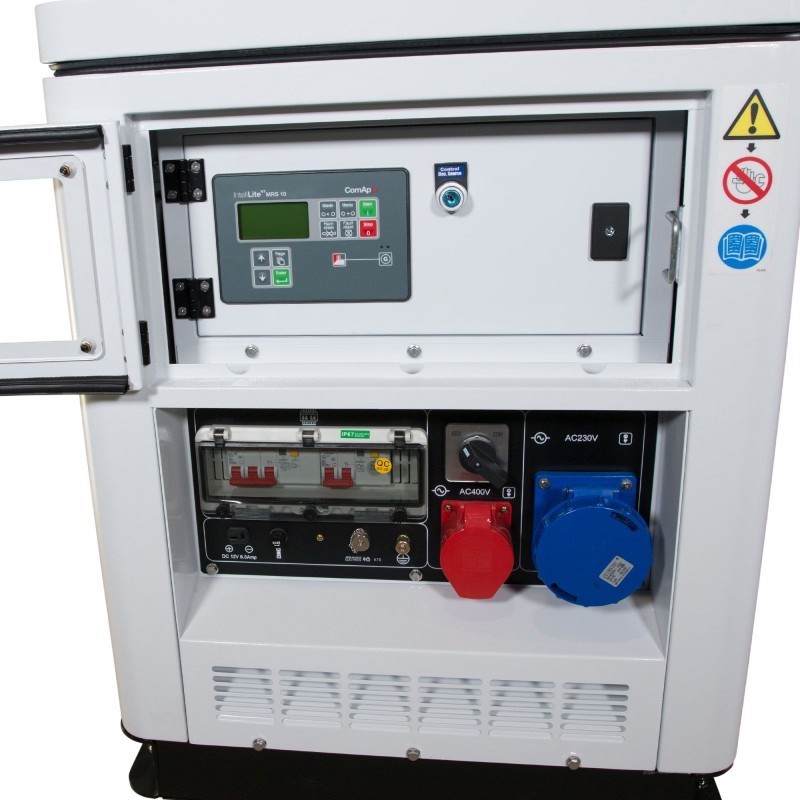

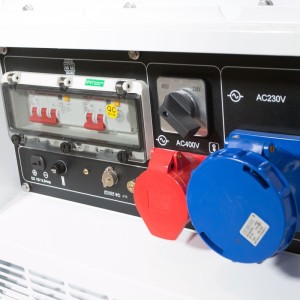

| Sockets | 1xPCE5p (400) / 1x63A (230) |

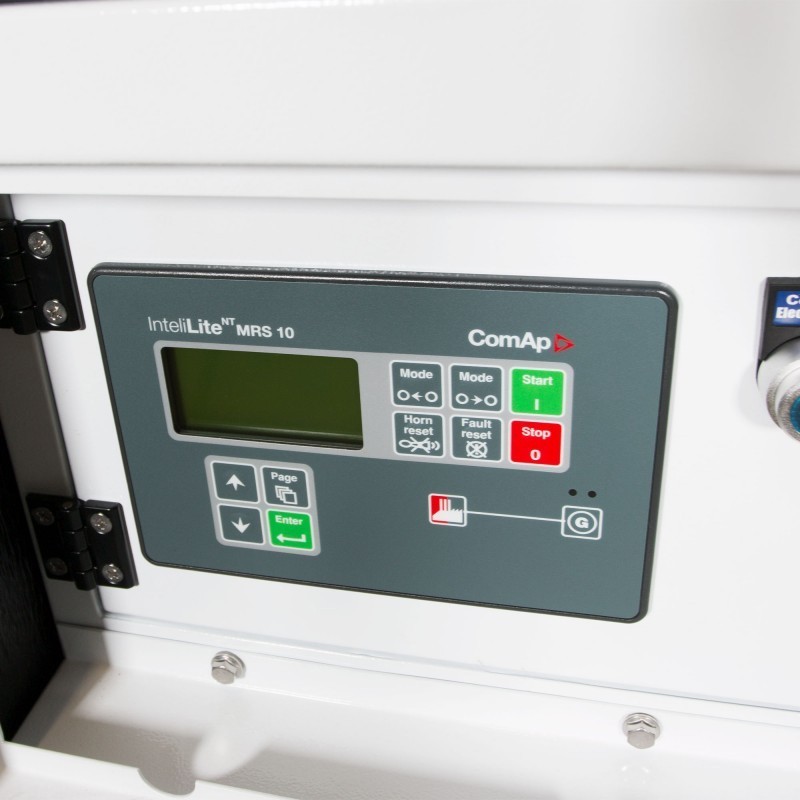

| Digital display | D30 |
| Tank capacity | 30 L |
| Operation at 50% load | 10 hours |
| Noise level at 7mts 50% load | 72 dBA |
| Battery | 45 Ah |
| Engine type | Diesel twin-cylinder |
| Engine Hyundai model | EV80 |
| Power | 16 HP |
| Starting mode | Electric |
| Displacement | 794 cc |
| Oil capacity | 2,27 L |
| Alternator characteristics | |
| Alternator | KTDS-10 |
| Rated power | 10 kVA |
| Power factor | 0.8/1 |
| Voltage regulation type | AVR |
| Current | Full Power |
| Winding | 100% copper |
| Net Weight | 318 Kg |
| Gross Weight | 360 Kg |
| Product Dimensions | 1360x650x980 mm |
| Packing Dimensions | 1410x700x1015 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
