Gasoline Electric Generator Pramac WX 3200 ES CONN 2850 W
Gasoline Electric Generator Pramac WX 3200 ES CONN 2850 W
Gasoline Electric Generator Pramac WX 3200 ES CONN 2850 W
Gasoline Electric Generator Pramac WX 3200 ES CONN 2850 W
Gasoline Electric Generator Pramac WX 3200 ES CONN 2850 W
Gasoline Electric Generator Pramac WX 3200 ES CONN 2850 W
Gasoline Electric Generator Pramac WX 3200 ES CONN 2850 W

Gasoline Electric Generator Pramac WX 3200 ES CONN 2850 W


  • Starting : Electric
  • Stabilization : AVR
  • Engine : Generac
  • Current : Single phase
  • Nominal power : 2450 W
  • Power supply : Gasoline
  • Type of winding : Copper
  • Generator type : with handle and with wheels
En stock
Extras
Extras
Equipment:
● Control unit
contactor with interlock
● Switch: AUTO / MANUAL The manual option is used to decouple the system from the generator.
The generator can be started independently of the panel.
● Emergency button: For the generator.
● Charged battery
● 5 meters of control wiring (with connector)
Status indicators:
● Mains power light: Detects external mains.
● Generator light: Lights up when the ATS receives load from the generator.
● Charging light: The ATS receives charge, either from the mains or from the generator.
● Battery light: Keeps the starter battery charged, to be ready for start-up.
error light: Indicates anomalies. The generator does not start.
Precio total de la opción:
icon Power Supply
Power Supply
Gasoline
icon Stabilization
Stabilization
AVR
icon Current
Current
Single-phase
icon Startup
Startup
Manual and Electric
icon Displacement
Displacement
208 cc
icon Engine type
Engine type
4 times
icon Power rating
Power rating
2450 W
icon Maximum power
Maximum power
2850 W
icon Type of winding
Type of winding
Copper
icon Type of generator
Type of generator
With handle and wheels
icon ✔️
✔️
ATS connection - Automatic start
€415.88 excl. VAT
- 4%
€399.25 excl. VAT
€483.09 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gasoline Electric Generator Pramac WX 3200 ES CONN 2850 W
€483.09
Extras
Extras
Equipment:
● Control unit
contactor with interlock
● Switch: AUTO / MANUAL The manual option is used to decouple the system from the generator.
The generator can be started independently of the panel.
● Emergency button: For the generator.
● Charged battery
● 5 meters of control wiring (with connector)
Status indicators:
● Mains power light: Detects external mains.
● Generator light: Lights up when the ATS receives load from the generator.
● Charging light: The ATS receives charge, either from the mains or from the generator.
● Battery light: Keeps the starter battery charged, to be ready for start-up.
error light: Indicates anomalies. The generator does not start.
Precio total de la opción:
Qty

Gasoline Electric Generator Pramac WX 3200 ES CONN 2850 W

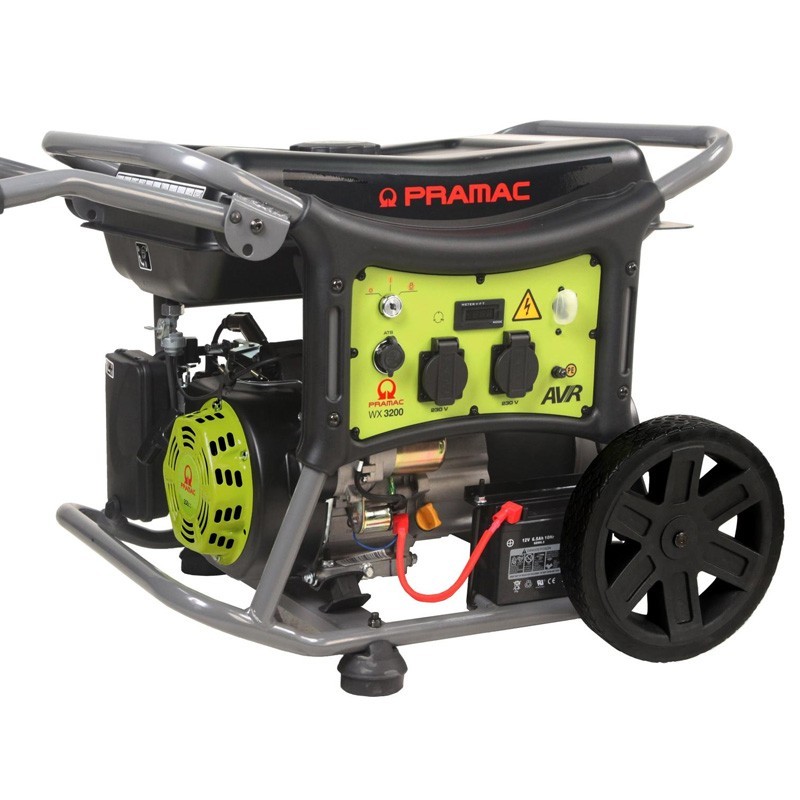

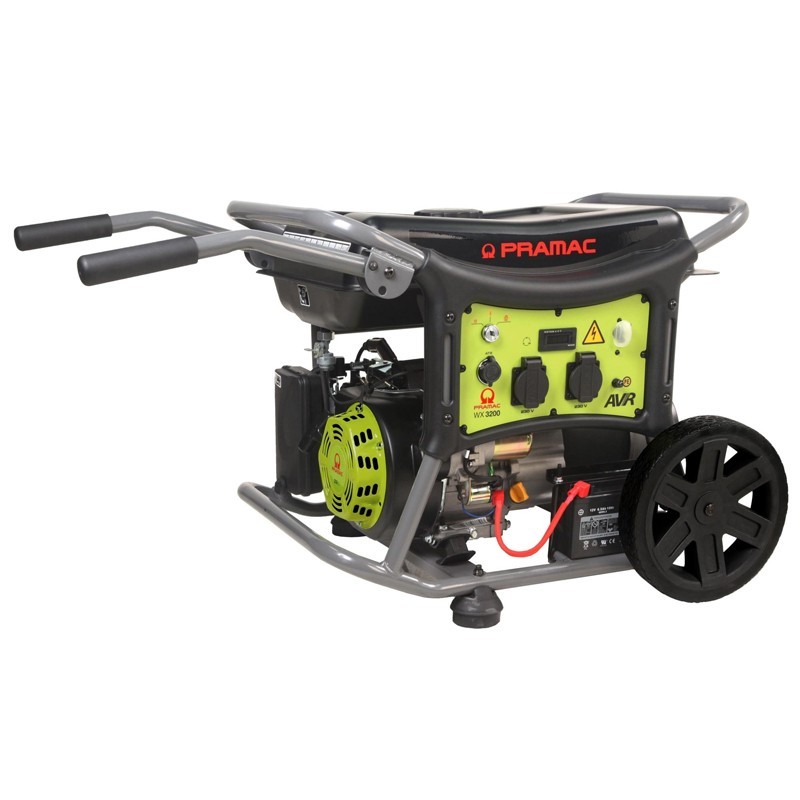

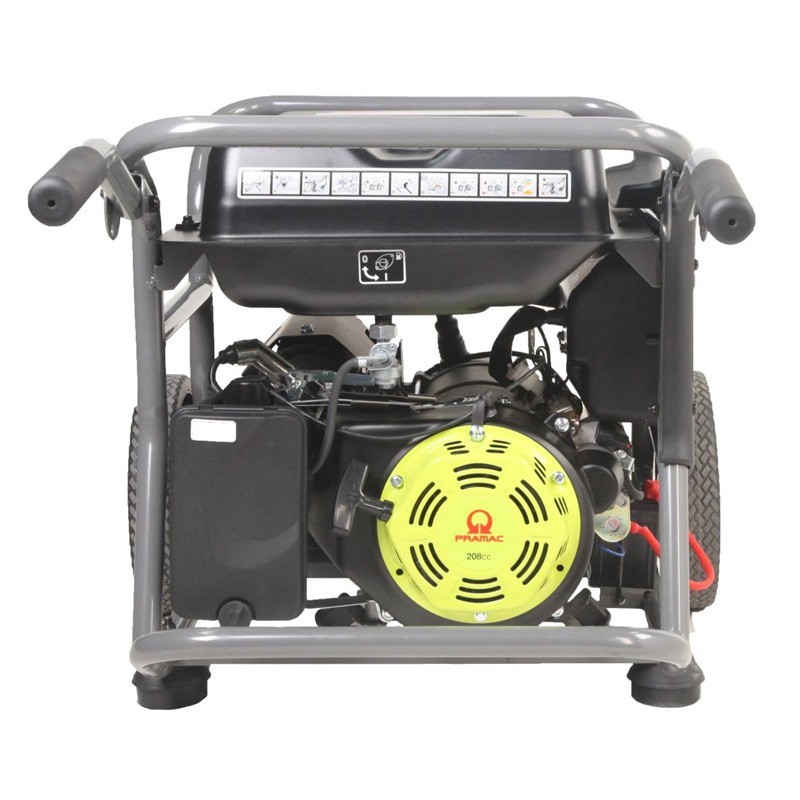

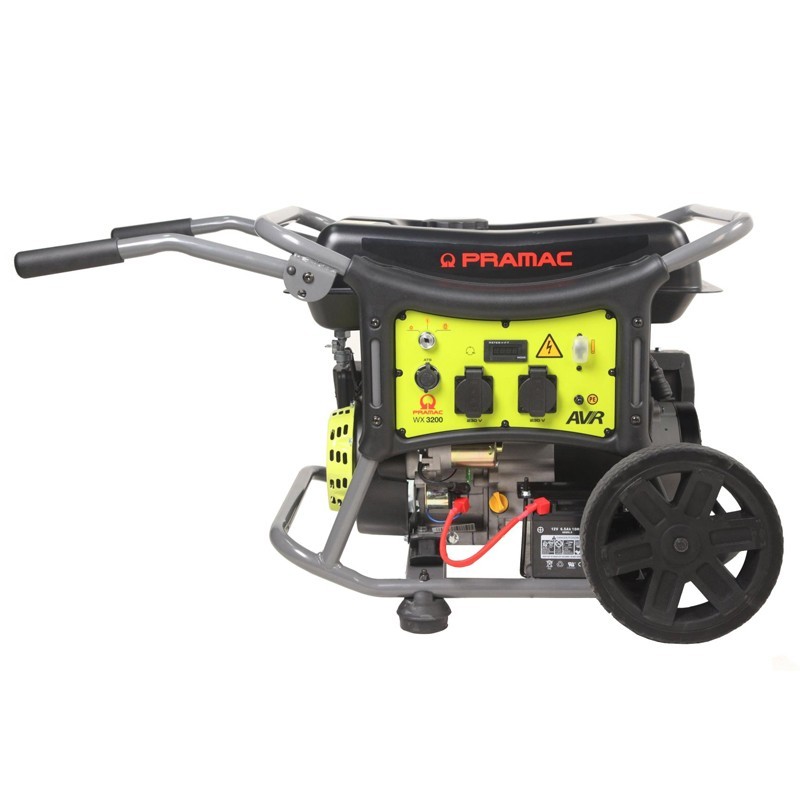

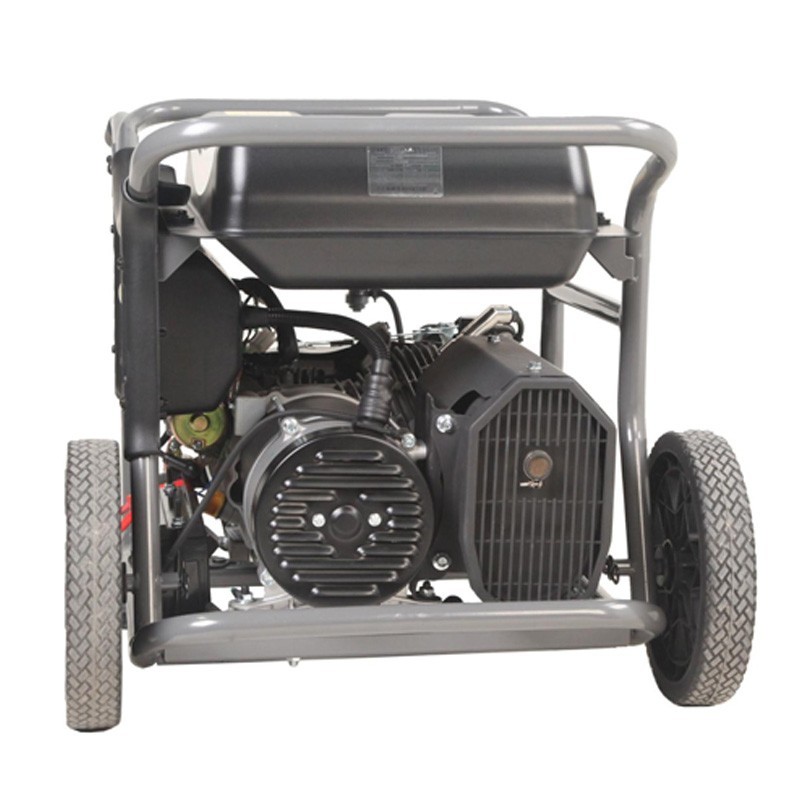

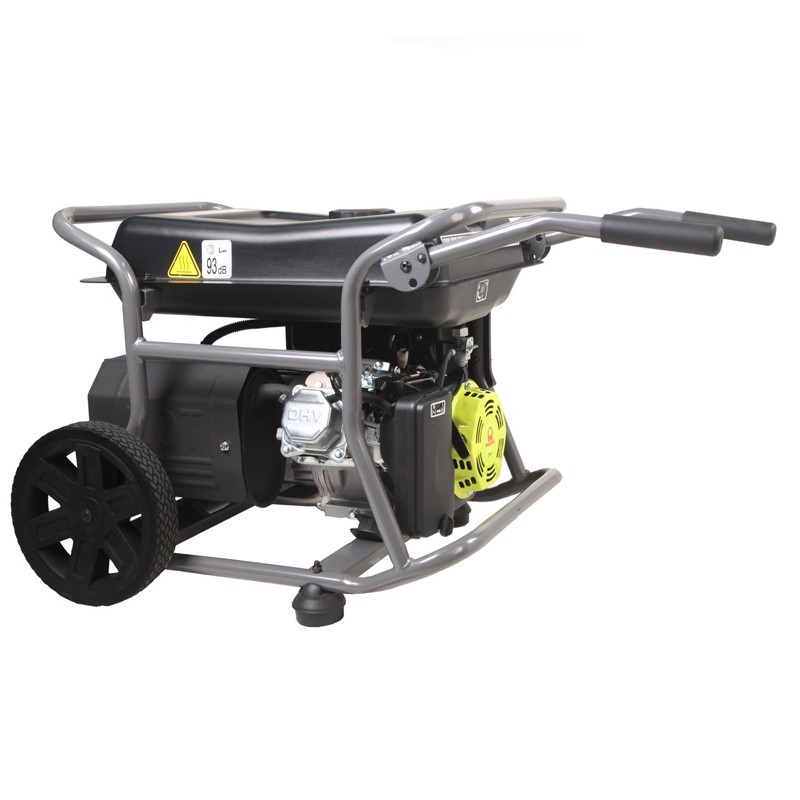

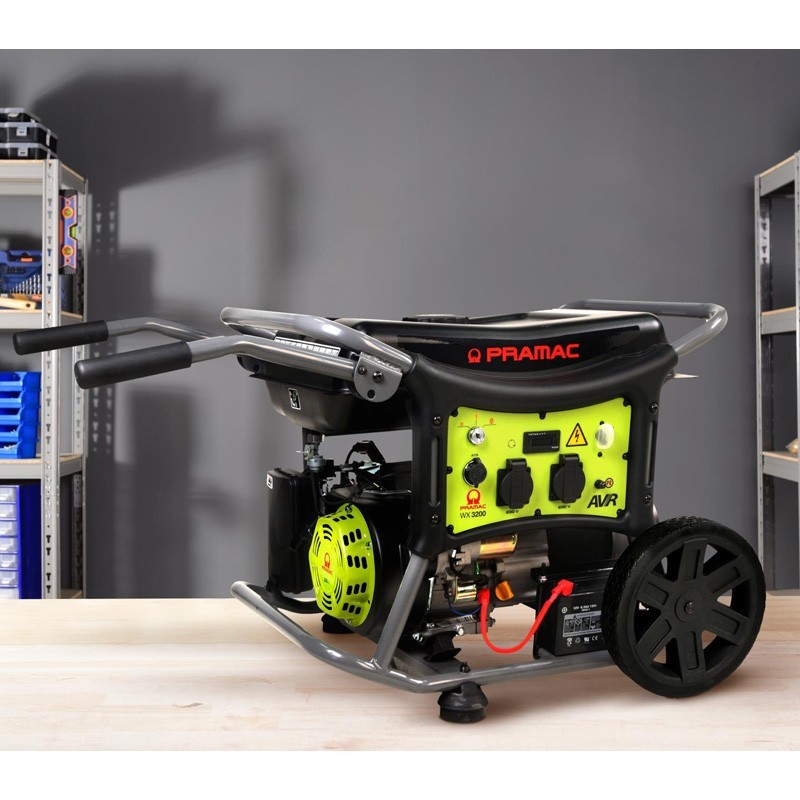

The Gasoline Electric Generator Pramac WX 3200 ES CONN for easy start-up includes practical instructions on a sticker, which makes its first use simple and accessible. It is equipped with an automatic voltage regulator(AVR) that ensures stable power output, making it an ideal choice for powering a variety of devices and tools.

In addition, its built-in wheel kit makes it easy to transport, which is especially useful for moving it around construction sites or events.

A standout feature is its CONN connector for AMF (Automatic Mains Failure Frame), which allows for a smooth transition to equipment-generated power in the event of a mains outage. This provides an additional layer of safety and continuity in critical situations.

The Pramac WX 3200 ES CONN Generator features an OHV engine that provides stable and reliable power through its use of gasoline as fuel. The low oil level protection system ensures the integrity of the generator, and the engine oil required for the first start is supplied in a bottle. In addition, its digital meter monitors engine run time, which facilitates maintenance, and its fuel gauge allows convenient monitoring of gasoline levels.

Technical Data

Frequency 50 Hz
Voltage 230 V
Phases 1
Maximum Power 2850 W
Nominal power 2450 W
Brand Pramac
Type OHV
Exhaust emission optimized for 97/68 50Hz (COM) Stage V
Rated operating speed 3000 rpm
Fuel Gasoline
Starting system Electric (+Manual)
Oil tank 0.6 l
Displacement 208 cc
Voltage regulation AVR
Guaranteed sound level (LWA) 93 dBA
Noise pressure level @ 7 mt 65 dB(A)
Fuel tank capacity 17 l
Fuel consumption @ 50% 1.04 l/h
Autonomy @ 50% 16.3 h
Dimension 680 x 602 x 523
Dry weight 49 Kg

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending.
The batteries included in some machines are a free gift, so they are exempt from warranty.
