Battery NOT included in electric start models

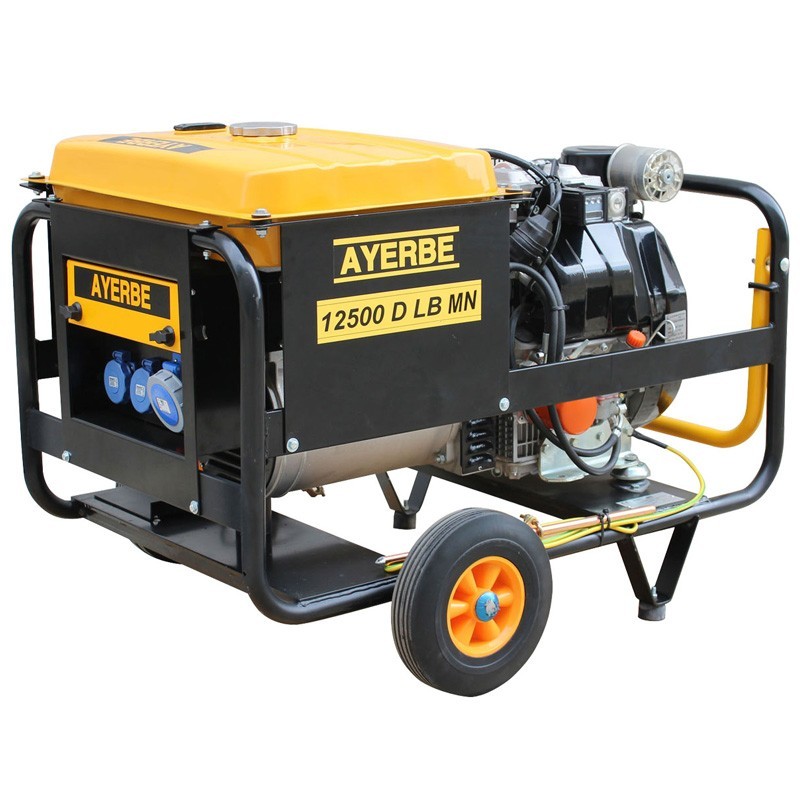

The generator Ayerbe Ay 12500 D E is one of the best electric generators that can exist in the market because it has a 19 horsepower Lombardini diesel engine. A real beast of an engine for this machine.
As for the power that is capable of delivering this generator is up to the incredible 10 000 watts running at 3000 revolutions per minute.
The fuel consumption of this engine is 2.4 liters per hour and comes equipped with a tank of 25 liters which gives us an autonomy of 10 hours in single-phase mode.
| Maximum power | 12,5 KVA - 10.000 W |
| Nominal power | 10 KVA - 8,000 W |
| R.p.m. | 3.000 r.p.m. |
| Voltage / Frequency | 230 V. / 50 Hz. |
| Starting | Electric |
| Power factor | Cos phi 0,8 |
| Noise level | 108 LwA / 80 LpA@7m |
| Motor | |
| Brand | LOMBARDINI |
| Model | 25 LD 425 |
| Power | 19 HP |
| Displacement | 851 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. of engine | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Diesel |
| Fuel consumption at 75% | 2.4 L/H |
| Oil capacity | 1,8 L |
| Starting system | Electric |
| Alternator | |
| Brand | MECC ALTE |
| Model | S20 W |
| Type | Brushless |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Self-excited brushless |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 25 l |
| Autonomy at 75% | 10 hours |
| Weight | 140 kg |
| Dimensions | 950 x 625 x 746 mm |
| Packing volume | 0,44 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
