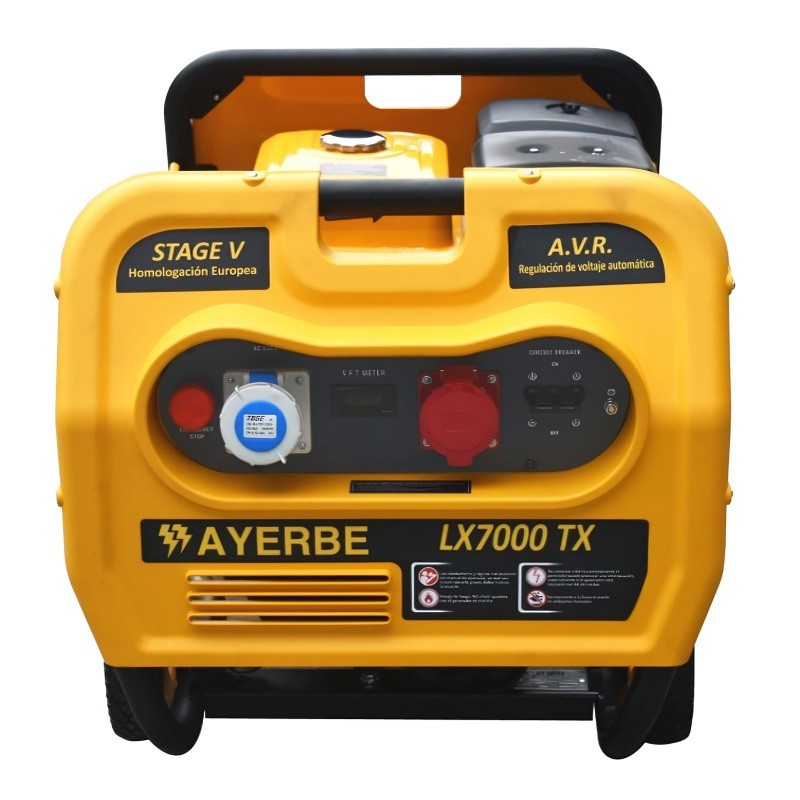

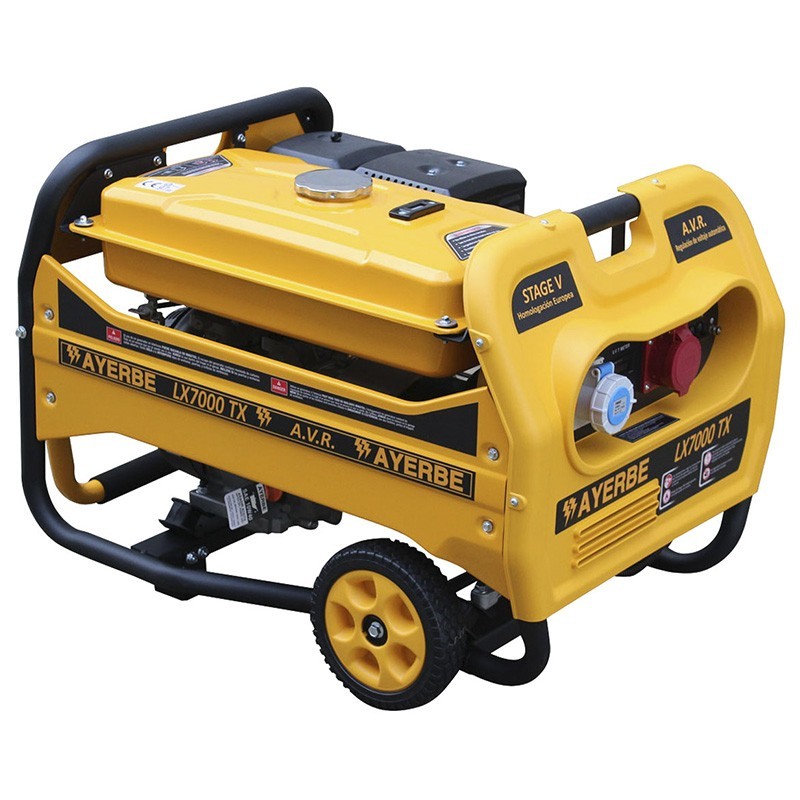

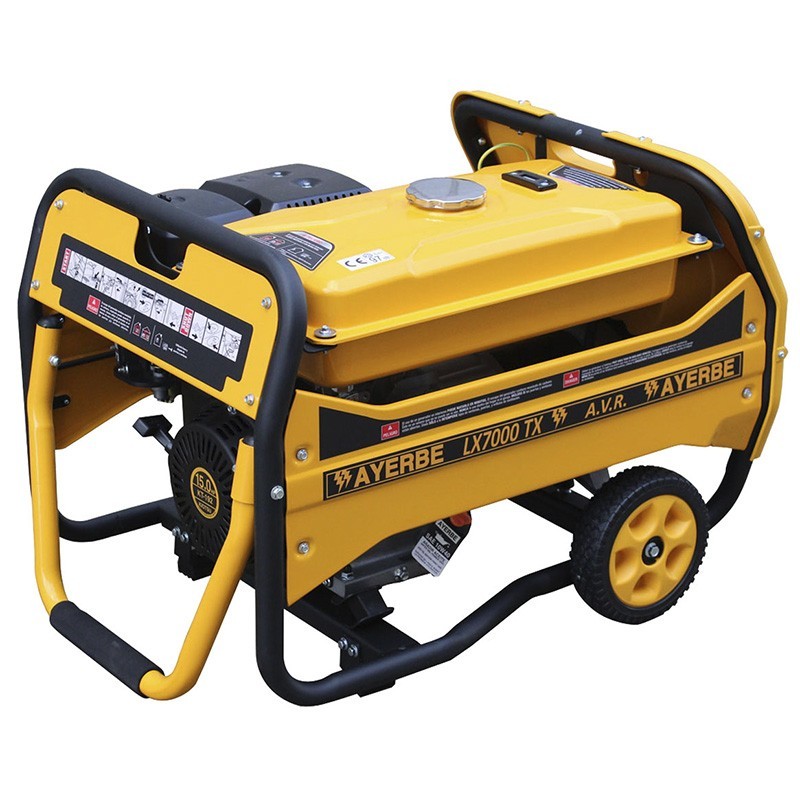

The Three Phase Gasoline Generator Ayerbe LX7000 TX is a powerful power source with a KIOTSU KT-192 engine of 15 HP and 450 cc, which complies with the European homologation of emissions STAGE V ENGINE.
This robust generator runs on 4-stroke OHV gasoline, with an efficient consumption of 2.4 L/H at 75% load, providing an autonomy of up to 7.5 hours. Its aVR regulated output alternator and 100% copper winding guarantee a maximum power of 7000 W and a nominal power of 6500 W, with a double voltage of 400 V and 230 V.
The LX7000 TX control panel offers total control, with a digital frequency meter, iP67 waterproof sockets, circuit breaker to protect against overloads, differential and ground spike for safety, digital voltmeter, oil alarm and hour meter.
Its manual start makes it easy to operate, while the 200 mm inflatable wheels and the reinforced tubular chassis with front and side guards provide mobility and durability. With a sound level of 98 LwA at 7 meters, this generator stands out for its efficiency, safety and ease of use in various applications.
| Maximum three-phase power | 7.000 W |
| Rated three-phase power | 6.500 W |
| Maximum single-phase power | 2.300 W |
| Single-phase power rating | 2.100 W |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 400 V & 230 V. / 50 Hz. |
| Approved construction site | With IP 55 protection |
| Power factor | Cos phi 0.8 |
| Noise level | 98 LwA / 75 LpA@7m |
| Differential 0.03 Amp, hour meter, voltmeter and grounding rod | |
| Engine | |
| Brand | KIOTSU |
| Model | KT-192 F E |
| Power | 15 HP |
| Displacement | 450 cc |
| Cooling system | Air |
| Type of engine oil | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. of the engine | 3.600 r.p.m. |
| Speed regulator | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 2.4 L/H |
| Oil capacity | 1,1 L. Includes 1.1 L oil bottle |
| Start-up system | Manual |
| Alternator | |
| Brand | AYERBE |
| Model | 7000 TX |
| Type | Electronic regulation |
| Type of insulation | Class H |
| IP protection | IP 23 |
| Excitation system | A.V.R. |
| Tension Tolerance | + - 1% |
| Poles | |
| Voltage / Frequency | 400 V & 230 V - 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 6 l |
| Autonomy at 75% | 2.6 hours |
| Weight | 88 kg |
| Dimensions | 810 x 560 x 570 mm |
| Packaging volume | 0,30 m³ |
| IMPORTANT NOTICE |
| Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included with some machines are a free gift, so they are free of charge exempted from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
