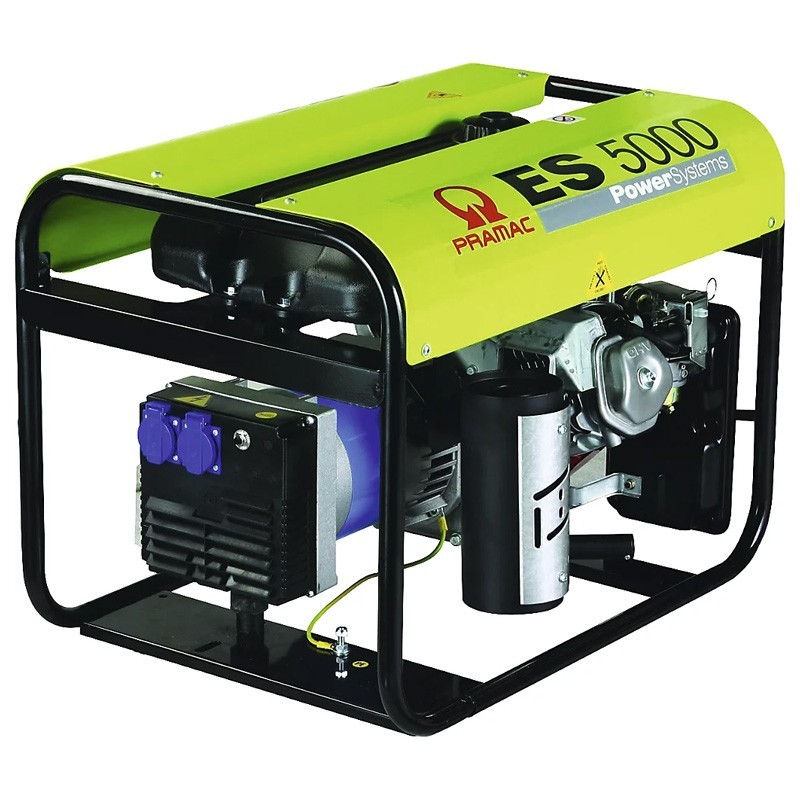

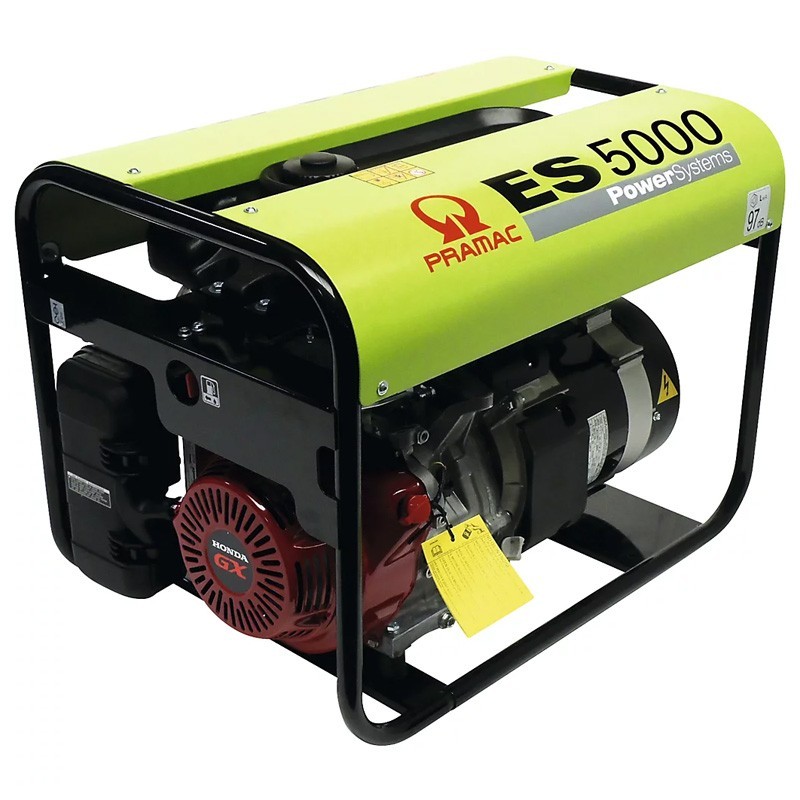

The gasoline electric generator Pramac ES5000 operates at a frequency of 50 Hz and provides a voltage of 230 V, with a power factor of 0.9 cos ϕ and a single phase. This generator is available in two models, one with AVR stabilization system for a constant power supply and one without this function, offering versatility according to needs.
In terms of protections, the ES5000 has key safety features, including thermal protection and an oil level alarm, ensuring safe and reliable operation. Its 230V 16A SCHUKO IP54 and 2P+T CEE 230V 16A IP44 sockets allow for a variety of connections.
In addition, this electric generator offers performance with a guaranteed sound level (LWA) of 97 dBA and a noise pressure level of 69 dB(A) at 7 meters distance.
| Model | Without AVR | With AVR |
| Frequency | 50 Hz | |
| Voltage | 230 V | |
| Power factor | 0.9 cos ϕ | |
| Phases | 1 | |
| Maximum power | 4600 W | |
| Nominal power | 3900 W | |
| Engine Brand | Honda | |
| Model | GX270 Recoil | |
| Cooling System | Air | |
| Aspiration | Natural | |
| Speed regulator | Mechanical | |
| Nominal operating speed | 3000 rpm | |
| Fuel | Gasoline | |
| Starting system | Manual | |
| Oil tank | 1.1 l | |
| Displacement | 270 cc | |
| Alternator type | Brushless | With brushes |
| Class | H | |
| IP protection | 23 | |
| Poles | 2 | |
| Voltage tolerance | +5; -10 (cosϕ1) %; +5; -10 (cosϕ1) %; +5; -10 (cosϕ1) % | 2 % |
| Voltage regulation system | Compound | Electronic |
| Standard AVR regulation | AVR 520 | |
| Fuel consumption at 75% load | 1.67 l/h | 1.66 l/h |
| Autonomy at 75% load | 6.59 h | 6.63 h |
| Fuel consumption at 100% load | 2.22 l/h | |
| Autonomy at 100% load | 4.95 h | |
| Fuel tank capacity | 11 l | |
| Guaranteed sound level (LWA) | 97 dBA | |
| Noise pressure level @ 7 mt | 69 dB(A) | |
| Dimensions | 729 x 500 x 536 | |
| Dry weight | 61 kg | |
| Sockets | SCHUKO 230V 16A IP54 | |
| 2P+T CEE 230V 16A IP44 | ||
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
