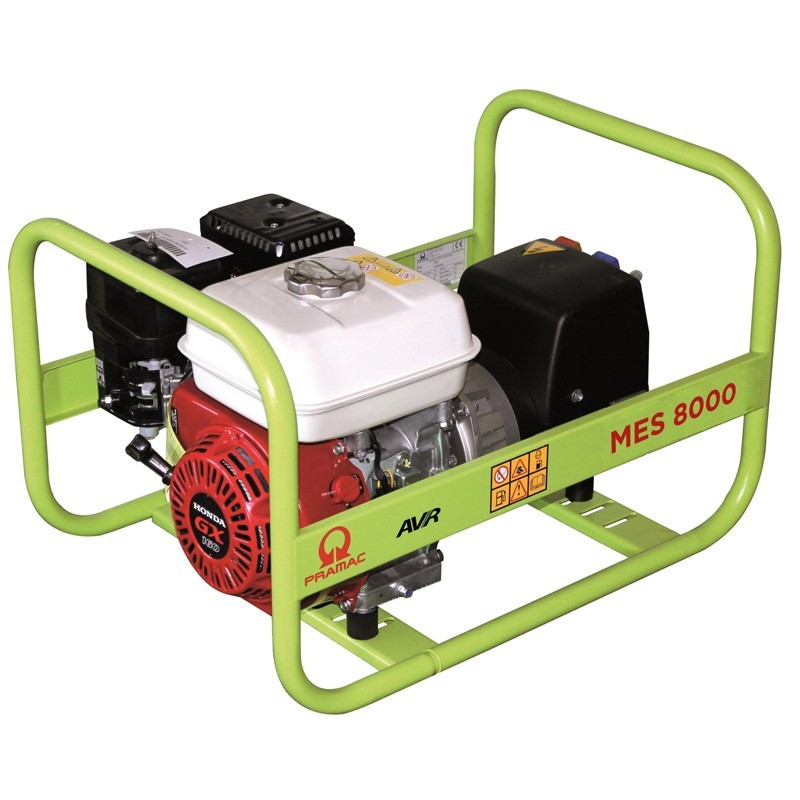

The Gasoline electric generator Pramac MES8000 three-phase It operates at a frequency of 50 Hz and provides a voltage of 400/230 V with a power factor of 0.8 cos ϕ. With its three-phase design, it can generate a maximum power of 6600 W and a nominal three-phase power of 5600 W, as well as a maximum single-phase power of 4000 kVA and a single-phase nominal power of 3700 kVA.
The generator's controls are simple and effective, with an on/off switch for easy and safe control. Additionally, it features a manual start and a fuel key that facilitates maintenance and operation. In terms of protection, this generator offers solid security with Thermal protection and a oil level alarm that alerts the user in case of problems.
This electric generator Pramac MES8000 is available in two models, one with an AVR stabilization system (automatic voltage regulation) and another without it, providing versatile options to meet specific energy needs. With its brush design, class H, and IP23 protection, this generator is Robust and durable, with a voltage tolerance of 6% (without AVR) or 1.5% (with AVR) and appropriate voltage regulation systems for different applications.
| Model | Without AVR | With AVR |
| Frequency | 50 Hz | |
| Voltage | 400/230 V | |
| Power factor | 0.8 cos ϕ | |
| Phases | 3 | |
| Maximum three-phase power | 6600 W | |
| Three-phase nominal power | 5600 W | |
| Maximum single-phase power | 4000 kVA | |
| Single-phase nominal power | 3700 kVA | |
| Motor Brand | Honda | |
| Model | GX390 Recoil | |
| Cooling system | Air | |
| Aspiration | Natural | |
| Speed regulator | Mechanics | |
| Nominal operating speed | 3000 rpm | |
| Fuel | Gasoline | |
| Starting system | Manual | |
| Oil deposit | 1.1 l | |
| Displacement | 389 cc | |
| Alternator type | With brushes | |
| Class | H | |
| IP Protection | 23 | |
| Polos | 2 | |
| Voltage tolerance | 6% | 1.5% |
| Voltage regulation system | Compound | Electronic |
| Standard AVR regulation | AVR 860 | |
| Fuel consumption at 75% load | 2.15 l/h | |
| Autonomy at 75% charge | 2.84 h | |
| Fuel consumption at 100% load | 2.86 l/h | 2.87 l/h |
| 100% charge autonomy | 2.13 h | |
| Fuel tank capacity | 6.1 l | |
| Dimension | 750 x 543 x 520 | |
| Dry weight | 75 kg | |
| Plugs | SCHUKO 230V 16A IP54 | |
| 2P+T CEE 230V 16A IP44 | ||
| 3P+N+T CEE 400V 16A IP44 | ||
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before starting. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
| The batteries that are included with some machines are a complimentary gift, so they remain exempt from warranty. |
