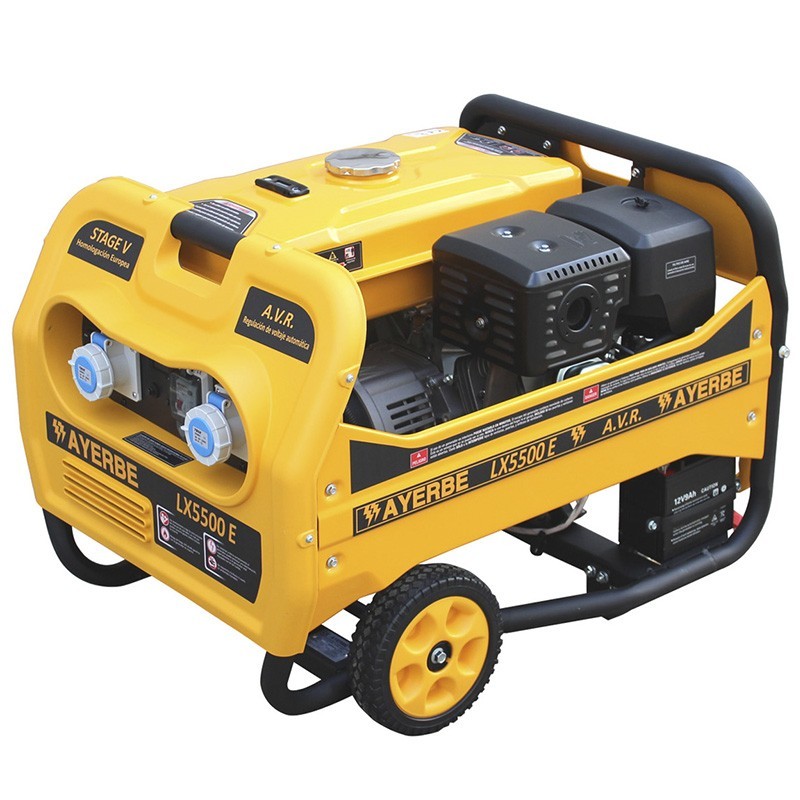

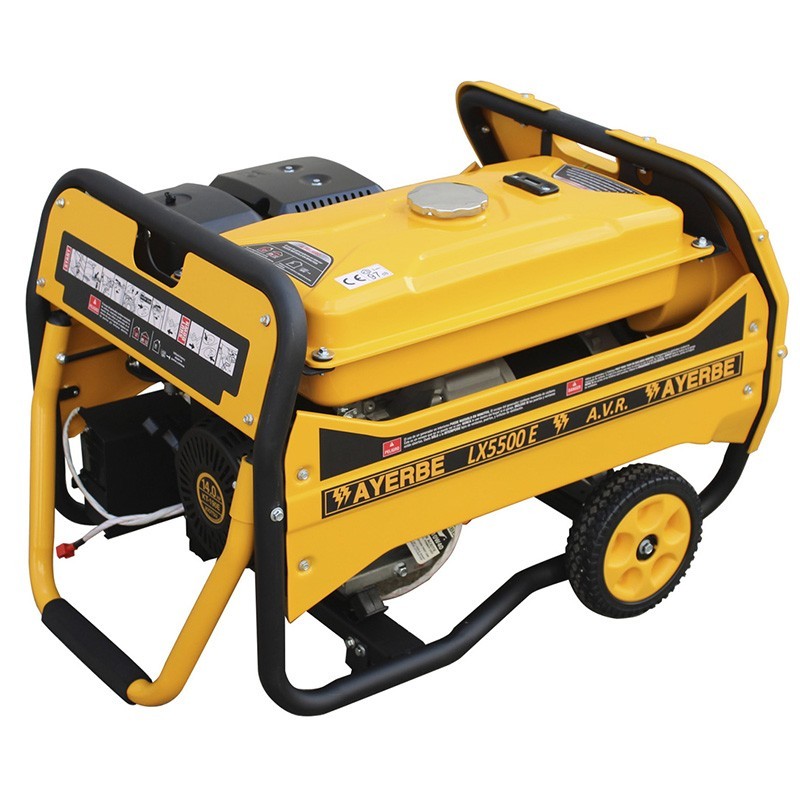

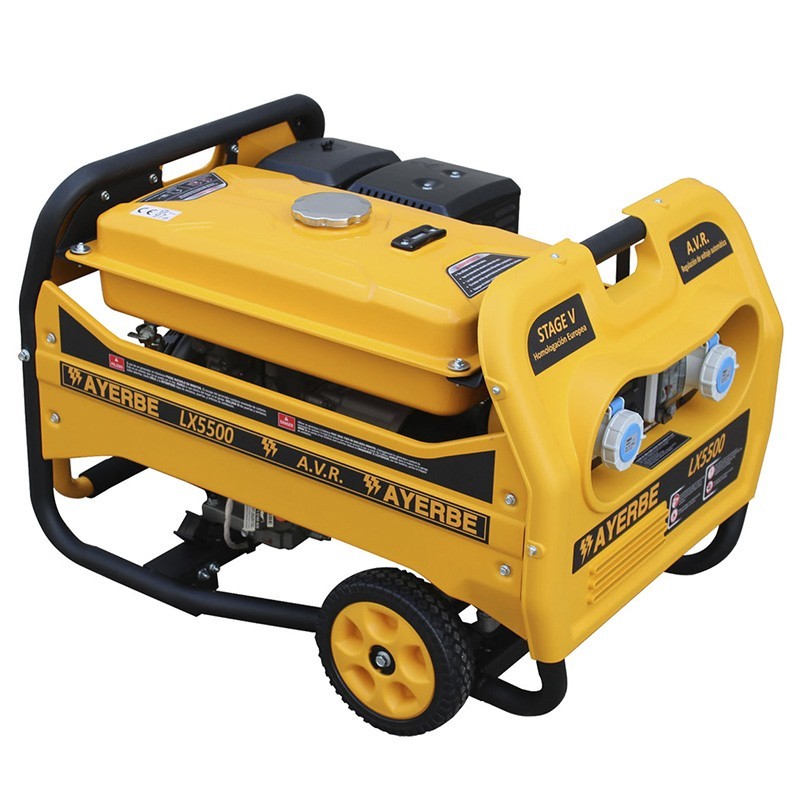

The Single Phase Gasoline Generator Ayerbe LX5500 stands out for its efficiency and robust design, ideal for meeting power needs in various situations. Equipped with a complete control panel, it includes a circuit breaker for overload protection, an oil alarm to keep the engine in optimal condition, and a digital voltmeter and frequency meter for accurate monitoring.
With a reinforced tubular chassis and front and side guards, this generator ensures durability and strength. Its folding handlebar handle and 200 mm inflatable wheels facilitate mobility, providing comfort in any environment.
Available in two models, the LX5500 with manual start and the LX5500 E with electric start, this generator offers a maximum power of 5,500 W and a rated power of 5,000 W at 3,000 r.p.m., ensuring a reliable power supply at all times.
| Maximum power | 5.500 W |
| Rated power | 5.000 W |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 230 V. / 50 Hz |
| Approved control panel | With IP 55 protection |
| Power factor | Cos phi 0,8 |
| Noise level | 98 LwA / 75 LpA@7m |
| Differential 0.03 Amp, voltmeter hour counter and grounding probe | |
| Motor | |
| Brand | KIOTSU |
| Model | KT-190 / KT-190 E |
| Power | 14 HP |
| Displacement | 420 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 2.3 L/H |
| Oil capacity | 1,1 L. Includes 1.1 L oil bottle |
| Starting system | Manual or Electric |
| Alternator | |
| Brand | AYERBE |
| Model | 5500 |
| Type | Electronic regulation |
| Type of insulation | Class H |
| IP protection | IP 23 |
| Excitation system | A.V.R. |
| Voltage Tolerance | + - 1% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 18 l |
| Autonomy at 75% | 6 hours |
| Weight | 80 kg |
| Dimensions | 810 x 560 x 570 mm |
| Packing volume | 0,30 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
Battery NOT included in electric start models
