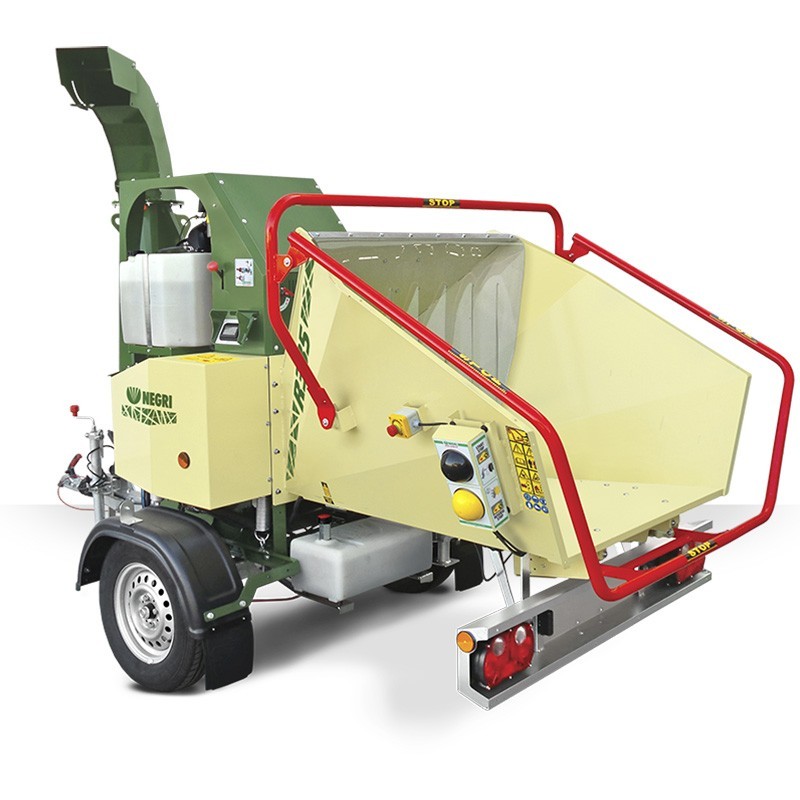

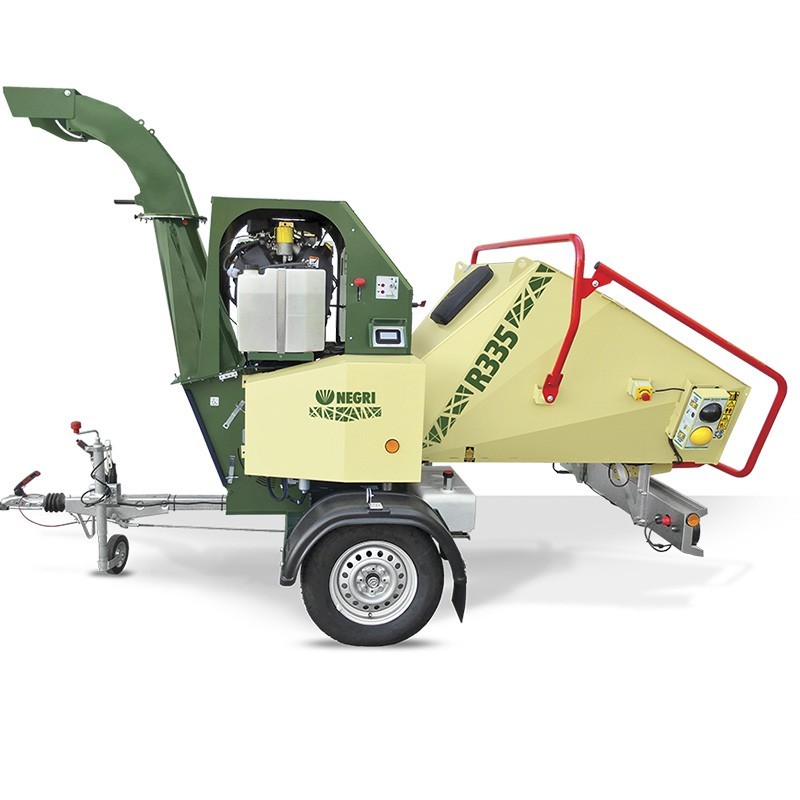

The mulcher is equipped with 22 hammers and 6 blades on a rotor that can shred branches of up to 160 mm. The work is very comfortable thanks to its large hopper and its hydraulic roller adjustable in speed and direction. The trailer is homologated for road use.
Belt drive with hydrodynamic coupling
 ROTOR : Blades + Hammers |
.jpg "Cuchillas reafilables (acero templado)") Resharpenable blades (hardened steel) |
.jpg "Martillos móviles reversibles (acero templado)") Reversible mobile hammers (hardened steel) |
 Removable fixed refining screen |
 Hydraulic roller adjustable in speed and direction of rotation |
.jpg "Prolongación tubo de lanzamiento") Launching tube extension (400 mm) |
 Pivoting launching tube with adjustable depth of ejection |
.jpg "OBS - On Board System") OBS - On Board System (Multifunctional control system with Nostress) |
 Lubrication system for bearings |

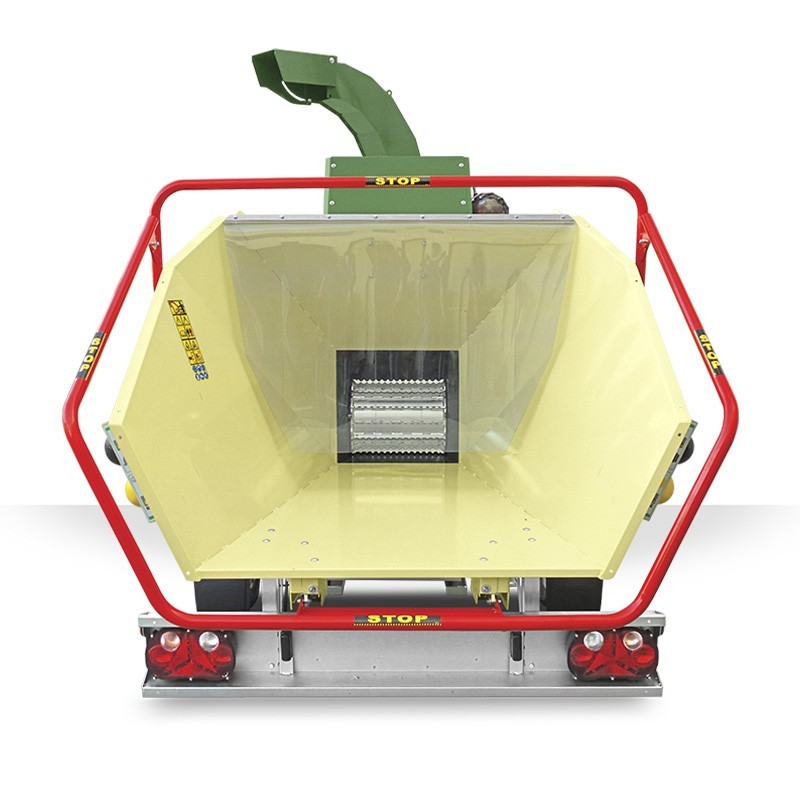

 Large and comfortable hopper |
 Belt drive with hydrodynamic coupling |
 Homologated road trailer + Adjustable ball joint steering wheel |
| Cutting system | |
| Hammers (hardened steel) | 22 steel hammers |
| Blades (hardened steel) | 6 steel blades |
| Features | |
| Hourly production | 15 - 20 m3/h |
| Crushing opening | 390 x 160 mm |
| Crushable max. | 160 mm |
| Kohler engine power | |
| Power | 38/28 hp/kw |
| Power Supply | Gasoline |
| Engine | KOHLER ECH980 |
| Fuel consumption | 8.8 l/h |
| Technical specifications | |
| Length | 3520 mm |
| Width | 1580 mm |
| Height | 2320 mm |
| Discharge height | 2320 mm |
| Introduction opening | 740 |
| Crushing opening | 1340 x 860 mm |
| Weight | 750 kg |
Chipper accessories Negri:
| IMPORTANT NOTICE |
| Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
