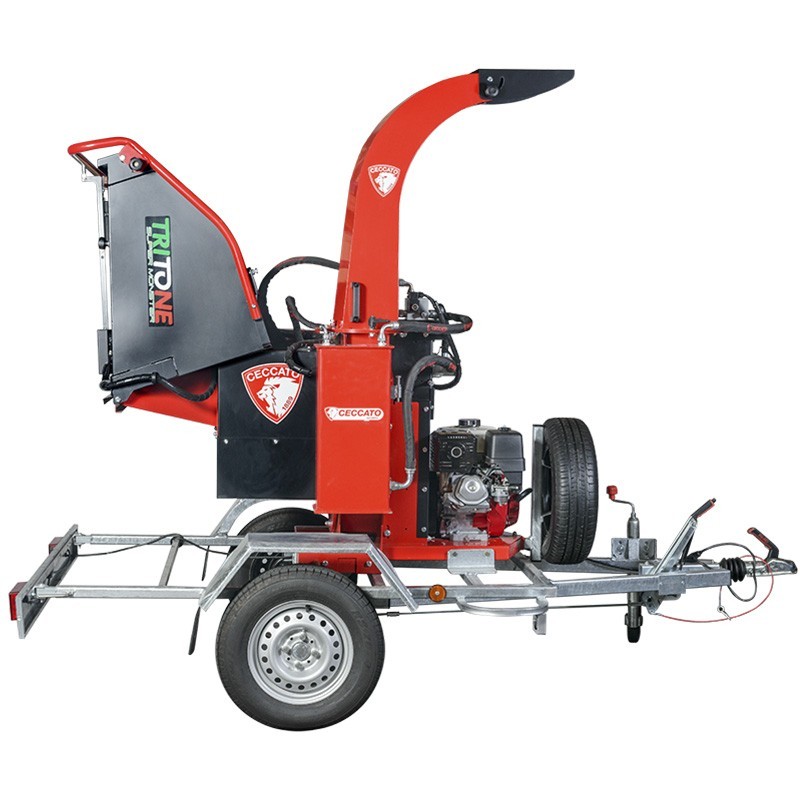

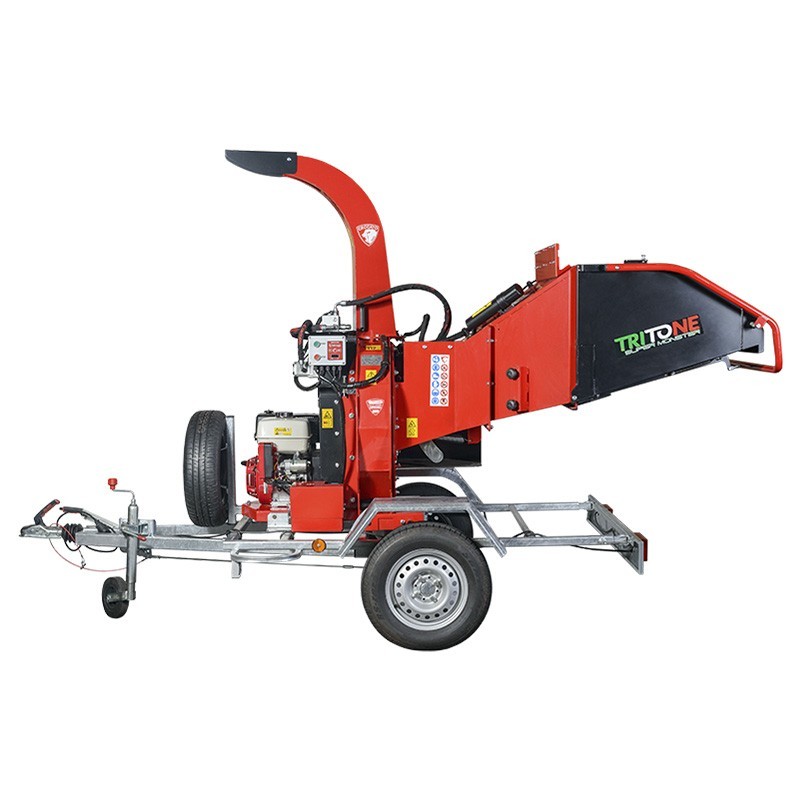

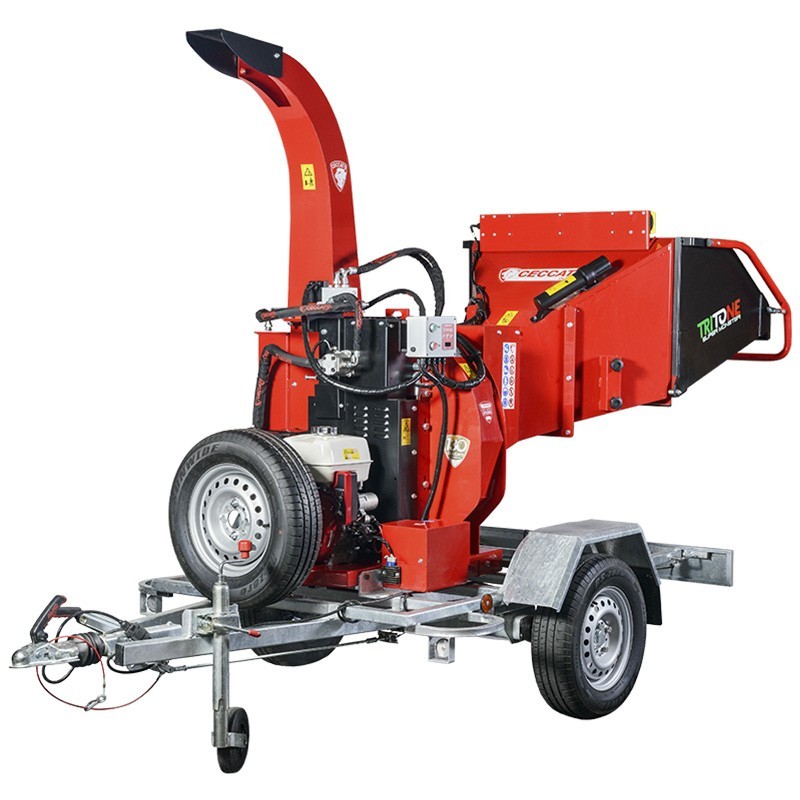

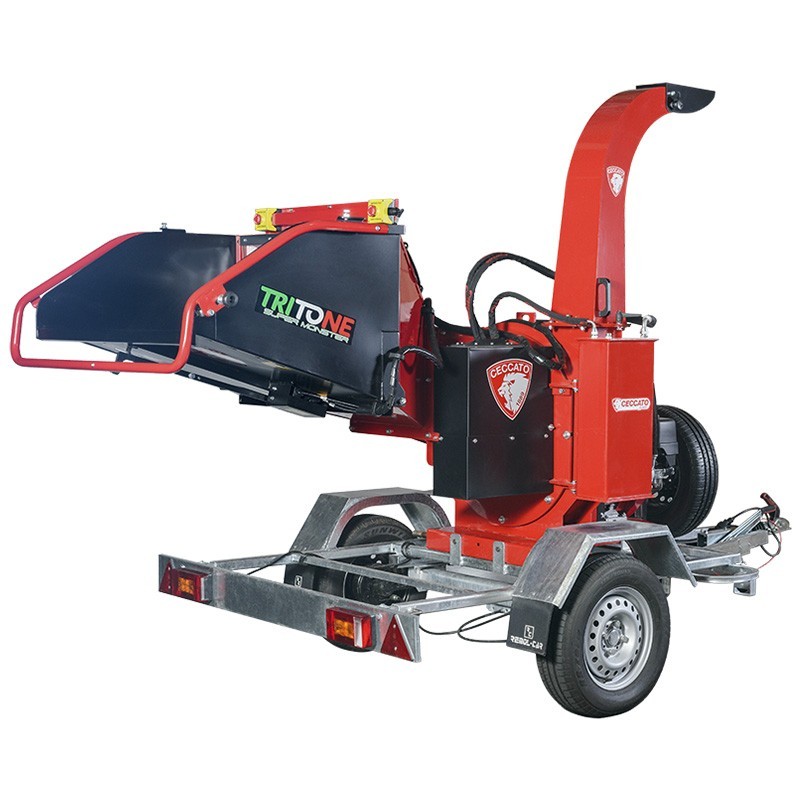

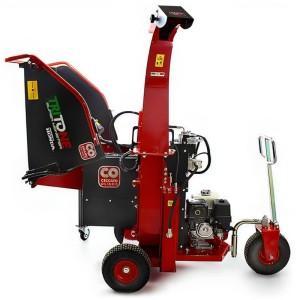

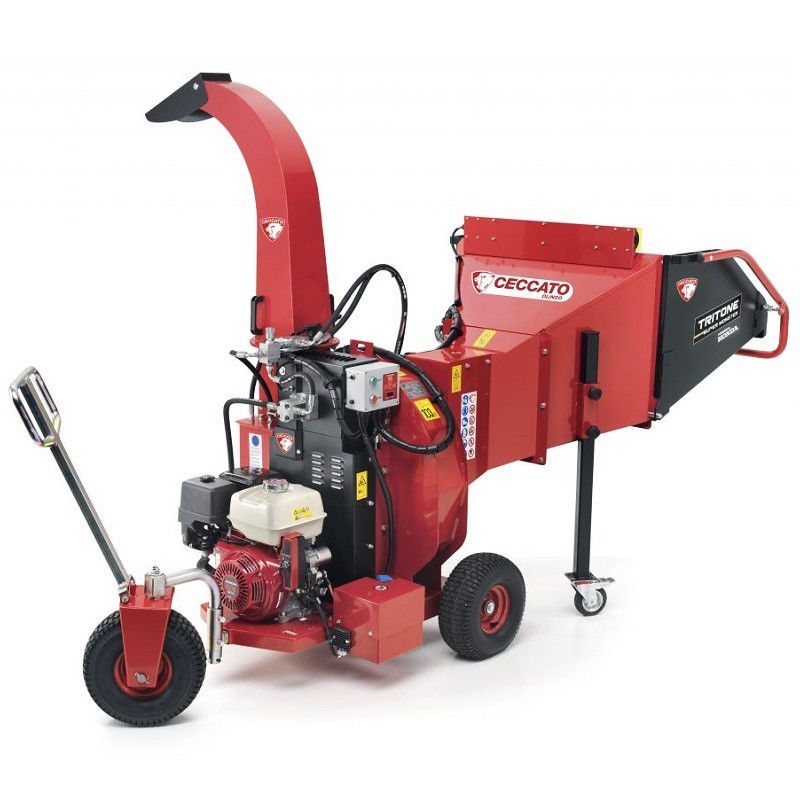

The Ceccato Olindo Tritone Super Monster GX390 Bio Shredder is equipped with a 13 HP engine and with manual and electric start options, this shredder offers exceptional versatility to suit your needs. Its maximum cutting diameter of 120 mm makes it an ideal solution for processing larger branches.

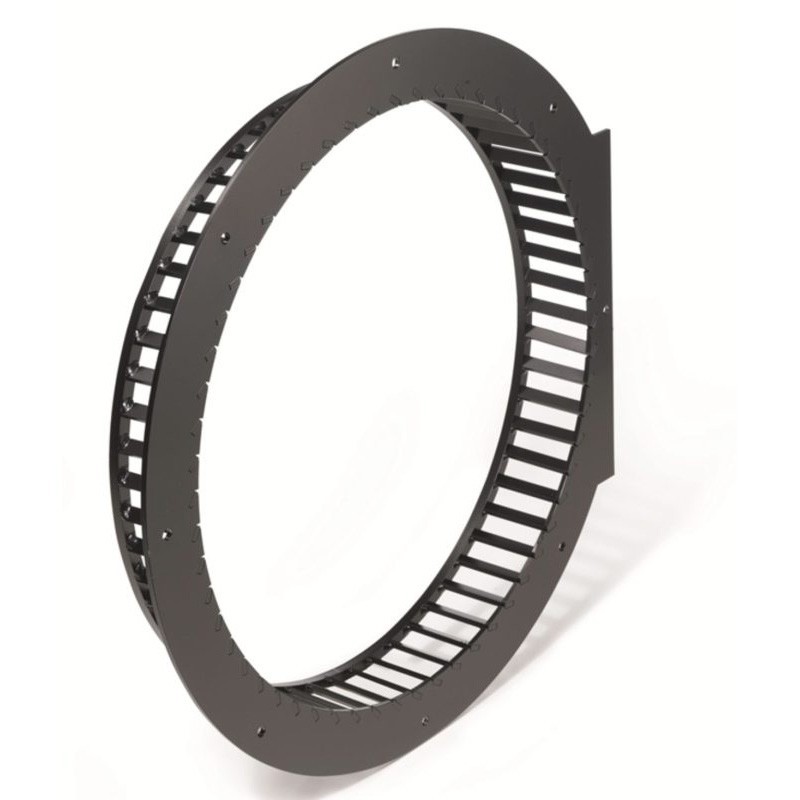

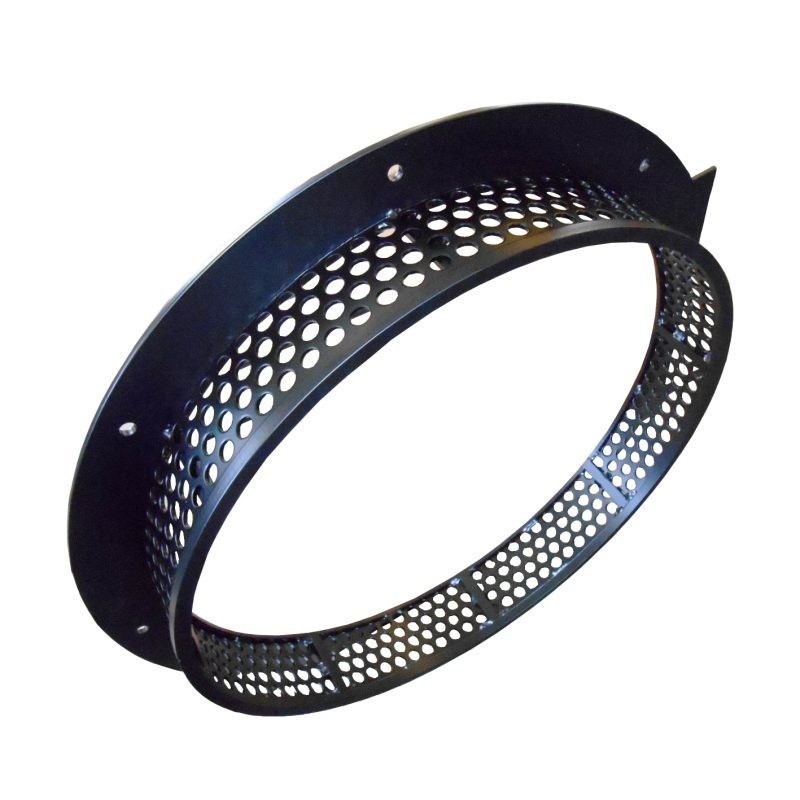

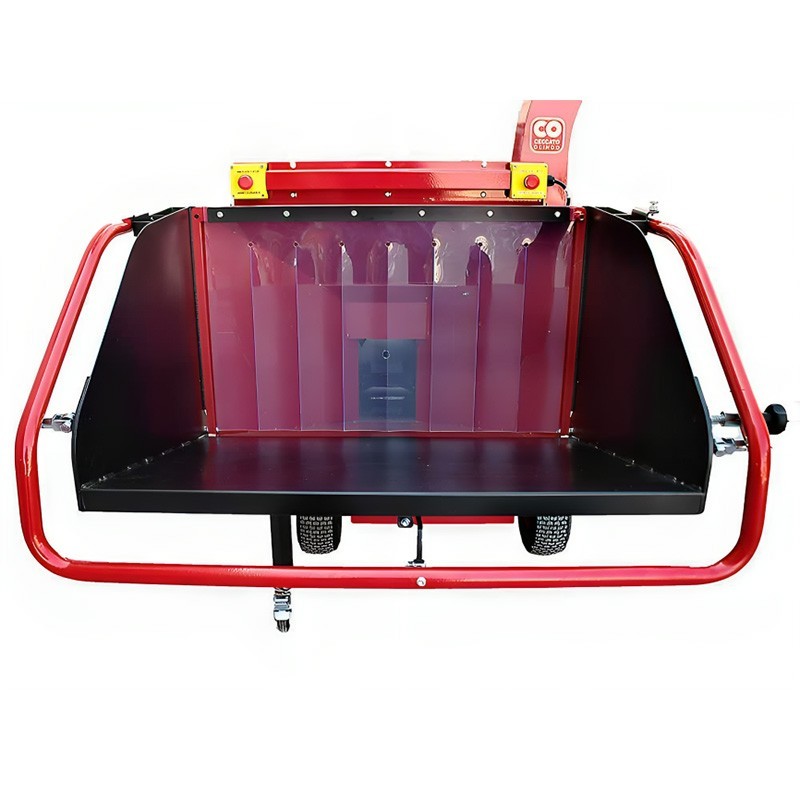

The 58 cm high and 95 cm wide power Supply hopper allows for easy loading of material, with a useful opening of 19 cm to ensure a constant flow. In addition, it has a screen to reduce chunks and an interchangeable sieve that achieves a shredding of up to 1 cm.

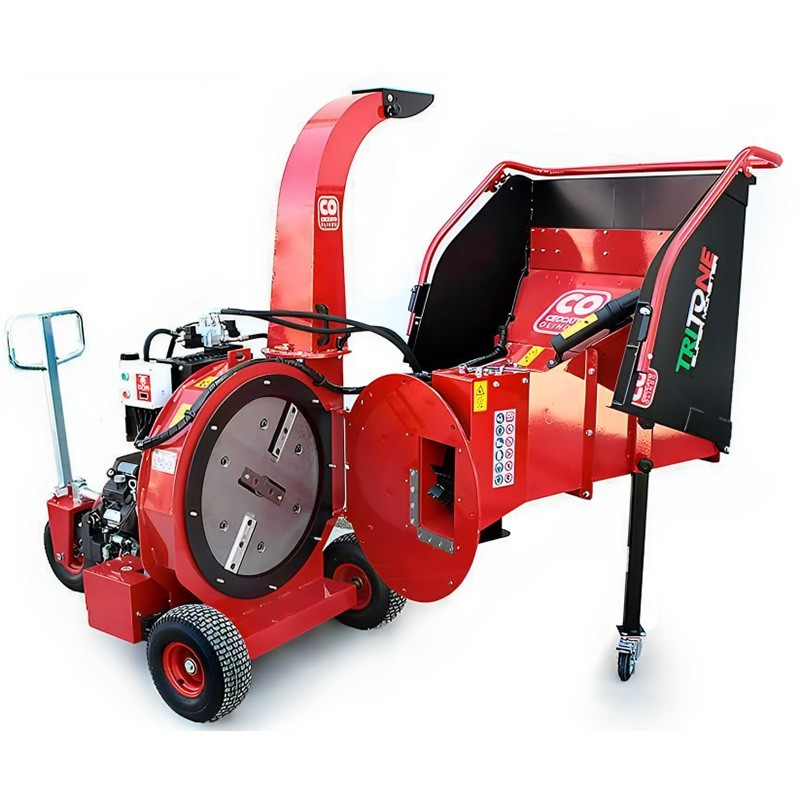

The cutting rotor combines blades and hammers, with 4 blades and 24 hammers, and a rotating movement that ensures efficient shredding. The enameled steel chassis and hydraulic belt drive ensure durability and optimum performance in this powerful bio shredder.
| Power Supply | Gasoline |
| Engine | Honda GX390 |
| Displacement | 389 cc |
| Engine type | 4-stroke |
| Starter | Manual and Electric |
| Number of cylinders | 1 |
| Engine lubrication | in oil bath |
| Independent oil tank | Yes |
| Exhaust outlet | High rotary |
| No. of hoppers | 1 |
| Hopper opening height | 58 cm |
| Hopper opening width | 95 cm |
| Hopper opening dimension | 19 cm |
| Number of rollers | 1 |
| Grid to reduce pieces | Yes |
| Interchangeable strainer | Yes |
| Min. crushing size with sieve | 1 сm |
| Power | 13 HP |
| Maximum branch diameter | 120 mm |
| Transmission type | Belt drive |
| Rotor transmission type | Hydraulic |
| Chassis material | Enameled steel |
| Cutting rotor type | Combination of blades and hammers |

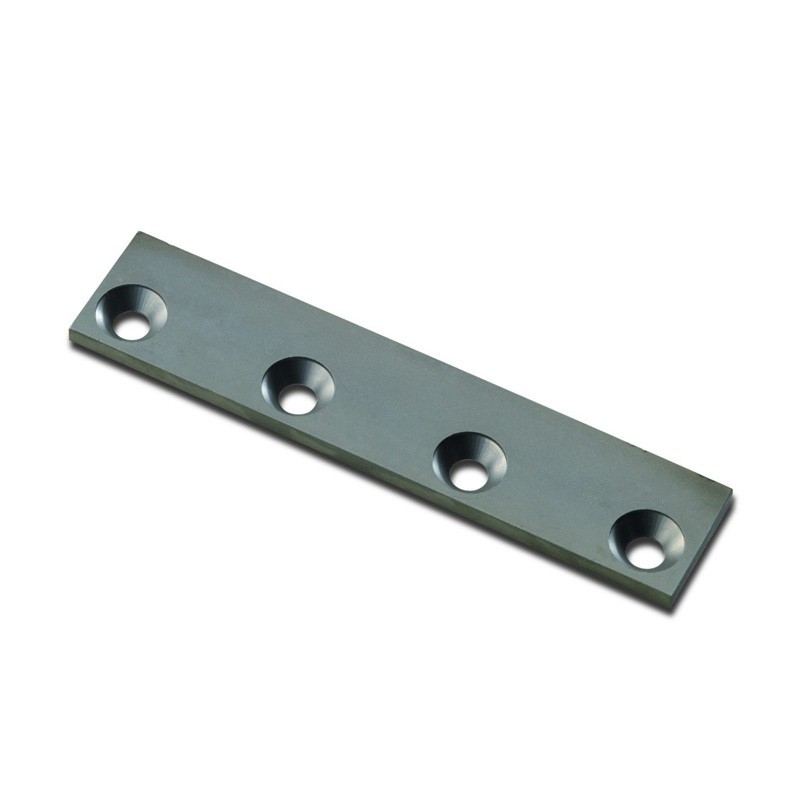

| No. of blades | 4 |
| Counter knives | 2 |

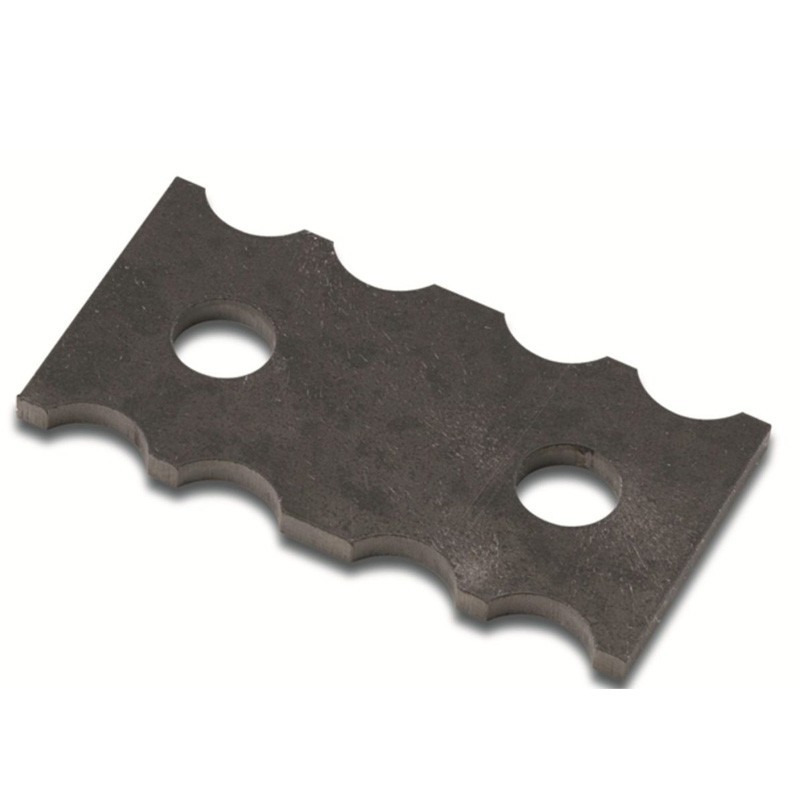

| No. of hammers | 24 |
| Blade movement | rotary |
| Grinding dimensions | 20 - 30 mm |
| Wheels | 15 x 6 - 6" rear |
| Product dimensions | 220 x 150 x 197 cm |
| Net weight | 460 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
