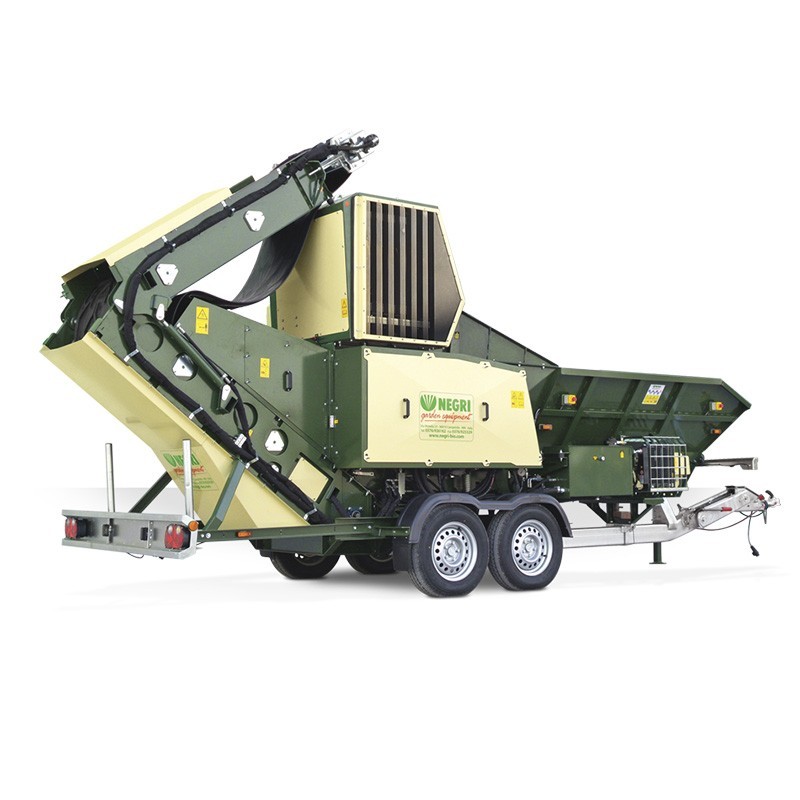

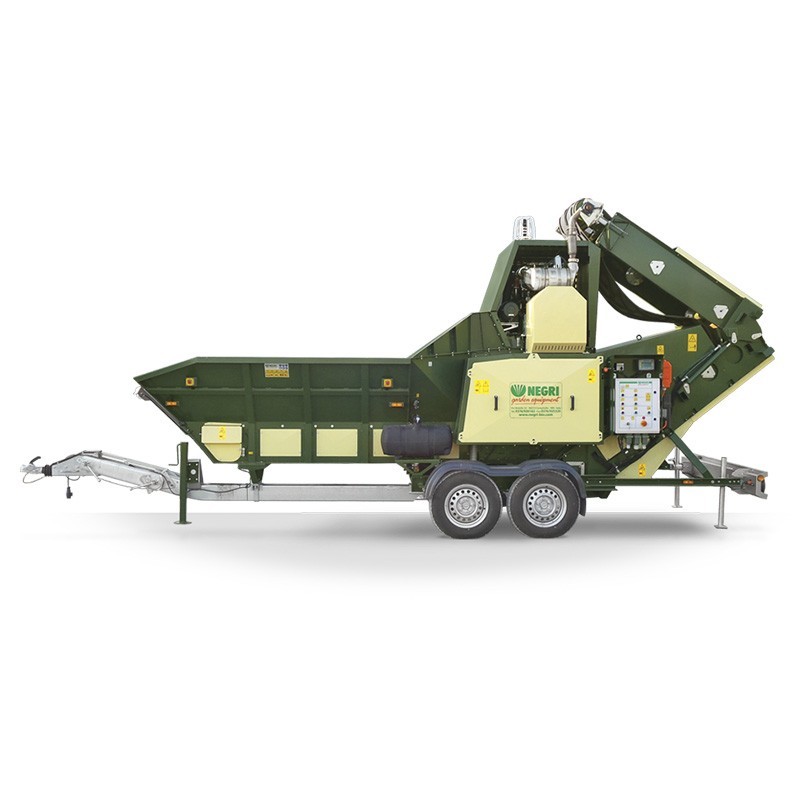

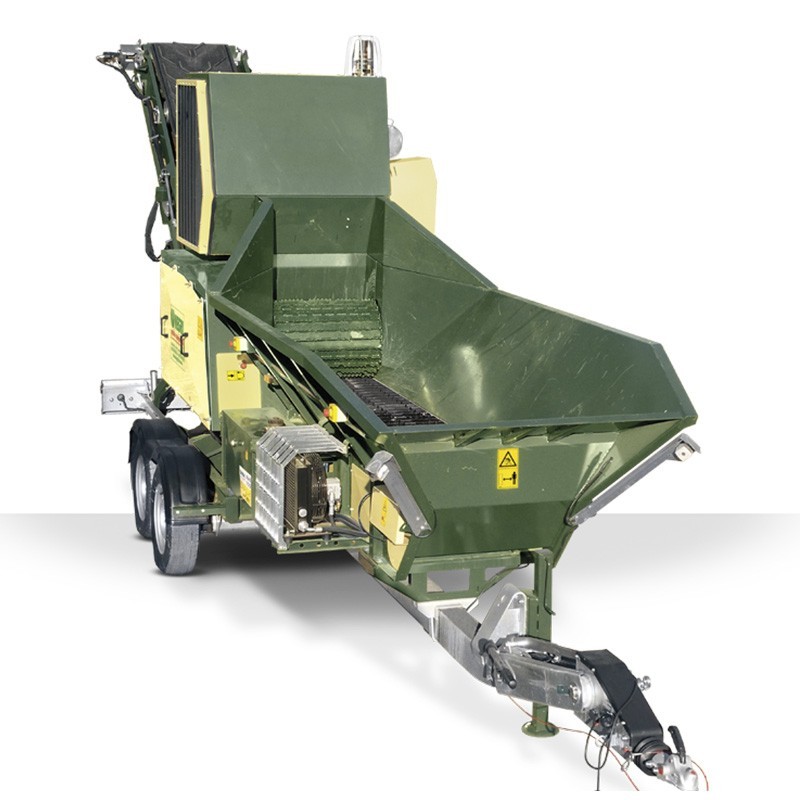

The R620 is the most powerful wood chipper of the brand with 68 hammers and 75 hp achieving an hourly production of 60m3/h. It is capable of shredding branches of 200mm in diameter, it is very comfortable to work with thanks to its conveyor belt power Supply adjustable hydraulics and its hydraulic roller.
The control nostress allows us to perform an automatic control of the introduction of the material we introduce with the radio remote control that activates the operating controls.
 ROTOR | Hammers |
 Hydraulic rubber ejection belt |
.jpg "Martillos móviles reversibles (acero templado)") Reversible mobile hammers (hardened steel) |
 Removable fixed refining screen |
 Hydraulic roller adjustable in speed and direction of rotation |
 Tape of power Supply steel hydraulics adjustable in speed and direction of rotation |
 Homologated road trailer + Adjustable ball joint steering wheel |
 Radio remote control to activate operating controls |
 Lubrication system for bearings |
 Nostress control + SHC system |
 Belt drive with hydrodynamic coupling |
 Electric start |
| Cutting system | |
| Hammers (hardened steel) | 68 steel hammers |
| Features | |
| Hourly production | 40 - 60 m3/h |
| Crushing opening | 640 x 200 mm |
| Crushable max. | 200 mm |
| Kohler engine power | |
| Power | 75 / 55 hp/kw |
| Power Supply | Diesel |
| Engine | KOHLER KDI2504TCR |
| Fuel consumption | 12 l/h |
| Technical specifications | |
| Length | 7415/9050 mm |
| Width | 2015 mm |
| Height | 3270/3090 mm |
| Discharge height | 3090 mm |
| Introduction height | 1650 |
| Introduction opening | 1500 x 3300 mm |
| Net weight | 3500 kg |
| IMPORTANT NOTICE |
| Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
