| Deleks products take about 15 to 25 days. |

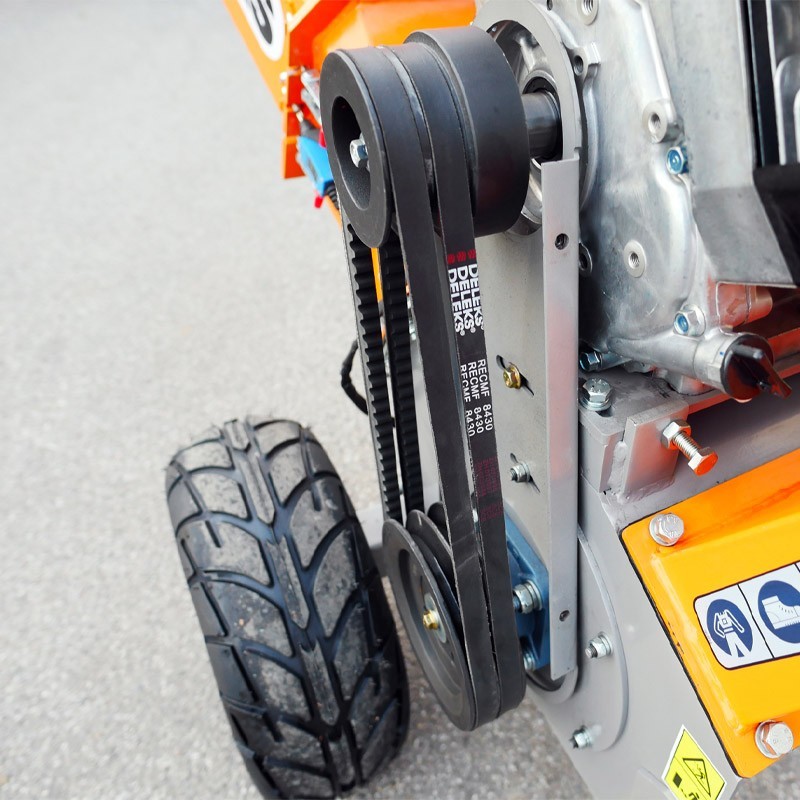

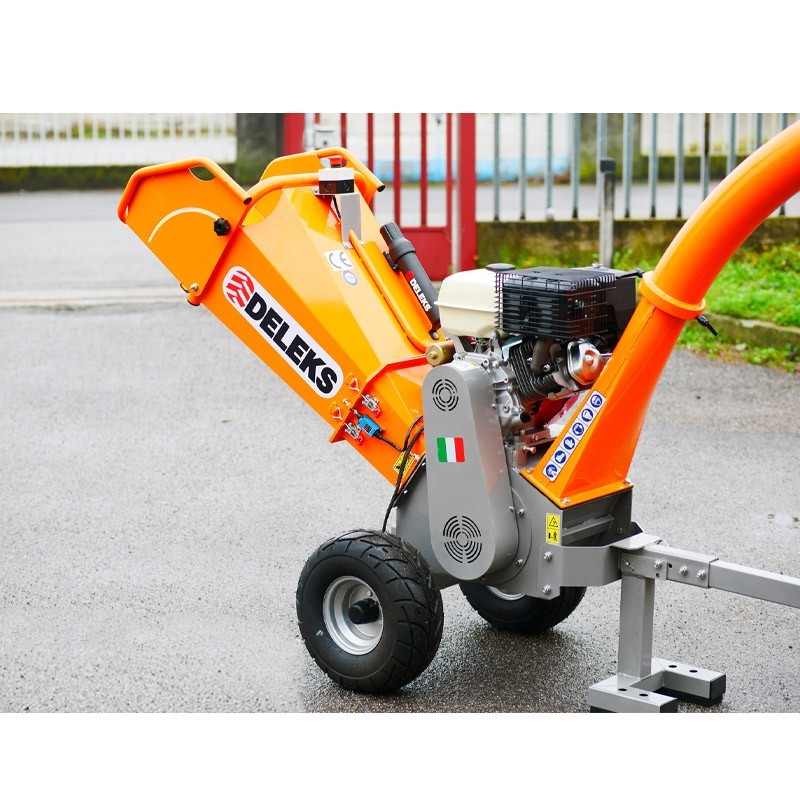

The Delex DK-800 branch shredder It features a Lifan 190F 4-stroke engine with air cooling. This engine provides us with a power of 15 HP and a total displacement of 420cc. Additionally, this shredder also includes a system of V-belt transmission.
The DK-800 crusher model Deleks It provides us with a good cutting system. This includes a drum with two blades and a counter-blade. It also offers us an ejection height of 1600 mm.
This Shredder Deleks offers us a anti-friction system to prevent direct movement between the motor and the rotor. This facilitates the startup. Additionally, it prevents the crankshaft from breaking in case the rotor gets blocked.
The DK-800 model has a safe one robust and stable structure with a low center of gravity. The model also offers us a ergonomic design and good CE security protections.
This model of DK-800 Branch Shredder It guarantees the operator great ease and comfort for performing effective crushing. This is thanks to its notable good features. The model has a lightweight of 200 kg.
Among these features, we can highlight the working width of 760 mm and the total height of 1630 mm. We can also highlight the total length of 2600 mm and its Total efficiency of 6-7 m3/h.
The DK-800 Shredder from Deleks It comes with instructions for the use and maintenance of the machine and instructions for the use and maintenance of the LIFAN engine.
| Total width | 760 mm |
| Weight | 200 kg |
| Total height | 1630 mm |
| Total length | 2600 mm |
| Lamas: Weight | 600 g |
| Transmission | V Koreas |
| Efficiency | 6-7 m3/h |
| Cutting system | Drum with 2 blades + 1 counter-blade |
| Measurement of the chips | 5 - 15 mm |
| Measurement of the belts | 17x1041 |

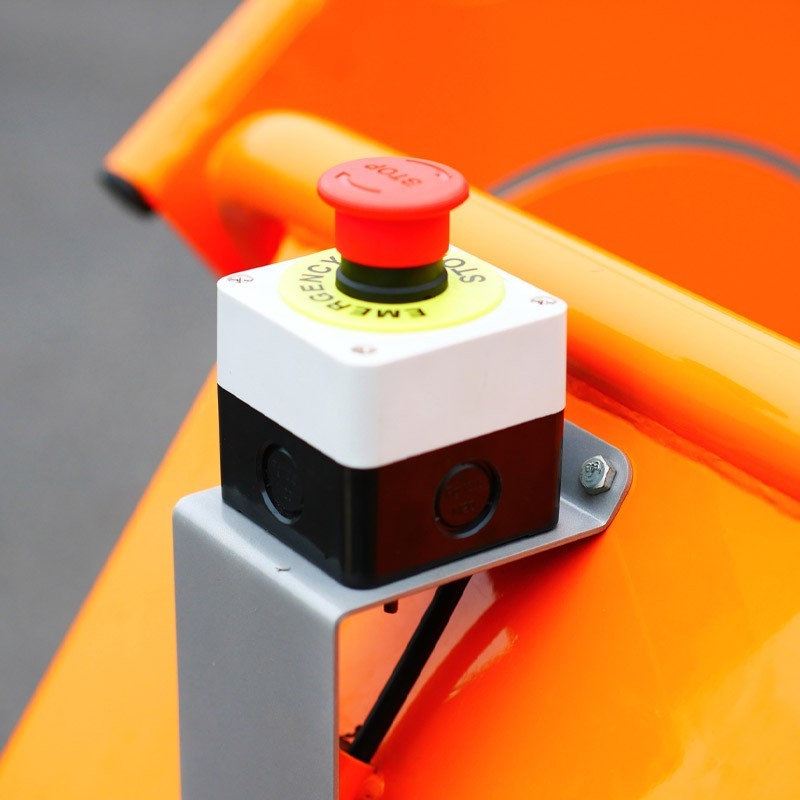

| Security system | Emergency button |
| Lamas: measure | 300*55 mm |
| Exit measures | 130*130 mm / 360° |
| Maximum cutting diameter | 80 - 100 mm |
| Engine | 15hp Lifan 190F 420cc |
| Start | Electric and with cable |
| Wheels: measurements | 16" x 410 mm |
| Rudder | This is the square root symbol in Spanish. |
| Ejection height | 1600 mm |
| Gasoline consumption | 1 l/h |
| Packaging dimensions | 900*760*1000 mm |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, "revisar" translates to "review" in English. Oil and grease levels should be checked before starting up. If the merchandise cannot be inspected at the time of delivery, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
