| Assembly and set-up INCLUDED |

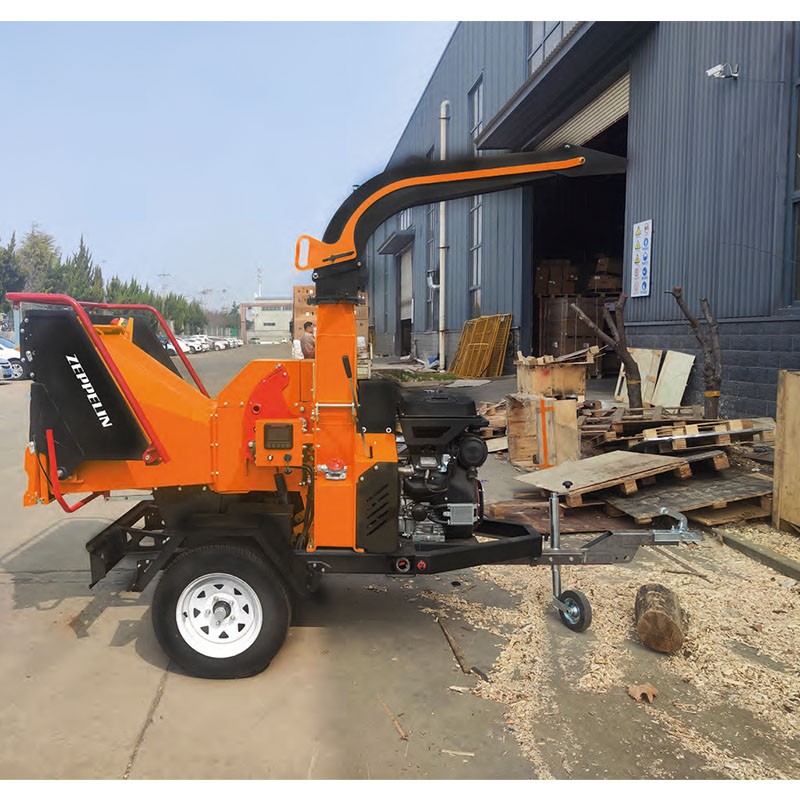

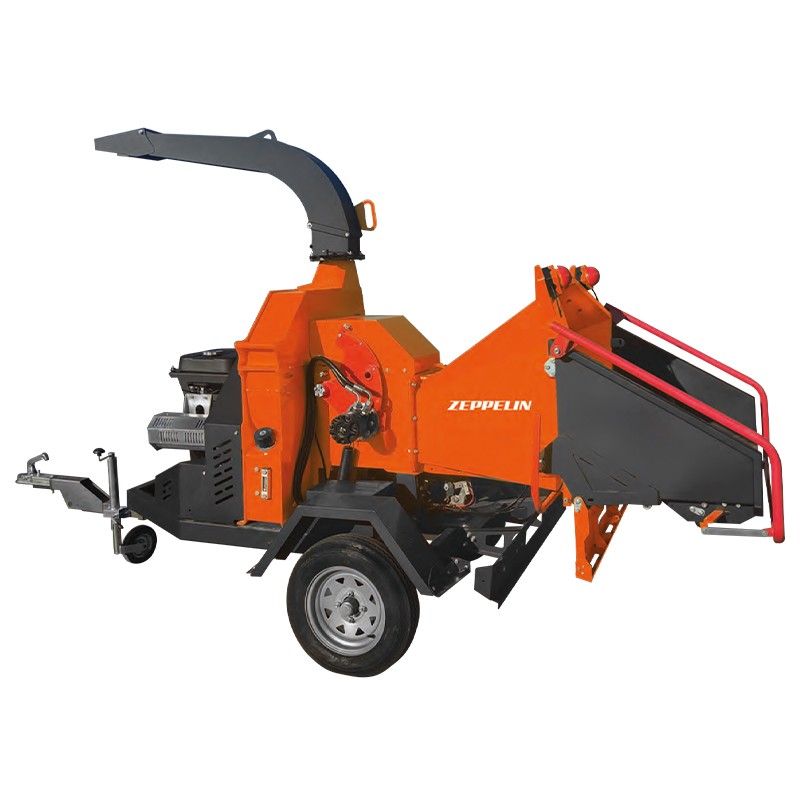

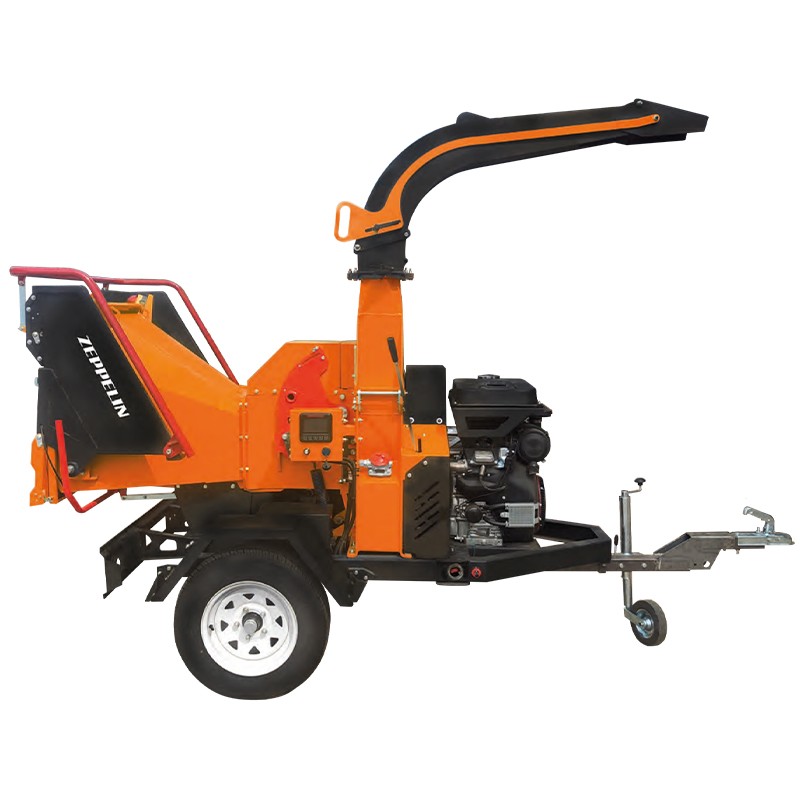

Branch shredder Zeppelin designed to work and move the same day without complications. The homologated trailer allows to drive on the road between farms with total legality. The jockey wheel drawbar facilitates hitching and maneuvering and the reinforced chassis with 13-inch wheels provides stability on roads and construction sites.

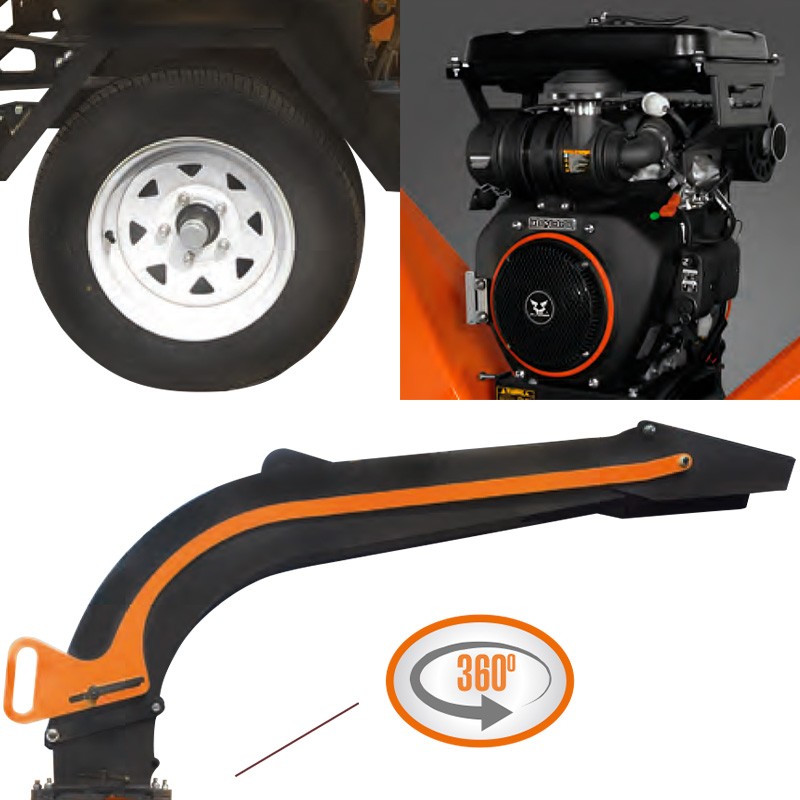

The work process is fast and safe. The hopper accepts irregular branches and has a safety bar and stop button. The cutting system combines two blades with fixed counter blades for uniform chipping even in hardwood. The chimney rotates 360 degrees to load the chip directly into containers or stockpiles without moving the machine.
Power is provided by a 35 HP gasoline Zongshen with electric start. It delivers continuous thrust and reduces downtime during start-ups and jams. Maintenance is easy thanks to good access to blades and greasing points. Ideal for municipal services, professional landscaping and agriculture requiring high performance with easy transport.
| Reference and homologation | |
| Reference | ES71992 |
| Trailer | Homologated |
| Engine | |
| Brand | Zongshen |
| Engine | 4-stroke |
| Fuel | Gasoline |
| Power | 35 HP |
| Starter | Electric |
| Safety and cutting system | |
| Safety | Stop bar and button |
| Unloading | 360° rotation |
| Cutting system | Double blade + 2 fixed blades |
| Max. branch diameter | 200 mm |
| Dimensions and weight | |
| Dimensions | 3942 x 1395 x 2337 mm |
| Weight | 780 kg |
| Wheels | 594 x 165 R13 |
| IMPORTANT NOTICES |
| It is mandatory for the customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
