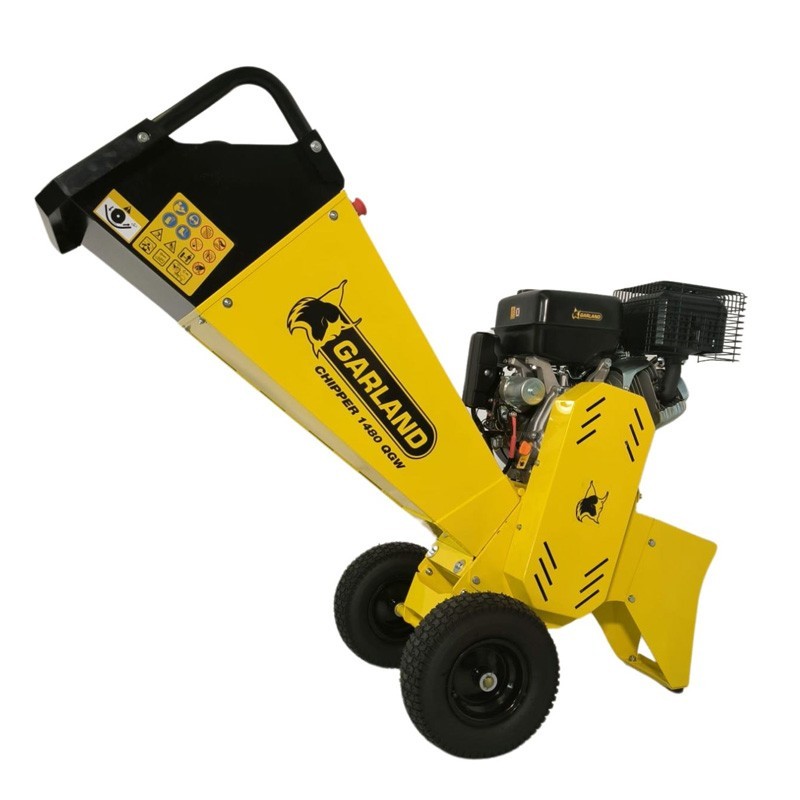

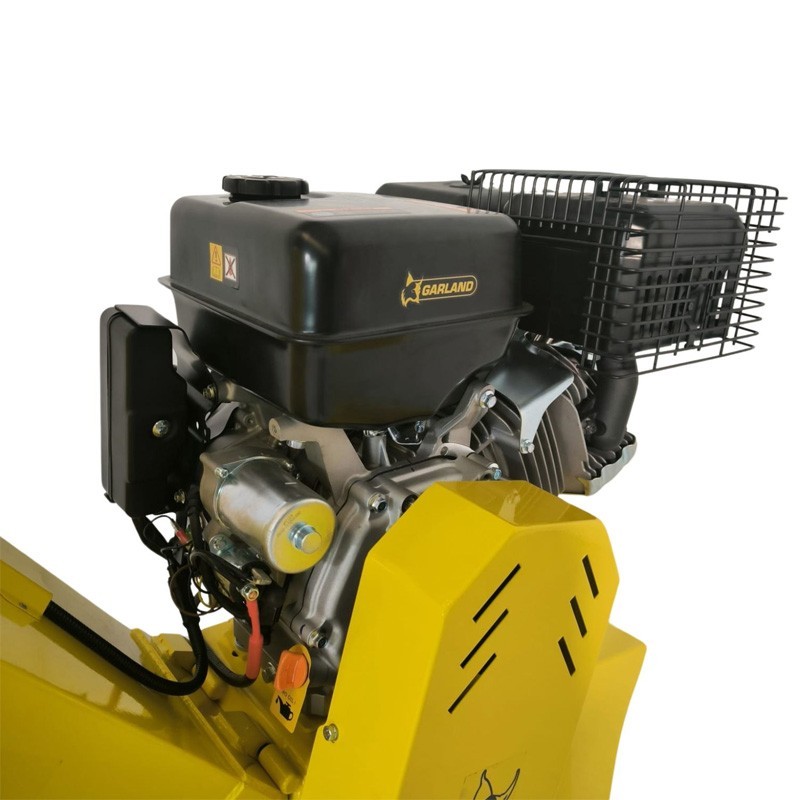

The Garland Chipper 1480 is powered by a 4-stroke OHV gasoline engine. It provides a total power of 11.8 HP and a displacement of 420 cc. This model has a shredding capacity of 120 mm

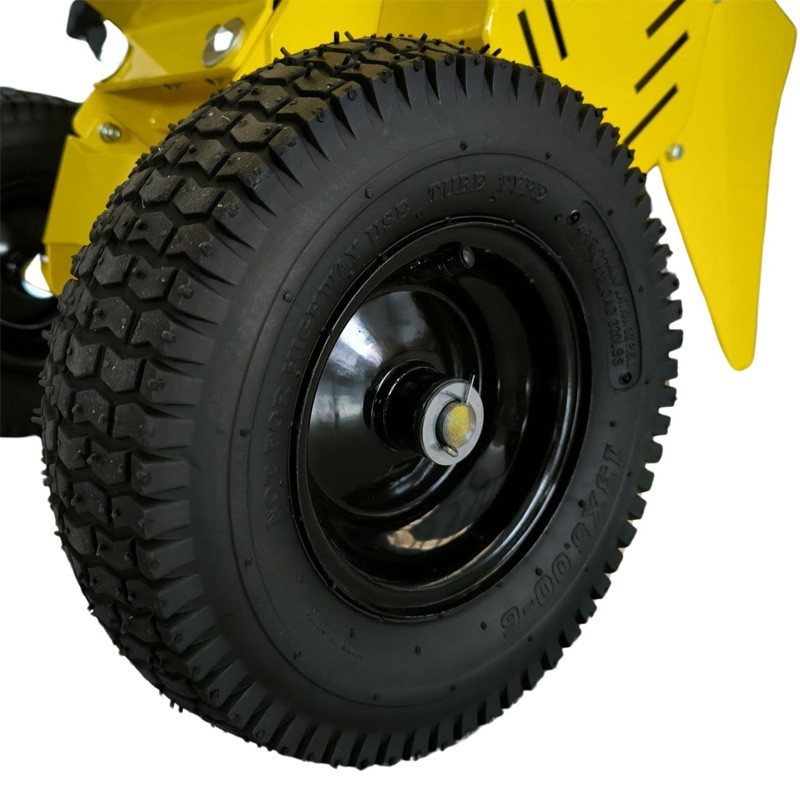

This model of wood chipper offers a rotational speed of 2560 min-1. In addition, it has an electric starter and transport wheels.

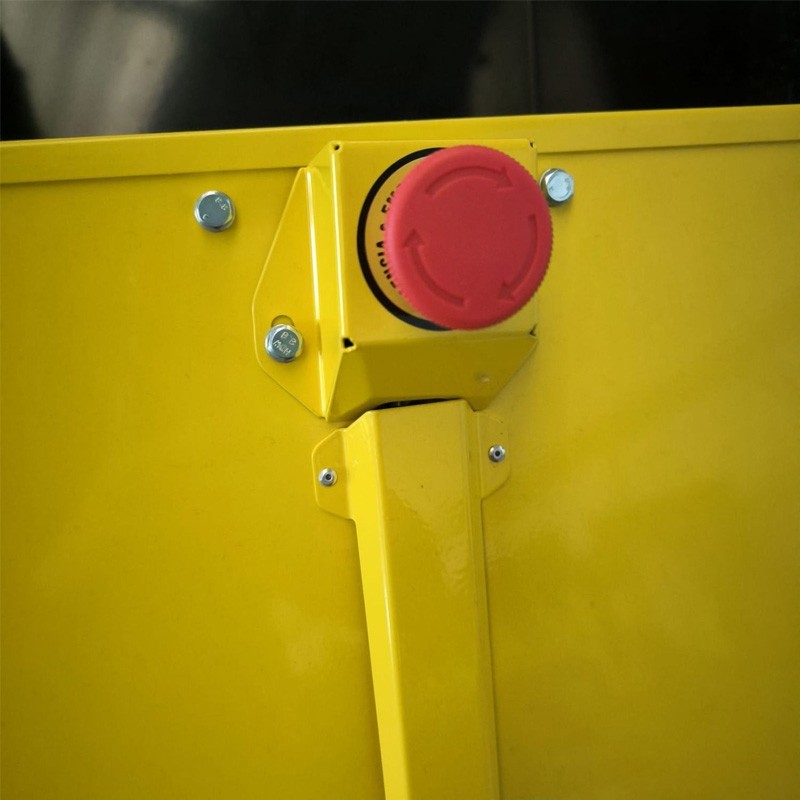

The Garland Chipper 1480 mulcher is equipped with a SC (counter-current safety) system that guarantees an automatic stop in case of emergency. This shredder model has a light weight of only 126 kg.
| Engine type | Garland 4 T |
| Displacement | 420 cc |
| Power | 8.8 kW |
| Hopper from power Supply without tools | Yes |
| Cutting type | 2 opposed blades on a rotor |
| Working width | 120 mm |
| Transport wheel | Yes |
| Weight of empty machine | 115 kg |
| Maximum engine speed | 3600 min-1 |
| Consumption | 0.374 kg/kWh |
| Autonomy | 80,58 min |
| Tool-free ejection hopper | Yes |
| Directional ejection | No |
| Carrying handle | Yes |
| Towing hook | No |
| Intake system | Rollers |
| Cutting element speed | 2560 min-1 |
| Blade dimensions | 200 x 50 mm |
| Number of hoppers | 1 |
| Grid | Yes |
| Number of blades | 2 |
| Fuel tank volume | 6,5 l |
| Oil sump volume | 1,1 l |
| Engine oil type | 10W-40 |
| Torque | 29 Nm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
