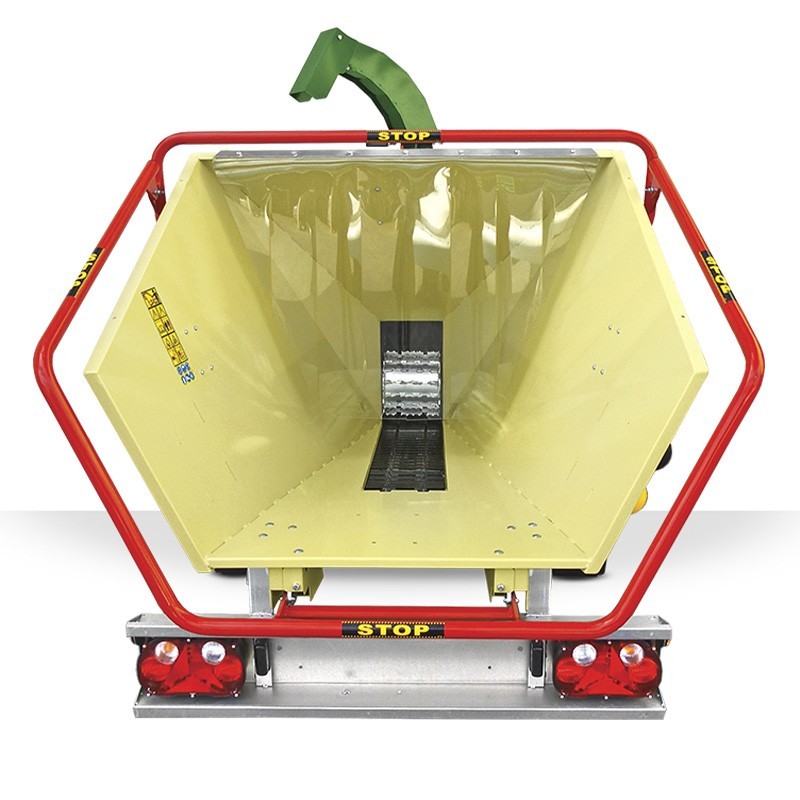

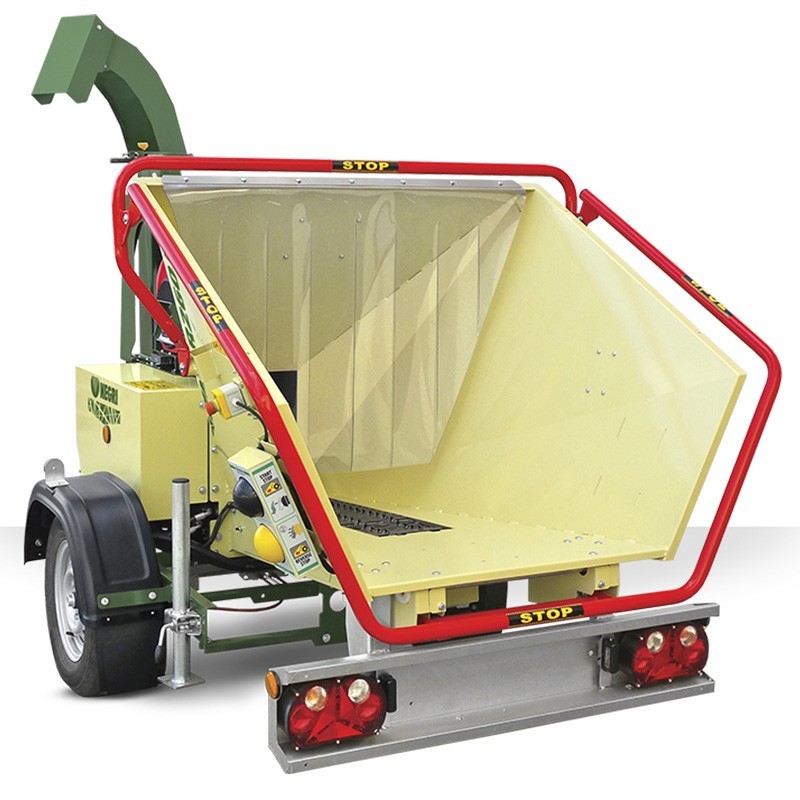

The branch shredder Negri R260 it is presented as a robust and versatile machine with two engine options: a powerful Kubota D722 engine with 20/14.9 hp/kW or an efficient Honda GX630 engine with 21/15.5 hp/kW.
This machine features a cutting system with 20 tempered steel hammers and 2 steel blades, providing the necessary flexibility to adapt to different types of branches and materials.
With an hourly production of 10-14 m3/h, this shredder demonstrates its ability to handle a large amount of garden waste. Its design allows shred branches up to 130 mm in diameter, with a crushing opening of 230 x 130 mm, making it ideal for gardening work and maintenance of green spaces.
Additionally, its energy efficiency is reflected in moderate fuel consumption, either 3.8 l/h with the Kubota engine or 4.8 l/h with the Honda engine, ensuring sustainable and economical performance during use.
 ROTOR | Blades + Hammers |
.jpg "Cuchillas reafilables (acero templado)") Refillable blades (hardened steel) |
.jpg "Martillos móviles reversibles (acero templado)") Reversible mobile hammers (hardened steel) |
 Belt transmission with hydrodynamic coupling |
 Hydraulic roller adjustable in speed and direction of rotation |
 Tape of power Supply adjustable steel in speed and direction of rotation |
 Rotary launch tube with adjustable ejection depth |
.jpg "OBS - On Board System") OBS - On Board System (Multifunctional control system with Nostress) |
 Lubrication system for bearings |
 Wide and comfortable hopper |
 Belt transmission with hydrodynamic coupling |
 Electric start |
| Cutting system | |
| Hammers (hardened steel) | 20 steel hammers |
| Blades (hardened steel) | 2 steel blades |
| Characteristics | |
| Hourly production | 10-14 m3/h |
| Crushing opening | 230 x 130 mm |
| Maximum crushable. | 130 mm |
| Kubota engine driving force | |
| Power | 20 / 14.9 hp/kW |
| Power Supply | Diesel |
| Engine | KUBOTA D722 |
| Fuel consumption | 3.8 l/h |
| Honda motor driving force | |
| Power | 21 / 15.5 hp/kW |
| Power Supply | Gasoline |
| Engine | Honda GX630 |
| Fuel consumption | 4.8 L/h |
| Technical specifications | |
| Length | 35,800 mm |
| Width | 1420 mm |
| Height | 2085 mm |
| Discharge height | 2085 mm |
| Introduction opening | 700 |
| Crushing opening | 1180 x 830 mm |
| Weight | 670 kg |
Branch shredder accessories Negri:
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
