Bio shredder with tracked and electric start Anova BIO120TR
Bio shredder with tracked and electric start Anova BIO120TR

Bio shredder with tracked Anova BIO120TR 14 HP


  • Weight: 309 Kg
  • Drum size: 240 mm
  • Shredding power: 14 HP
  • Displacement power: 6.5 HP
En stock
icon Power Supply
Power Supply
Gasoline
icon Startup
Startup
Manual and Electric
icon Engine
Engine
Loncin
icon Displacement
Displacement
420 cc
icon Power
Power
14 HP
icon Engine type
Engine type
4 times
icon Gears
Gears
3+1
icon Number of blades
Number of blades
2
icon Max branch diameter
Max branch diameter
120 mm
icon Number of hoppers
Number of hoppers
1 hopper
icon Transmission type
Transmission type
Belts
icon Tracked
Tracked
Yes
icon ✔️
✔️
High output
icon Chimney rotation
Chimney rotation
Yes
icon Weight
Weight
309 Kg
€2,677.50 excl. VAT
€3,239.78 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Bio shredder with tracked Anova BIO120TR 14 HP
€3,239.78
Qty

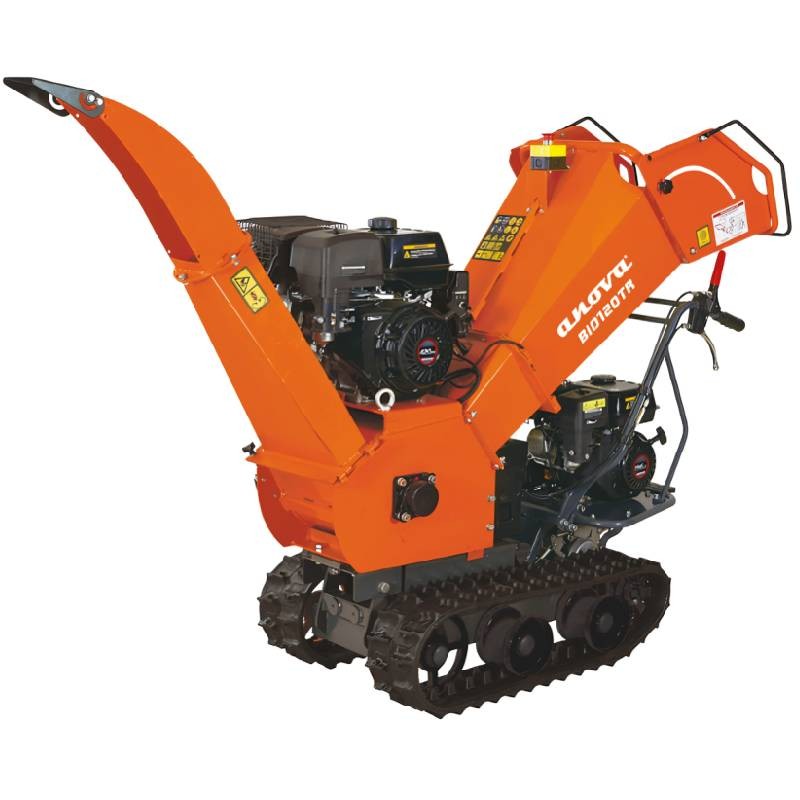

Biochipper Anova BIO120TR

The Anova 420cc 14HP bio shredder with tracked is the ideal professional tool for managing waste in difficult to access terrain. Its self-propelled system with 3 gears at the front and one at the rear allows it to move its 309 kg on slopes and uneven ground. The double motorization Loncin separates the shredding power from the displacement, guaranteeing optimum performance and efficient consumption.

This model processes branches up to 120 mm in diameter with a 240 mm drum and heavy-duty 300 x 55 mm blades. It includes an electric starter for immediate start-up and a 380 x 440 mm hopper that facilitates the entry of bulky material. It is the perfect equipment for intensive forestry cleaning, maintenance of large farms and professional mulching tasks.

The robust chassis and adjustable counter-blade ensure uniform shredding to create compost or reduce pruning volume quickly. Its intuitive design optimizes run times by eliminating manual transfers of heavy loads in the field. Invest in the reliability of Anova to increase your service productivity with a machine that combines brute force and total mobility.

Technical Specifications

Shredding engine Loncin 4T - 420 cc
Shredding power 14 HP - 10.3 kW
Type of shredder start Manual and Electric
Displacement engine Loncin 4T - 196 cc
Displacement power 6.5 HP - 4.80 kW
Type of displacement start Manual
Transmission 3 gears forward and 1 reverse
Maximum crushing diameter 120 mm
Drum size 240 mm
Number of blades 2 straight blades of 300 x 55 mm
Number of counter knives 1 adjustable unit
Mouth opening power Supply 295 x 155 mm
Hopper opening of power Supply 380 x 440 mm
Traction system Tracked high adherence
Total weight 309 kg
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending.

Useful links

262665

Data sheet

Power Supply
Gasoline
Power (HP)
14.0 - 14.9 HP
Startup
Manual and Electric
Engine
Loncin
Displacement
420 cc
Power
14 HP
Engine type
4 times
Gears
3+1
Displacement (cc)
400 cc - 499 cc
Number of blades
2
Max branch diameter
120 mm
Number of hoppers
1 hopper
Transmission type
Belts
Tracked
Yes
✔️
High output
Chimney rotation
Yes
Weight
309 Kg

Specific References

EAN-13
8435673785718
MPN
BIO120TR
