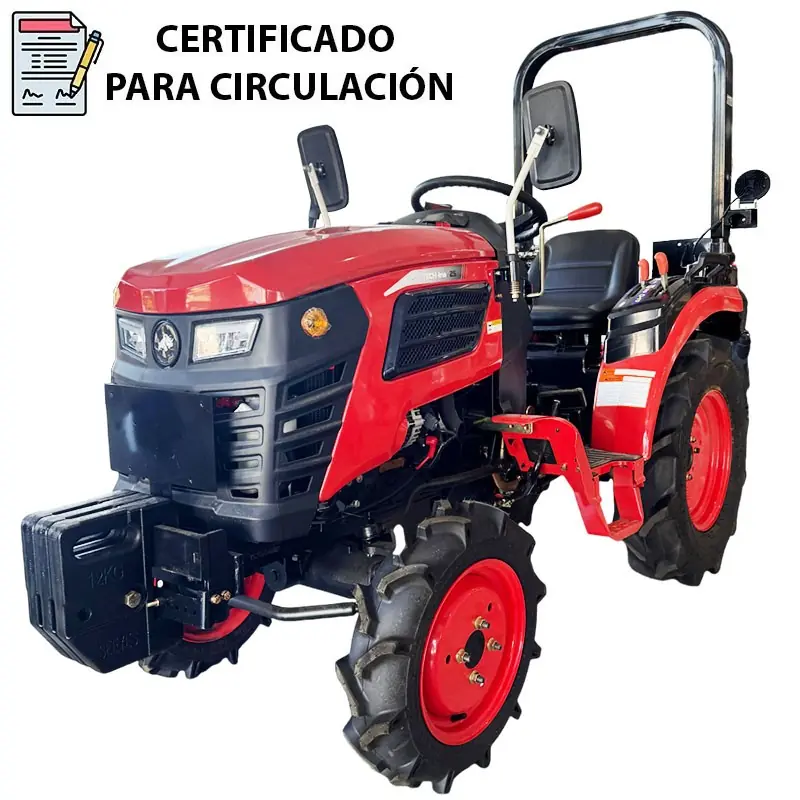

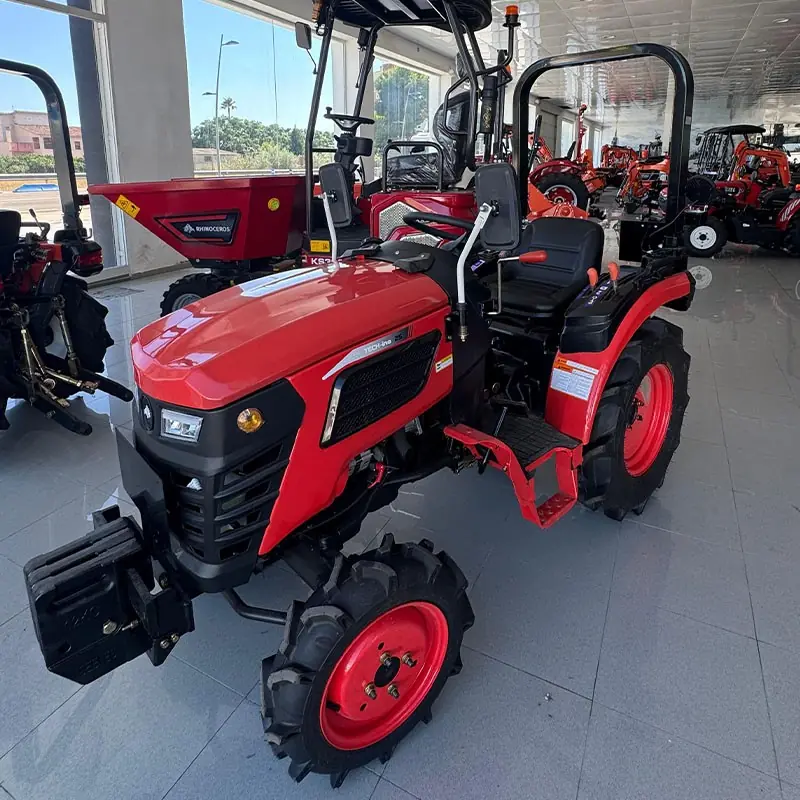

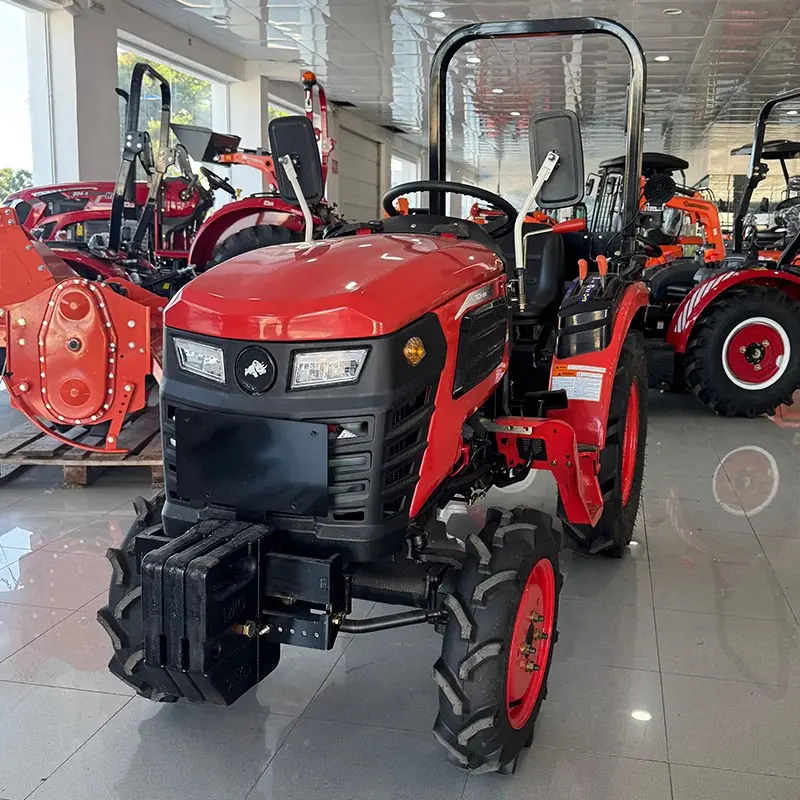

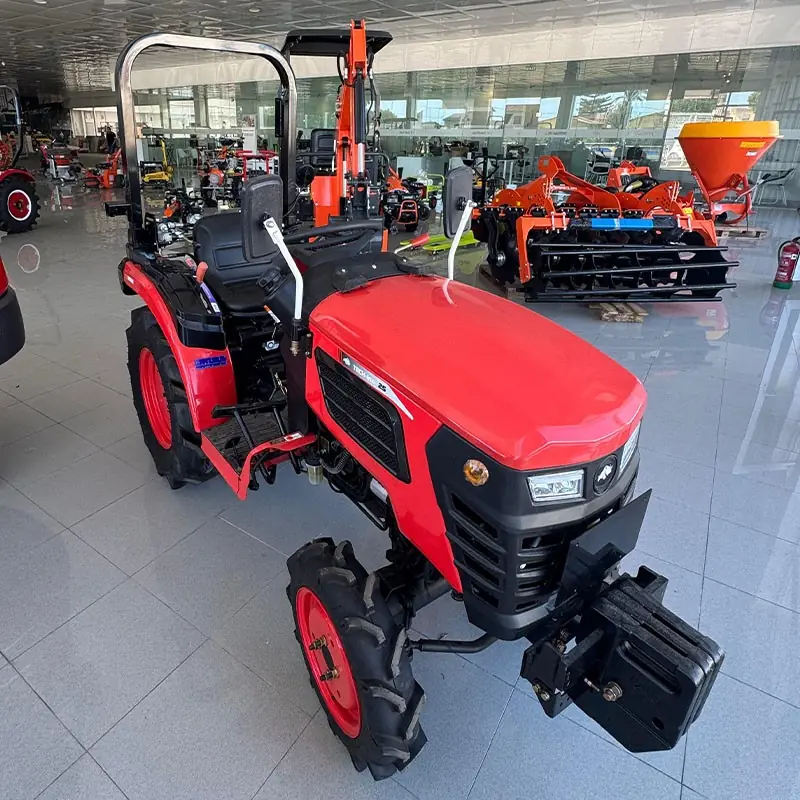

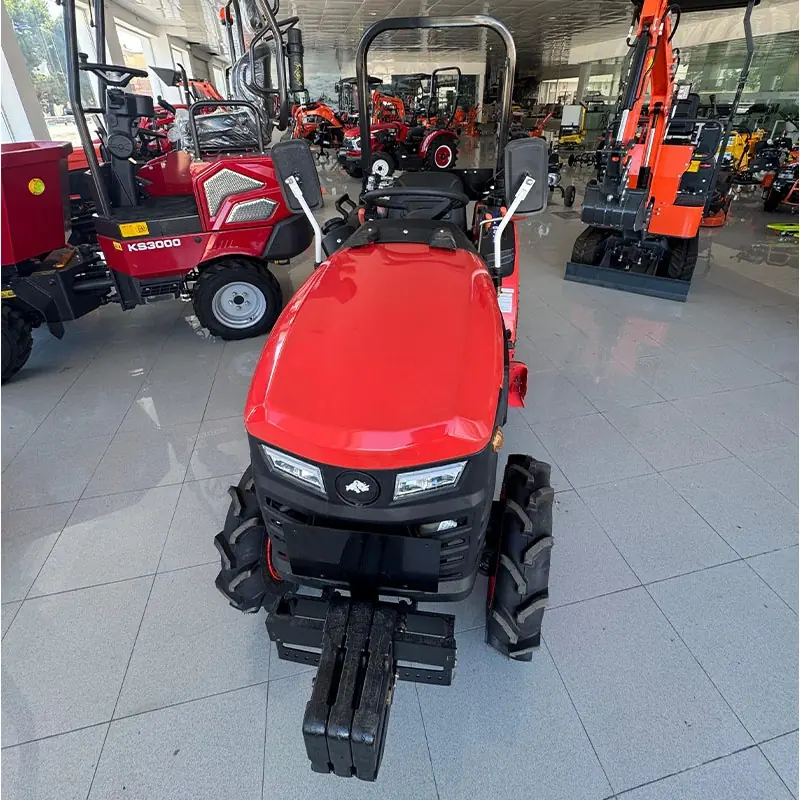

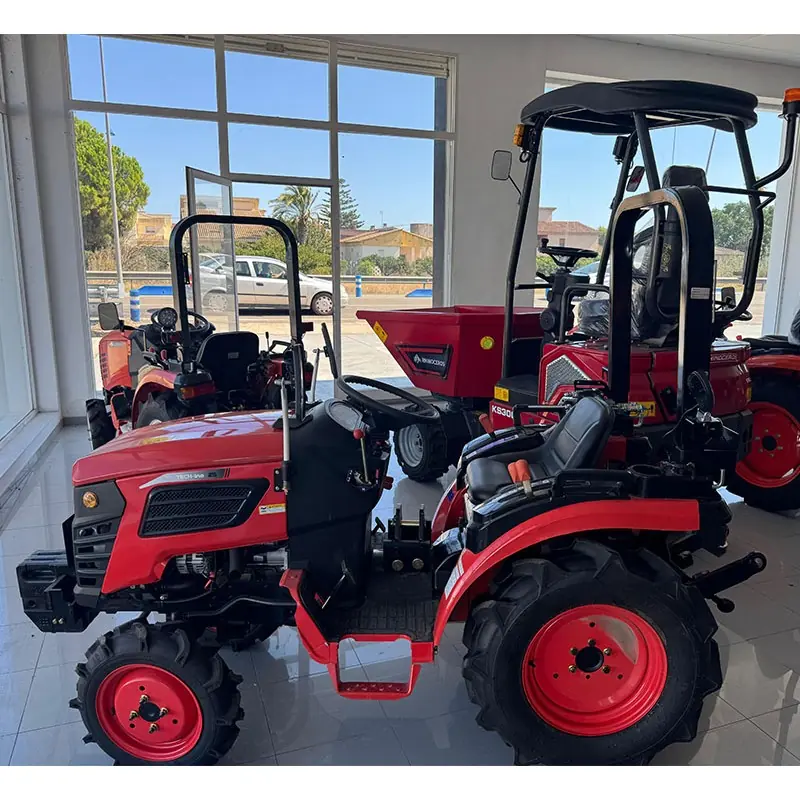

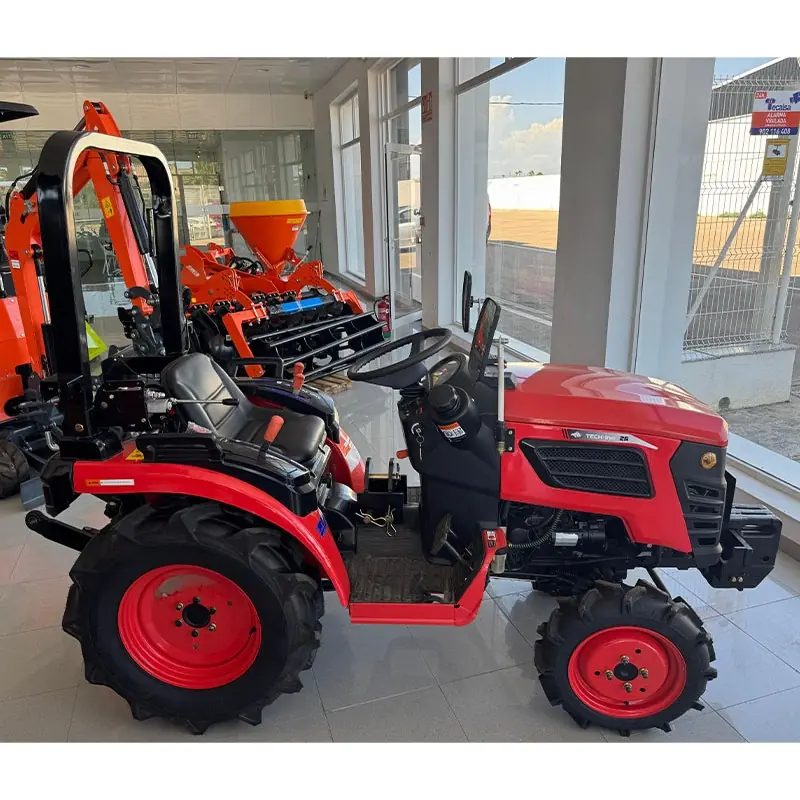

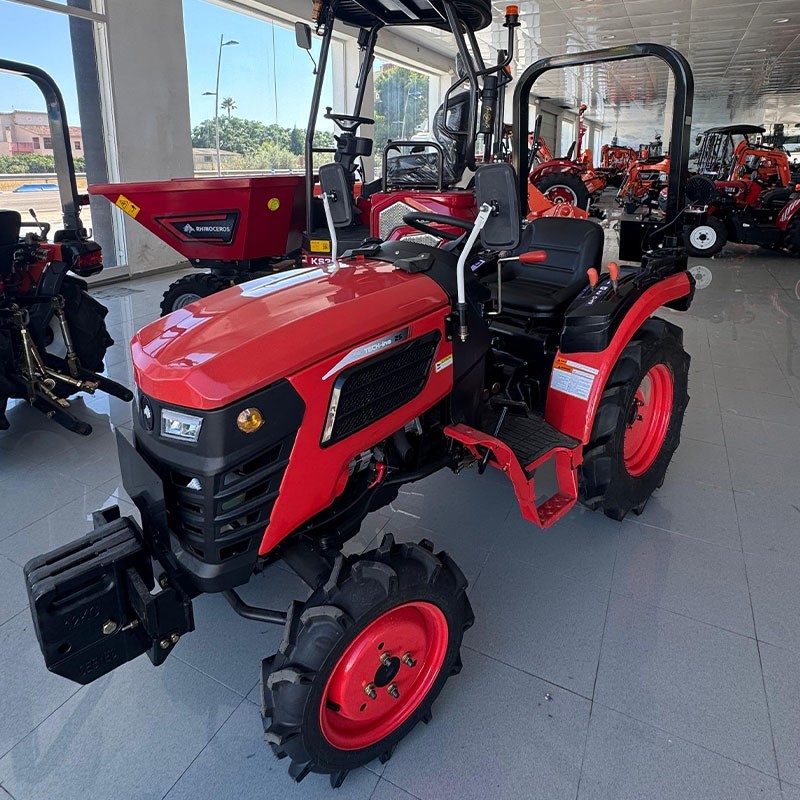

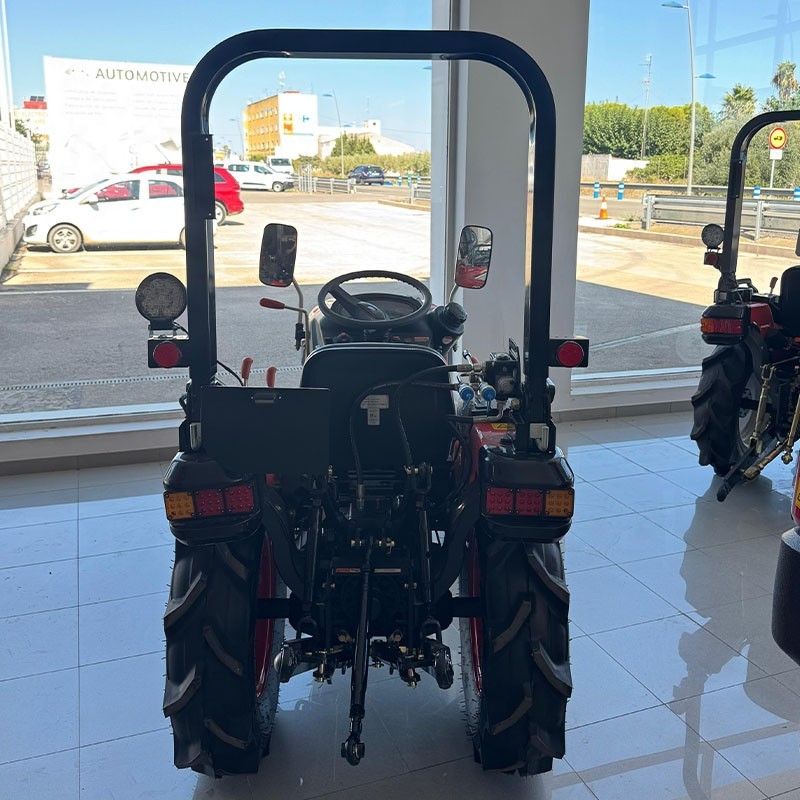

Tractor Zeppelin Rhinoceros TECH-ino 25 approved and certified for road use. It allows you to move from one plot to another without a trailer or additional formalities, saving time each day. Only 97 cm wide to work between rows of vines and fruit trees in complete safety.
25 HP real diesel power with 4WD and full power steering. The weight of the machine provides poise and the differential lock improves progress on slopes and wet soils. A robust and efficient package for year-round work.

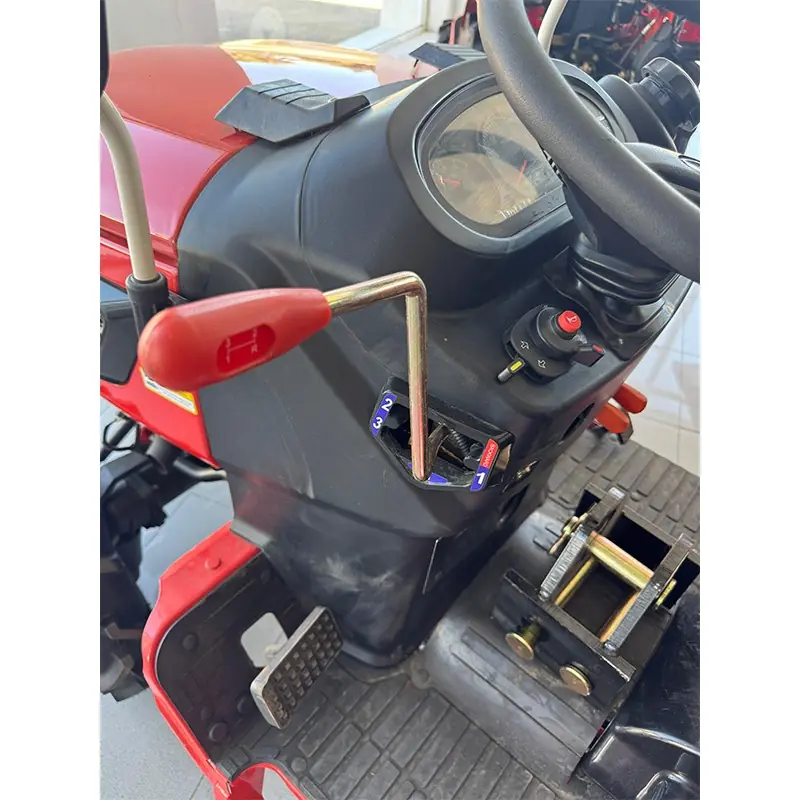

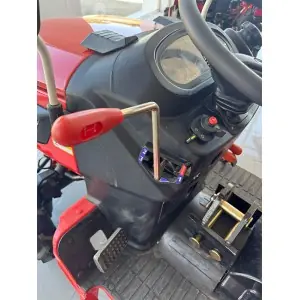

6 forward and 2 reverse transmission to always choose the right gear. Dual speed PTO with reverse to move sprayer, brushcutter, rotovator and agricultural trailer with immediate response.
Outstanding maneuverability with short turning radius and adjustable track that adapts to the planting frame. Sufficient ground clearance to work between tramlines without hitting branches or stakes.

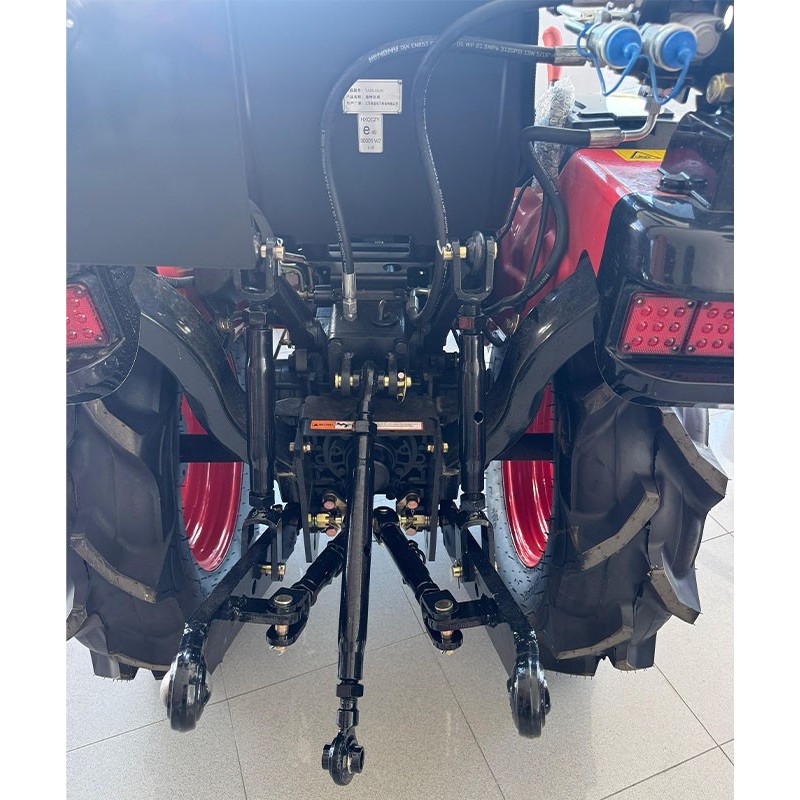

Three-point hitch with position control for quick implement changes. TECH-ino 25 HP is the road-approved mini tractor that combines compact size, comfort and real working capacity in vineyard, orchard and horticulture.
ENGINE | |
---|---|
Power Supply | Diesel |
Model | XY377 |
Rated power | 18.5 kW |
Rated speed | 3000 rpm |
FRONT WHEEL | |
Structural type | Inner tube, steel bushing, dry land wheel |
Specification | 5-12 |
Wheel track | 770 (standard)/960~1200 (adjustable) mm |
Height | 50 cm |
REAR WHEEL | |
Structural type | Tubeless, steel hub, dry ground wheel |
Specification | 8-16 |
Wheel track | 770 (standard)/960~1200 (adjustable) mm |
Height | 79 cm |
TRANSMISSION | |
Clutch/brake type | Single-plate dry/disc (wet) |

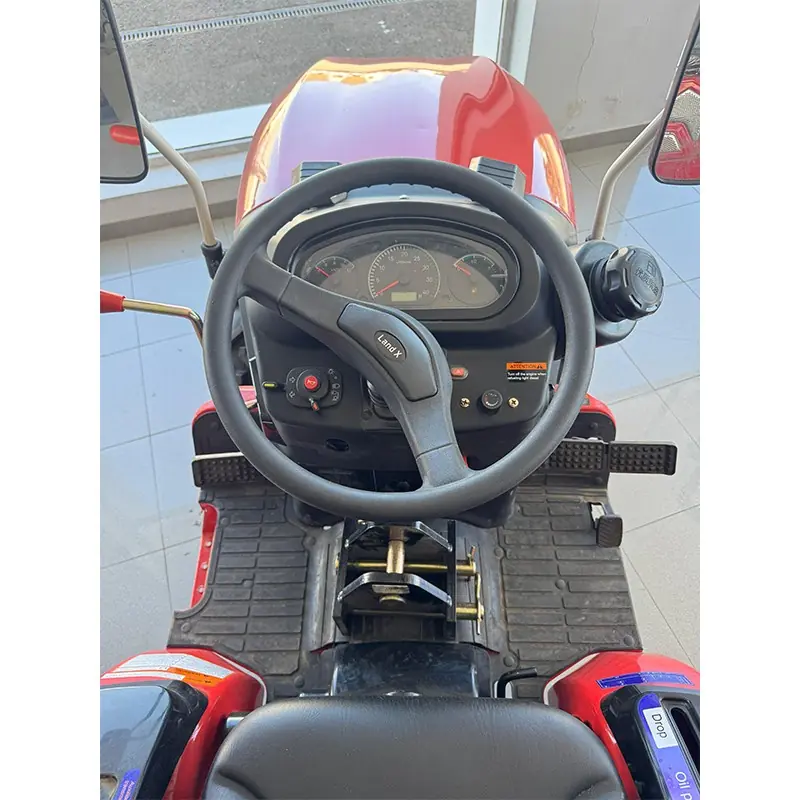

Steering mode | Power steering (integral) |
Differential gear mode | 2 pairs of bevel gears (with differential lock) |
Number of gears | 6 gears front, 2 gears rear |
Gearshift method | Combination of selective gearing and constant gearing |

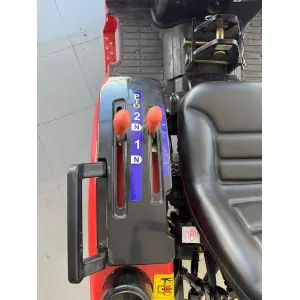

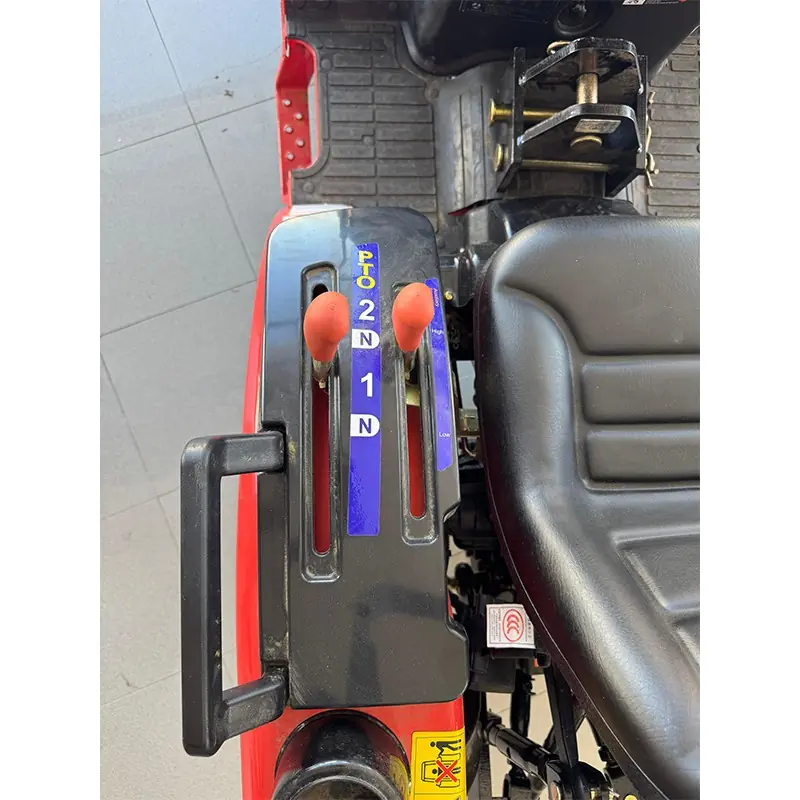

PTO shaft speed | 635, 1116, 623 (reverse) |
TRAVEL SPEED | |
Forward (high speed) | 4,17 / 8,53 / 15 km/h |
Forward (low speed) | 0.74 / 1.51 / 2.65 km/h (0.74 / 1.51 / 2.65 km/h) |
Reverse | 1.48 / 8.35 km/h |
LIFTING DEVICE OF THE WORKING MACHINE | |

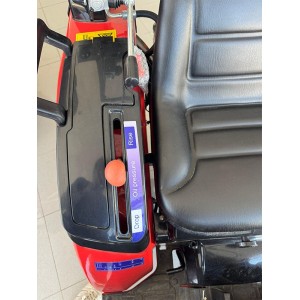

Control mode | Position control |

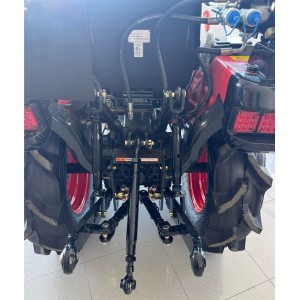

Installation method | Three-point connection |
DIMENSIONS | |
Structural type | Ride type (4 WD) |
Overall dimensions (L×W×H) | 2450 x 970 x 1807 mm |
Wheelbase | 1270 mm |
Turning radius | 1200/1700 mm |
Ground clearance | 285 mm |
Weight | 679 kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
This product requires means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before ordering to evaluate your case. |
