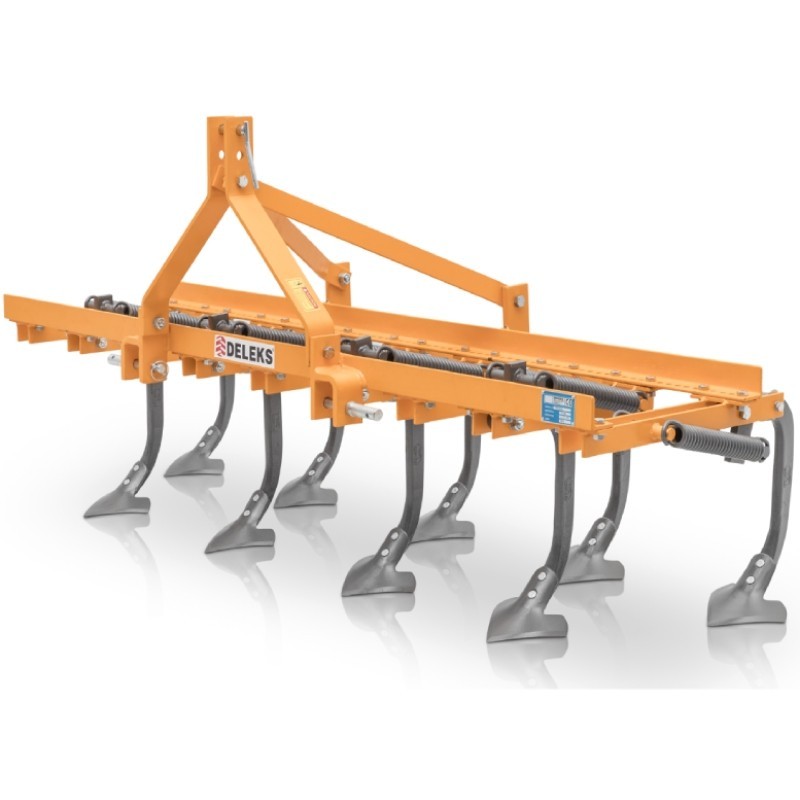

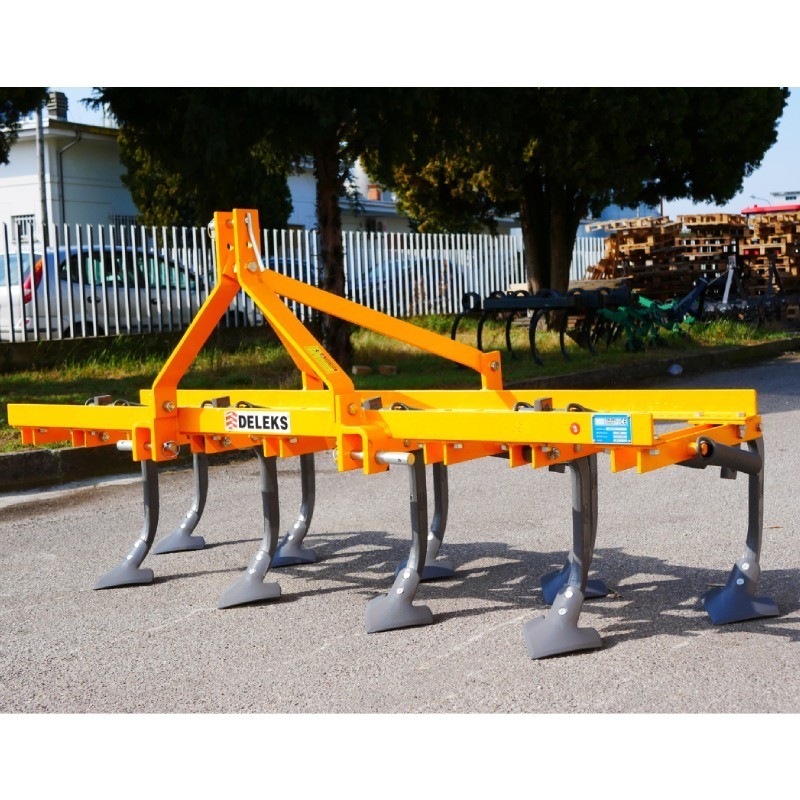

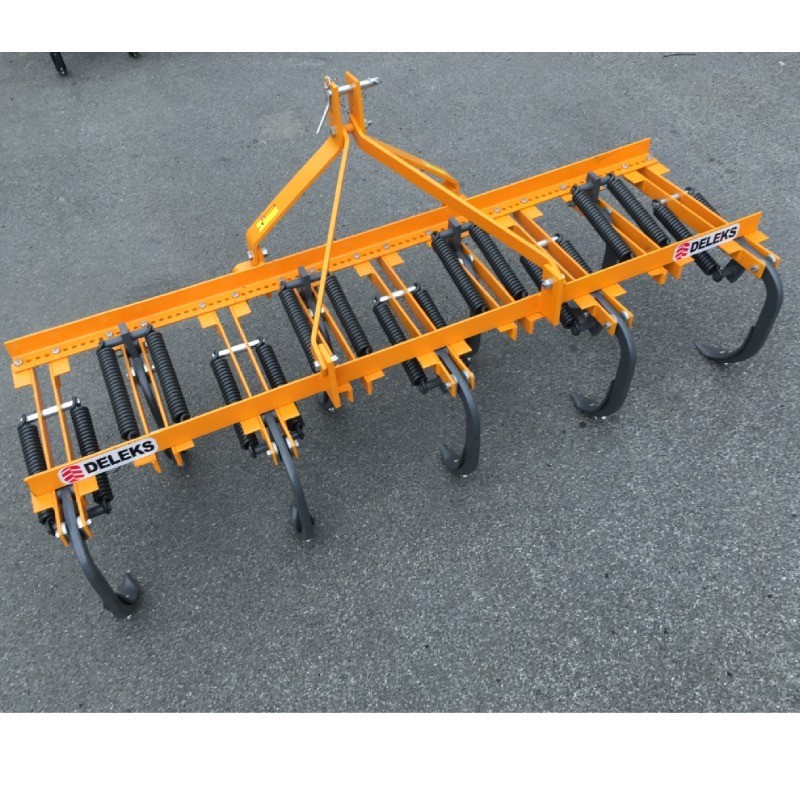

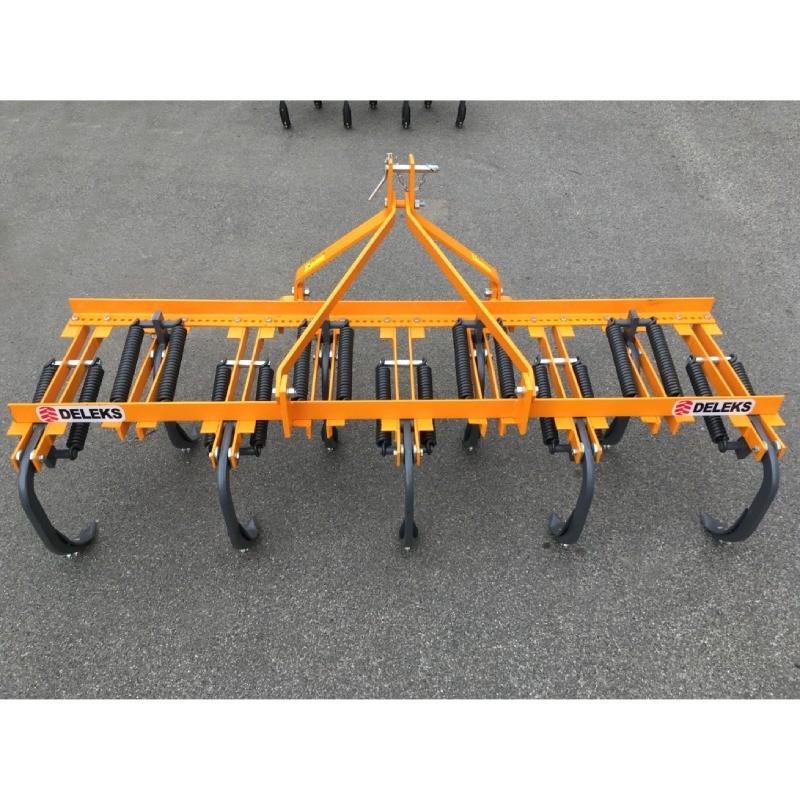

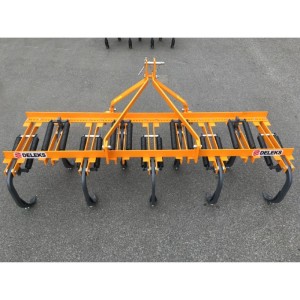

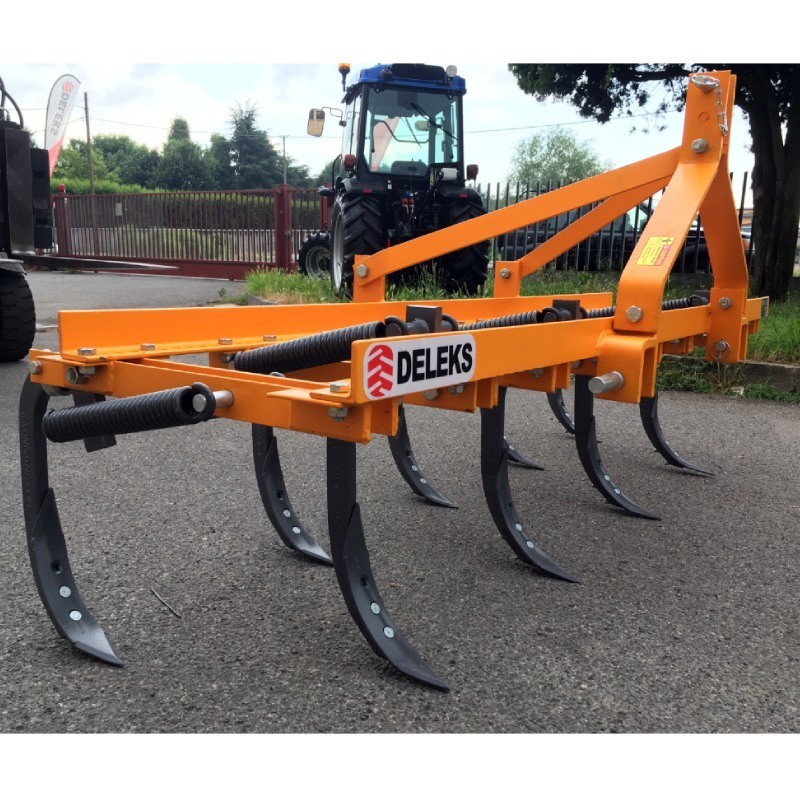

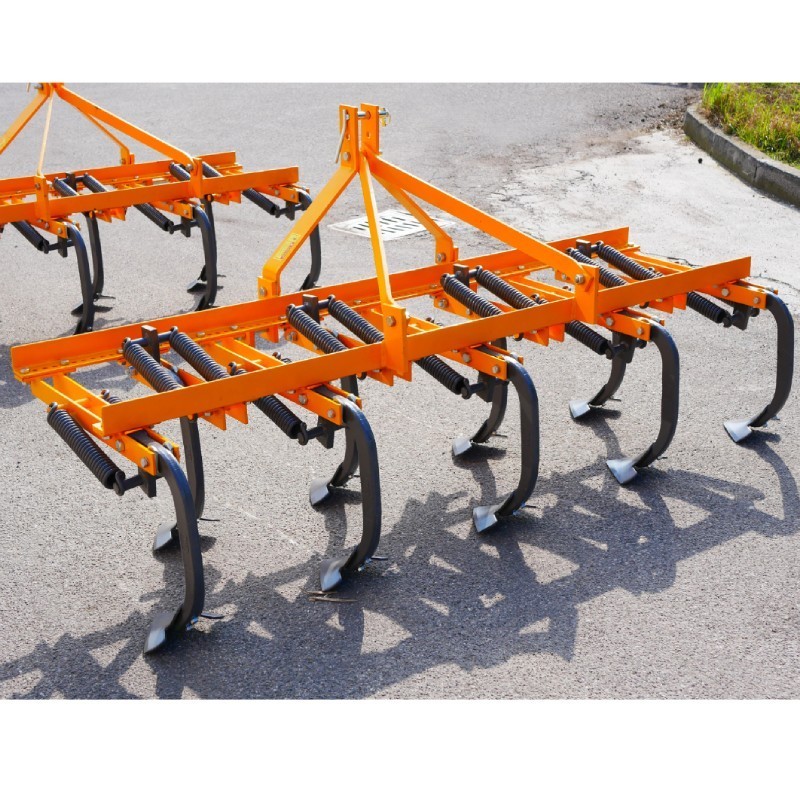

The 9-arm cultivator DE-215-9-V from Deleks is an attachment for your tractor designed to till soil and remove weeds. This product allows you to aerate the soil to a depth of 35cm.
This cultivator from Deleks is compatible with a large number of tractors with a power between 35 - 50 hp from various brands such as Lamborghini, John Deere, Kubota, John Deere, New Holland, Same, Fiat, or McCormick. This model is not suitable for crawler tractors

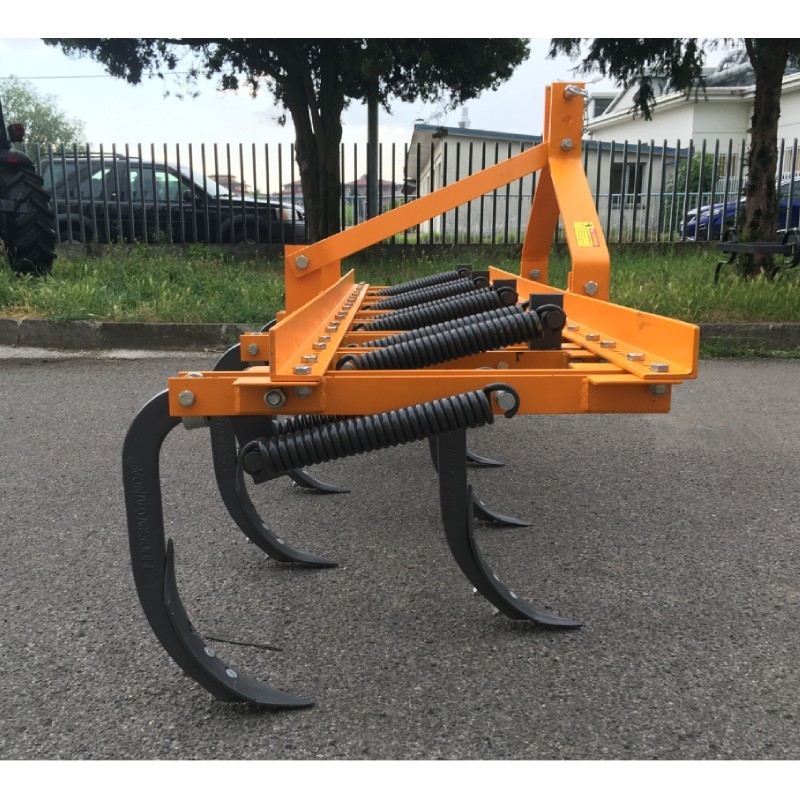

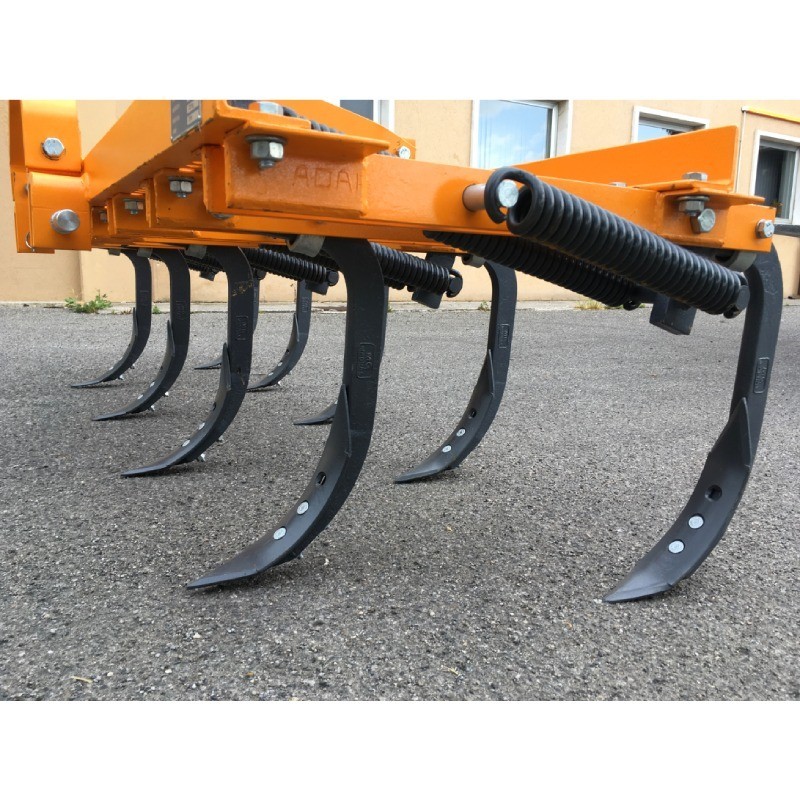

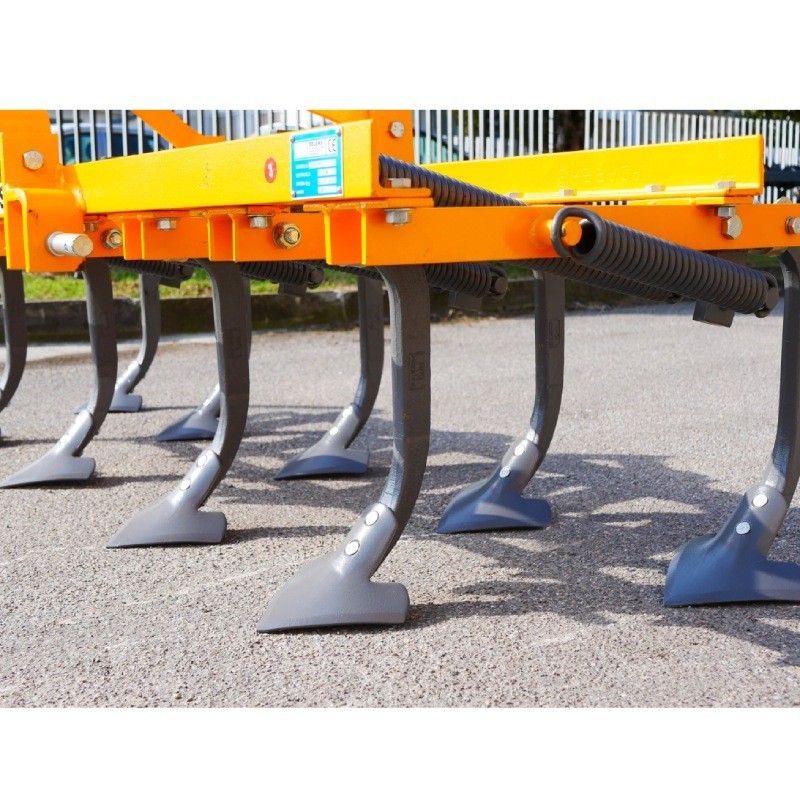

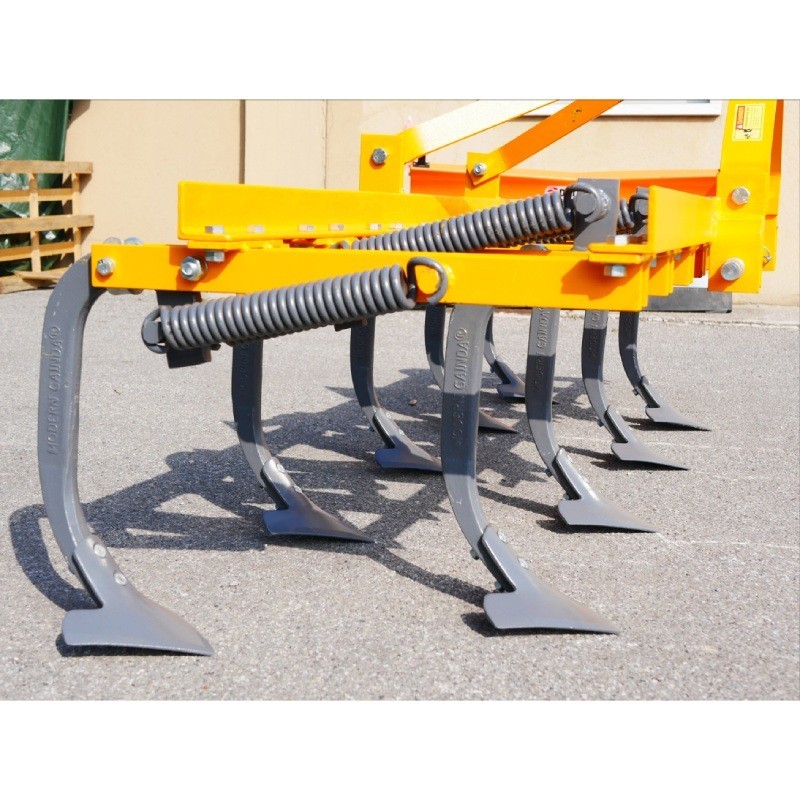

Thanks to the tines of this cultivator, it allows for a homogeneous preparation of the soil, and each tine is supported by 2 springs, adding more resistance. Finally, if you want to change the tines, it can be done easily.

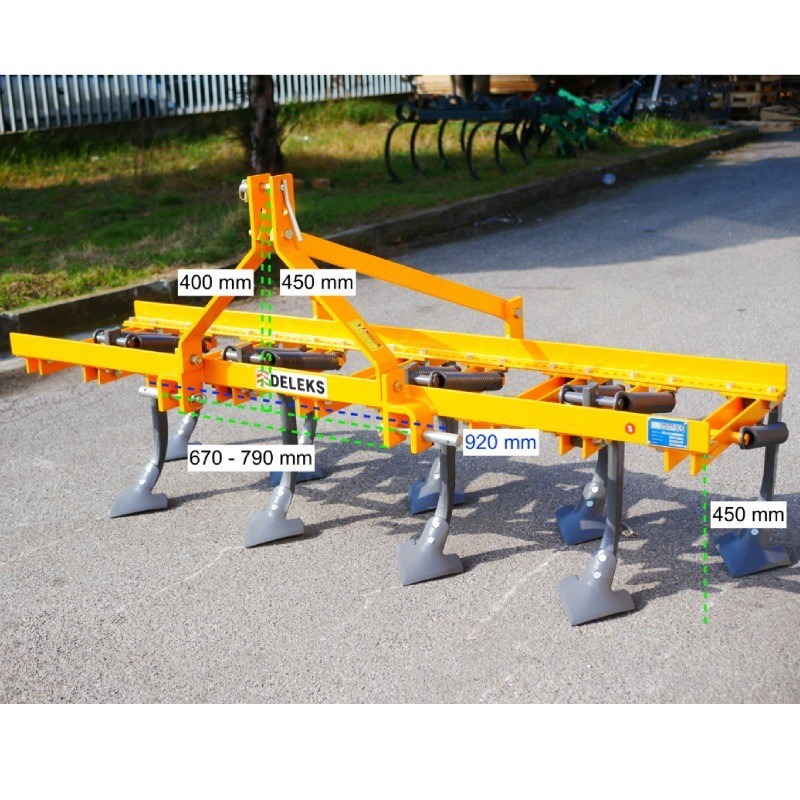

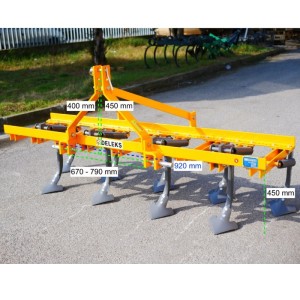

Total width | 2170.0 mm |
Weight | 240.0 kg |
Total height | 1020.0 mm |
Tractor power | 35 - 50 hp |
3-point hitch | Cat. 1-2 (ø 19.0-22.0 mm / 25.0-28.0 mm) |
Thickness of the plate. 3-point hitch | 12.0 mm |
Distance between lower points | 670.0 - 790.0 mm |
Total length | 800.0 mm |
Distance between 2 points and the ground | 430.0 mm |
Other dimensions | See photos |
Number of tines | 9 |
Height of the tines | 450.0 mm |
Number of suspensions per tine | 2 |
Width of the tine | 25.0 mm |
Thickness of the tine | 48.0 mm |
Distance between tines | 195.0 mm |

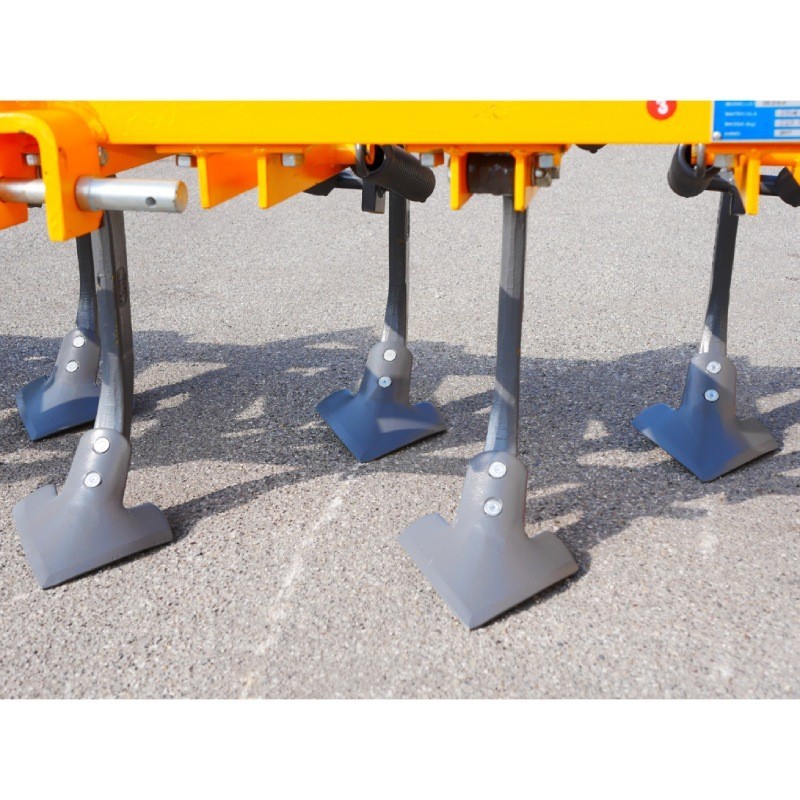

Removable blades: thickness [US | 0.23 in |
Removable blades: thickness | 6.0 mm |
Removable blades: width | 200.0 mm |
Removable blades: length | 220.0 mm |
Working width | 2150.0 mm |
Working depth | 350.0 mm |
Packaging dimension | 2170.0 * 800.0 * 400.0 mm |
