9-arm PTO Cultivator Deleks DE-200-P 40 - 80 HP
- Total width : l2000.0 mm
- Weight : 270.0 kg
- Total height : 1160.0 mm
€1,161.09 VAT incl.
Deleks products take about 15 to 25 days. |

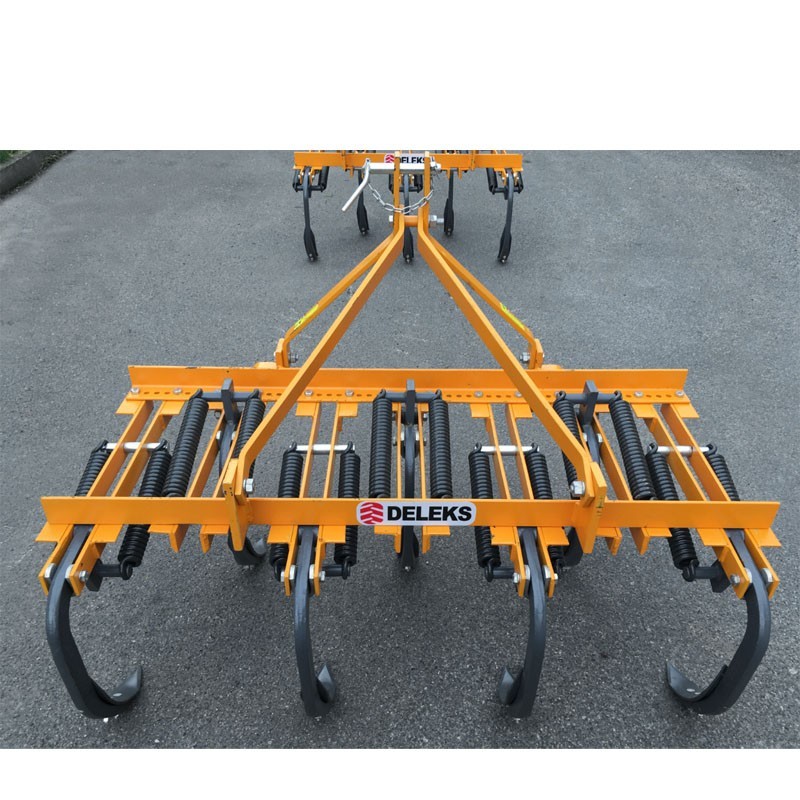

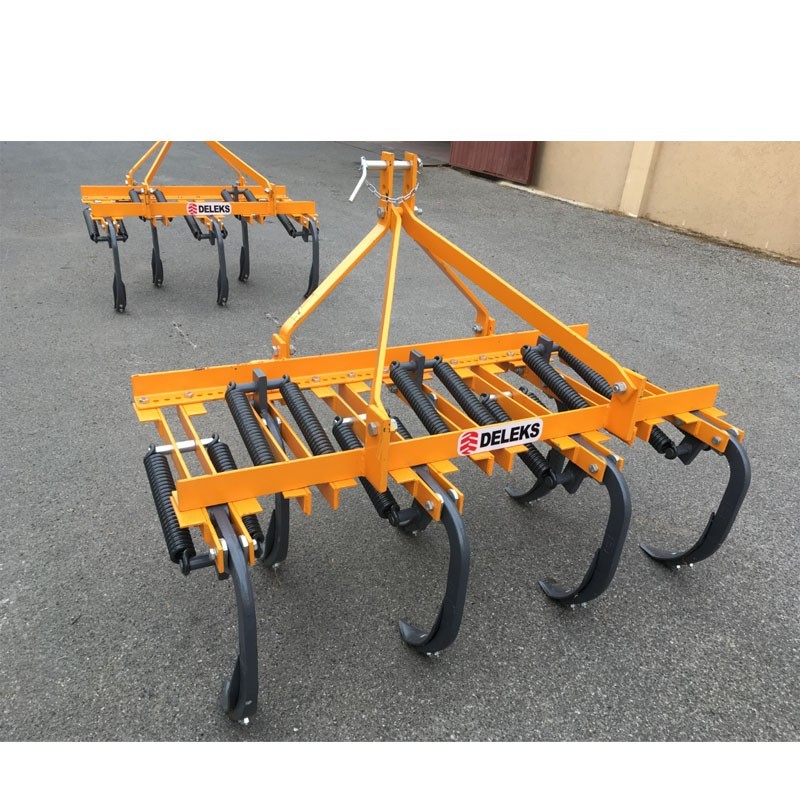

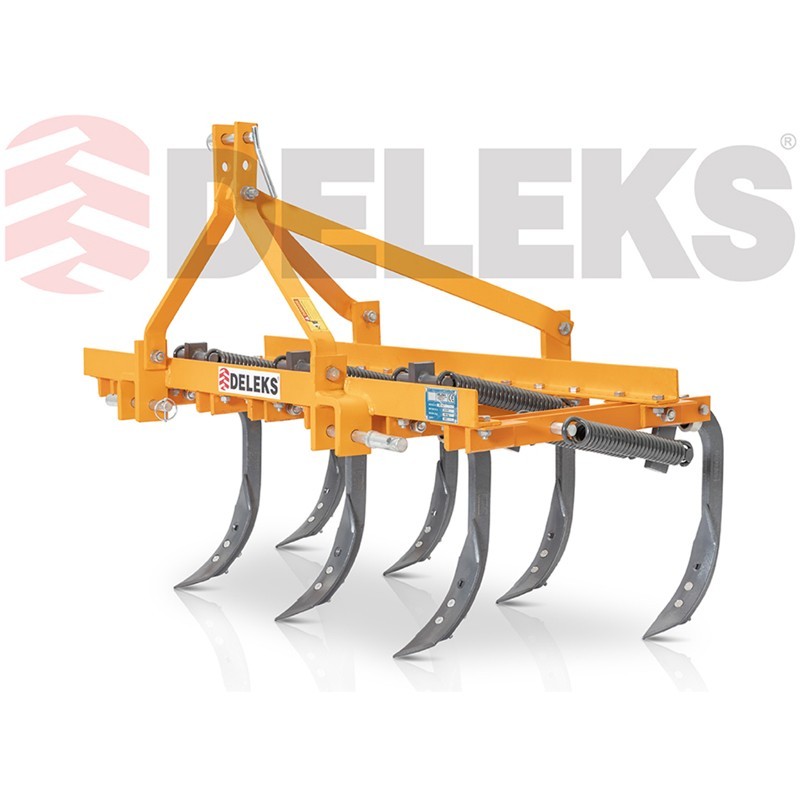

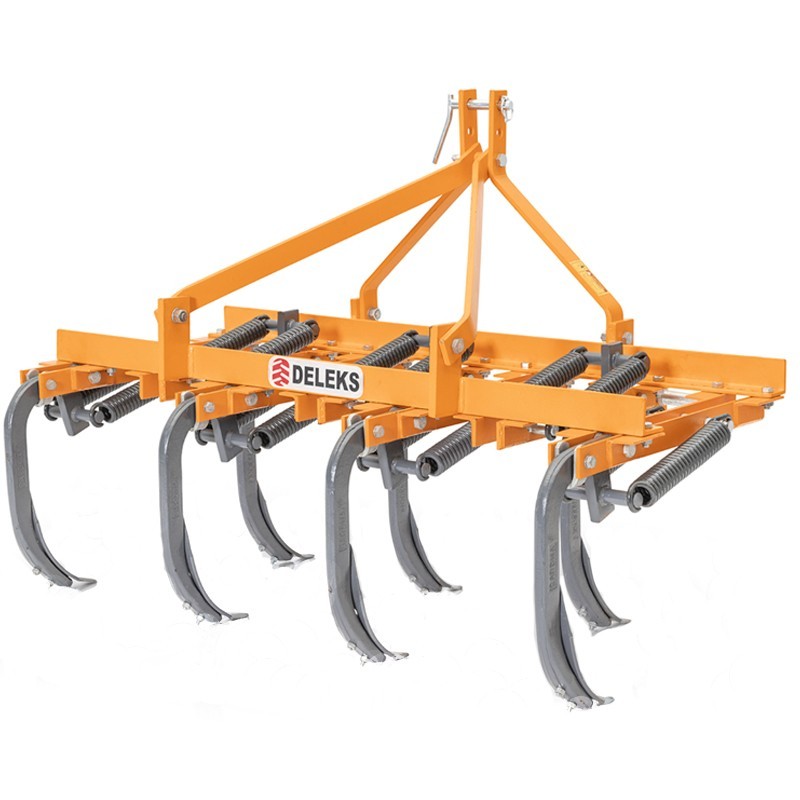

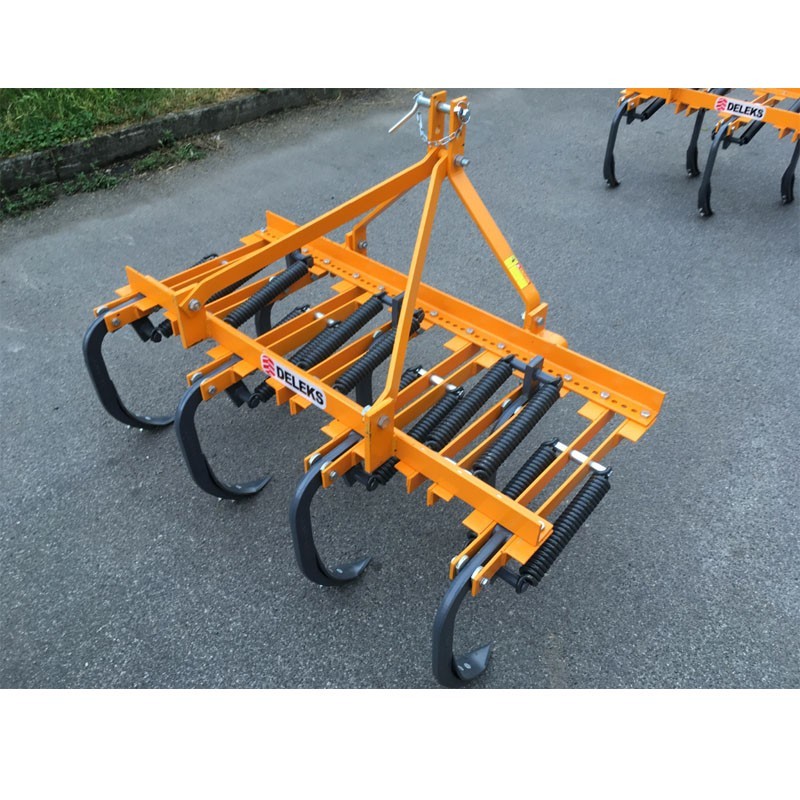

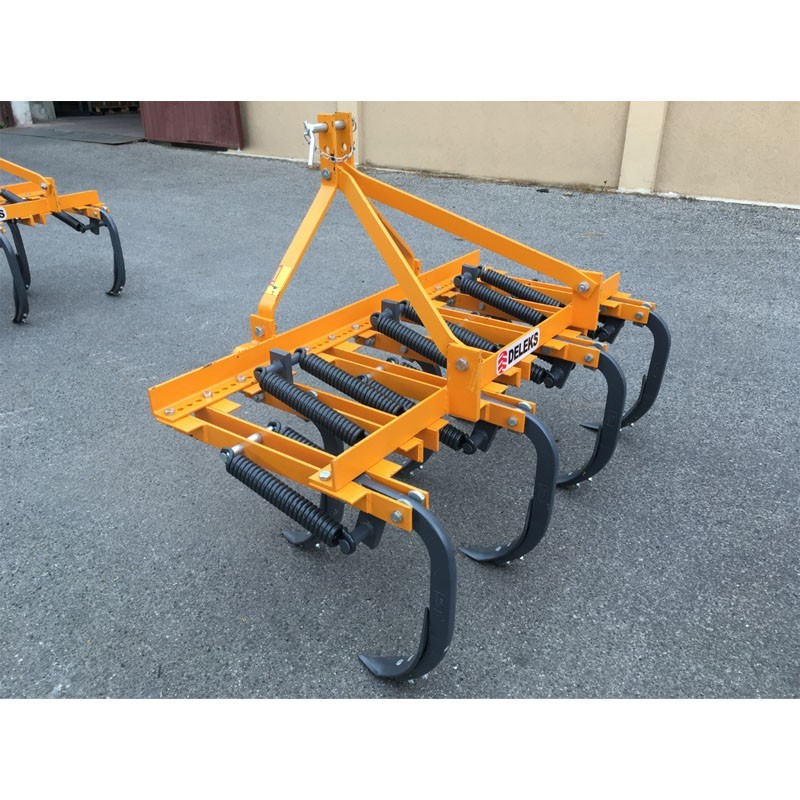

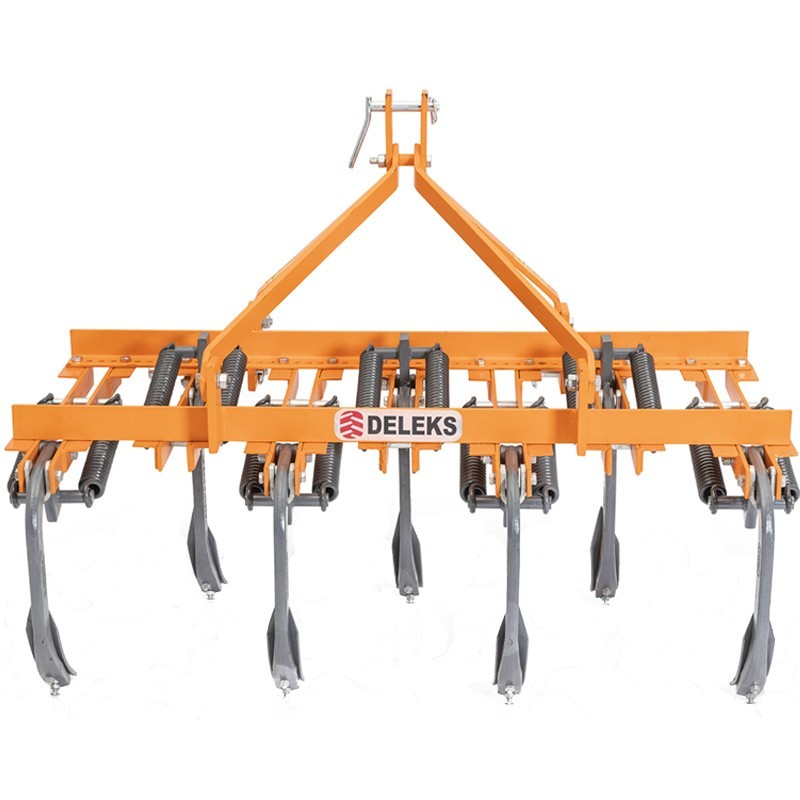

The DELEKS DE-165-7 30 - 50 HP 7-boom tractor cultivator is designed for tilling the soil and pulling out weeds, it allows to aerate the soil up to a depth of 38 cm, depending on the type of soil and the tractor power. If a tine comes into contact with an obstacle, the other tines continue to work at the same ideal depth.
This cultivator is made for tractors from 30 to 50 HP, has a 3-point hitch category 1 - 2 and is CE compliant and has a 2-year warranty, it is not suitable for tractors from tracked.

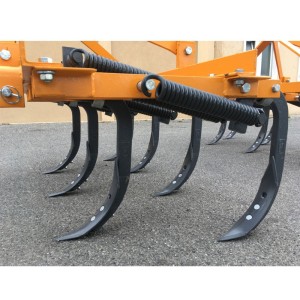

The shape of the tines allows a homogeneous soil preparation, with a working depth of 38 cm, this reduces water stagnation, facilitates water infiltration and root penetration.

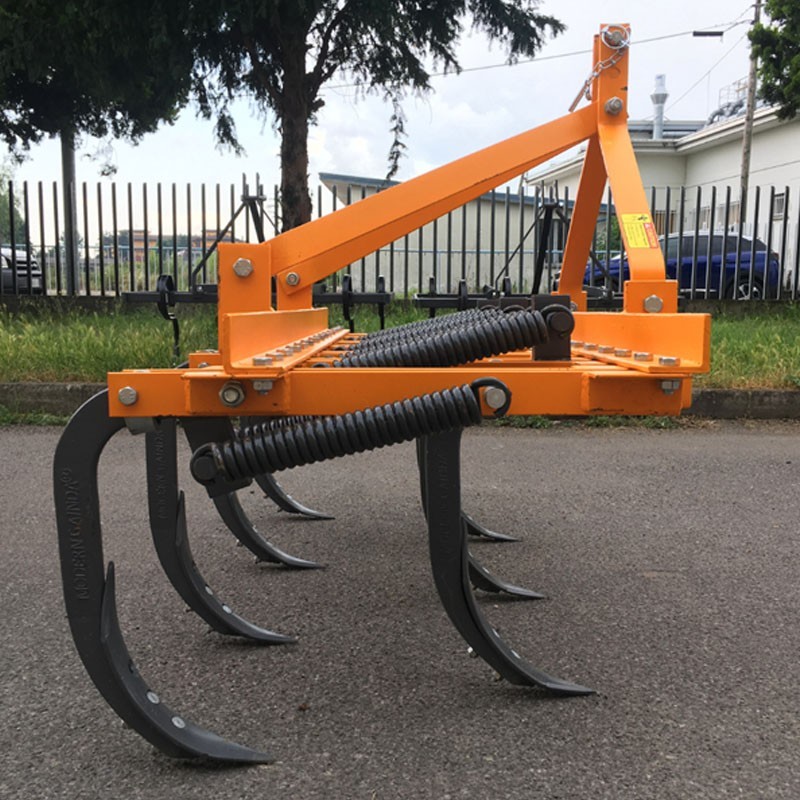

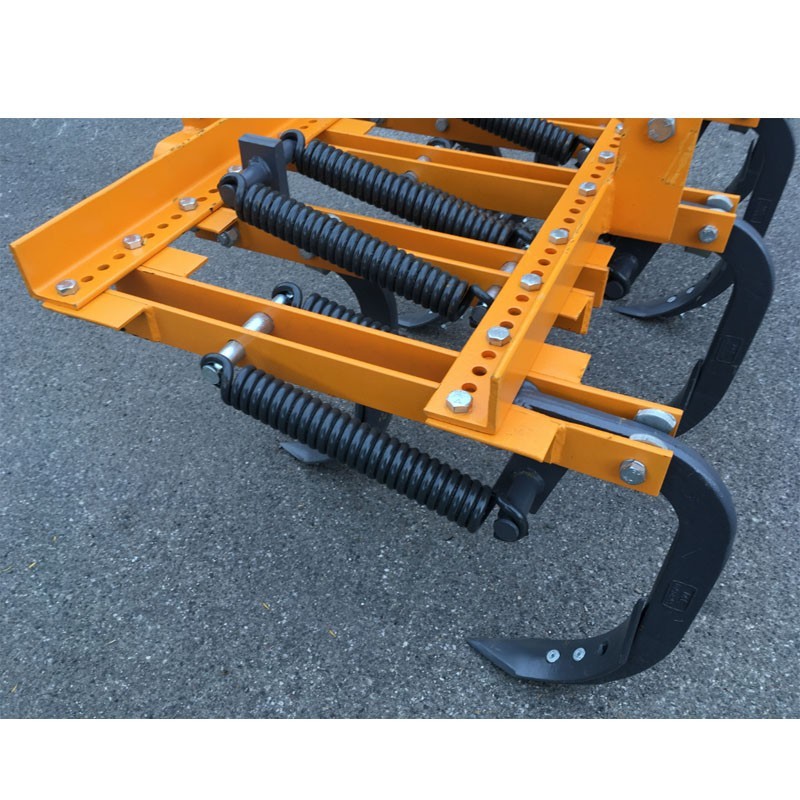

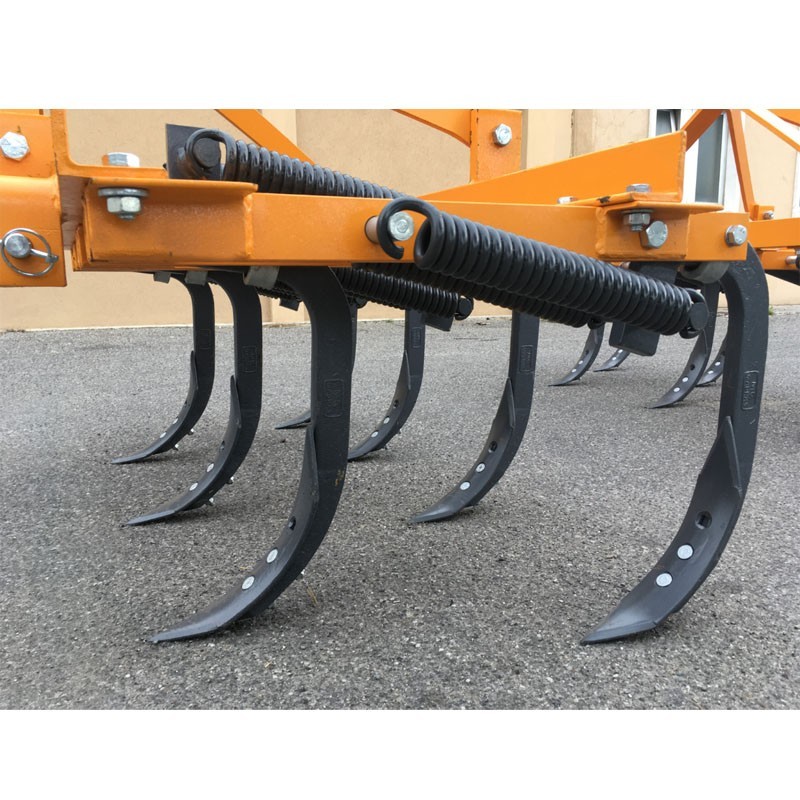

Its tines are forged to work in extreme conditions, it has a robust chassis, which makes it a longer and more durable machine, which guarantees a long useful life, each tine is supported by 2 springs, thus obtaining additional resistance.
Its teeth are reversible and can be changed easily, it has a total width of 1690 mm, and has a total weight of 180 kg, which makes it an easy to handle and very accessible machine.
Total width | 1690.0 mm |
Weight | 180.0 kg |
Total height | 1020.0 mm |
Tractor power | 30 - 50 hp |
3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Plate thickness. 3-point hitch | 12.0 mm |

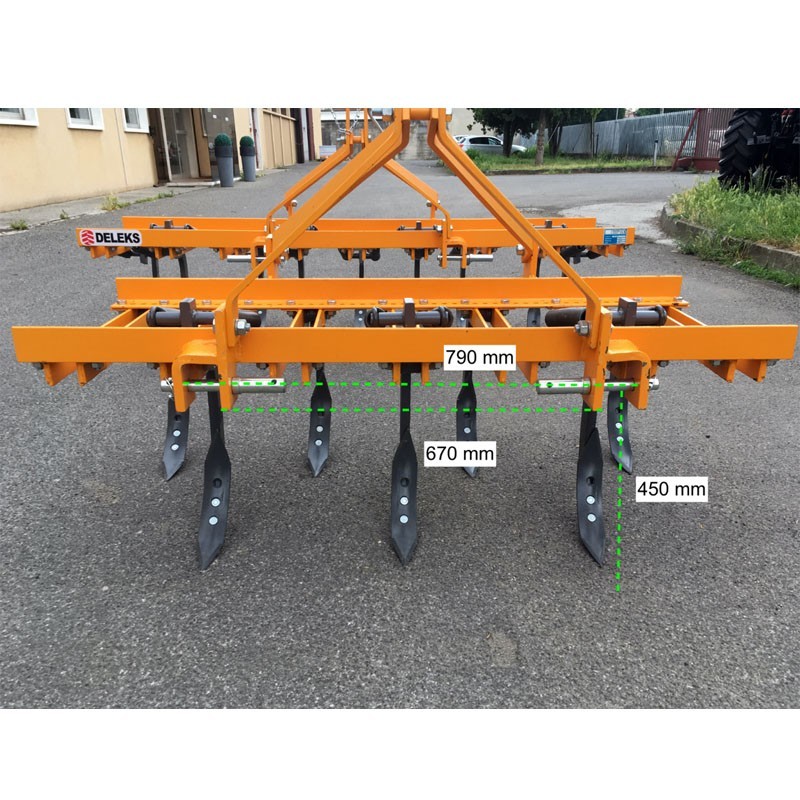

Distance between lower points | 670.0 - 790.0 mm |
Total length | 800.0 mm |
Distance between 2 points and the floor | 430.0 mm |

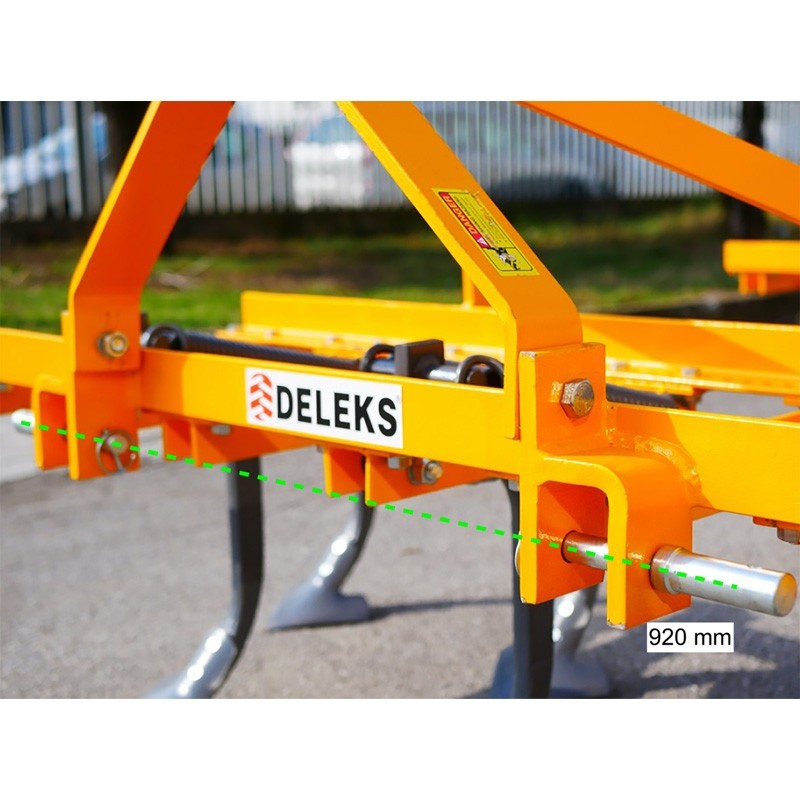

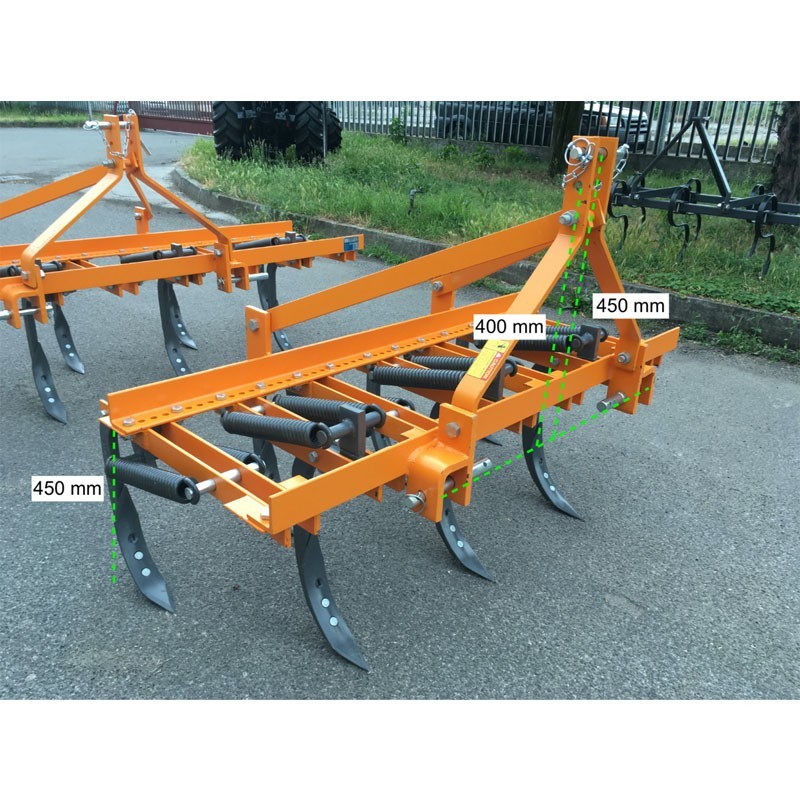

Other dimensions | See photos |
Number of teeth | 7 |
Height of teeth | 450.0 mm |
Number of suspensions per tooth | 2 |
Tooth width | 25.0 mm |
Tooth thickness | 48.0 mm |
Tooth spacing |
199.0 mm |
Removable blades: thickness [US | 0.23 in |
Removable blades: thickness | 6.0 mm |
Demountable blades: width | 200.0 mm |
Removable blades: length | 220.0 mm |
Working width | 1600.0 mm |
Working depth | 350.0 mm |
Packing dimension | 1690.0*800.0*400.0 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
