7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP

7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP


  • Total width : 1690.0 mm
  • Weight : 180.0 kg
  • Total height : 1020.0 mm
Deleks products take about 15 to 25 days.
icon Power Supply
Power Supply
PTO tractor
icon Working width
Working width
160 - 169 cm
icon Tractor power
Tractor power
30 - 50 hp
icon 3-point hitch for tractor
3-point hitch for tractor
Yes
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
180 kg
€790.91 excl. VAT
- 4%
€759.27 excl. VAT
€918.72 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Free shipping for Spain (Peninsula)
Qty
Check stock

Request a quote
close

Request a quote


7-arm PTO Cultivator Deleks DE-165-7-V 30 - 50 HP
€918.72
Qty
Check stock

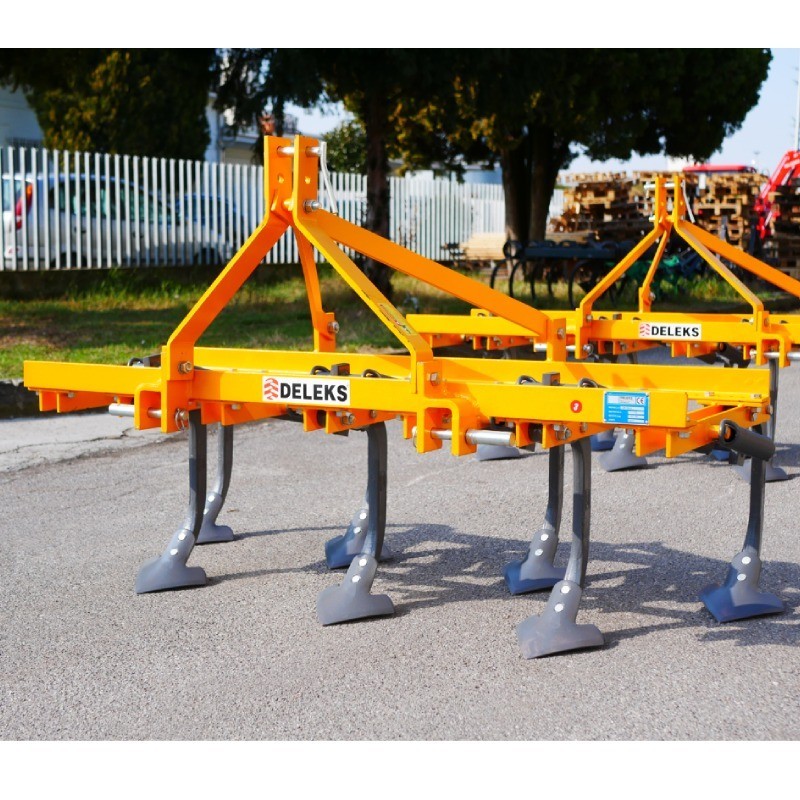

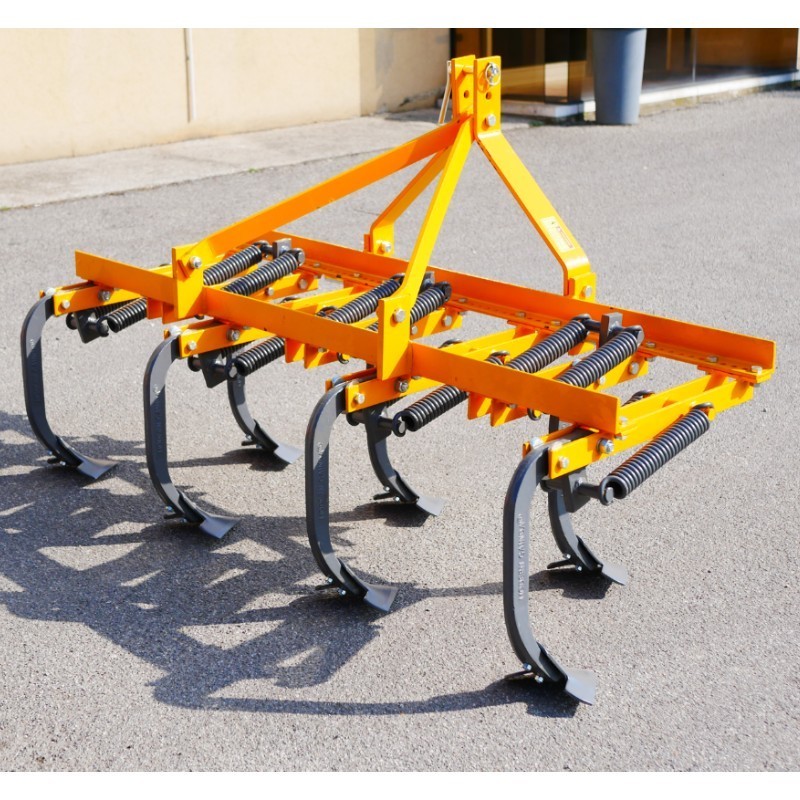

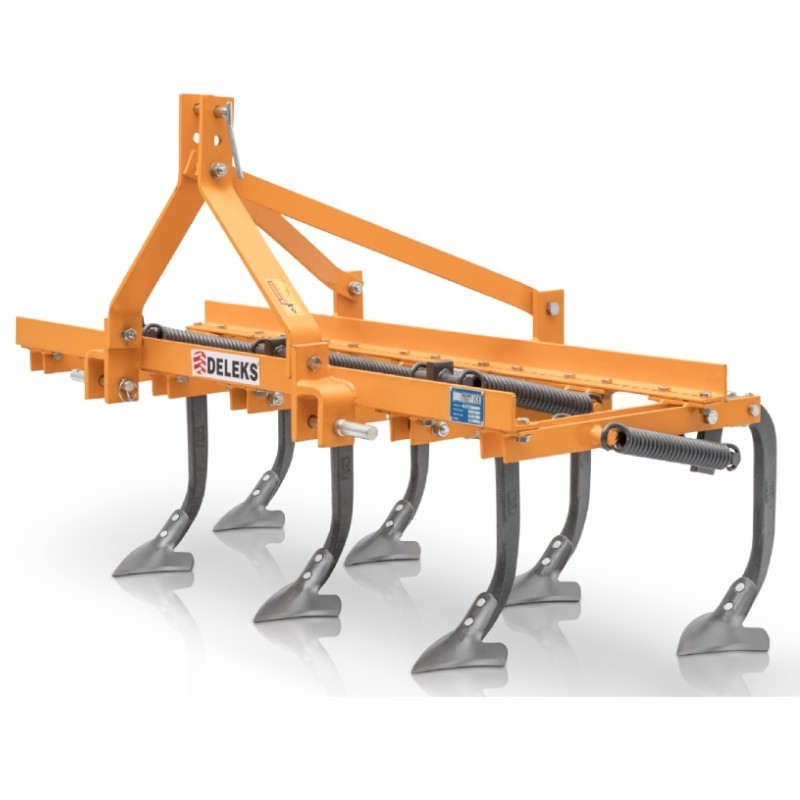

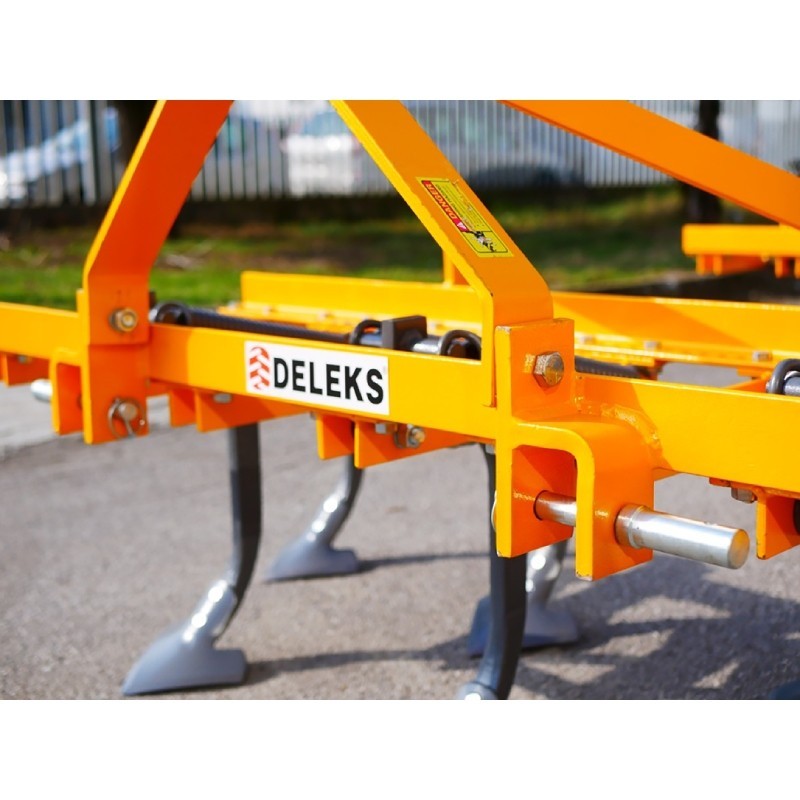

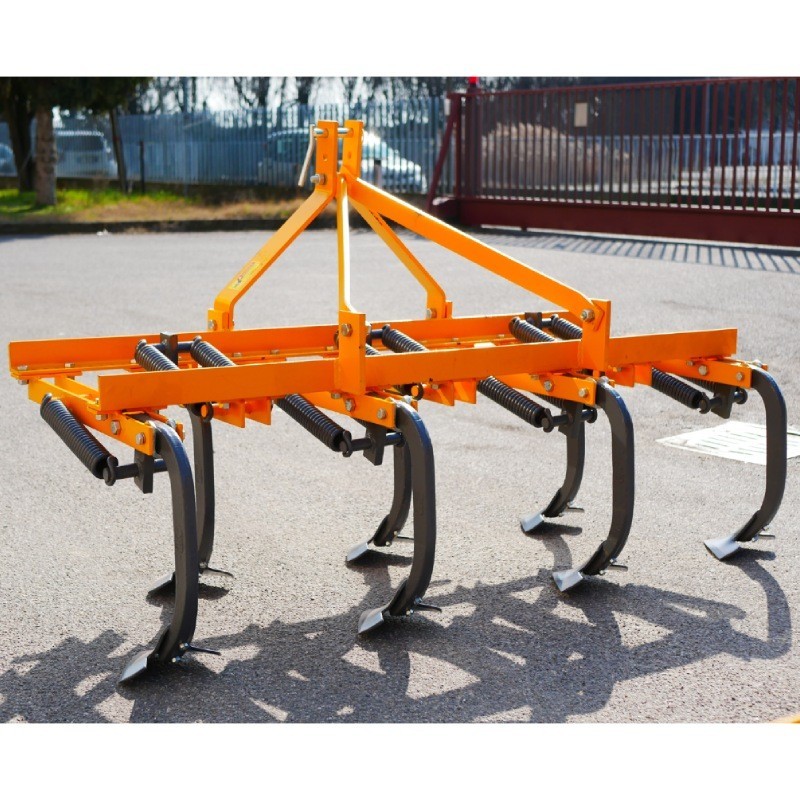

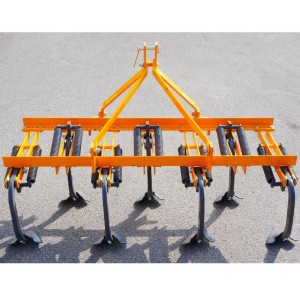

7 Arm Cultivator PTO Deleks DE-165-7-V

The 7 arm cultivator PTO Deleks DE-165-7-V is a very good option thanks to its ability to till land with its tines, being able to aerate the soil up to 35 cm depending on the soil.

This model of cultivator is perfectly compatible with tractors with a power between 30 to 50 hp for different brands such as Kubota, John Deere, New Holland, Same, Fiat, McCormick, or Lamborghini. It is not suitable for crawler tractors

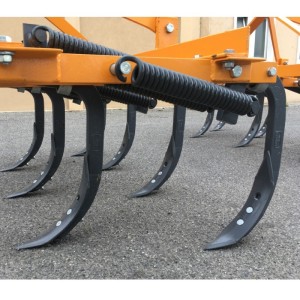

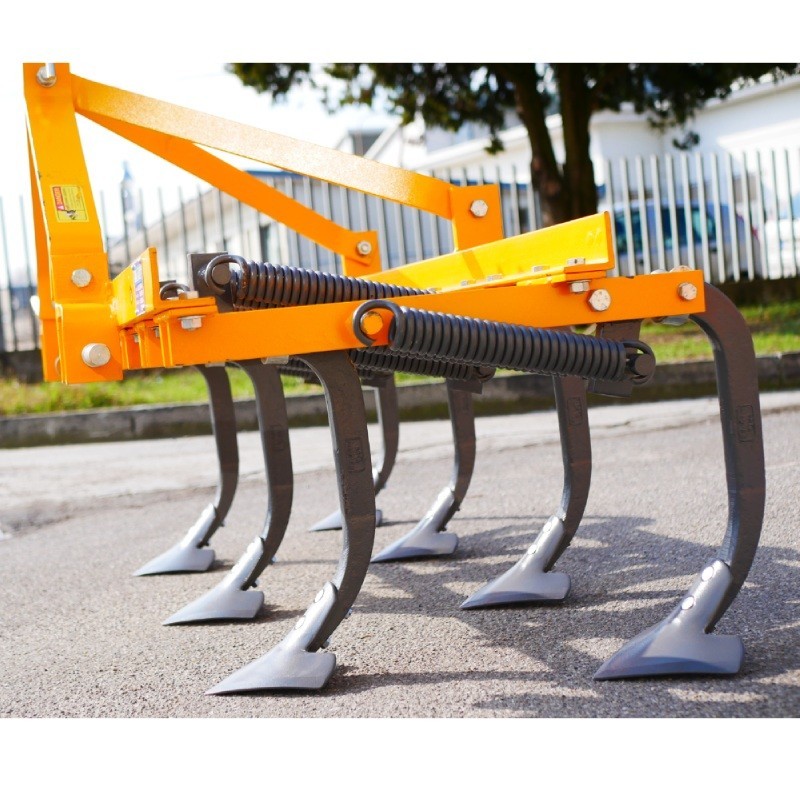

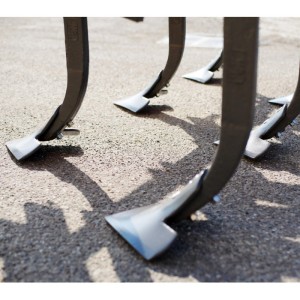

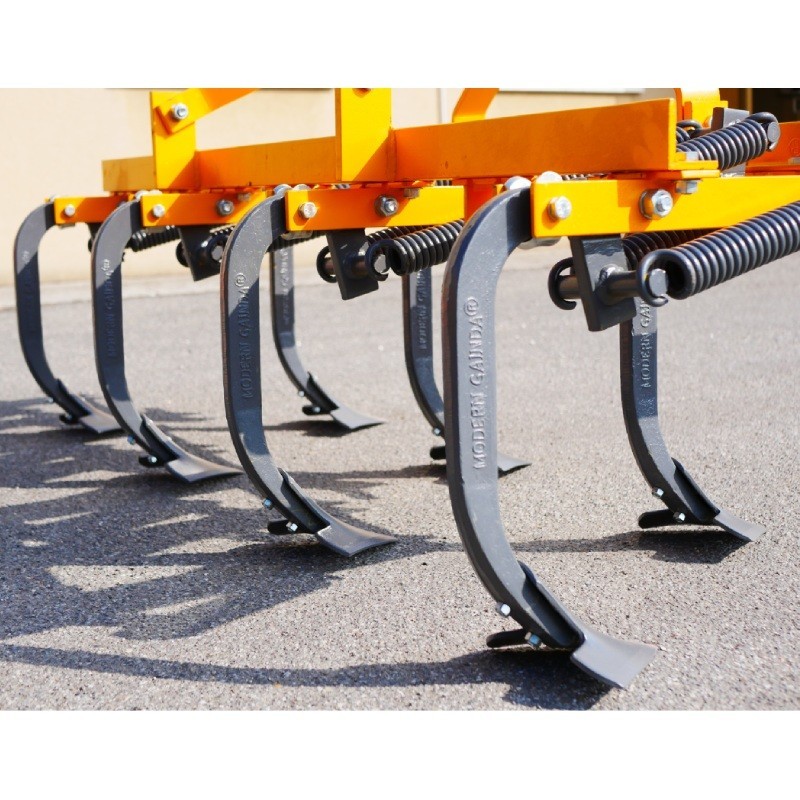

This cultivator has a total of 7 arms with one tine each, capable of making a homogeneous soil preparation even in extreme conditions. Finally, the tines of this model are quite easy to replace.

Characteristics

Total width 1690.0 mm
Weight 180.0 kg
Total height 1020.0 mm
Tractor power 30 - 50 hp
3-point hitch Cat. 1-2 (ø 19.0-22.0 mm / 25.0-28.0 mm)
Thickness of the sheet. 3-point hitch 12.0 mm

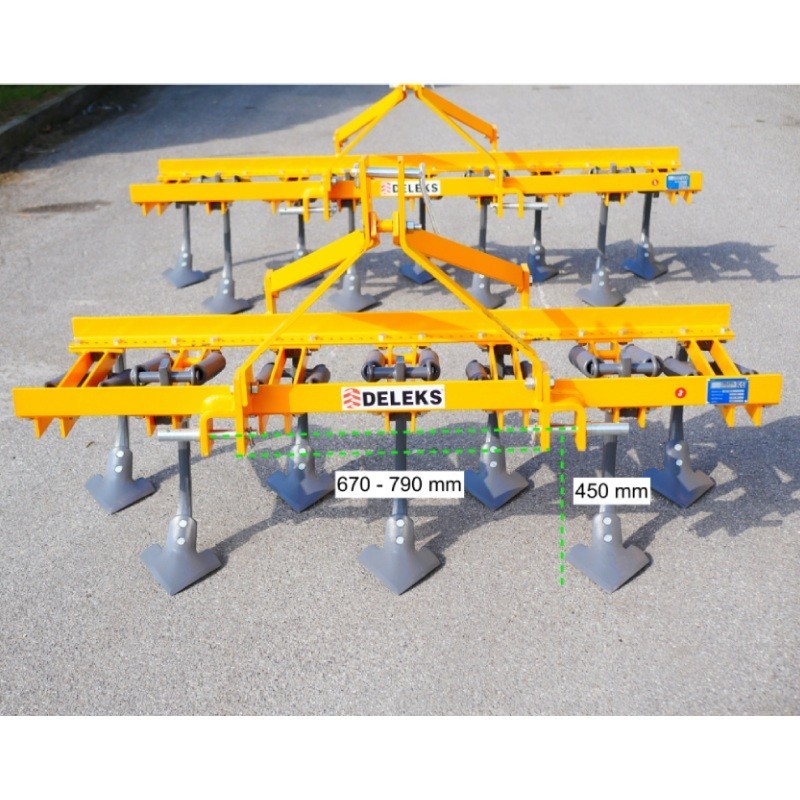

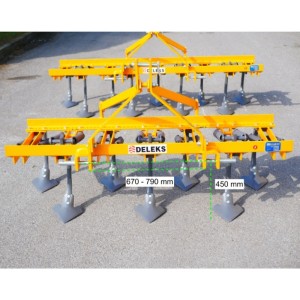

Distance between lower points 670.0 - 790.0 mm
Total length 800.0 mm
Distance between 2 points and the ground 430.0 mm

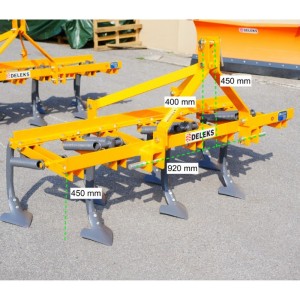

Other dimensions See photos
Number of tines 7
Height of the tines 450.0 mm
Number of suspensions per tine 2
Width of the tine 25.0 mm
Thickness of the tine 48.0 mm
Distance between tines 199.0 mm

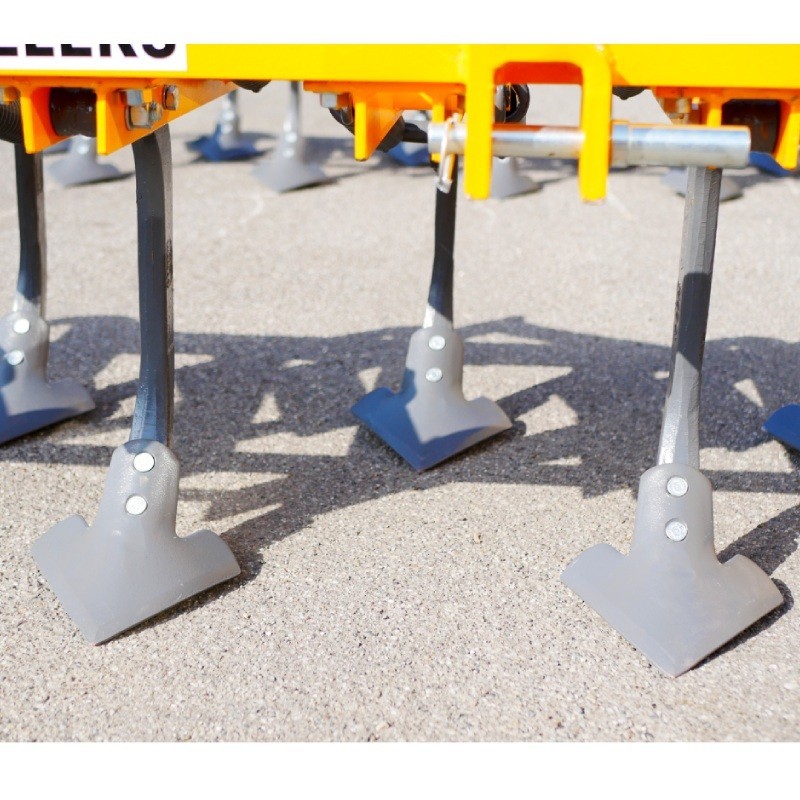

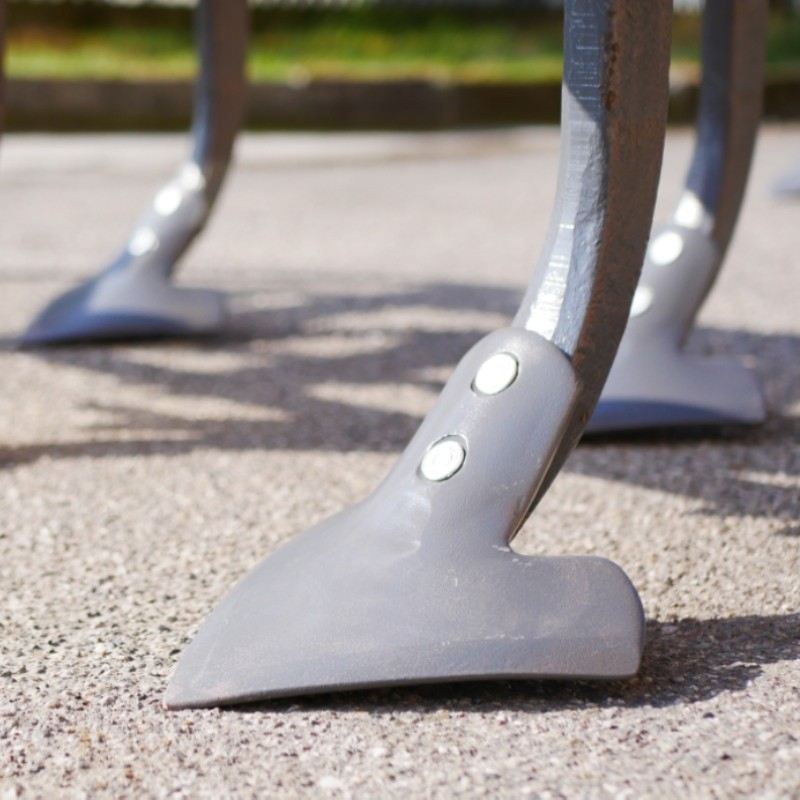

Removable blades: thickness 0.23 in (6.0 mm)
Removable blades: width 200.0 mm
Removable blades: length 220.0 mm
Working width 1600.0 mm
Working depth 350.0 mm
Packaging dimension 1690.0 * 800.0 * 400.0 mm
260822

Data sheet

Power Supply
PTO tractor
Working width
160 - 169 cm
Tractor power
30 - 50 hp
3-point hitch for tractor
Yes
Country of manufacture
Italy
Weight
180 kg

Specific References

EAN-13
8053470230318
MPN
DE165V
