Reinforced Cultivator for Mini Tractor Dimago
- Tractor power: 16 - 30 HP
- Working width: 1,2 m
- Arms: 5 reinforced
- Weight: 60kg
€656.02 VAT incl.
Deleks products take about 15 to 30 days. |

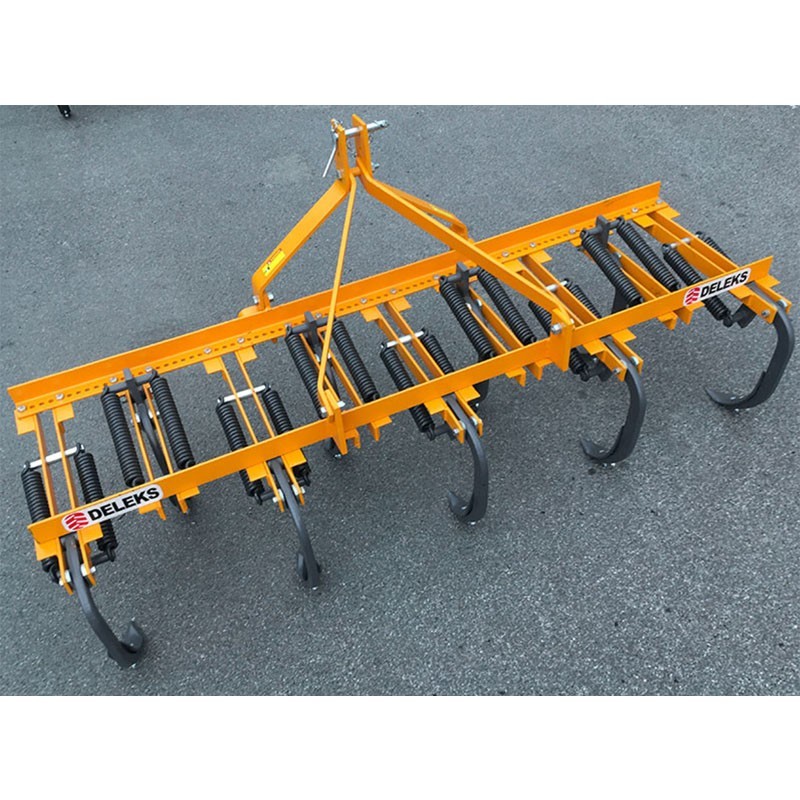

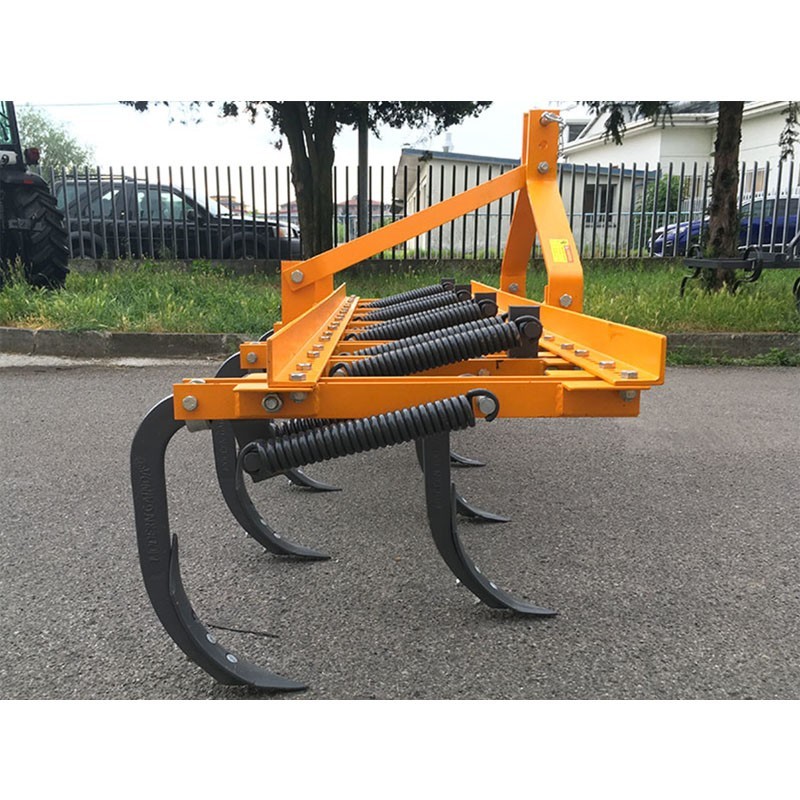

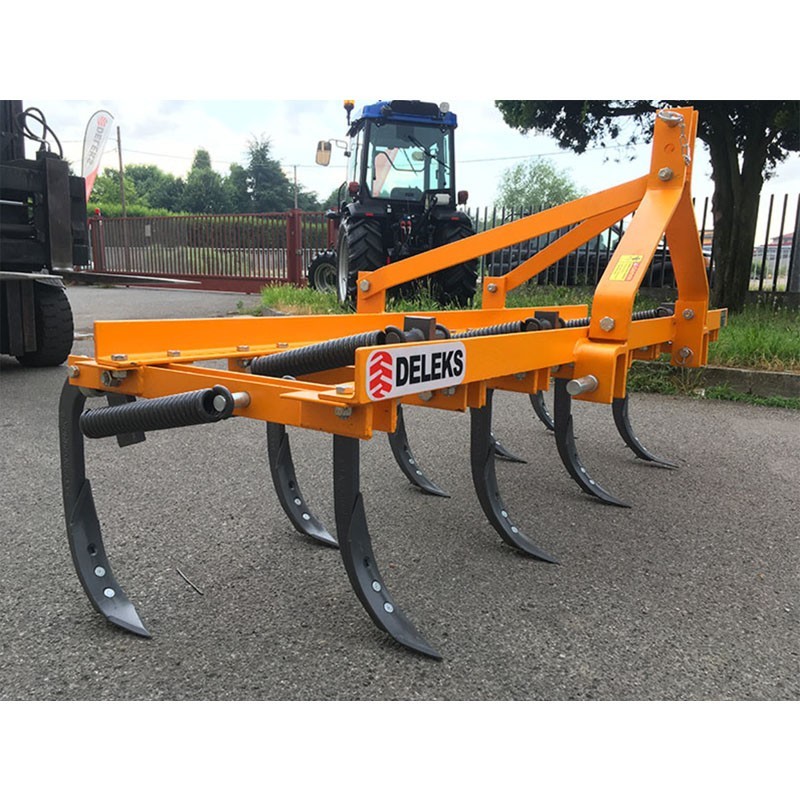

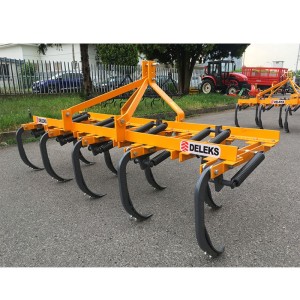

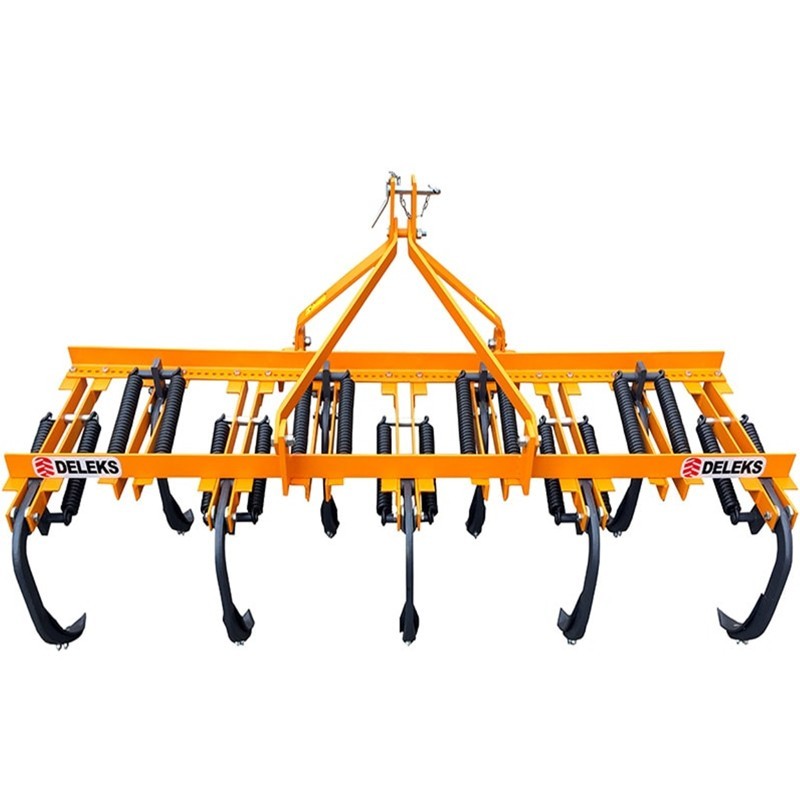

The DELEKS DE-215/9 35 - 50 HP 9-boom PTO cultivator is designed for tilling the soil and pulling out weeds. This cultivator allows to aerate the soil up to a depth of 38 cm, depending on the type of soil and the power of the tractor. If a tine comes into contact with an obstacle.
The other tines continue to work at the same depth, this cultivator is ideal for tractors with power from 35 to 50 HP, has a 3-point hitch category 1-2 and has the European quality conformity, in addition to a 2-year warranty.
This cultivator is not suitable for tractors of tracked, the shape of the tines allows a homogeneous preparation of the soil, with a working depth of 38 cm. It reduces water stagnation and facilitates water infiltration and root penetration.
Its teeth are forged to work in extreme conditions, which makes it a very useful tool for use in difficult terrain, has a robust chassis, which makes it more long-lived and has a longer and more durable life, each tooth is supported by 2 springs obtaining additional resistance.
Total width | 2170.0 mm |
Weight | 240.0 kg |
Total height | 1020.0 mm |
Tractor power | 35 - 50 hp |

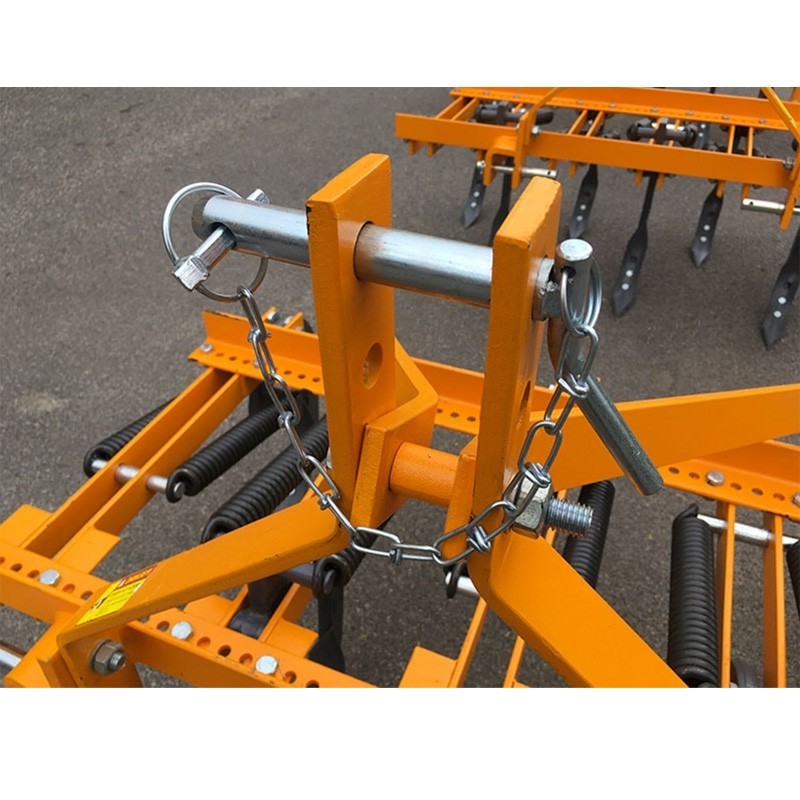

3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Plate thickness. 3-point hitch | 12.0 mm |
Distance between lower points | 670.0 - 790.0 mm |
Total length | 800.0 mm |
Distance between 2 points and the floor | 430.0 mm |
Other dimensions | See photos |
Number of teeth | 9 |
Height of teeth | 450.0 mm |
Number of suspensions per tooth | 2 |
Tooth width | 25.0 mm |
Tooth thickness | 48.0 mm |
Tooth spacing |
195.0 mm |

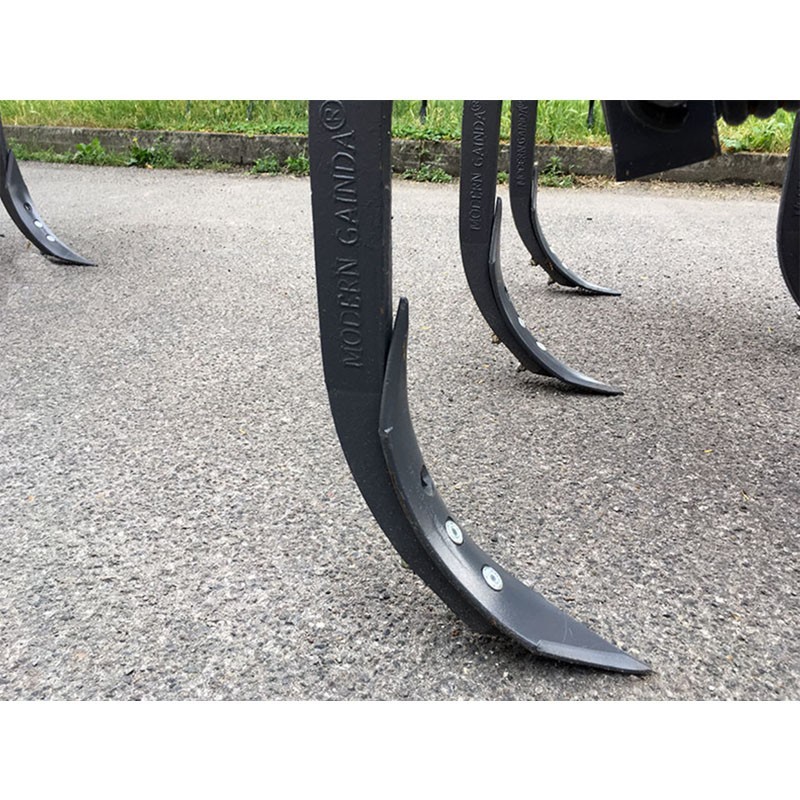

Removable blades: thickness [US | 0.23 in |
Removable blades: thickness | 6.0 mm |
Demountable blades: width | 200.0 mm |
Removable blades: length | 220.0 mm |
Working width | 2150.0 mm |
Working depth | 350.0 mm |
Packing dimension | 2170.0*800.0*400.0 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
