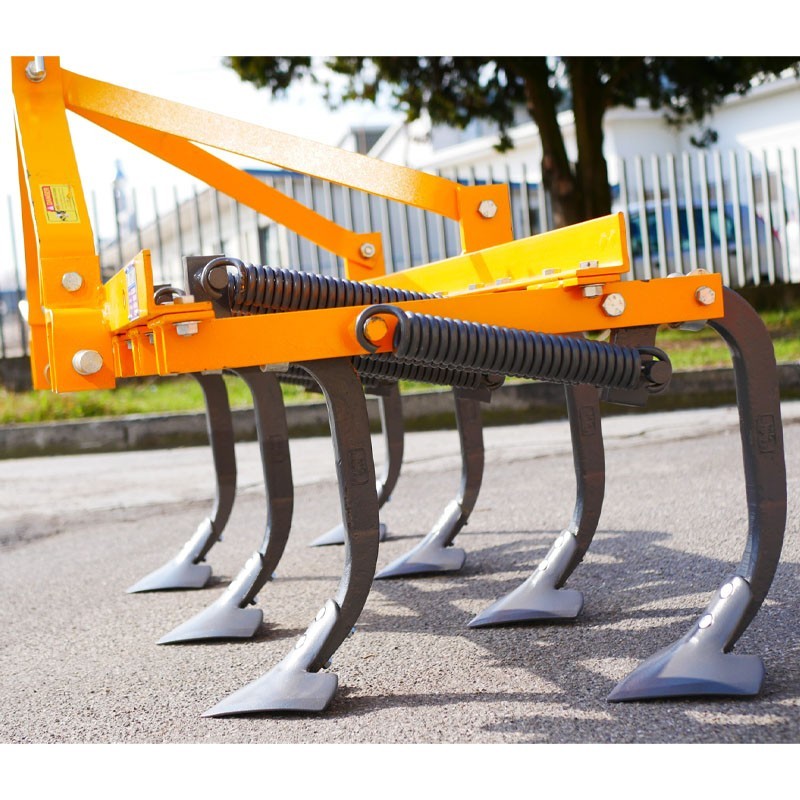

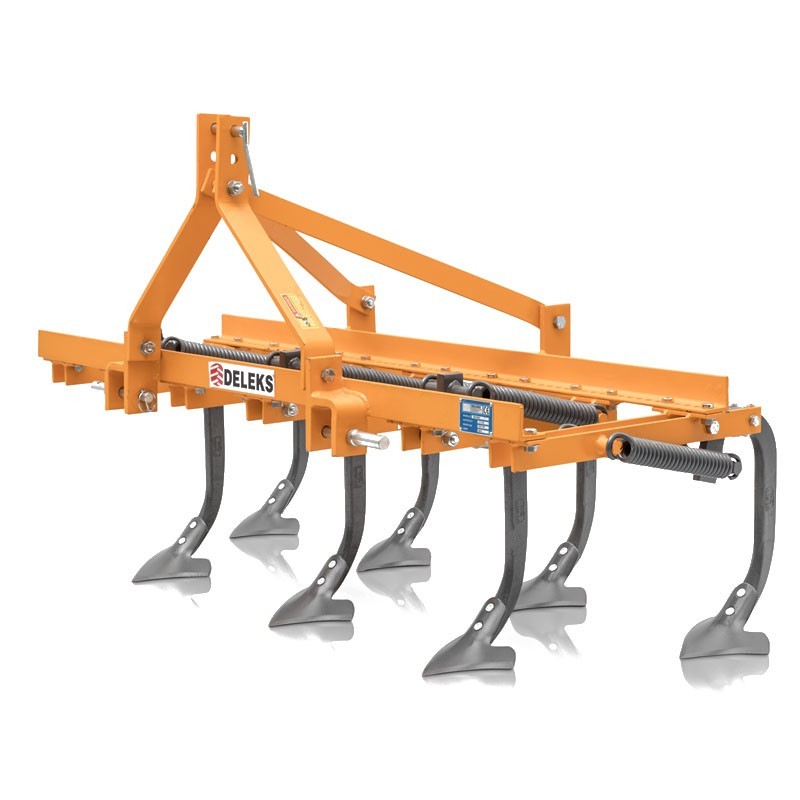

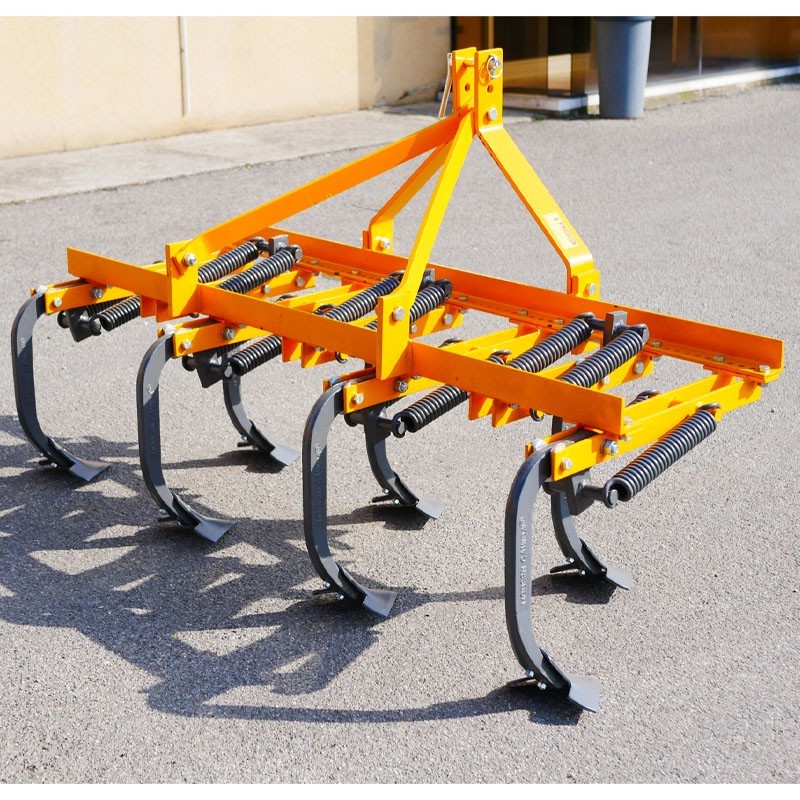

Cultivator 7 arms for tractor Deleks DE140-7V
The 7-arm cultivator for tractor Deleks DE140-7V is a tractor complement. It is compatible with tractors with a power between 22 and 45 HP. It is not suitable for tractors with tracked
The model DE140-7V from Deleks allows us to aerate the soil up to a depth of 35 cm. This is depending on the type of soil and the power of the tractor. When one tine comes in contact with an obstacle, the other tines continue to work at the same depth.
This cultivator has a category 1-2 3-point hitch and is CE compliant. It guarantees the operator great comfort and ease in breaking up the soil and pulling out weeds. This is thanks to its good features.
This model of Deleks has a tine formation that allows a homogeneous preparation of the soil. It also facilitates water infiltration and root penetration and reduces water stagnation.
In addition, the DE140-7V Cultivator from Deleks allows us to work in extreme conditions thanks to its forged tines. Each tine of the cultivator is supported by 2 springs for additional strength. The tines are reversible and easy to replace.
The Cultivator of Deleks, DE140-7V, guarantees a good safety and maintenance of the machine. This is thanks to a good robust chassis. It has 7 tines with a height of 450 mm.
Among the features of the DE140-7V model we can highlight its total width of 1420mm and its total height of 1020mm. In addition, it has a total length of 800 mm and a working width of 1330 mm. This model has a total weight of only 165 kg.

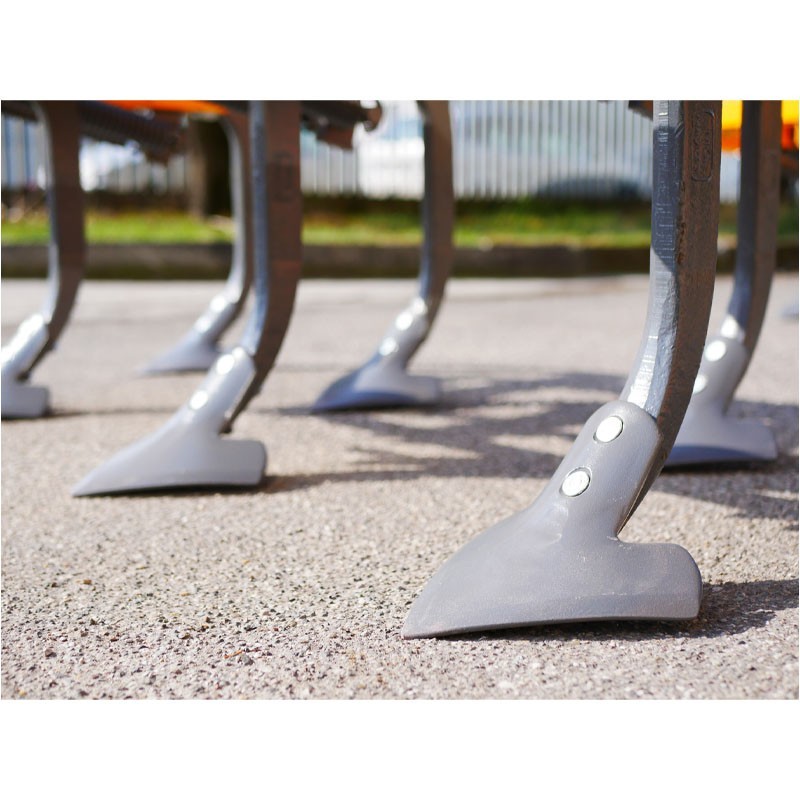

The removable blades of this model have a thickness of 8 mm, a width of 58 mm and a length of 260 mm. The working depth of this machine is up to 350 mm.
Features
| Total width |
1420 mm |
| Weight |
165 kg |
| Overall height |
1020 mm |
| Tractor power |
22 - 45 HP |
| 3-point hitch |
Cat. 1-2 (ø 19-22mm / 25-28mm) |
| Plate thickness. 3-point hitch |
12 mm |
| Distance between lower points |
670 - 790 mm |
| Total length |
800 mm |
| Distance between 2 points and the floor |
430 mm |

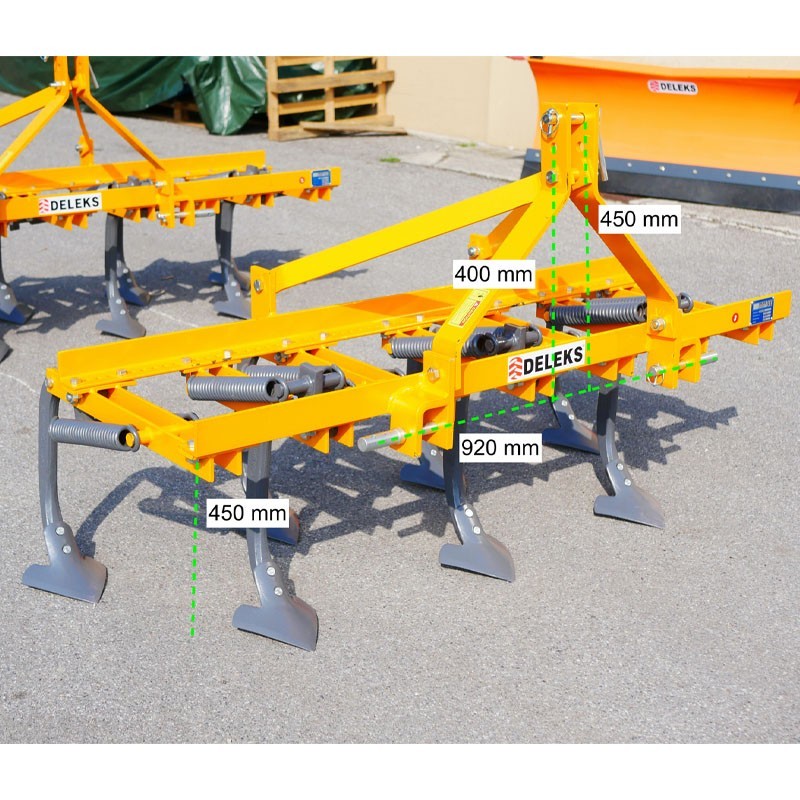

| Other dimensions |
See photos |
| Number of teeth |
7 |
| Height of teeth |
450 mm |
| Number of suspensions per tooth |
2 |
| Tooth width |
23 mm |
| Tooth thickness |
48 mm |
| Tooth spacing |
154 mm |
| Removable blades: thickness [US |
0.31 in |
| Removable blades: thickness |
8 mm |
| Demountable blades: width |
58 mm |
| Removable blades: length |
260 mm |
| Working width |
1330 mm |
| Working depth |
350 mm |
| Packing dimension |
1420*800*400 mm |
