Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
Deleks products take about 15 to 25 days. |

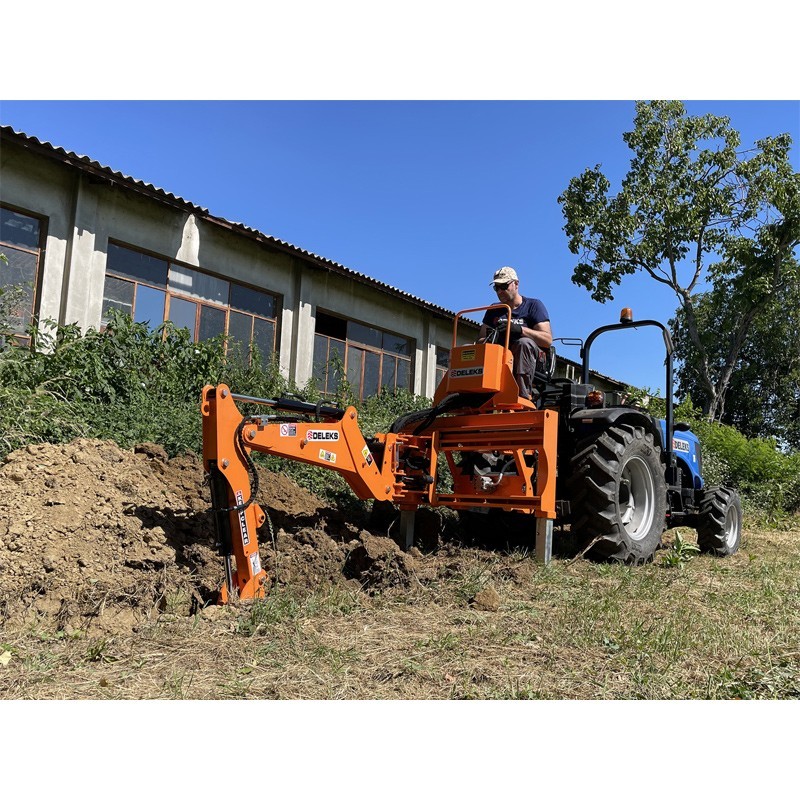

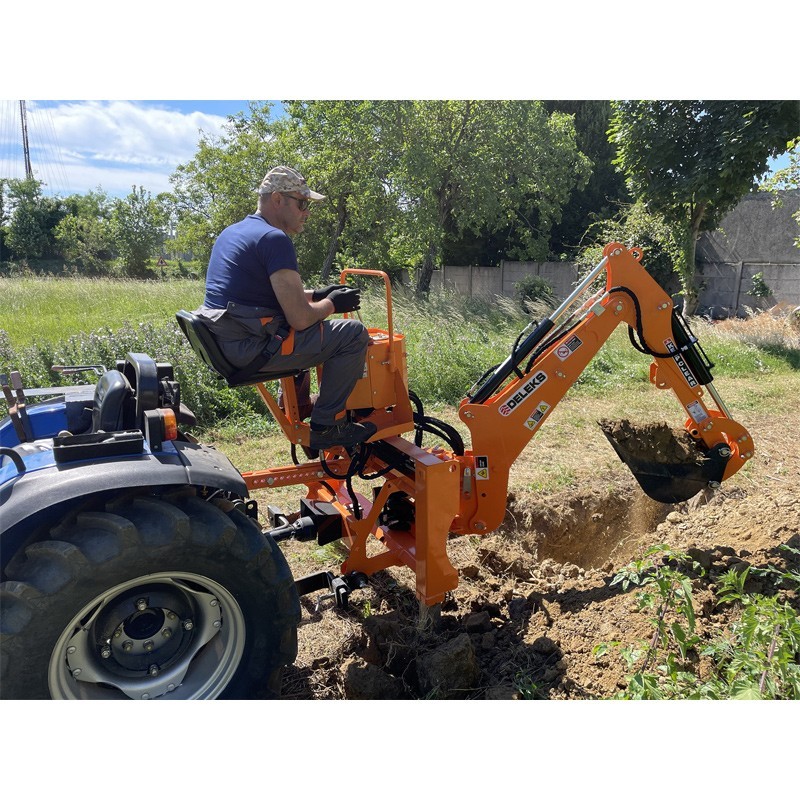

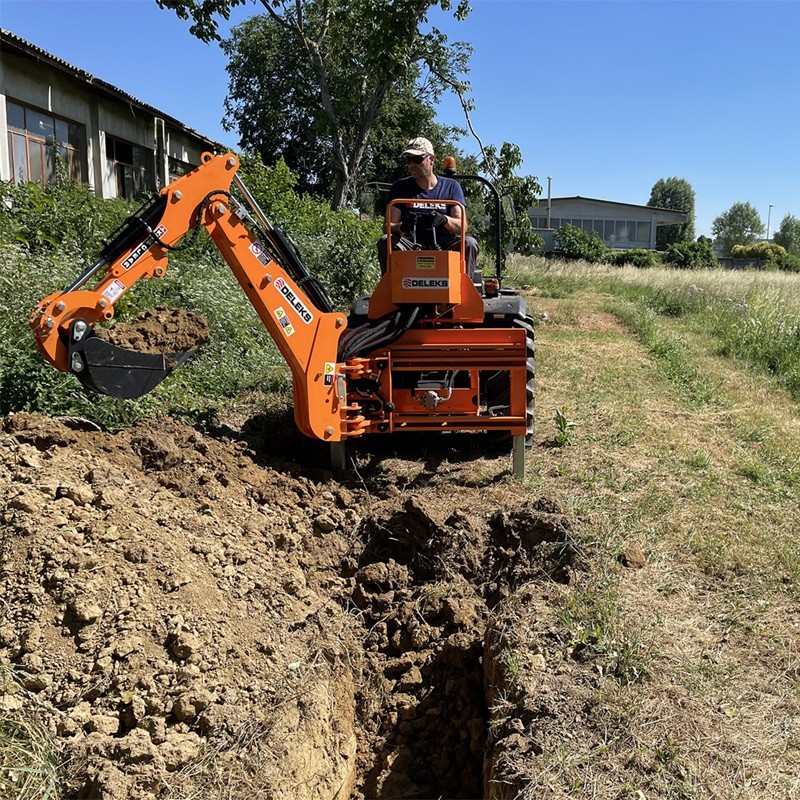

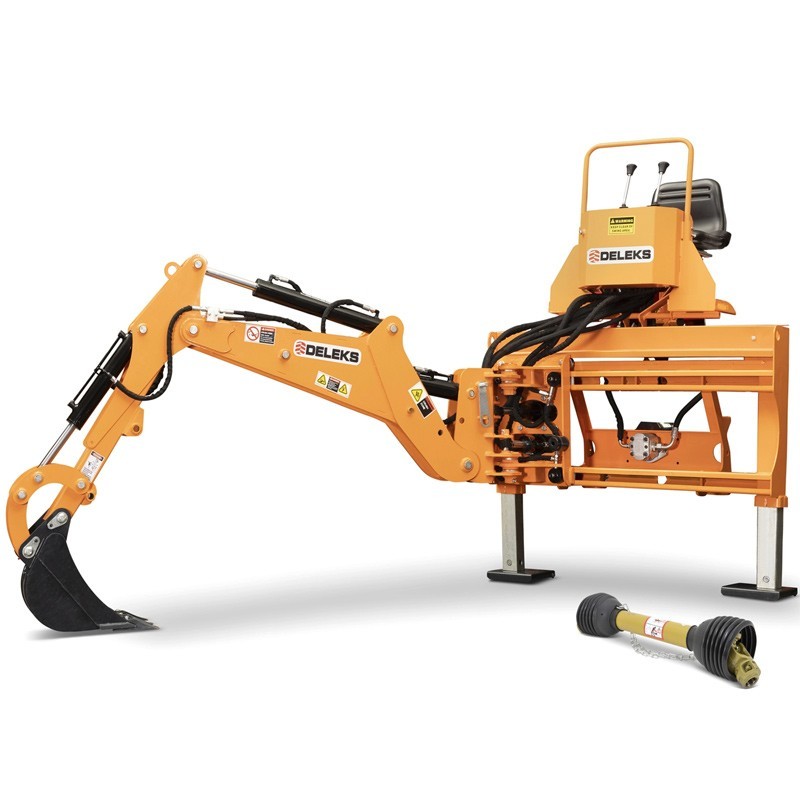

The Backhoe for tractor Deleks DRS-2000T It is a tractor attachment that is compatible with most tractor brands. This backhoe is ideal for use with tractors that have rear loading with a minimum power of 40 HP.
This model of backhoe loader Deleks It is designed for road excavation, drainage, digging, or bank maintenance. It is adapted for all types of tractors from 40HP, with a three-point CAT. 1-2 hitch.
This can be hooked by a Category 1-2 three-point hitch. Additionally, it has a rotation angle of 180º with two stabilizers.
The model of backhoe DRS-2000T of/from/about/by Deleks It features a hydraulic control with 2 different positions. The right-to-left orientation It is done hydraulically. This is with 2 pistons and 2 hydraulic tubes of 1.5m.
This DRS-2000T backhoe from Deleks has a hydraulic arm diameter of 3.5 and 7.5cm which allows the operator to work with maximum safety. Additionally, it features easy assembly and use with great comfort. The backhoe it has an independent hydraulic system, with Hydrocontrol distributor (Made in Italy).
Weight | 570 Kg |
Three-point hitch | Cat. 1-2 (ø 19-22mm / 25-28mm) |
Blade width | 300 mm |
Distance between lower points | 530 - 830 mm |
Hydraulic tubes (2) | WP-400 bar |
Minimum/maximum oil pressure | 120 - 200 bar |
Optional oil flow | 25 - 40 l/min |
Cardan | CE 4x800 mm |
Angle of rotation | 180° |
Minimum power | 40 HP |
Hydraulic arm diameters | 75 - 35 mm |
Stabilizers | 2 |
Excavation depth (B) | 1950 mm |
Load height (A) | 2420 mm |
Discharge height (E) | 2500 mm |
Maximum height (C) | 3170 mm |
Excavation width (D) | 2900 mm |
Stabilizer extension | 1400 mm |
Packaging dimension | 1000*2250*1300 mm |
IMPORTANT NOTICE |
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
