Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket
Backhoe for Giemme BHM Tractor with 29 cm bucket

Backhoe for Giemme BHM Tractor with 29 cm bucket

Rating:
(0)
  • Bucket width : 29 cm
  • Weight : 250 - 550 kg
  • Tractor power : 18 - 70 HP
En stock
icon Tractor power
Tractor power
18 - 70 HP
icon Cardan shaft
Cardan shaft
Included
icon Type of coupling
Type of coupling
Fixed hitch
icon Transmission type
Transmission type
Hydraulics
icon Standard ladle
Standard ladle
29 cm
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
250 - 550 kg
€3,505.55 excl. VAT
- 4%
€3,365.33 excl. VAT
€4,072.05 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Backhoe for Giemme BHM Tractor with 29 cm bucket
€4,072.05
Select
Qty

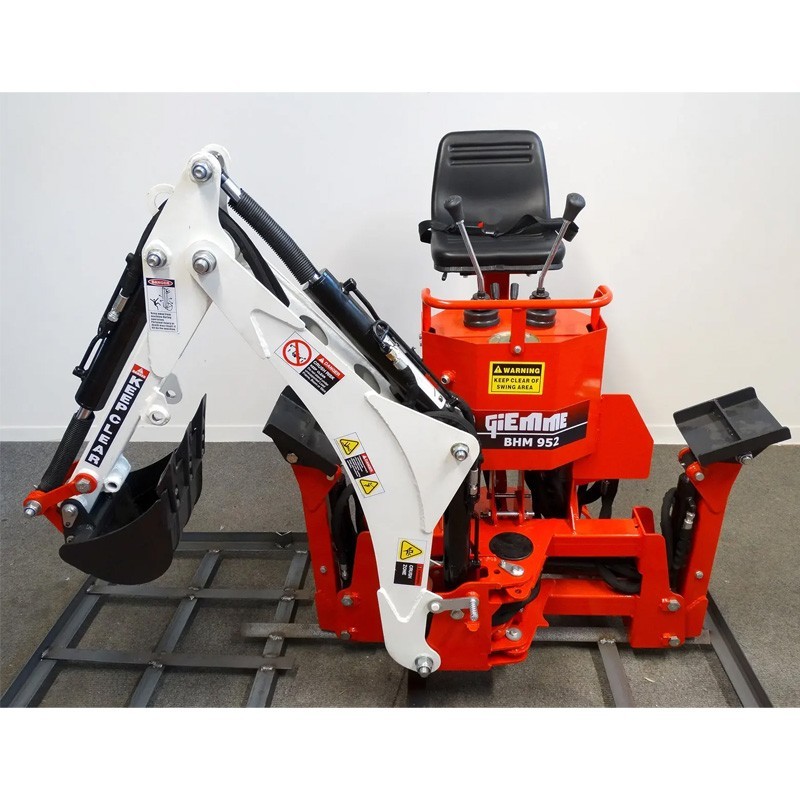

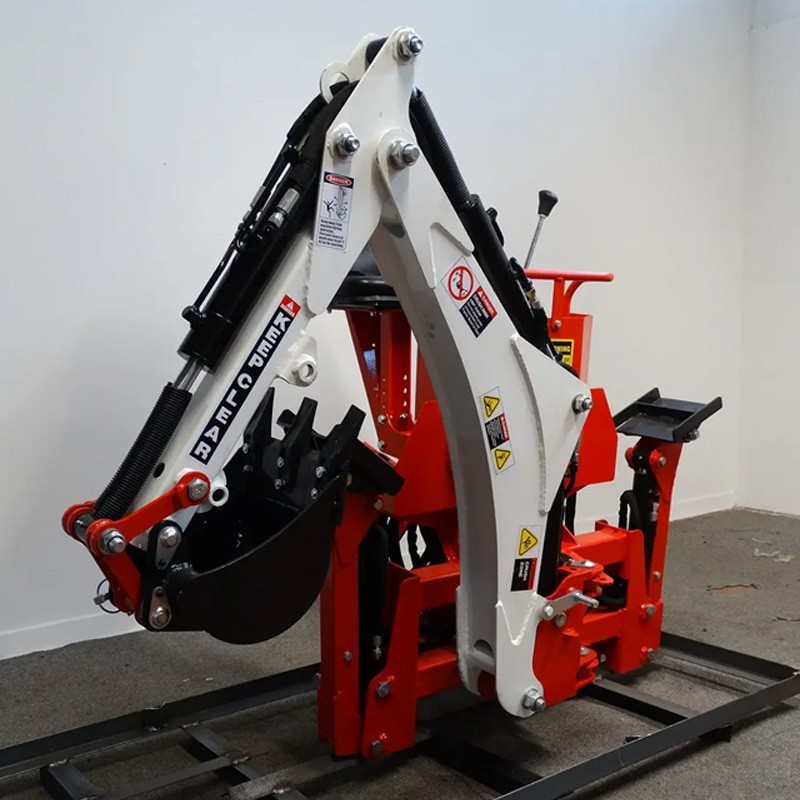

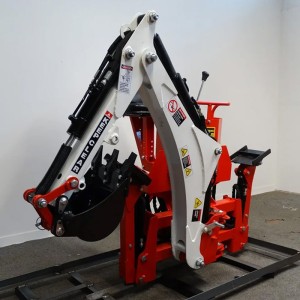

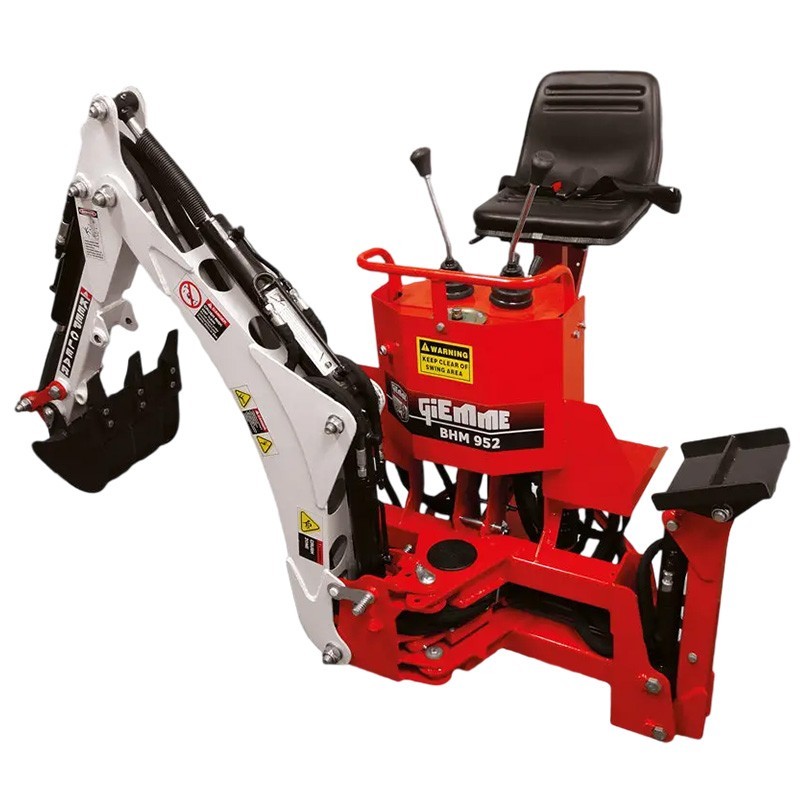

Giemme BHM PTO Backhoe Excavator

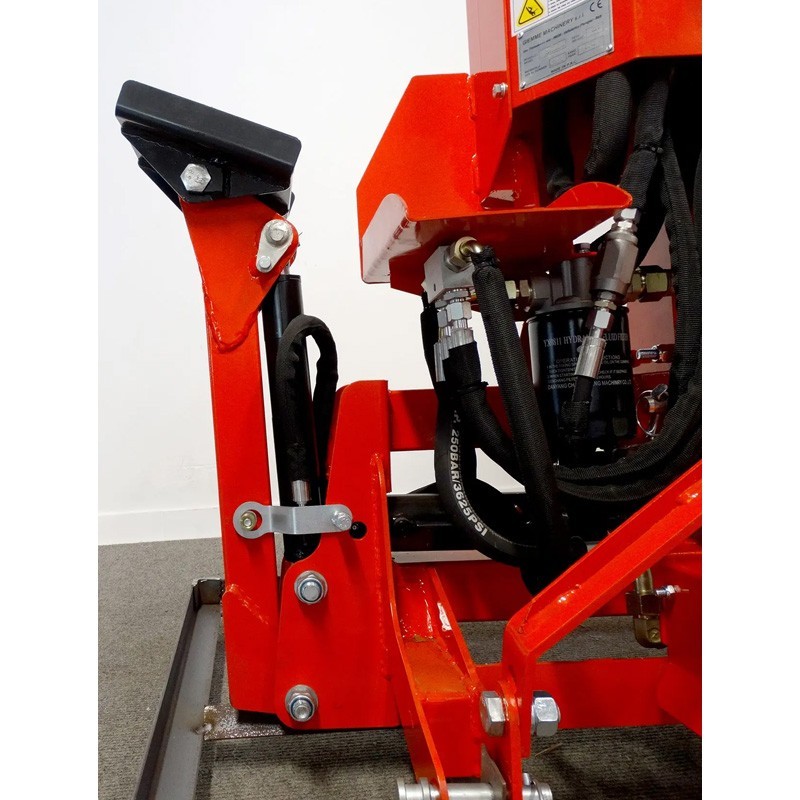

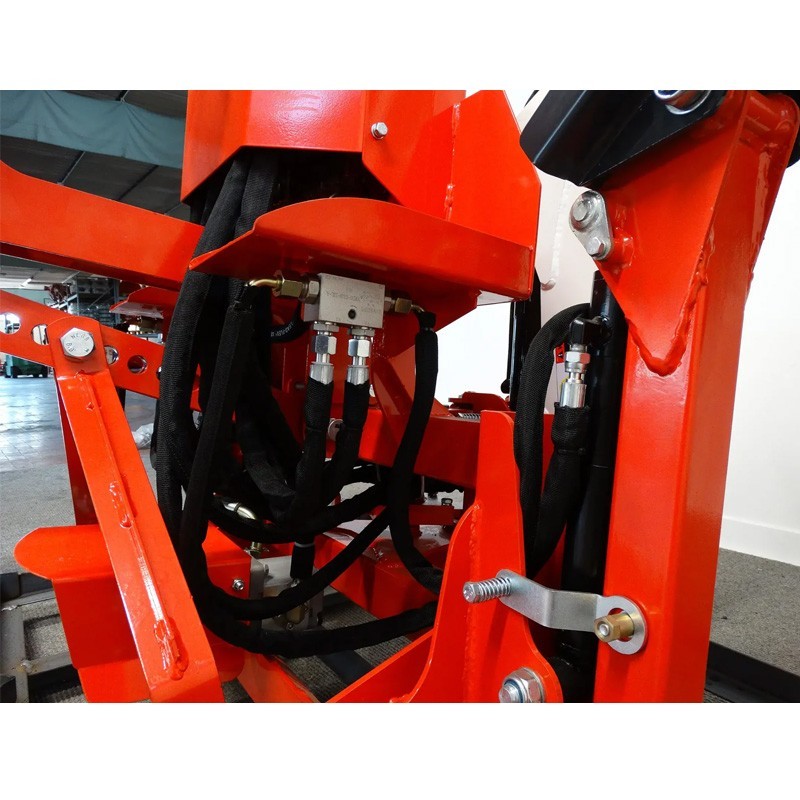

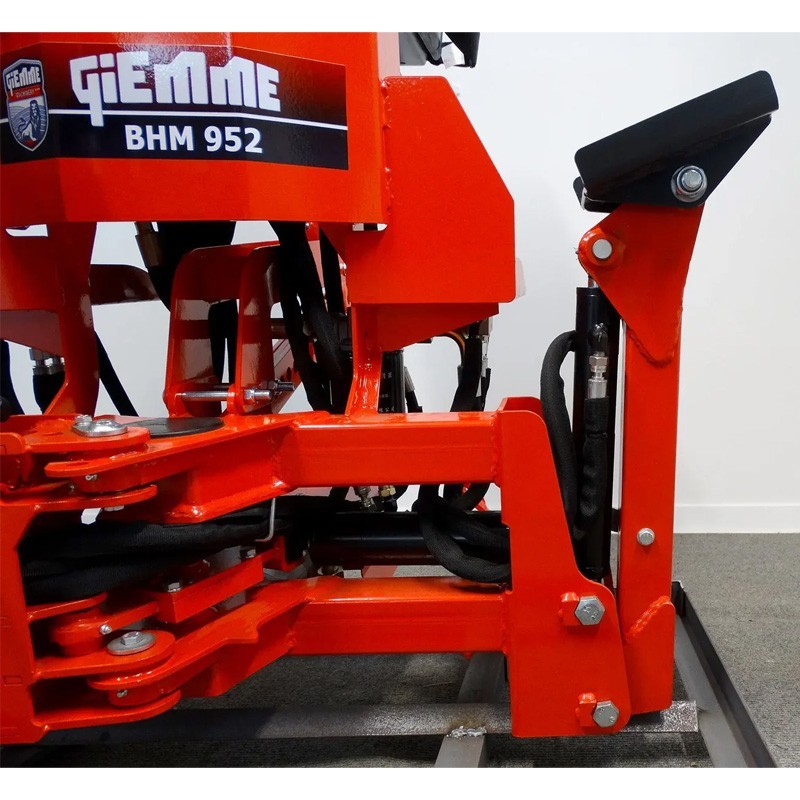

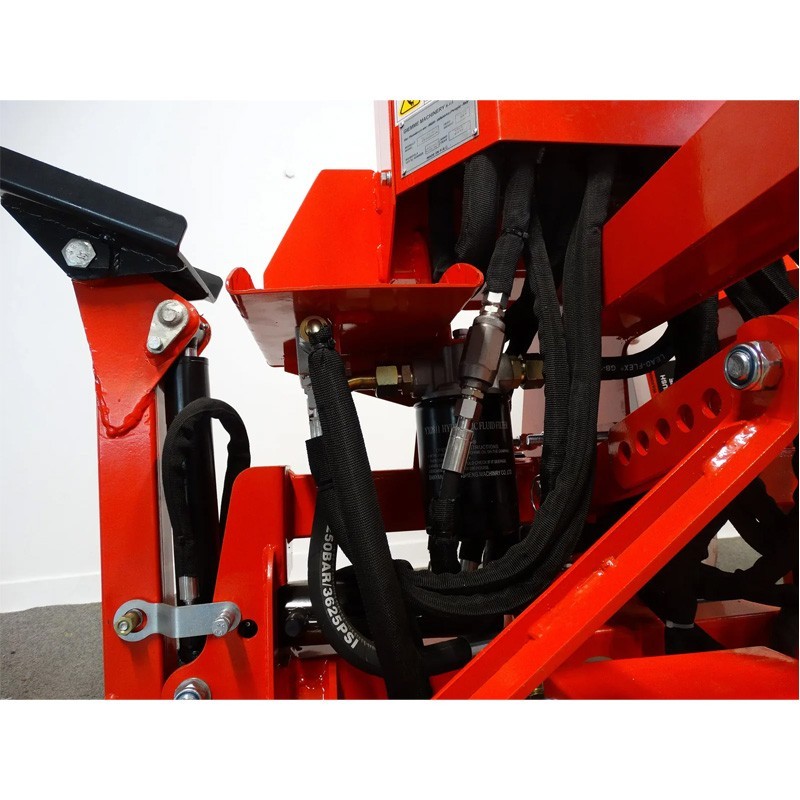

The Giemme BHM backhoe offers a robust and versatile solution for various excavation tasks. Equipped with independent hydraulic stabilizer feet and locking valves, it ensures optimal stability during work.

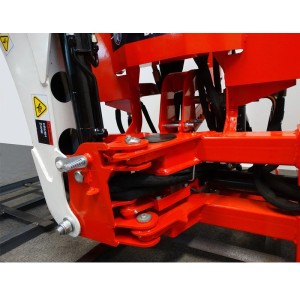

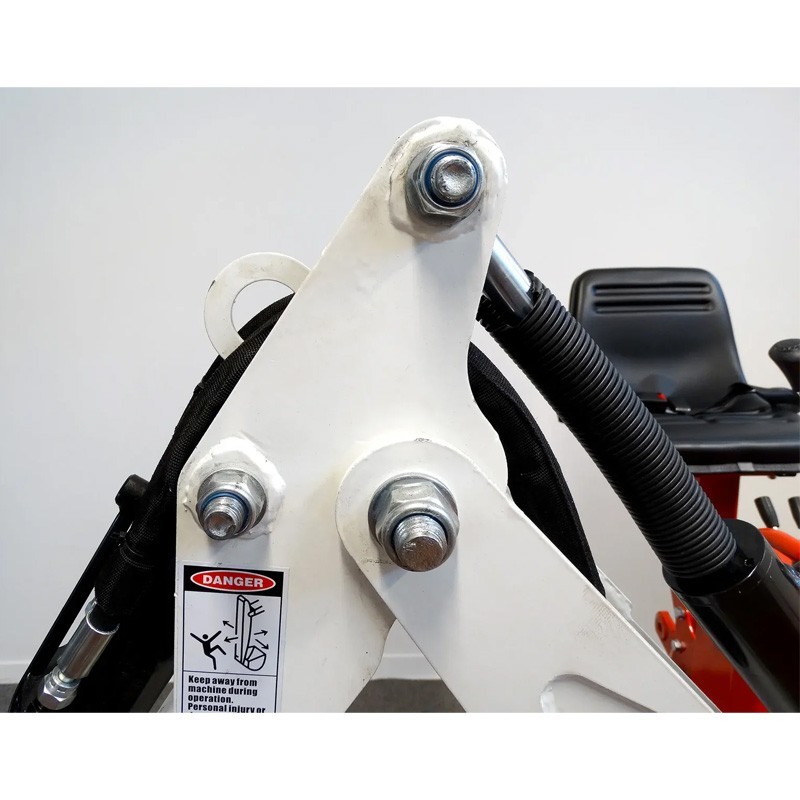

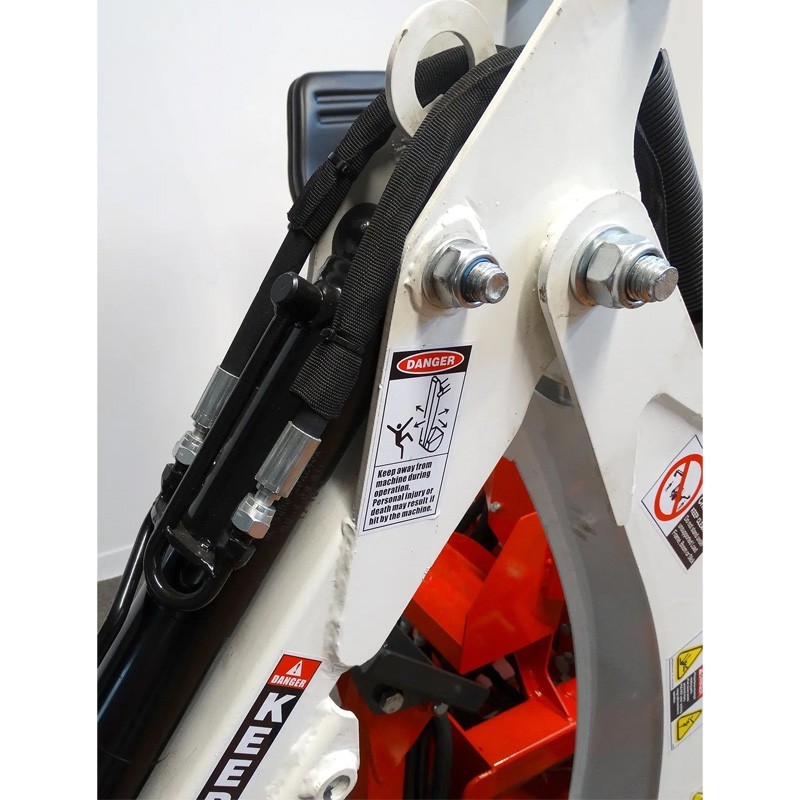

Its main joints, equipped with hardened and ground case-hardened steel pins and bushings, ensure exceptional durability and smooth operation.

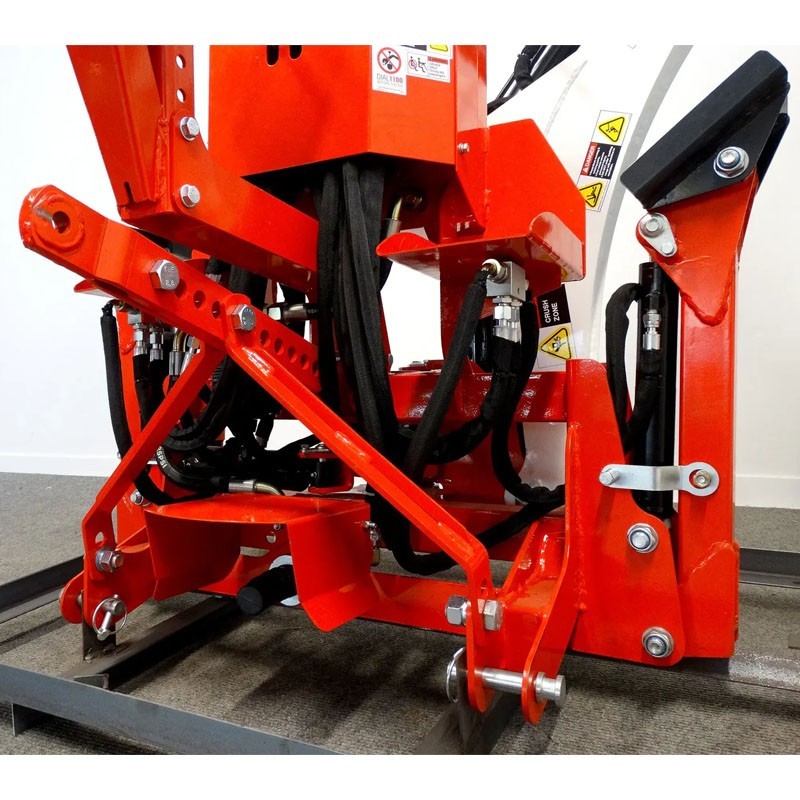

Available in two models, the BHM 95 and the BHM 195, the backhoe excavator adapts to different needs thanks to its 180° rotation angle and its universal 3-point attachment system. The BHM 95 is compatible with category I, while the BHM 195 supports categories I and II, allowing it to be used on a wide range of tractors.

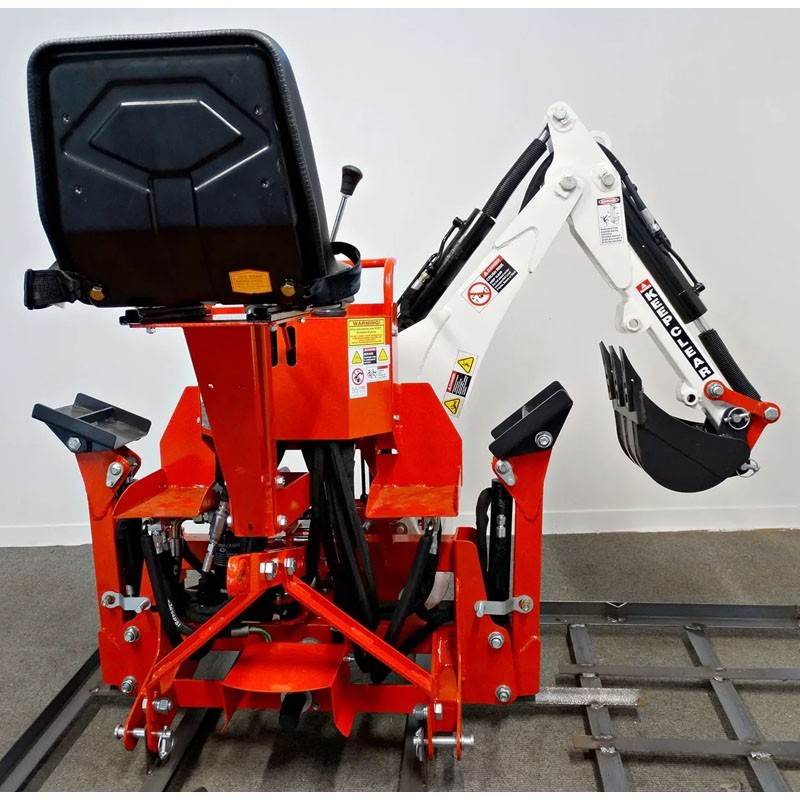

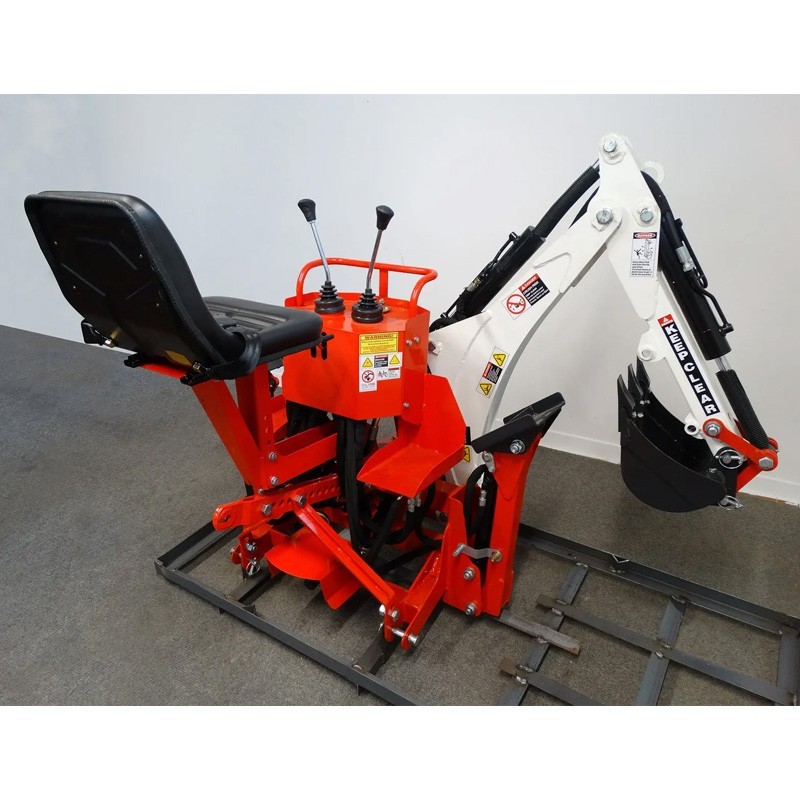

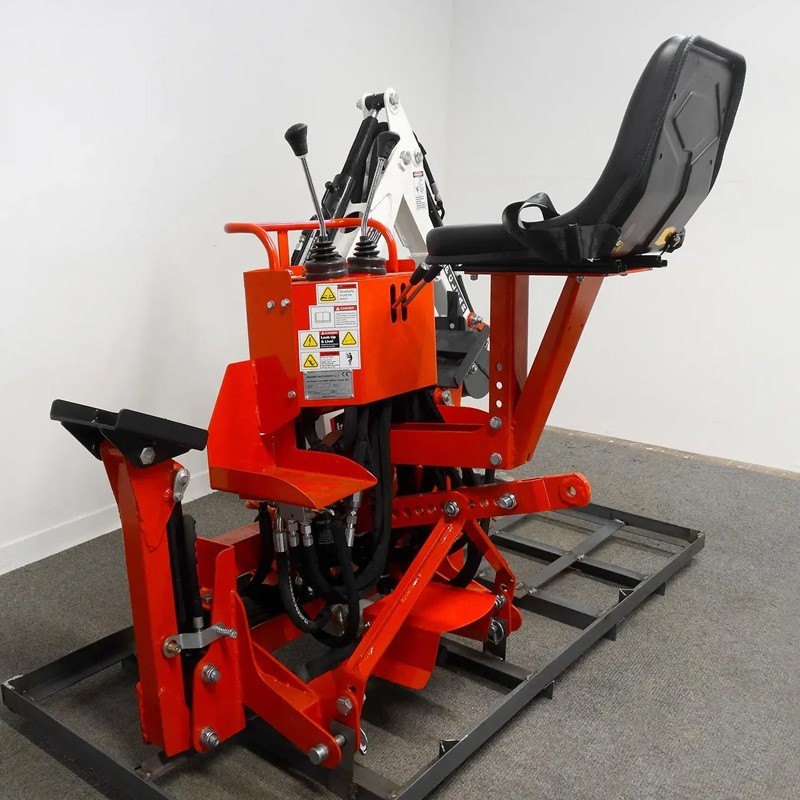

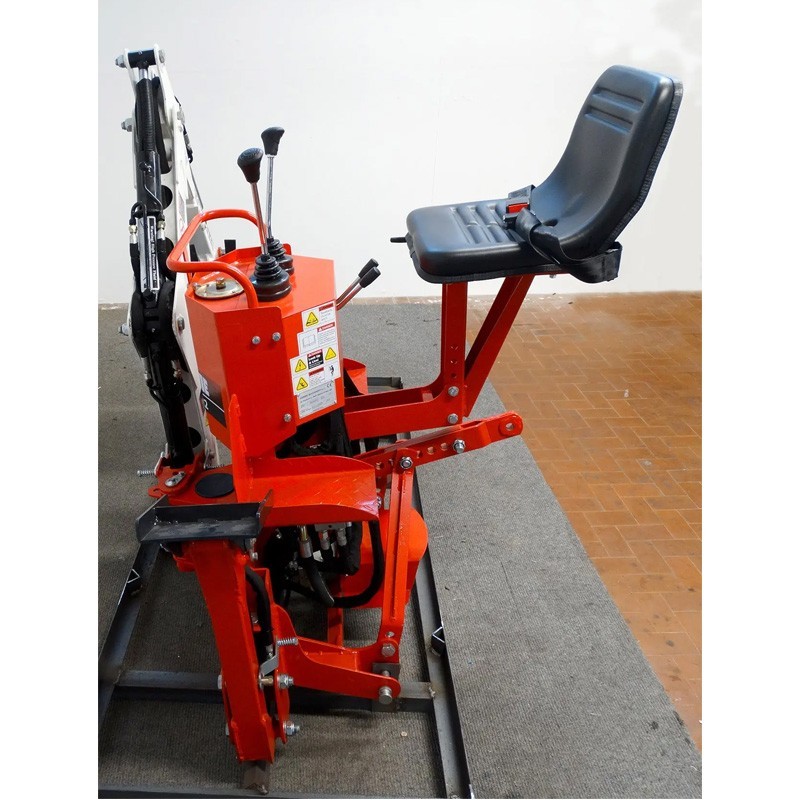

The folding control seat with seat belts provides operator comfort and protection. Its design also includes a 600 mm T4 cardan shaft with safety bolt and a locking attack for greater safety in transport.

Features

Model BHM 95 BHM 195
Bucket width 29 cm 29 cm
Tractor power 18/45 HP 45/70 HP
Arm rotation angle 180° 180°
Weight 250 kg 550 kg
Bucket pulling force 150 kgf / 1,471 Newtons 250 kgf / 2,451 Newtons
Arm pulling force 1.100 kgf / 10,787 Newtons 1.500 kgf / 14,709 Newtons
Minimum tractor weight 750 kg 1.500 kg

Dimensions


Model BHM 95 BHM 195
H (cm) 169 210
B (cm) 95 195
C (cm) 220 310
D (cm) 230 295
E (cm) 180 240
Dimensiones
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
261070

Data sheet

Tractor power
18 - 70 HP
Cardan shaft
Included
Type of coupling
Fixed hitch
Transmission type
Hydraulics
Standard ladle
29 cm
Country of manufacture
Italy
Weight
250 - 550 kg

Specific References

mpn
M1.Z5.BHM1
New
