Backhoe for tractor Zeppelin bucket 406 mm
Backhoe for tractor Zeppelin bucket 406 mm
Backhoe for tractor Zeppelin bucket 406 mm
Backhoe for tractor Zeppelin bucket 406 mm
Backhoe for tractor Zeppelin bucket 406 mm
Backhoe for tractor Zeppelin bucket 406 mm

Backhoe for tractor Zeppelin bucket 406 mm

Rating:
(0)
  • Outrigger width : 3140 mm
  • Bucket width : 406 mm
  • Power requirement : 35-65 Hp
Assembly and set-up INCLUDED
En stock
icon Power Supply
Power Supply
PTO tractor
icon Tractor power
Tractor power
35 - 65 HP
icon Standard ladle
Standard ladle
406 mm
icon Weight
Weight
560 - 620 Kg
€6,713.96 excl. VAT
- 7%
€6,243.98 excl. VAT
€7,555.22 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Backhoe for tractor Zeppelin bucket 406 mm
€7,555.22
Select
Qty

Tractor Backhoe Loader Zeppelin

The tractor backhoe Zeppelin is a versatile and efficient tool, available in two models: one with fixed hydraulic legs and the other with hydraulic legs and mechanical side shift.

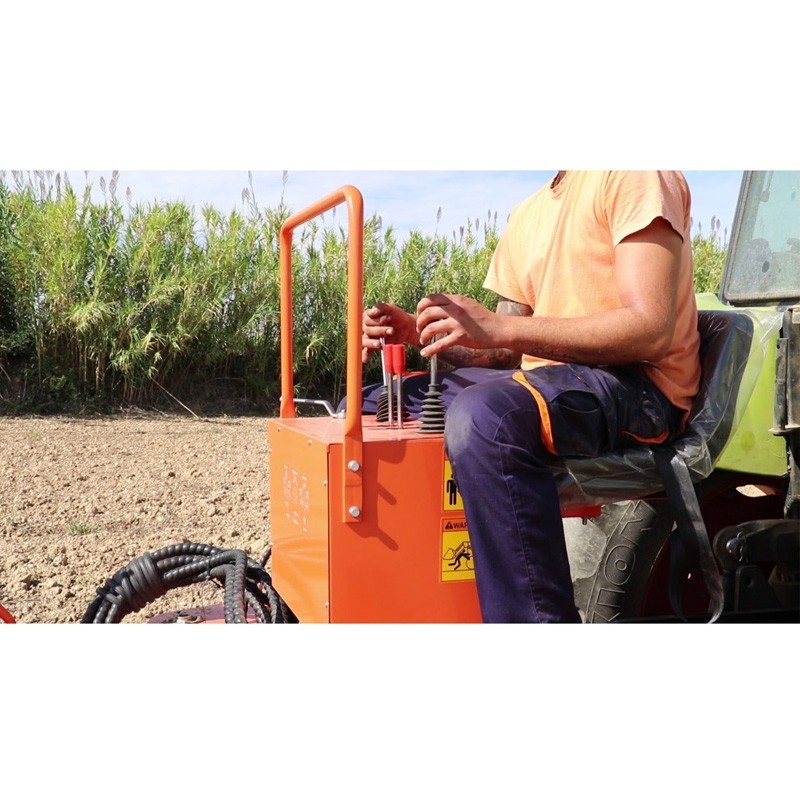

Both models allow the operator to perform all necessary maneuvers from the seat, including digging, shovel shifting and machine repositioning, without having to move.

This equipment is easily connected to the tractor, making it easy to use even if the operator is working alone. In addition, it has a locking hook that ensures safe transport.

With an outrigger width of 3140 mm and a bucket of 406 mm, this backhoe is ideal for tractors requiring a power of between 35 and 65 Hp.

Features

Model ESRET240Z ESRETH240Z
Displacement No Mechanical
Stabilizer width 3140 mm 3140 mm
Bucket width 406 mm 406 mm
Weight 560 kg 620 kg
Power requirement 35-65 Hp 35-65 Hp

Dimensions

dimensiones

ESRETH240Z

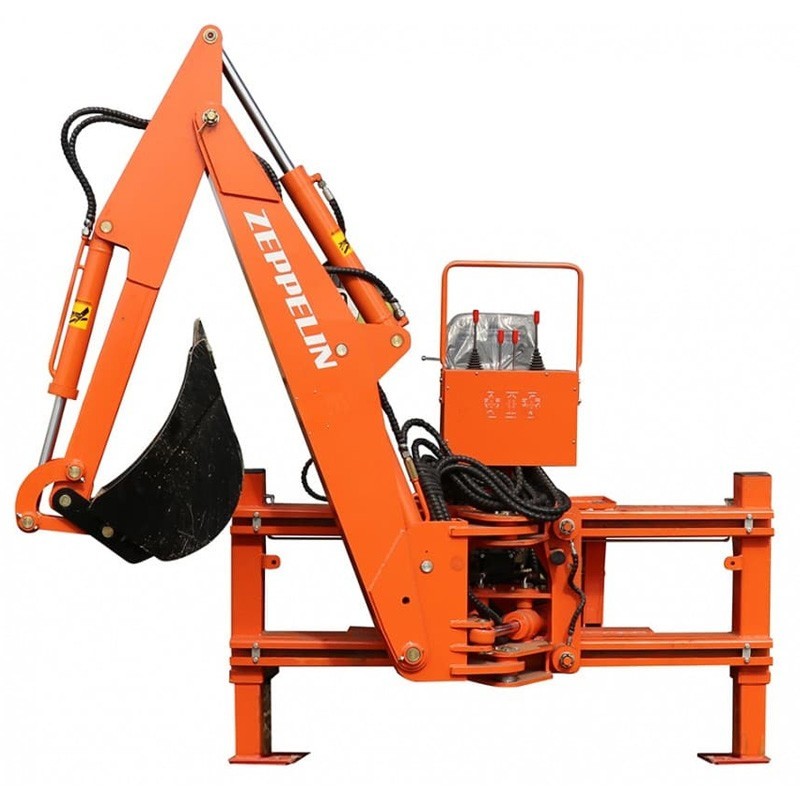

Model ESRETH240Z hydraulic legs with mechanical sideshift

ESRET240Z

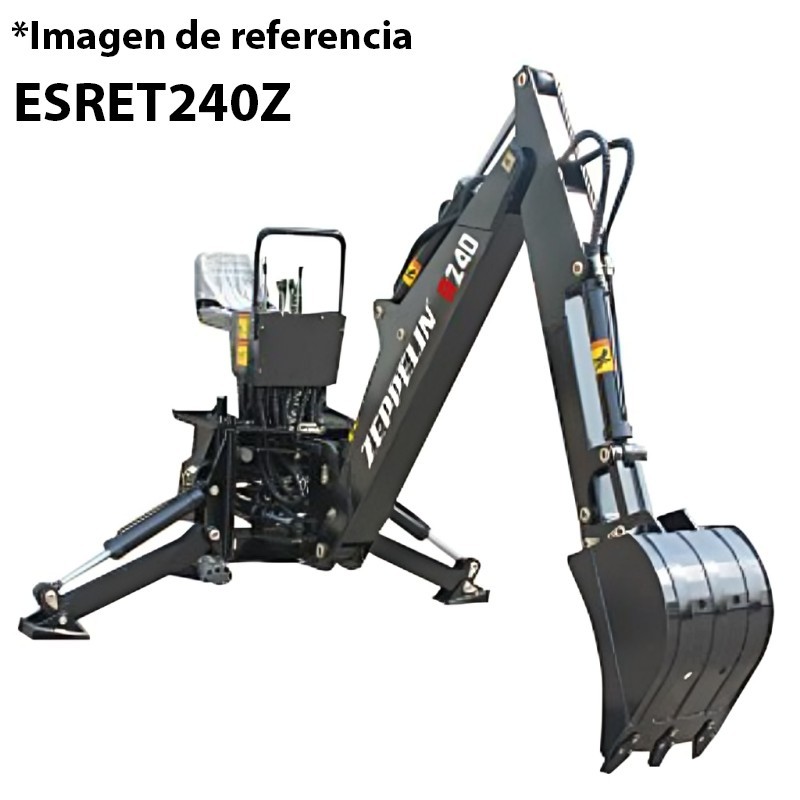

Model ESRET240Z hydraulic legs without sideshift
ESRET240Z ESRETH240Z
A 2400 mm 2400 mm
B 2050 mm 2050 mm
C 3210 mm 3210 mm
D 3140 mm 3140 mm
E 450 mm 450 mm
F -- 1470-770 mm
G 1700 mm --
H 2200 mm 1470 mm
IMPORTANT NOTICES
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
2611284

Data sheet

Power Supply
PTO tractor
Tractor power
35 - 65 HP
Standard ladle
406 mm
Weight
560 - 620 Kg

Specific References

mpn
ESRET240Z
New

✔️ Advantages of making purchases in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
