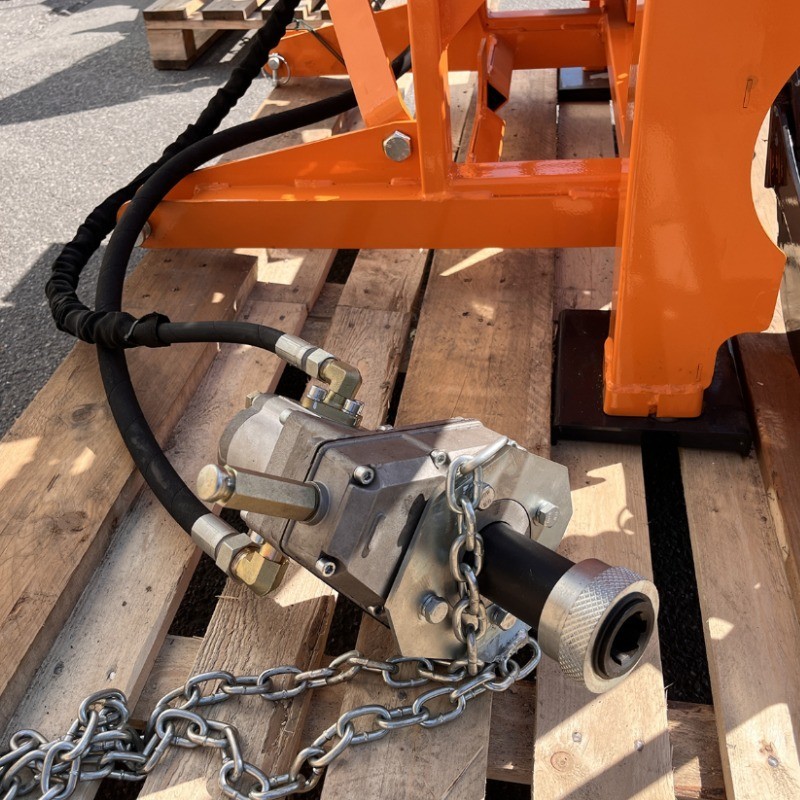

Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
Deleks products take about 15 to 25 days. |

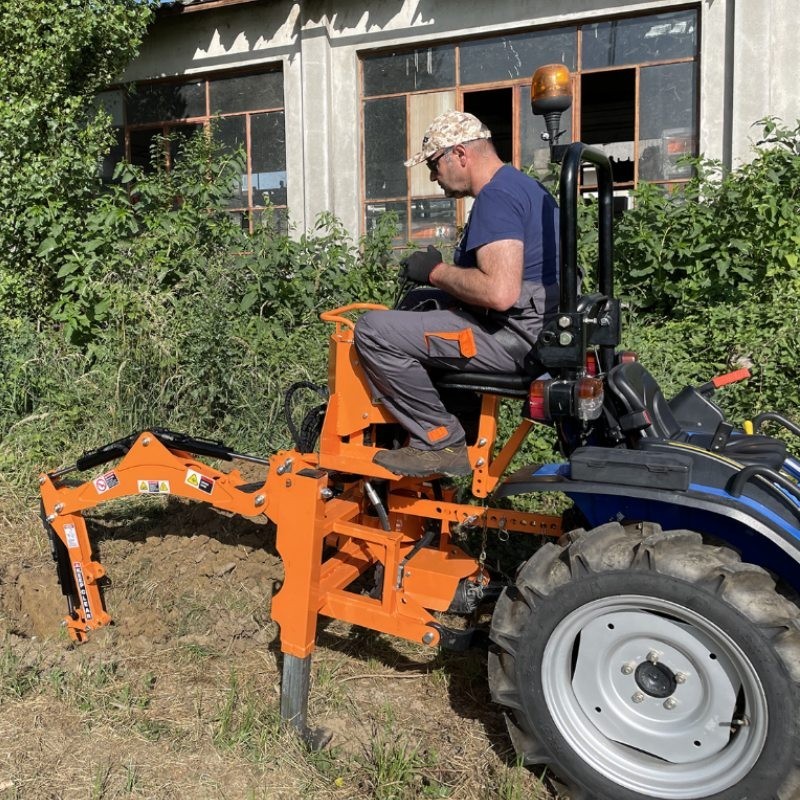

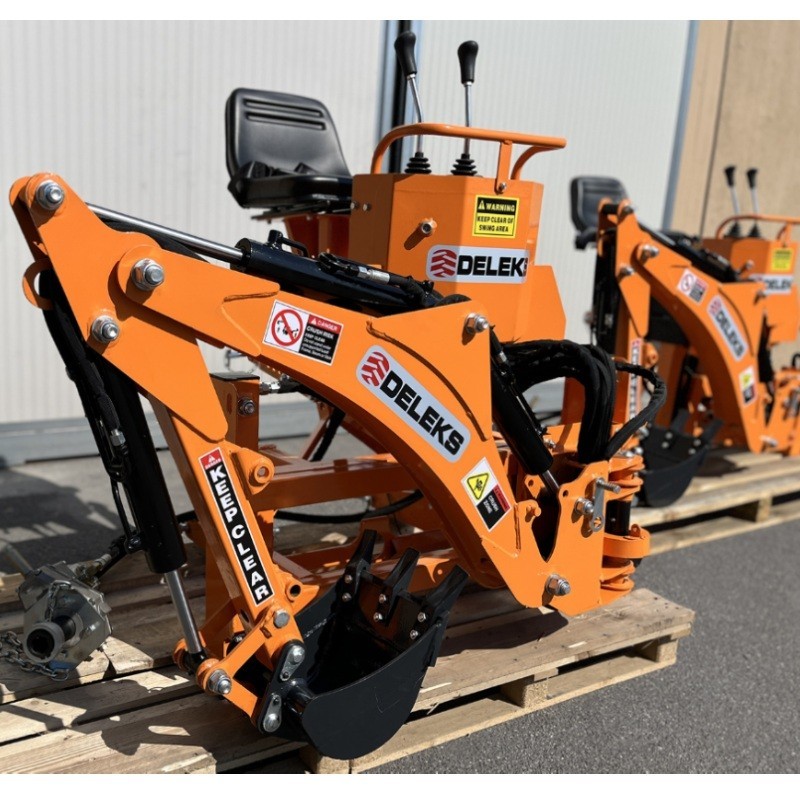

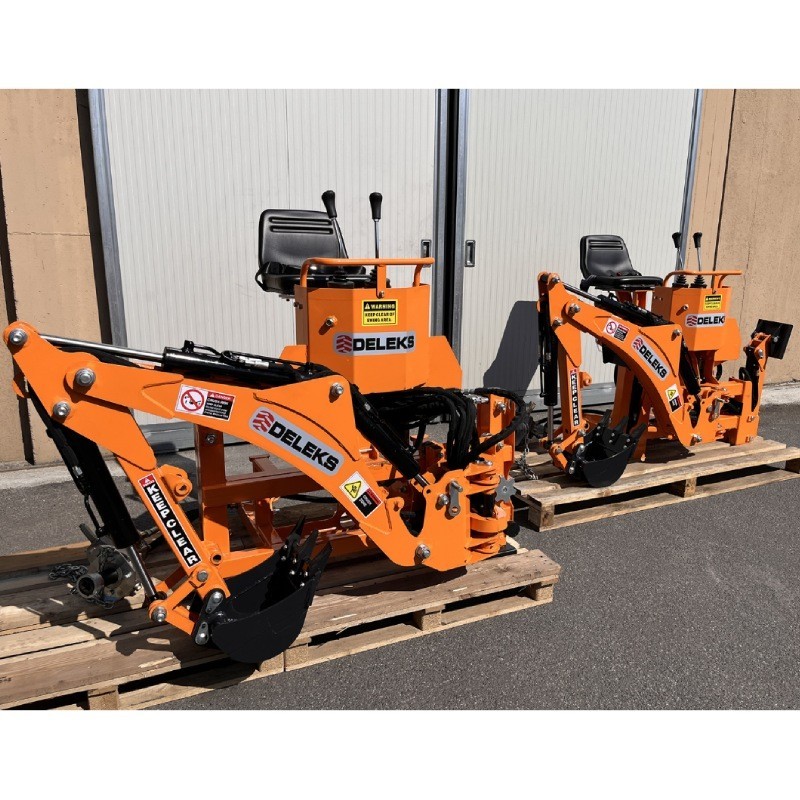

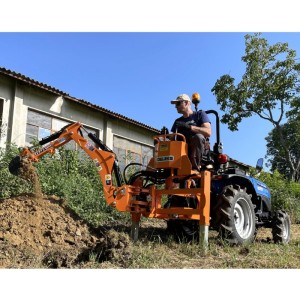

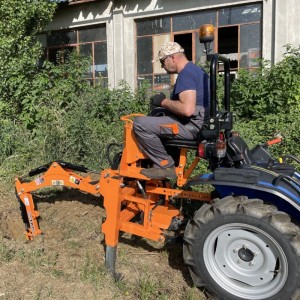

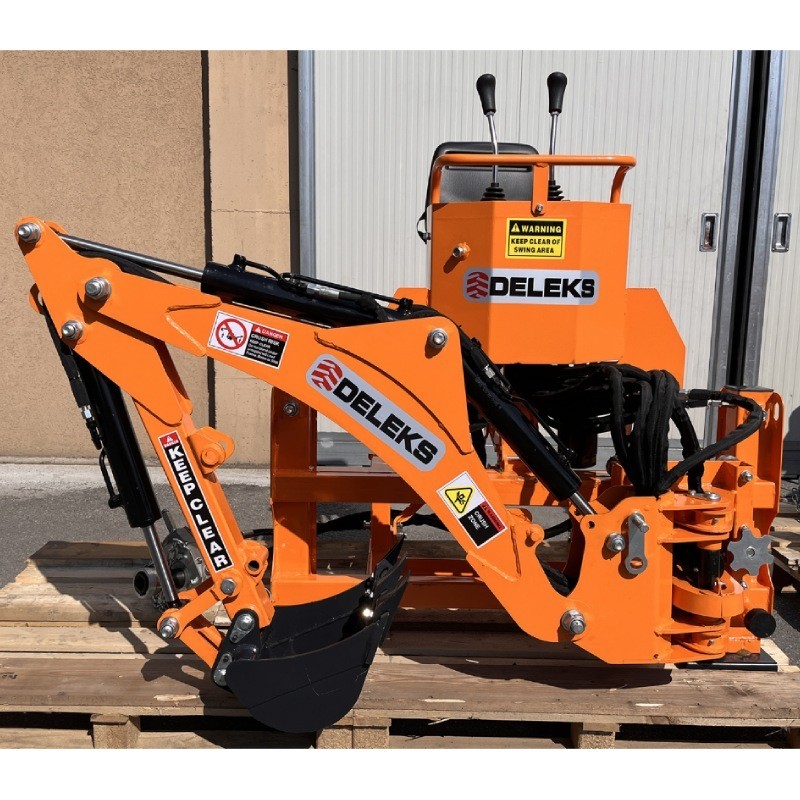

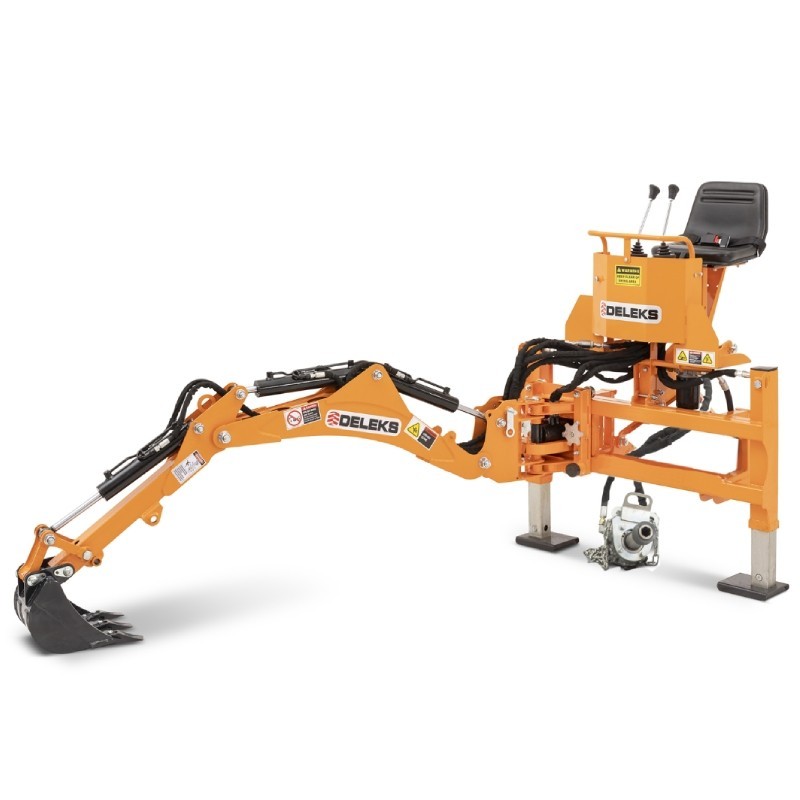

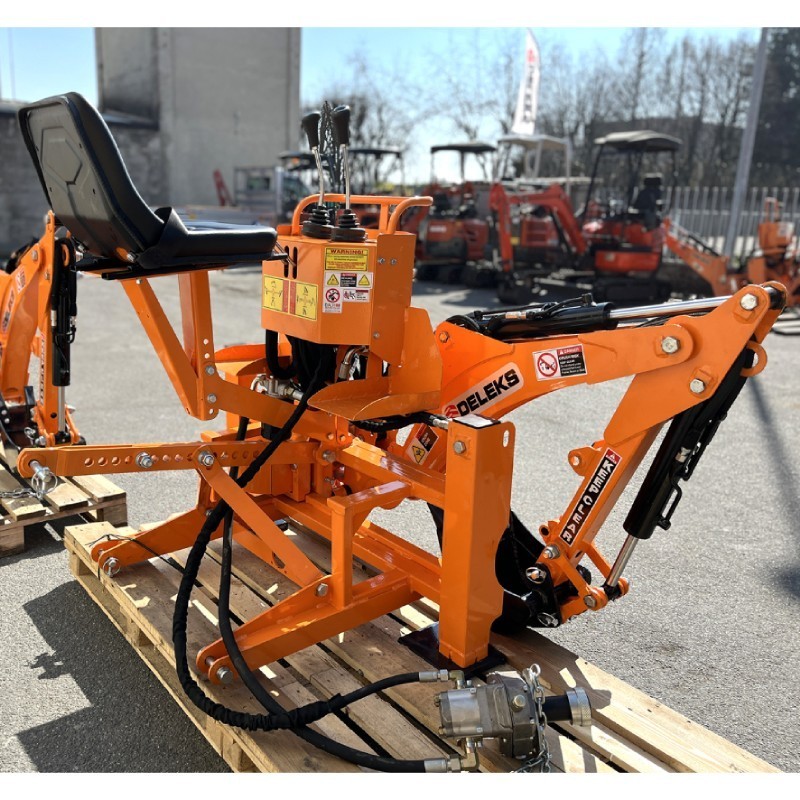

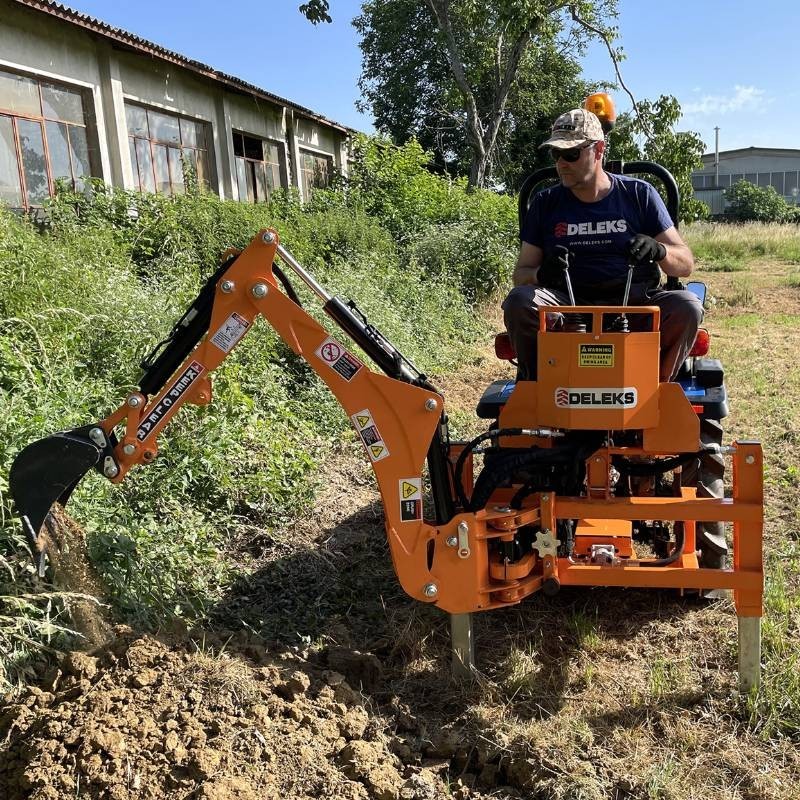

The backhoe PTO Deleks DRS-100T It is an attachment for tractors compatible with the vast majority of brands, as long as the tractor has a power between 18 - 45 hp.
This model is designed to excavations in general, removing stones from the ground even for the installation of terraces. Thanks to the digging power of the arm of 1100 kgf and its bucket digging force of 150 kgf.

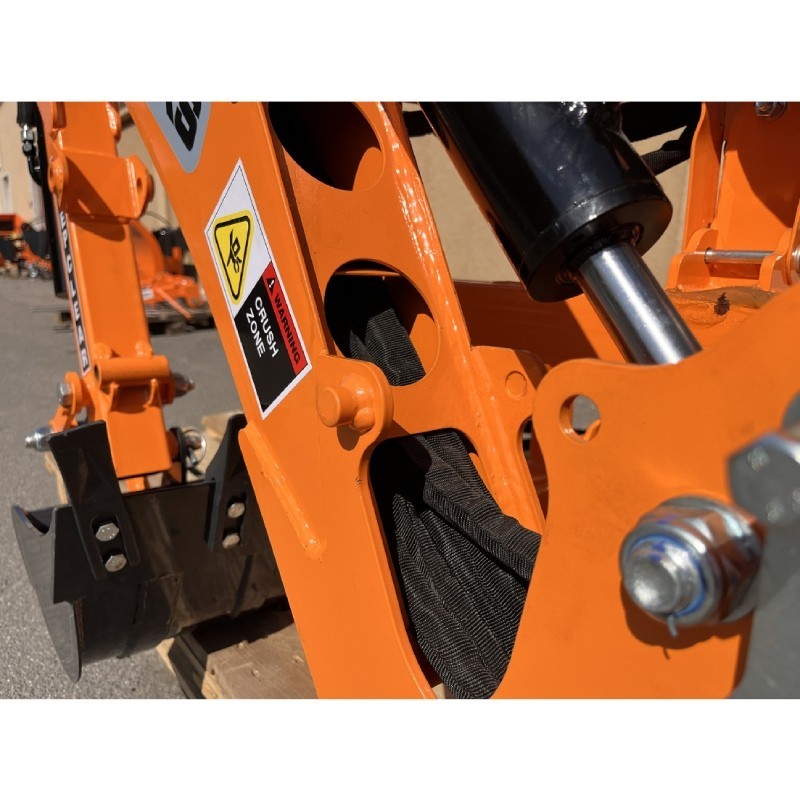

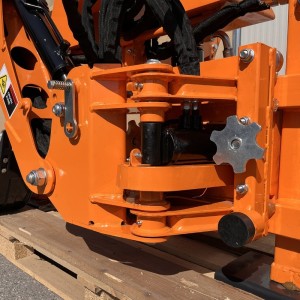

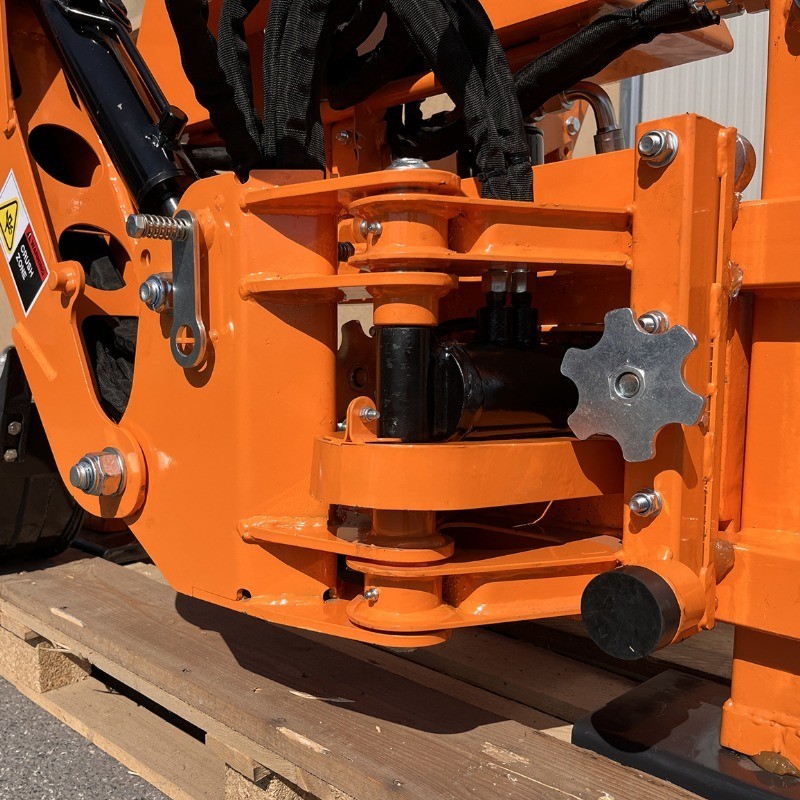

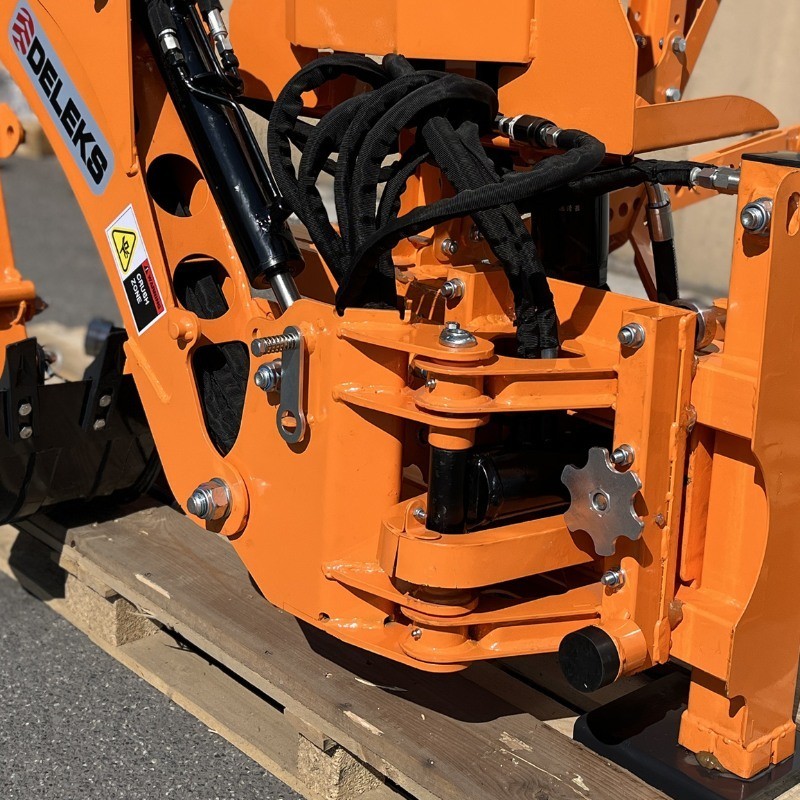

This backhoe loader features a lateral displacement along with a mechanical lock, a blocking game for avoid the lack of control of the 2 arms of the tractor when lifting.

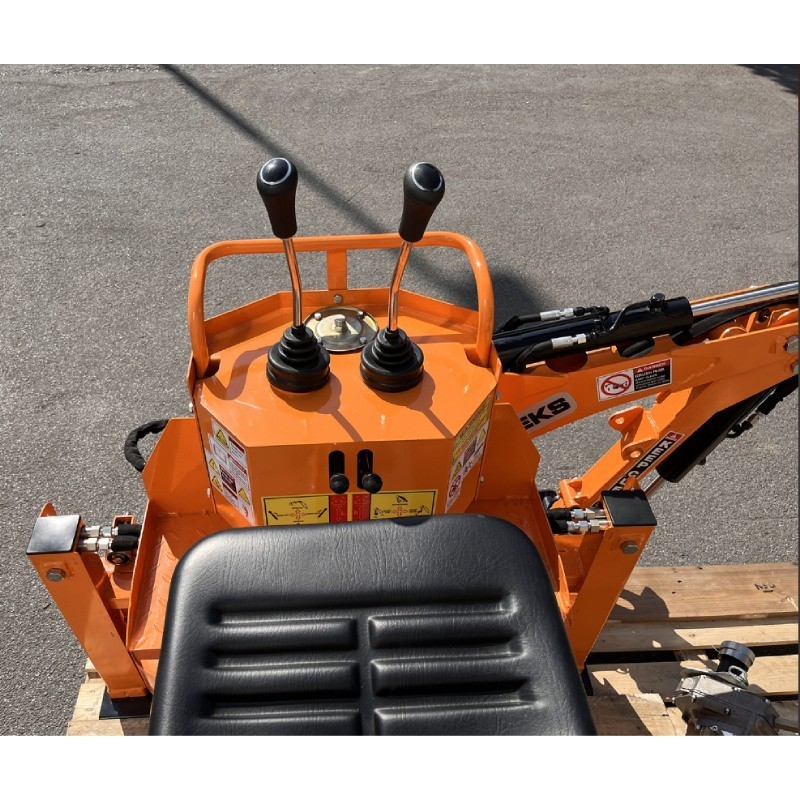

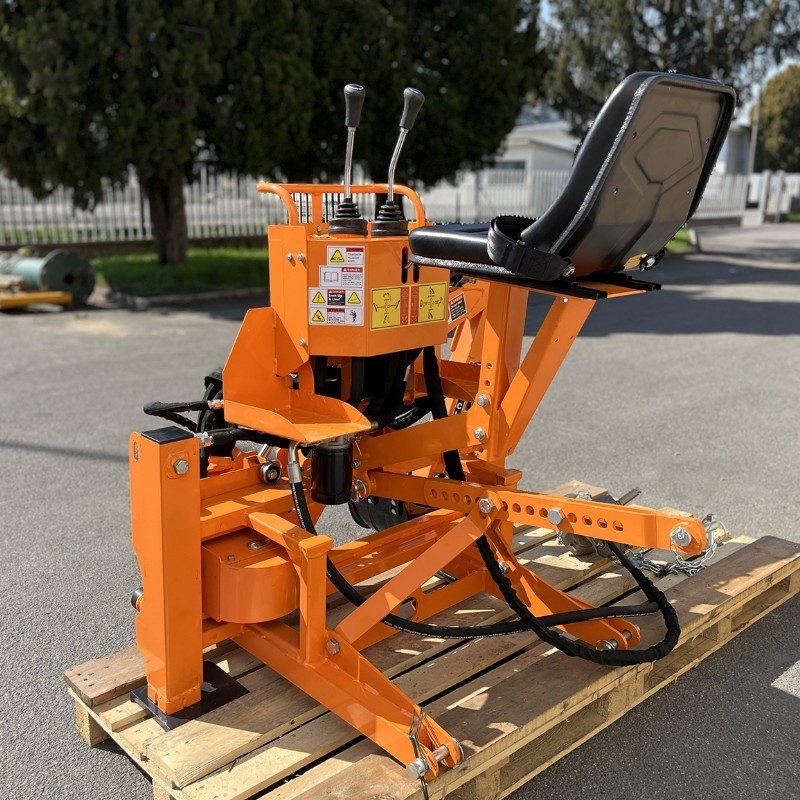

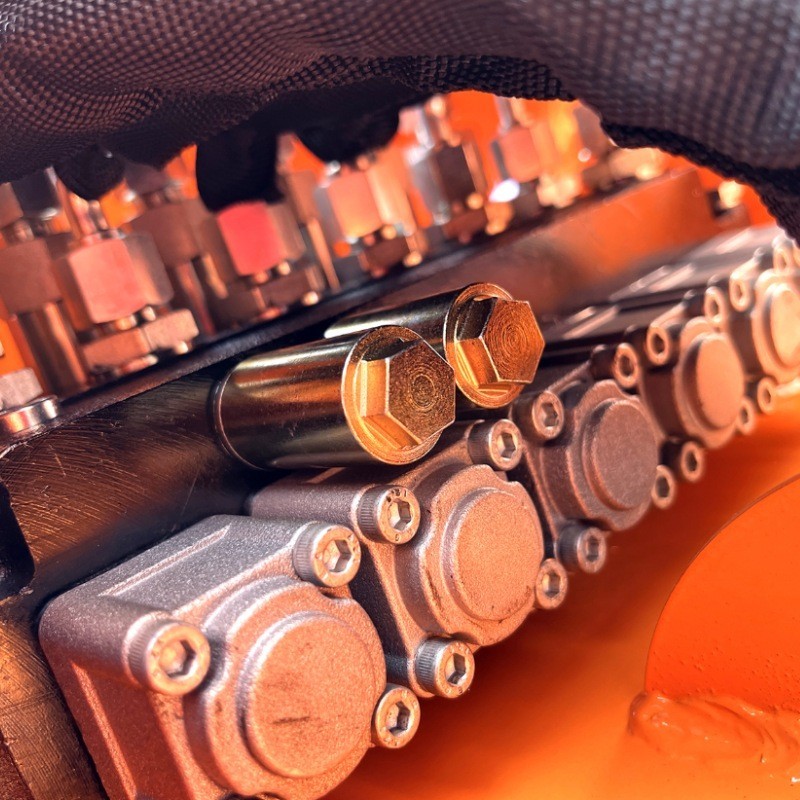

Finally, this backhoe loader model Deleks DRS-1000T It has adjustable legs that you can adjust individually, in addition to a Hydraulic distributor with two levers.
Weight | 270.0 kg |

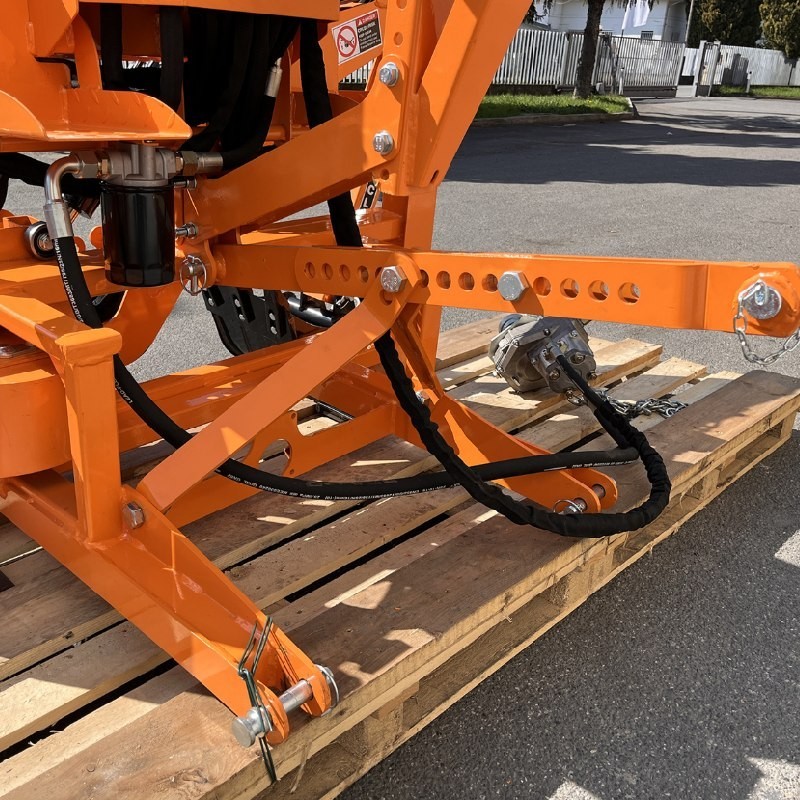

Three-point hitch | Cat. 1 (ø 19.0-22.0 mm) |

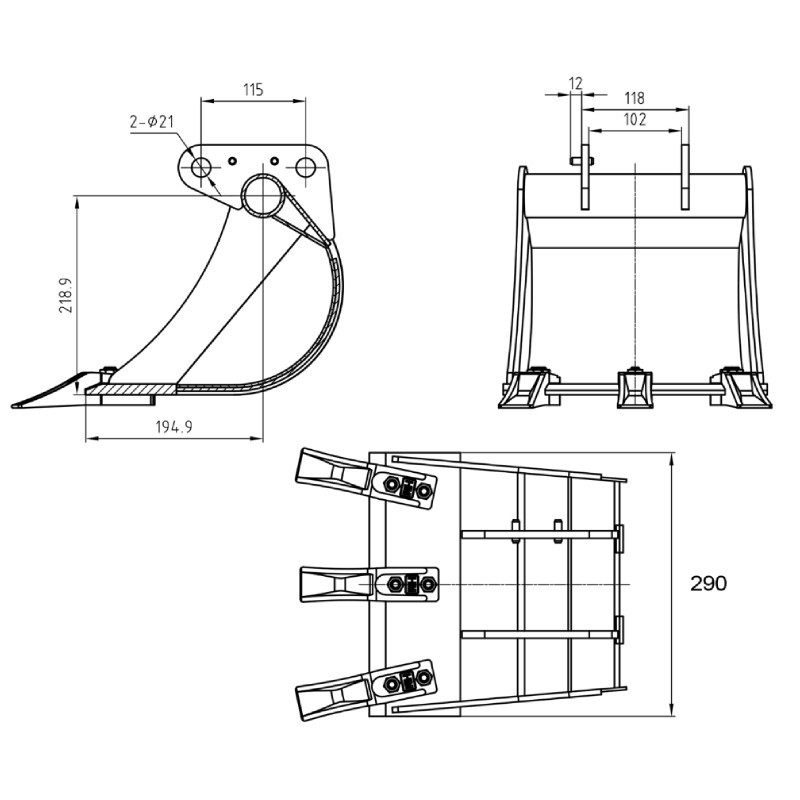

Blade width | 290.0 mm |
Distance between lower points | 590.0 - 680.0 mm |

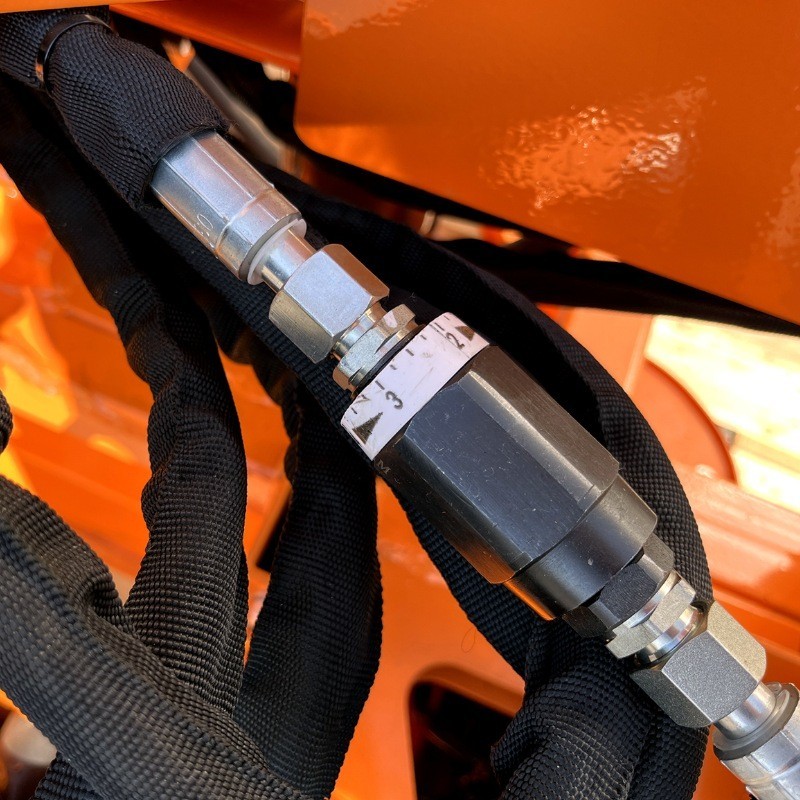

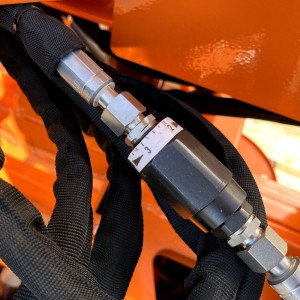

Hydraulic tubes (2) | WP-400 bar |
Oil pressure min./max. | 120 - 200 bar |
Optimal oil flow | 25 - 40 l/min |
Angle of rotation | 180° |
Minimum power | 18 hp |
Hydraulic arm diameters | 63.0 - 25.0 mm |
Stabilizers | 2 |
Stabilizer extension | 1150.0 mm |
Packaging dimension | 1900*860*1200 mm |
Load height (A) | 1690.0 mm |
Excavation depth (B) | 950.0 mm |
Maximum height (C) | 2280.0 mm |
Excavation width (D) | 2440.0 mm |
Discharge height (E) | 1800.0 mm |
IMPORTANT NOTICE |
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
