€50.50 VAT incl.
Deleks products take about 15 to 30 days. |

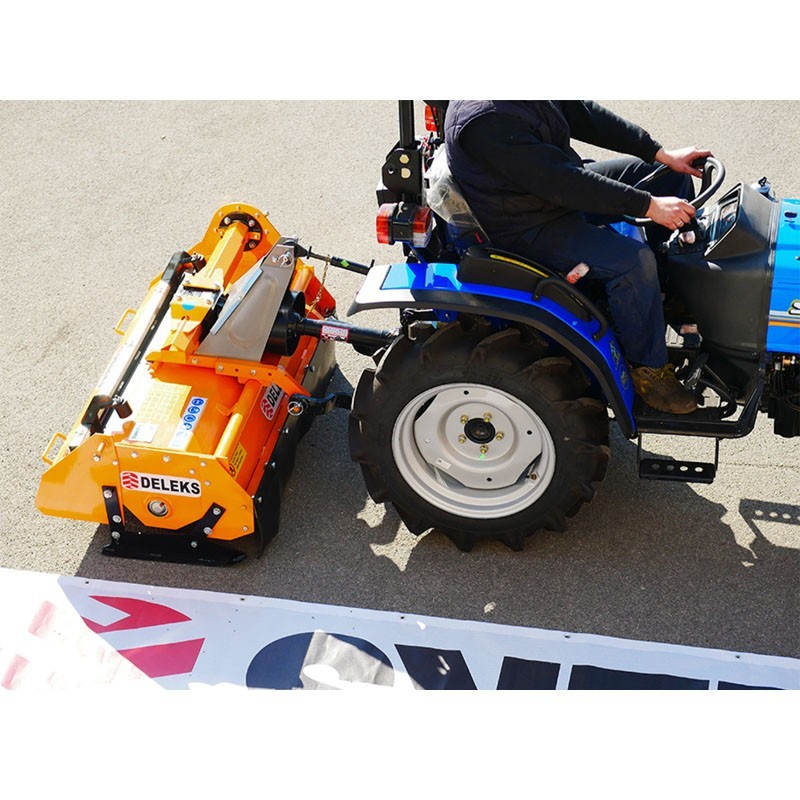

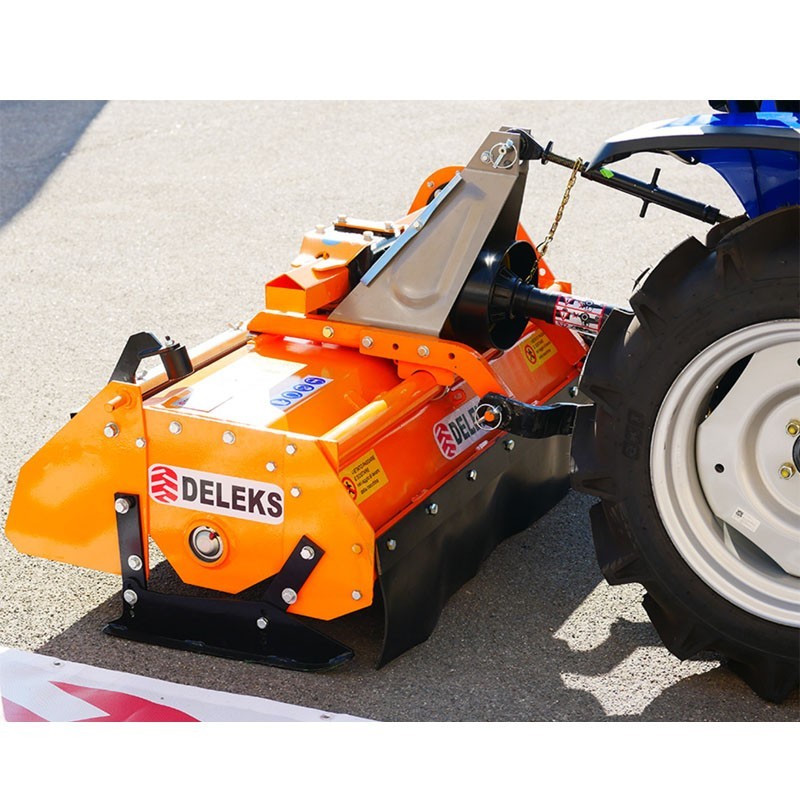

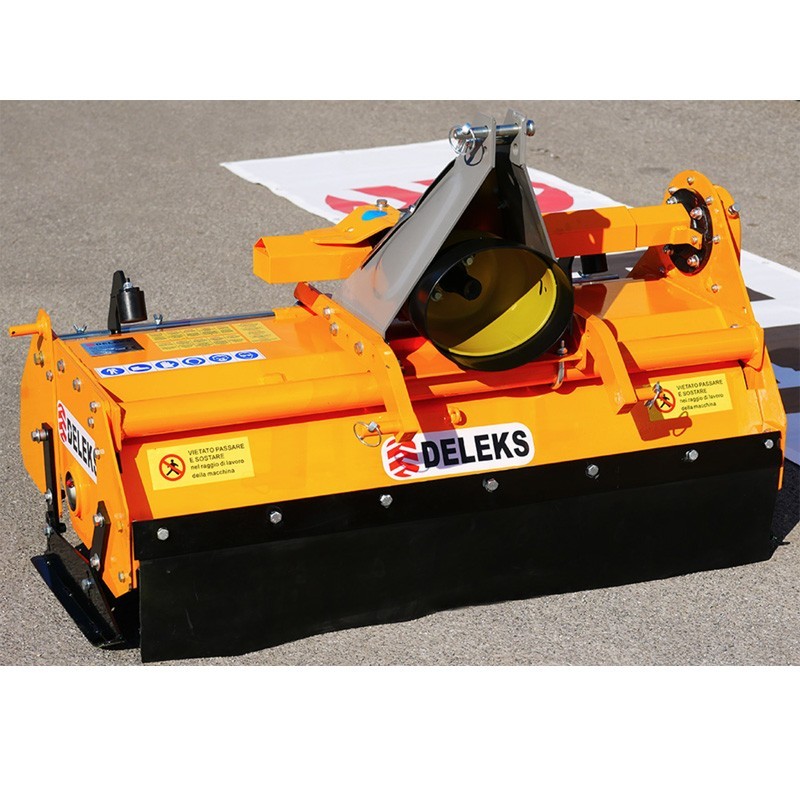

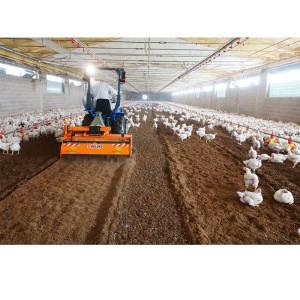

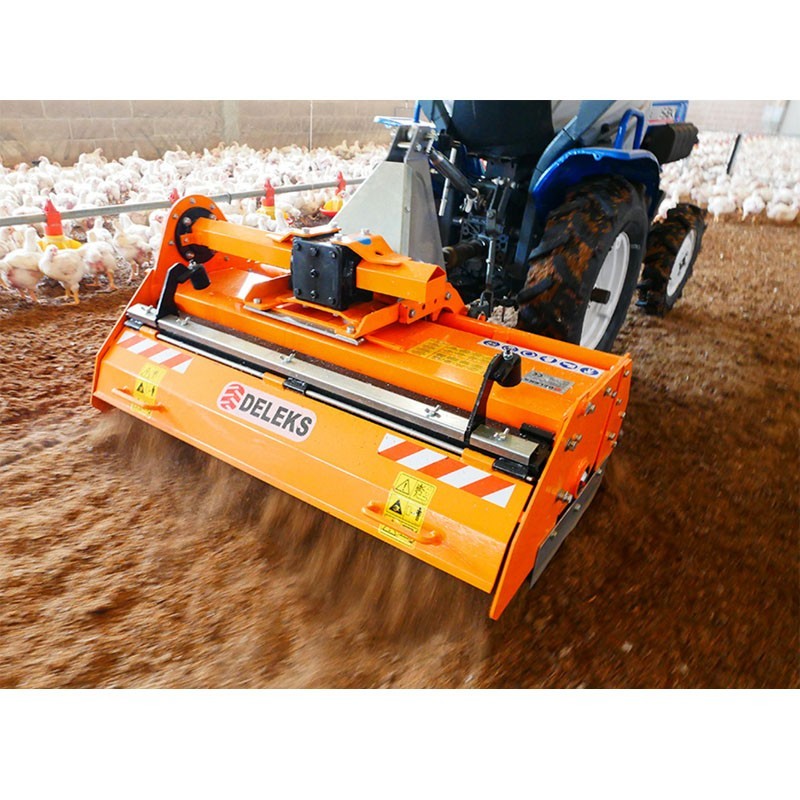

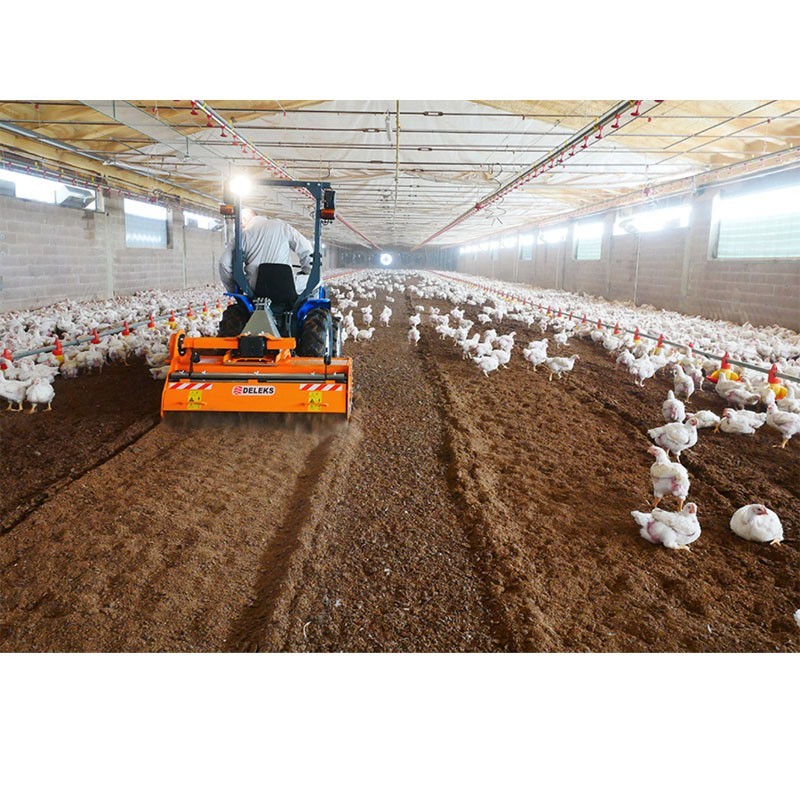

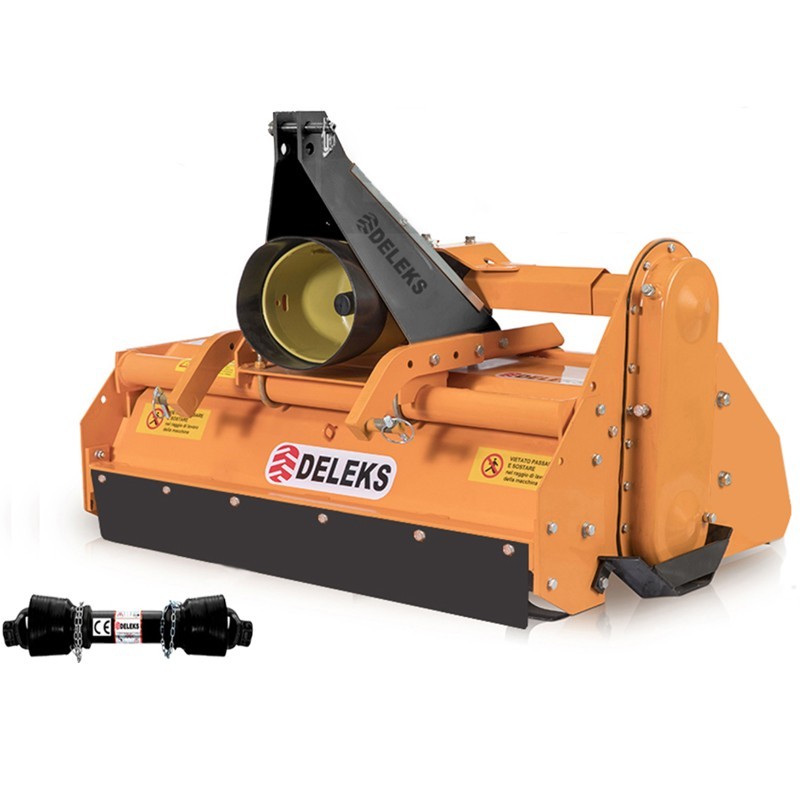

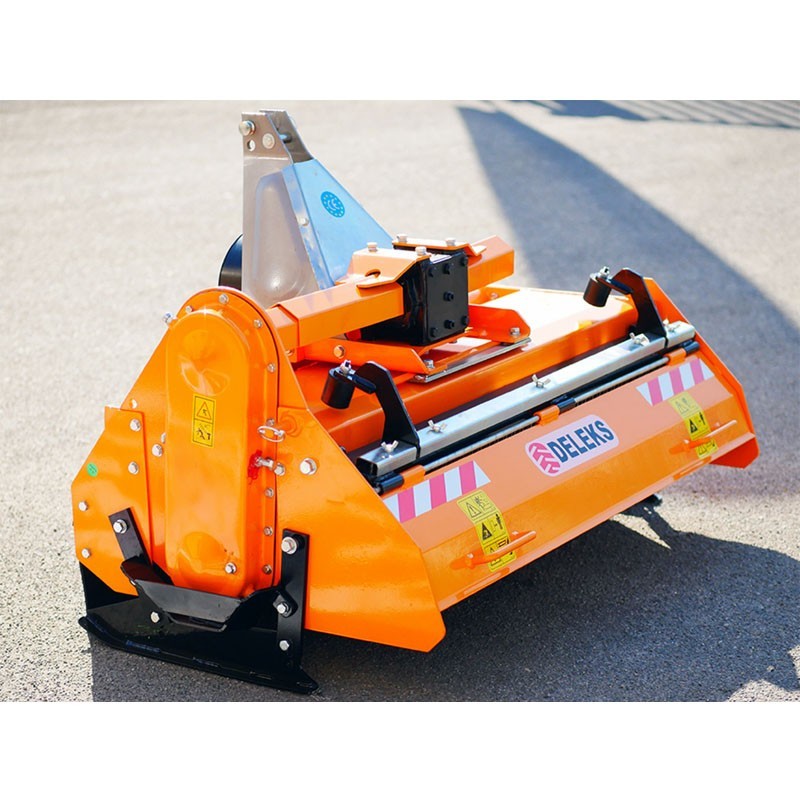

Poultry Rotovator for tractor Deleks PAVO-160, the shredder crumbles the floor of the sheds, thus avoiding the compaction and hardening of the material used to make the bedding. Its shoes mix and stir up all the layers of the ammonia and distributes the dry shavings on the surface.
The purpose of this rotovator is to remove the clean bedding that has been left under the feces to the surface, thus providing the chicks with the comfort of the first days. The wet part is mixed and because of the higher weight falls to the floor to be covered by the drier and lighter part.
This strongly reduces the formation of odors, the presence of insects and the strong odor of ammonia. The machine delivers all types of broiler and poultry litter efficiently and quickly.
The working speed is on average 3-4 km/h, but it depends on the type of material, the hardness of the surface crust and the working depth.
The animal thus comes to live in a clean, dry place with few unpleasant odors and with gthe benefit to the farmer in terms ofQuality of the management of the production cycle, lower risk of infections, wellness for the operators working inside the halls and the savings in time and labor
Overall width | 1650.0 mm |
Weight | 300.0 kg |
Total height | 900 mm |
Tractor power | 30 - 50 HP |
3-point hitch | Cat. 1 (ø 19.0-22.0mm |
Position of the gearbox | Central |
Distance between lower points | 400 - 540 mm |
Total length | 800 mm |
Rotor: diameter | 64 mm |
Rotor: blade thickness | 10 mm |
Transmission | Chain |
Working width | 1550.0 mm |
Gearbox to ground clearance | 470 mm |
Cardan | CE 4x800 mm |
Rotor: diameter with blades | 415 mm |
Rotor: bearing type and dimensions | "GB276-6306(R) GB276-6209(L)" |
Rotor: No. of sections | 8 |
No. of blades in each section | 4 |
Number of blades | 32 |
Blades: height/ width | 170 / 65 mm |
Blades: curved extension | 255 mm |
Blades: distance between holes | 45 mm |
Blades: diameter holes | 13 mm |
Blades: thickness | 6 mm |
Transmission case | Lombarda Ingranaggi 540 r/min (3-year warranty) |
Lateral displacement | 120 mm manual |
Direction of rotation PTO | Right side |
Rotor speed | 216 rpm |
Case oil | yes/ SAE 120 - ISO 72925 |
Blades: weight | 770 g |
Packing dimensions | 100 x 185 x 900 cm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
