Rating:
(0)
  • Tractor power: 12 - 35 HP
  • Working width: 950 - 1350 mm
  • Weight: 128 - 171 kg
  • Blades: 16 - 28

CARDAN SHAFT INCLUDED

Deleks products take about 15 to 25 days.
En stock
icon Working width PTO
Working width PTO
95 - 135 cm
icon Tractor power
Tractor power
12 - 35 HP
icon Blades per holder
Blades per holder
4 blades per holder
icon Cardan shaft
Cardan shaft
Included
icon Working depth
Working depth
160 mm
icon Type of coupling
Type of coupling
Fixed hitch
icon Robustness
Robustness
Slight
icon Chassis material
Chassis material
Enameled steel
icon Number of blades
Number of blades
16 - 28
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
128 - 171 kg
€971.60 excl. VAT
- 4%
€932.74 excl. VAT
€1,128.61 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Rotovator for Tractor DELEKS Kubota, Iseki, Carraro DFL
€1,128.61
Select
Qty

Rotovator for DELEKS Tractor Kubota, Iseki, Carraro DFL

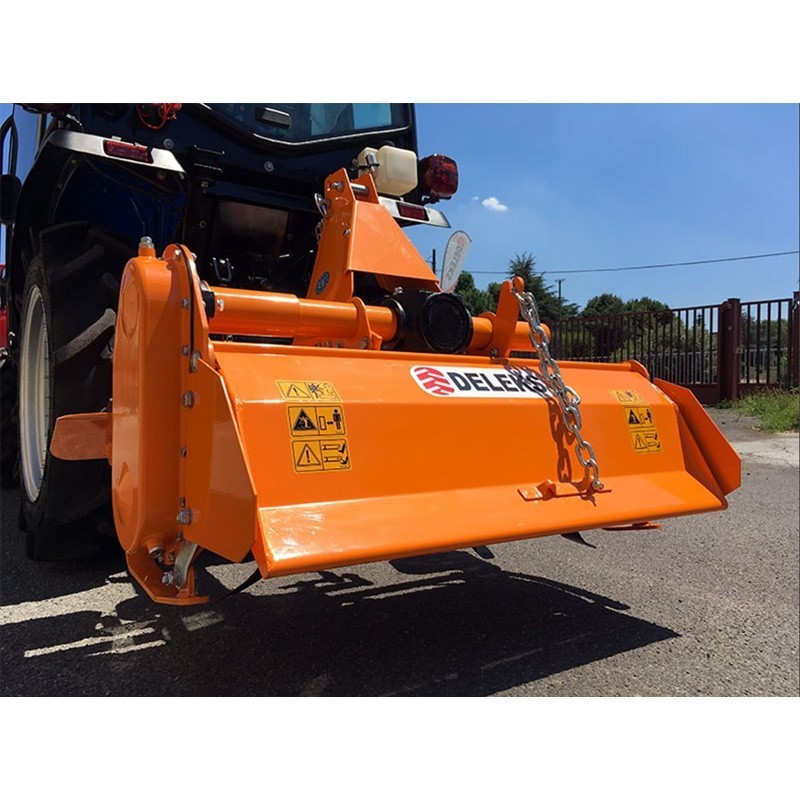

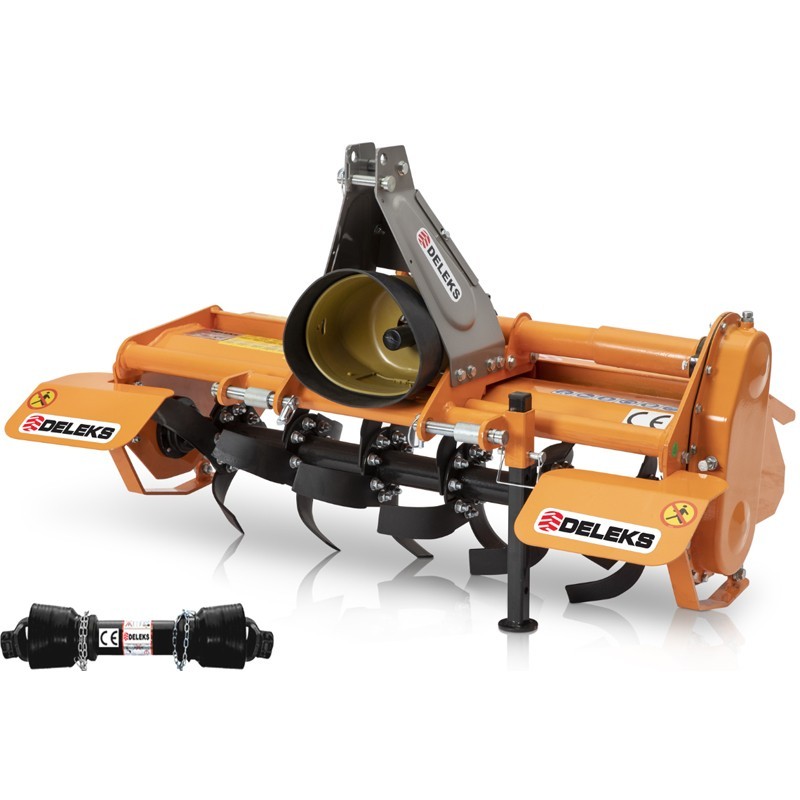

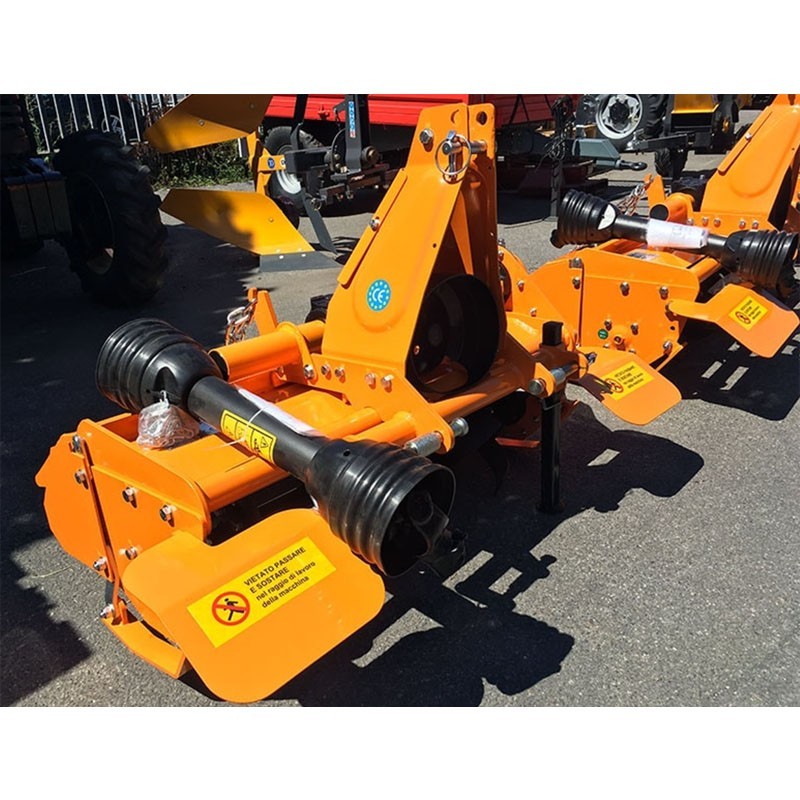

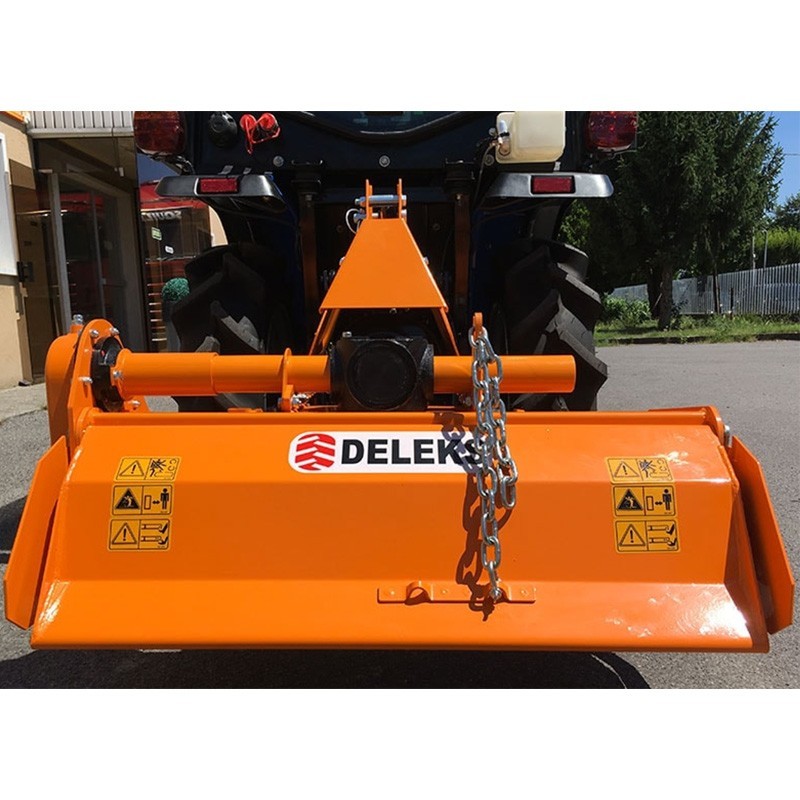

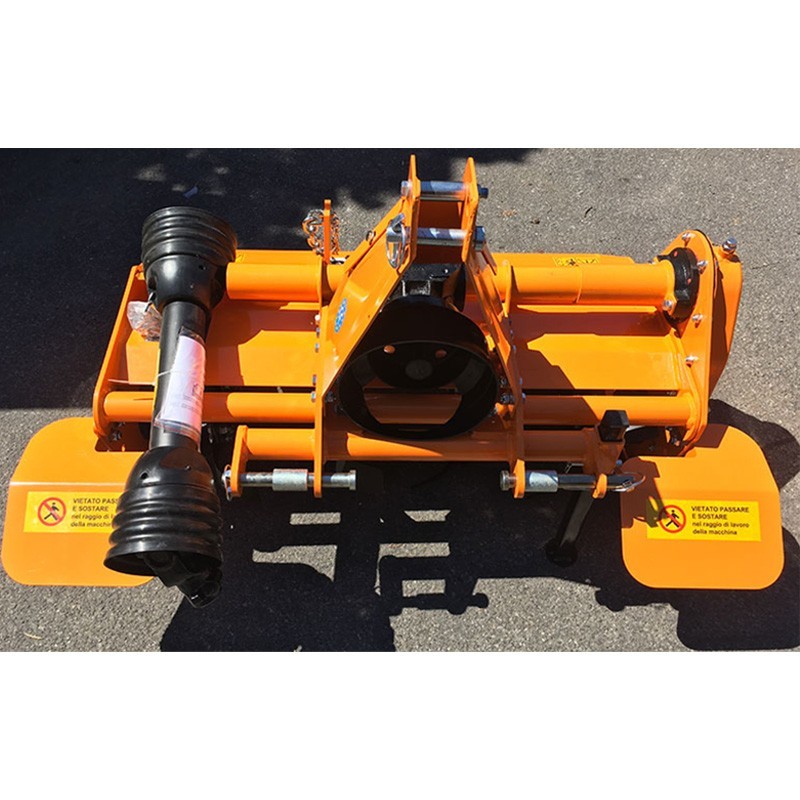

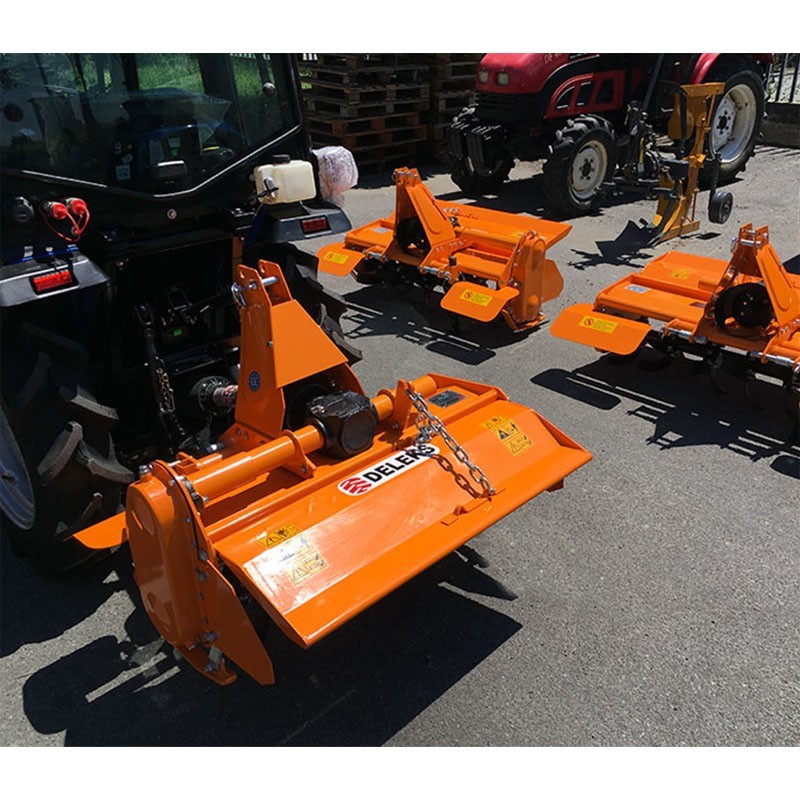

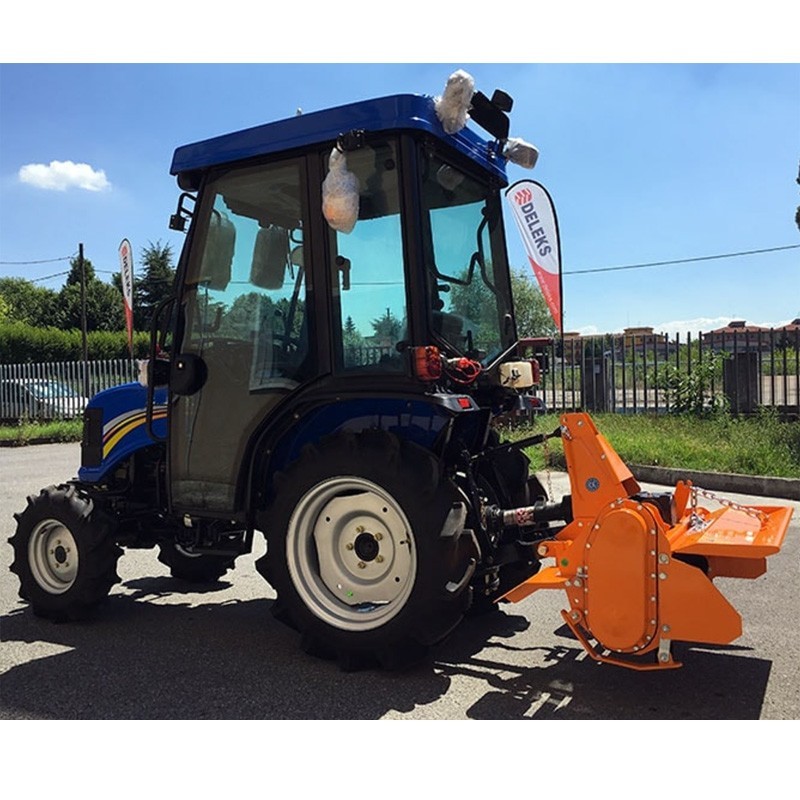

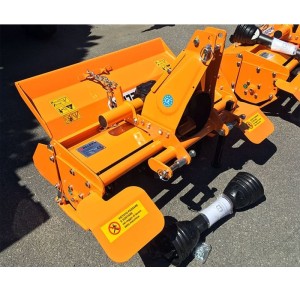

The Rotovator for DFL Tractor is a light rotovator for tractors from 12 to 35 HP, this model is attached to the tractor with a universal 3-point linkage. It is designed for soil preparation in orchards or gardens.

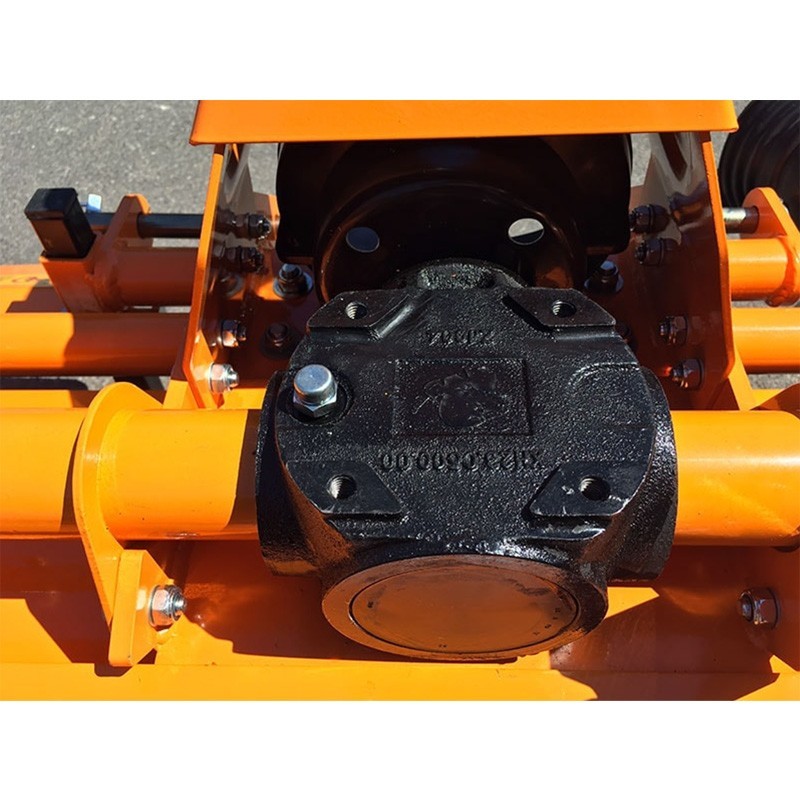

It has a 540 r/min transmission box and a lateral chain drive. It has a robust and lightweight design, which makes this rotovator ideal for micro-tractors.

It has a reinforced sheets to ensure longevity and to be able to till in difficult conditions. It has a automatic tensioning of the chain.

The skids that the rotovator is equipped with are a height-adjustable skids and also features an adjustable rear door. Its 3-point hitch (120 mm) allows it to be moved manually.

Features

Model DFL95 DFL115 DFL135
Overall width 1080.0 mm 1280.0 mm 1480.0 mm
Weight 128.0 kg 148.0 kg 171.0 kg
Total height 800.0 mm 800.0 mm 800.0 mm
Tractor power 12 - 35 hp 14 - 35 hp 18 - 35 hp
3-point hitch Cat. 1 (ø 19.0-22.0mm Cat. 1 (ø 19.0-22.0mm Cat. 1 (ø 19.0-22.0mm
Position of the gearbox 450.0 mm on the left side/ 500.0 mm on the right side 560.0 mm on the left side/ 590.0 mm on the right side 560.0 mm on the left side/ 590.0 mm on the right side
Distance between lower points 305.0 - 520.0 mm
Total length 680.0 mm
Rotor: diameter 64.0 mm
Rotor: blade thickness 6.0 mm
Transmission Chain
Working width 950.0 mm 1150.0 mm 1350.0 mm
Working depth (min/max) 120.0 - 160.0 mm
Gearbox to ground clearance 490.0 mm
Cardan CE 4x800 mm
Rotor: diameter with blades 370.0 mm
Rotor: bearing type and dimensions "GB276-6207(R) GB276-6207(L)"
Rotor: No. of sections 4 6 7

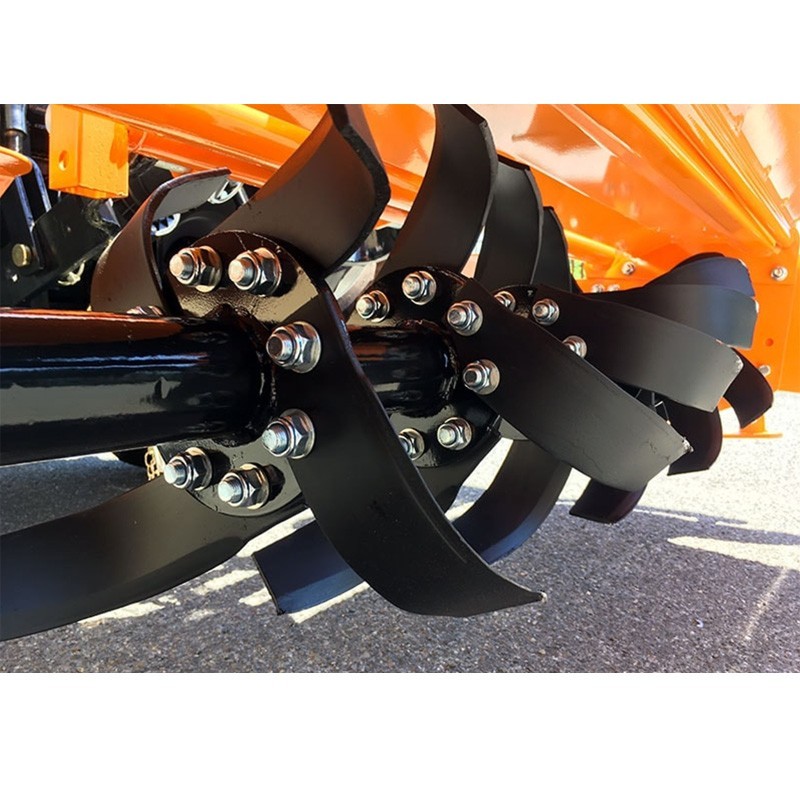

No. of blades in each section 4
Number of blades 16 24 28
Blades: height/ width 180.0 / 67.0 mm
Blades: curved extension 230.0 mm
Blades: distance between holes 45.0 mm
Blades: diameter holes 13.0 mm
Blades: thickness 6.0 mm
Transmission case Lombarda Ingranaggi 540 r/min (3-year warranty)
Lateral displacement 120.0 mm manual 120.0 mm manual 200.0 mm
Direction of rotation PTO Right side (left side on request)
Rotor speed 280 rpm
Case oil Si/ SAE 120 - ISO 72925
Blades: weight Blades: weight
Packing dimensions 80 x 120 x 65 cm 80 x 129 x 65 cm 80 x 149 x 65 cm
IMPORTANT NOTICE
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
260412

Data sheet

Working width PTO
95 - 135 cm
Tractor power
12 - 35 HP
Blades per holder
4 blades per holder
Cardan shaft
Included
Working depth
160 mm
Type of coupling
Fixed hitch
Robustness
Slight
Chassis material
Enameled steel
Working width (cm)
90 - 99 cm
110 - 119 cm
130 - 139 cm
Number of blades
16 - 28
Country of manufacture
Italy
Weight
128 - 171 kg

Specific References

ean13
8053470230745
mpn
DFL95PTO
New
