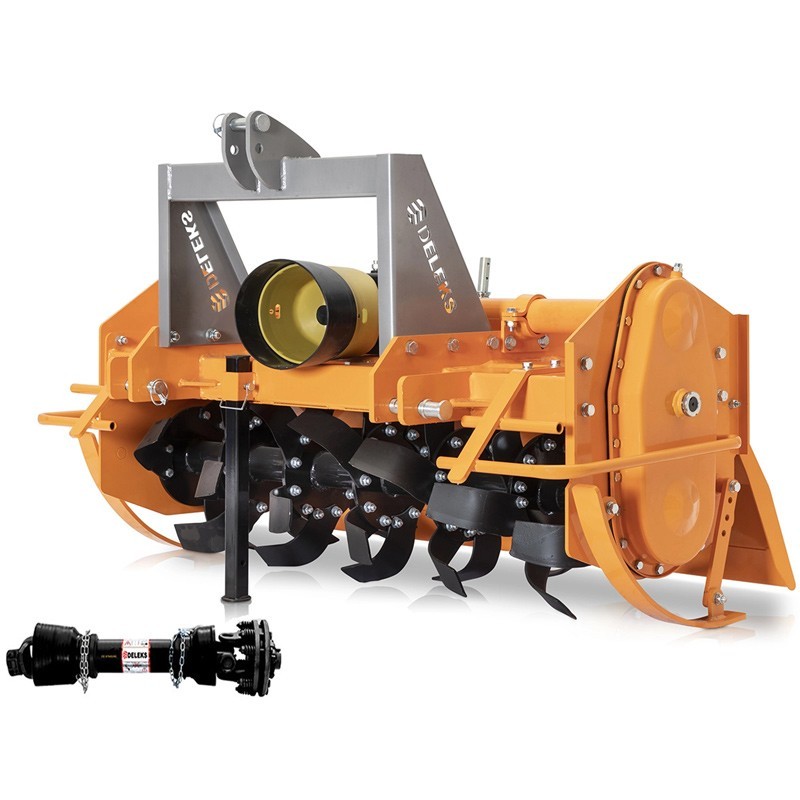

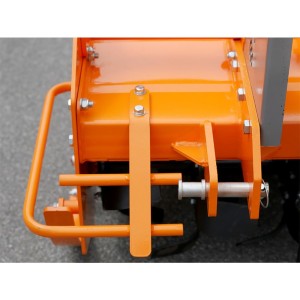

Offset rotovator for tractor Deleks DFH-180

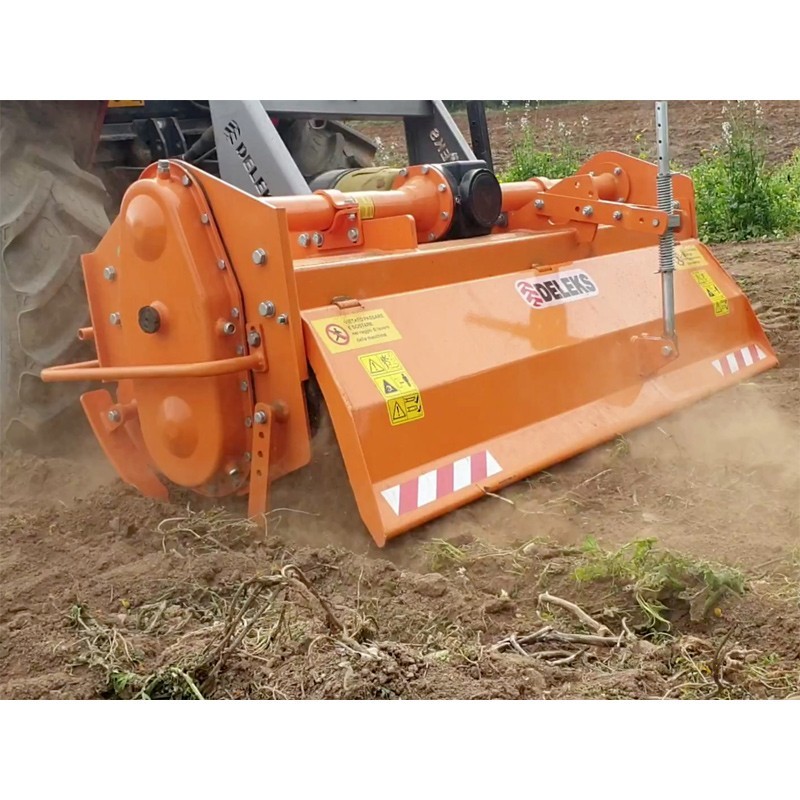

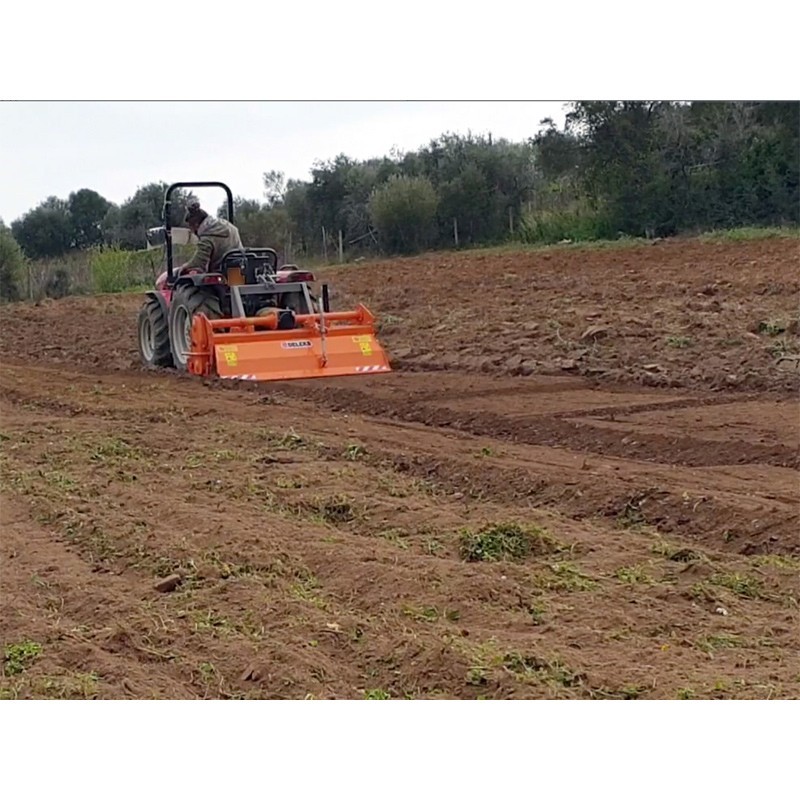

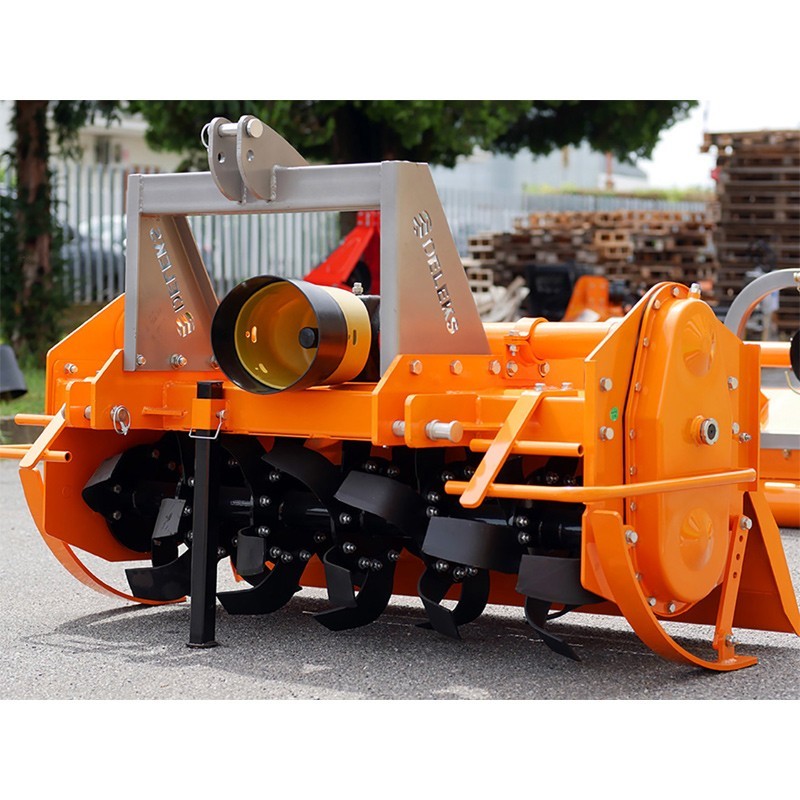

The Rotovator Deleks DFH-180 It is specially designed for tractors with low power of 50 to 70 HP. This rotovator model is used for the Soil preparation in fields, orchards for gardening.

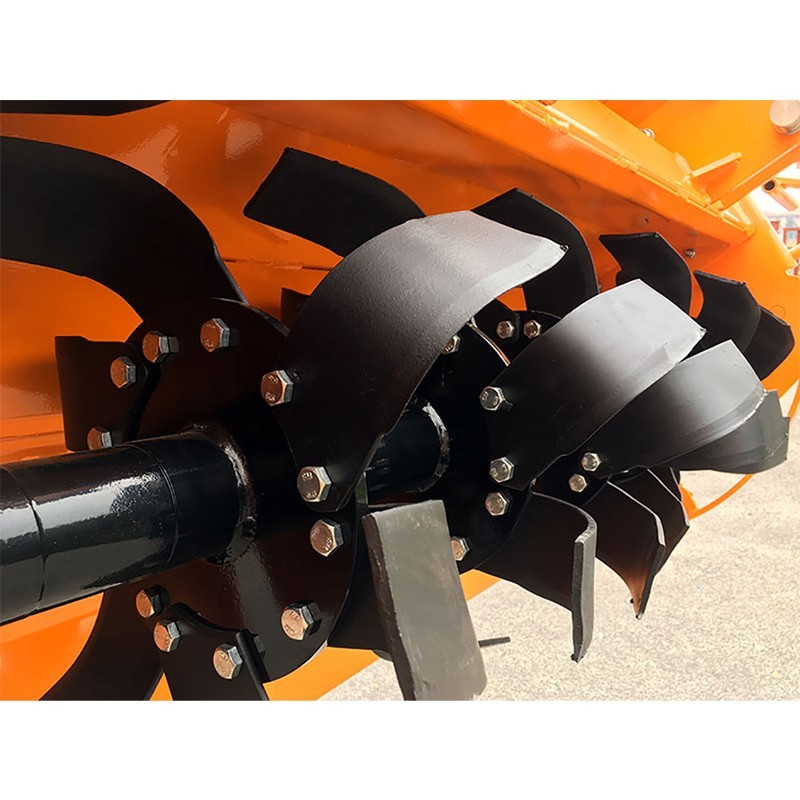

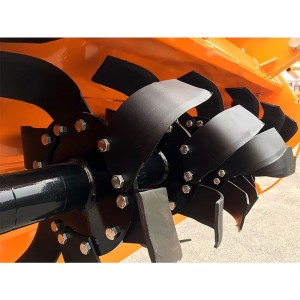

The model Deleks DFH-180 features blades for the preparation of seedbeds or for removing weeds. It can be moved manually or hydraulically.

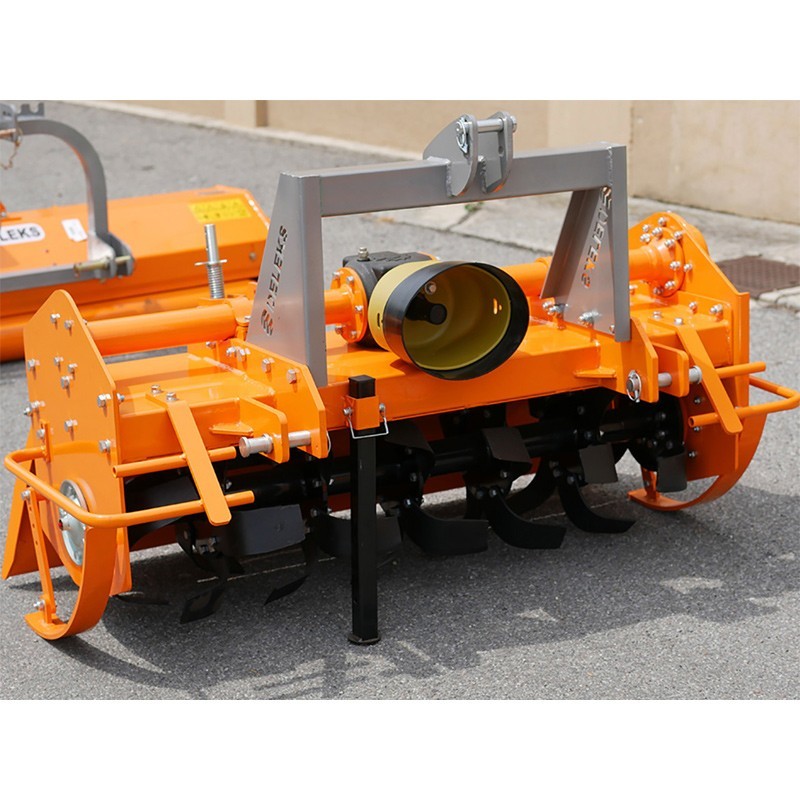

This Rotovator of/from Deleks also includes a universal 3-point hitch of CAT 2. This is adapted for most tractors from 50 to 70 HP. Regarding its features, we can highlight its good Lombarda Ingranaggi transmission box made in Italy, which includes a freewheel.
The Rotovator Deleks DFH-180 comes with CE gimbal included, it also includes SKF brand rotor bearings. The implement can be used on low-power tractors in gardens and orchards thanks to its light weight of 392kg.
This model of Rotovator Deleks It guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features, we can highlight the working width of 1795mm and the total width of 2000mm. We can also highlight the adjustable cutting height from 160 to 200 mm and the total height of 1030mm.
Characteristics
| Total width |
2000 mm |
| Weight |
392 kg |
| Total height |
1030 mm |
| Tractor power |
50 - 70 HP |
| Three-point hitch |
Cat. 2 (ø 25.0-28.0mm) |
| Position of the transmission box |
Central |
| Distance between lower points |
745 - 870 mm |
| Total length |
720 mm |
| Rotor: diameter |
76 mm |
| Rotor: blade thickness |
8 mm |
| Transmission |
Gears |
| Working width |
1795 mm |
| Depth of work (min/max) |
160-200 mm |
| Space between the gearbox and the ground |
590 mm |
| Cardan |
CE 6x800 mm + Friction ø180mm |
| Rotor: diameter with blades |
480 mm |
| Rotor: type of bearings and dimensions |
"GB276-6306(R) GB276-6309(L)" |
| Rotor: No. of sections |
9 |
| Number of blades in each section |
6 |
| Number of blades |
48 |
| Blades: height/width |
180 / 83 mm |
| Blades: curved extension |
250 mm |
| Blades: distance between holes |
55 mm |
| Blades: hole diameter |
13 mm |
| Blades: thickness |
6 mm |
| Transmission box |
Lombarda Gears 540 r/min (3-year warranty) |
| PTO rotation direction |
Right side |
| Rotor speed |
210 rpm |
| Gearbox oil |
Yes/ SAE 120 - ISO 72925 |
| Blades: weight |
810 g |
| Packaging dimension |
800*2030*820 mm |
| IMPORTANT NOTICE |
|
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
