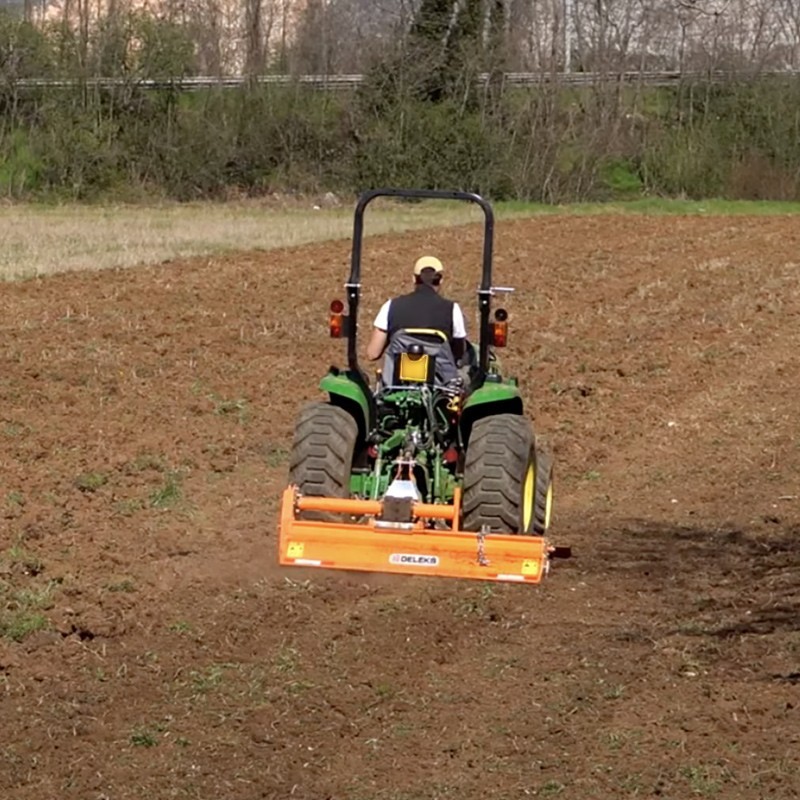

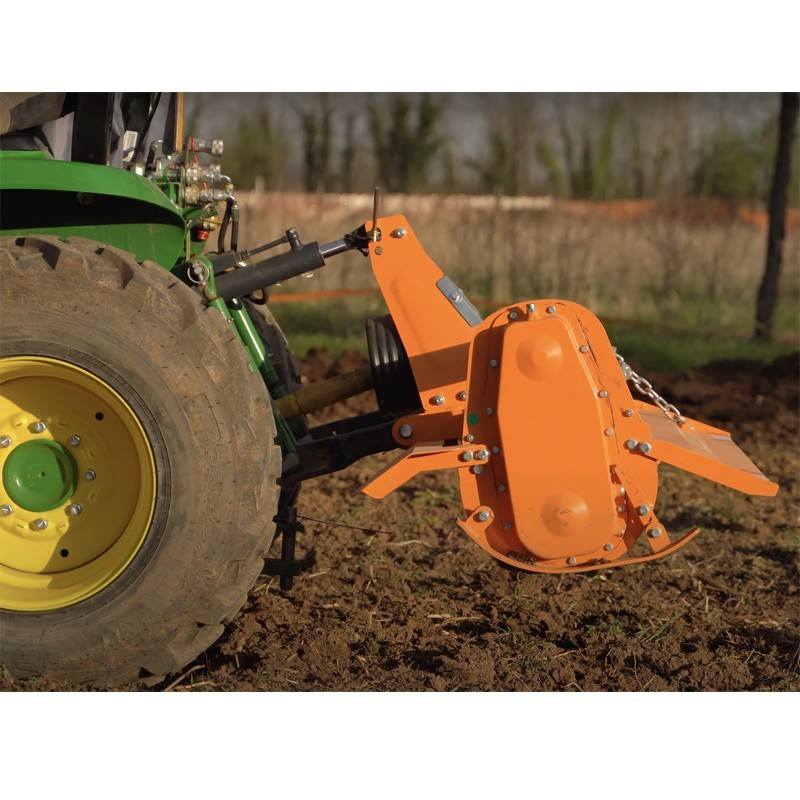

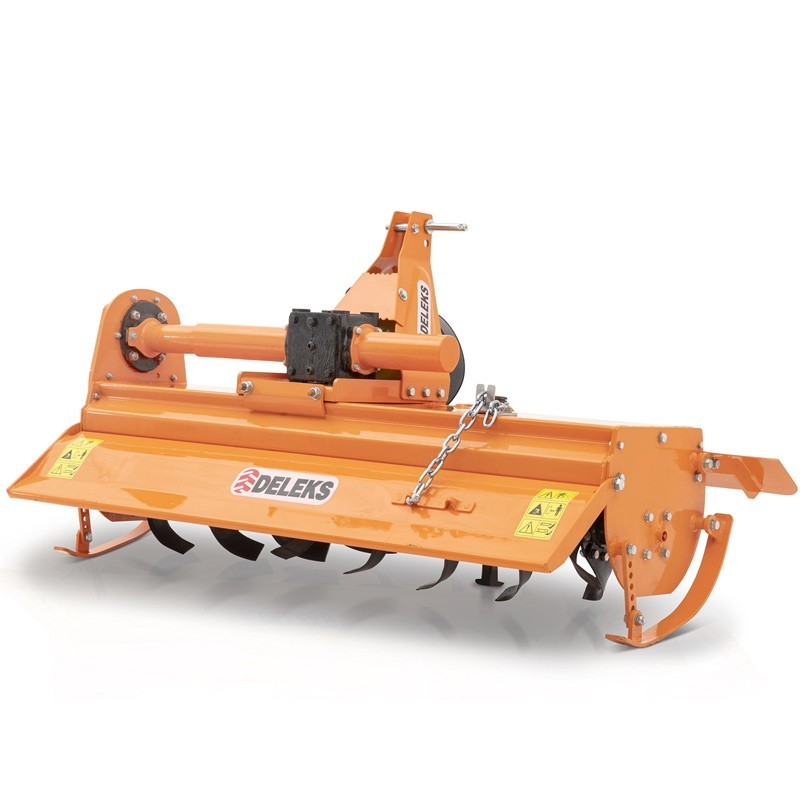

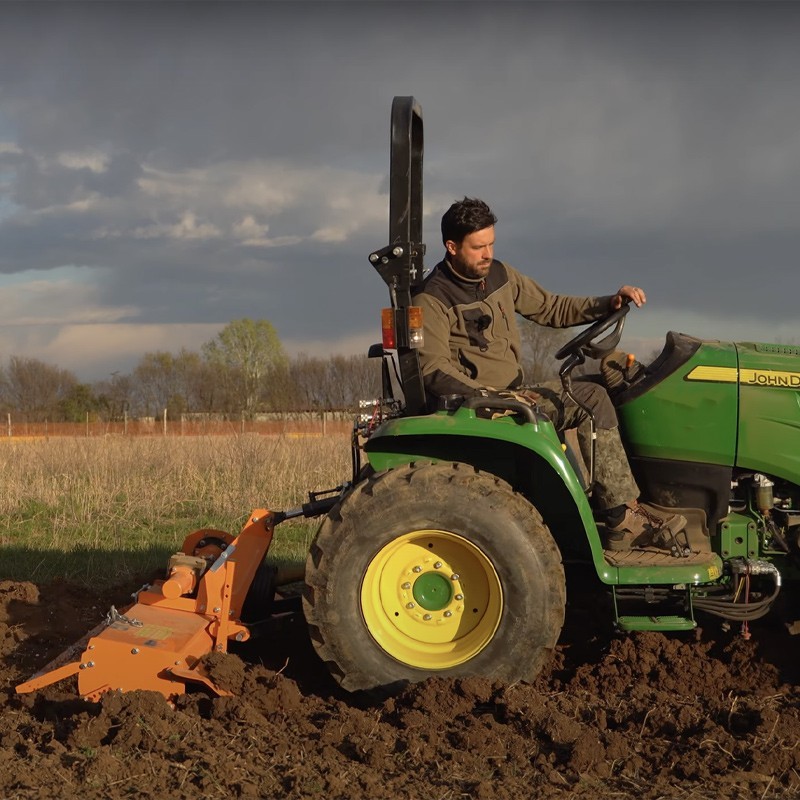

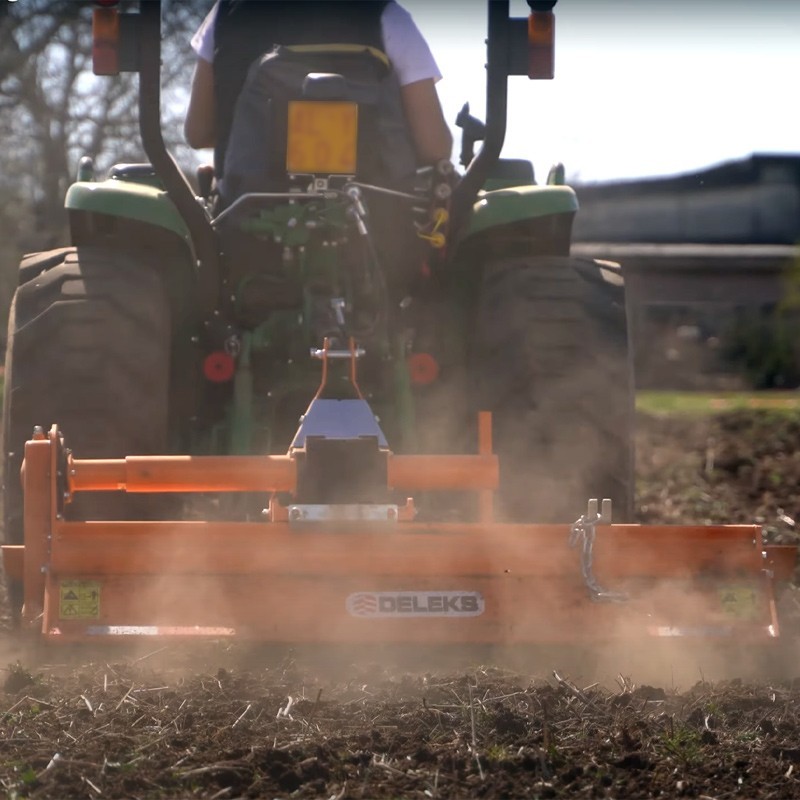

The Tractor Moved Rotovator Deleks DFM-150 is specially designed for tractors with low power from 20 to 45 HP. This model of rotovator is used for seedbed preparation or after regrowth.
The model Deleks DFM-150 has blades for soil preparation in orchards or gardens. It can be moved manually or hydraulically.
This Rotovator from Deleks also features a universal CAT 1-2 3-point hitch . It is suitable for most tractors from 40 to 70 HP. As for its features we can highlight its good transmission box Lombarda Ingranaggi made in Italy that has a free wheel.

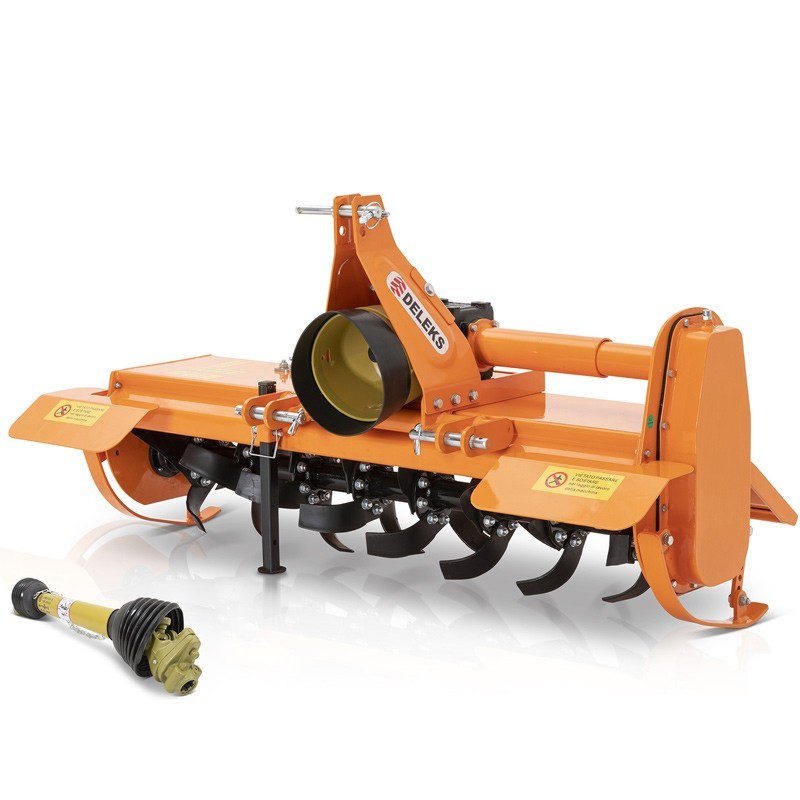

The Rotovator displacement Deleks DFM-150 comes with a CE cardan shaft included, and also includes SKF rotor bearings. The implement can be used on low horsepower tractors in gardens and orchards thanks to its light weight of 232kg.
This model of the Rotovator, which can be moved to Deleks, guarantees the operator good comfort and ease of operation. This is thanks to its outstanding features.
Among these features we can highlight the working width of 1500mm and the total width of 1680mm. We can also highlight the adjustable cutting height from 120 to 160 mm and the total height of 820mm.
Total width | 1680 mm |
Weight | 232 kg |
Overall height | 820 mm |
Tractor power | 20 - 45 HP |
3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Position of the transmission box | 630 mm on left side/ 770 mm on right side |
Distance between lower points | 310 - 630 mm |
Overall length | 620 mm |
Rotor: diameter | 64 mm |
Rotor: blade thickness | 6 mm |
Transmission | Chain |
Working width | 1500 mm |
Working depth (min/max) | 120 - 160 mm |
Space between gearbox and ground | 490 mm |
Cardan shaft | CE 4x800 mm + pin |
Rotor: diameter with blades | 370 mm |
Rotor: bearing type and dimensions | "GB276-6207(R) GB276-6209(L)" ROTOR: NO. OF SECTIONS |
Rotor: No. of sections | 8 |
No. of blades in each section | 4 |
Number of blades | 32 |
Blades: height / width | 180 / 67 mm |
Blades: curved extension | 230 mm |
Blades: distance between holes | 45 mm |
Blades: hole diameter | 13 mm |
Blades: thickness | 6 mm |
Transmission box | Lombarda Ingranaggi 540 r/min (3 years warranty) |
Side shift | 120 mm manual |
Direction of rotation PTO | Right side (left side on request) |
Rotor speed | 230 rpm |
Gearbox oil | yes/ SAE 120 - ISO 72925 |
Blades: weight | 570 g |
Packing dimensions | 800*1770*750 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
