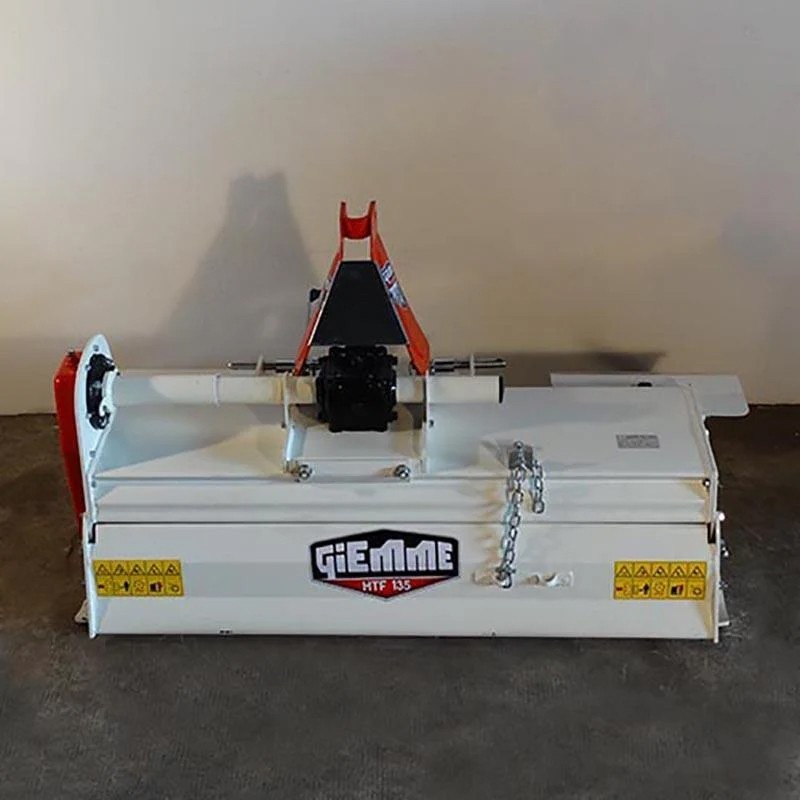

Movable tractor rotovator Giemme FTL 135 - 155 cm
Movable tractor rotovator Giemme FTL 135 - 155 cm
Movable tractor rotovator Giemme FTL 135 - 155 cm
Movable tractor rotovator Giemme FTL 135 - 155 cm
Movable tractor rotovator Giemme FTL 135 - 155 cm
Movable tractor rotovator Giemme FTL 135 - 155 cm
Movable tractor rotovator Giemme FTL 135 - 155 cm
Movable tractor rotovator Giemme FTL 135 - 155 cm
Movable tractor rotovator Giemme FTL 135 - 155 cm

Movable tractor rotovator Giemme FTL 135 - 155 cm


  • Working width PTO : 135 - 155 cm
  • Tractor power : 30 - 40 HP
  • Blades per support : 4 blades per support
  • Working depth : 160 mm
En stock
icon Working width PTO
Working width PTO
135 - 155 cm
icon Tractor power
Tractor power
30 - 40 HP
icon Blades per holder
Blades per holder
4 blades per holder
icon Cardan shaft
Cardan shaft
Included
icon Working depth
Working depth
160 mm
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Manual
icon Robustness
Robustness
Medium-Light
icon Chassis material
Chassis material
Steel
icon Number of blades
Number of blades
28 - 32
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
170 - 188 kg
€1,683.36 excl. VAT
- 4%
€1,616.03 excl. VAT
€1,955.39 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Movable tractor rotovator Giemme FTL 135 - 155 cm
€1,955.39
Select
Qty

Rotovator PTO Giemme FTL

The Rotovator PTO Giemme FTL is a versatile and efficient agricultural tool designed for intensive soil tillage. It is equipped with rotors that have helical hoes, allowing uniform and deep tillage.

Its adjustable rear hood and height-adjustable side slides make it easy to adapt to different soil conditions and specific cultivation needs.

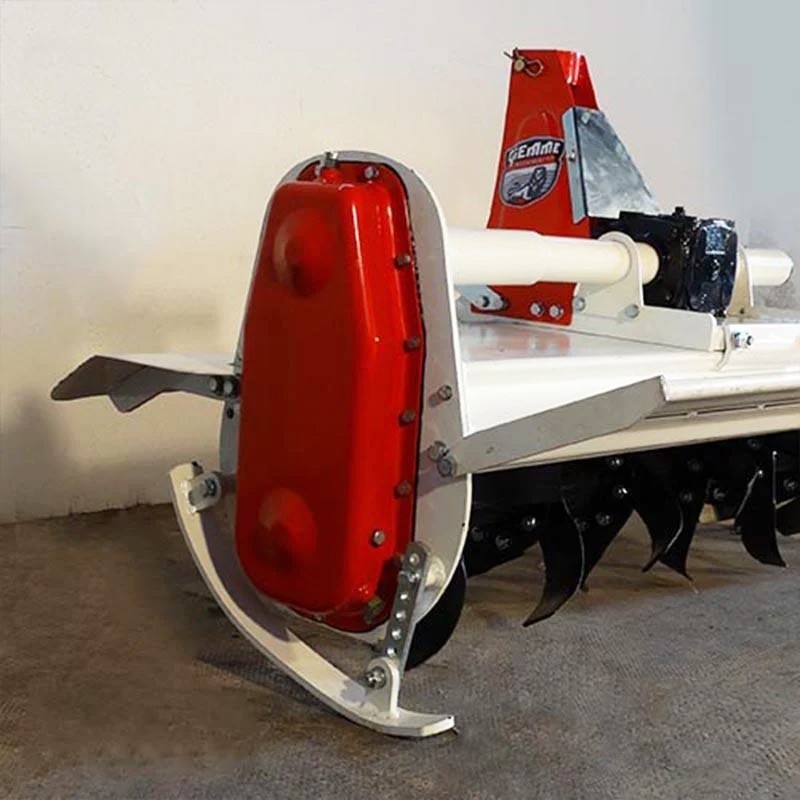

This rotovator is available in three models with different working widths, allowing greater flexibility according to the size of the area to be tilled. The side-mounted oil-bath chain drive and 540 rpm cast iron gearbox ensure long-lasting and efficient operation.

In addition, its manual offset and Category I universal three-point hitch make it compatible with a wide range of tractors, providing ease of use and maximum productivity in the field.

Features

Model FTL 135 FTL 145 FTL 155
Working width 135 cm 145 cm 155 cm
Total width 145 cm 155 cm 165 cm
Tractor power 30/40 HP 30/40 HP 30/40 HP
Weight 170 kg 178 kg 188 kg
Blades 14+14 14+14 16+16
Rotor: No. of sections 7 7 8
Working depth 12/16 cm 12/16 cm 12/16 cm

Travel dimensions

dimensiones
Model A B C D
FTL 135 73 cm 62 cm 43 cm 92 cm
FTL 145 67 cm 78 cm 48 cm 97 cm
FTL 155 72 cm 83 cm 48 cm 107 cm

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
261065

Data sheet

Working width PTO
135 - 155 cm
Tractor power
30 - 40 HP
Blades per holder
4 blades per holder
Cardan shaft
Included
Working depth
160 mm
Type of coupling
Lateral displacement
Displacement
Manual
Robustness
Medium-Light
Chassis material
Steel
Working width (cm)
130 - 139 cm
140 - 149 cm
150 - 159 cm
Number of blades
28 - 32
Country of manufacture
Italy
Weight
170 - 188 kg

Specific References

mpn
M1.Z8.FTL1
New
