Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
Deleks products take about 15 to 25 days. |

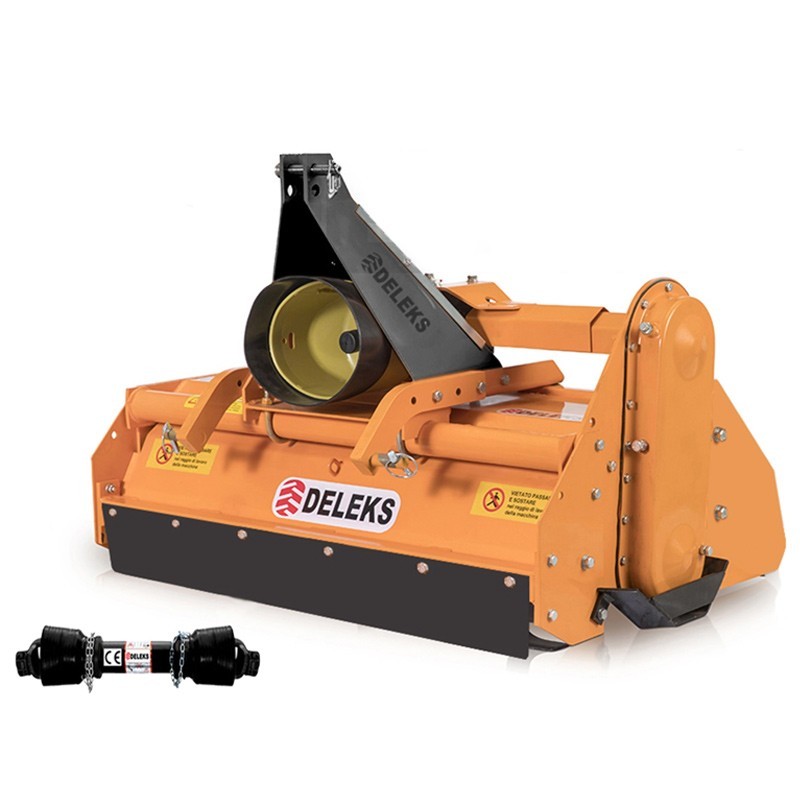

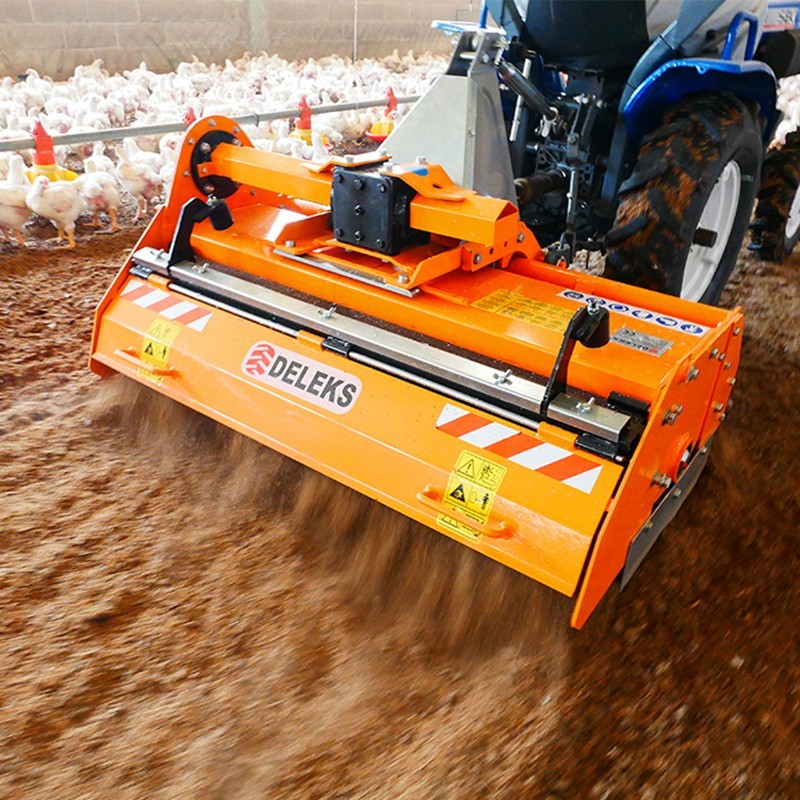

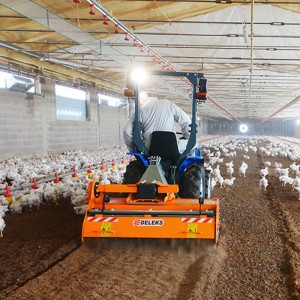

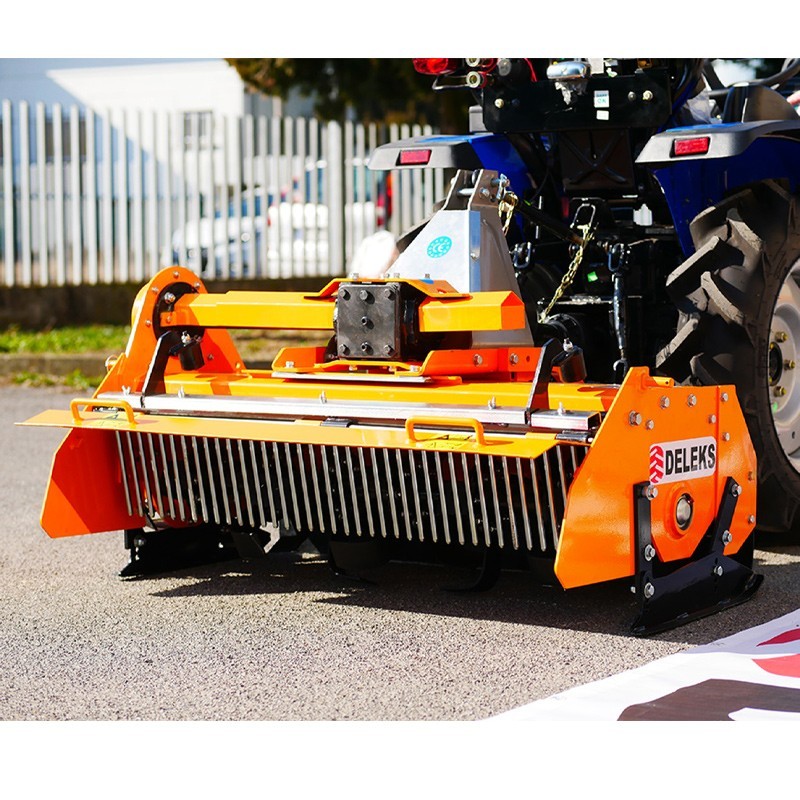

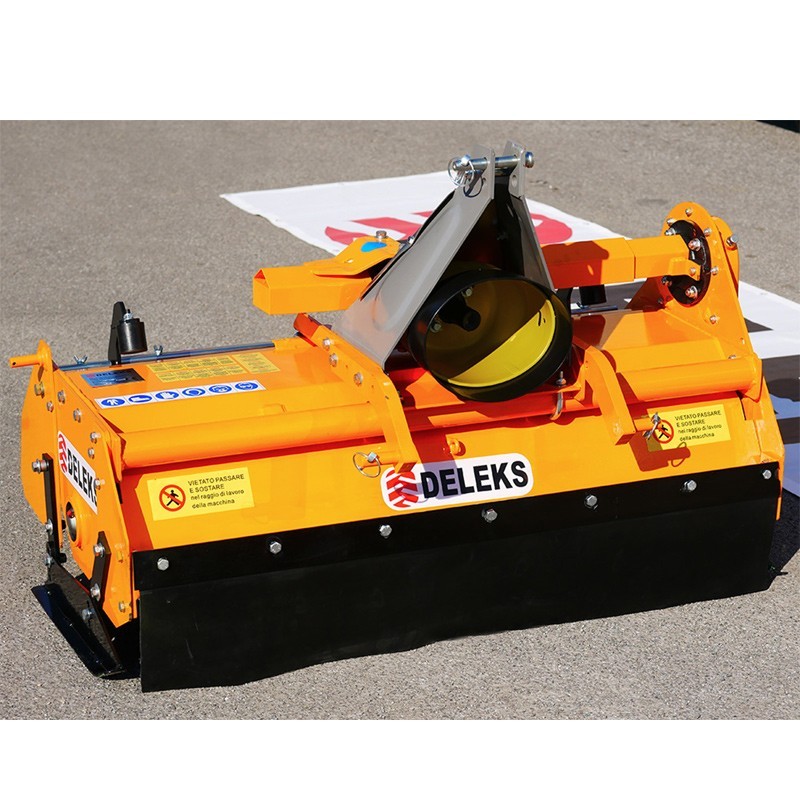

The Poultry Rotovator Deleks PAVO-140 is specially designed for tractors with low horsepower, and is 30 to 50 HP. This model of rotovator is used for the soil preparation, in the fields, vegetable gardens for gardening.
The model Deleks PAVO-140 the blades are equipped with blades for preparation of planting beds or weed removal. It can be moved manually or hydraulically.
This Poultry Rotovator from Deleks also has a cAT 1 universal 3-point linkage. It is suitable for most tractors from 30 to 50 HP. As for its features we can highlight its good transmission box Lombarda Ingranaggi made in Italy that has a free wheel.
The Rotovator Deleks PAVO-140 comes with cE gimbal included, it also includes SKF branded rotor bearings. The implement can be used on tractors with low power in gardens and orchards thanks to its light weight of 280kg.
This model of Rotovator Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features we can highlight the working width of 1350mm and the total width 1450mm. We can also highlight the total height of this machine of only of 900mm.
Overall width | 1450 mm |
Weight | 280 kg |
Total height | 900 mm |
Tractor power | 30 - 50 HP |
3-point hitch | Cat. 1 (ø 19.0-22.0mm |
Position of the gearbox | Central |
Distance between lower points | 400 - 540 mm |
Total length | 800 mm |
Rotor: diameter | 64 mm |
Rotor: blade thickness | 10 mm |
Transmission | Chain |
Working width | 1350 mm |
Gearbox to ground clearance | 470 mm |
Cardan | CE 4x800 mm |
Rotor: diameter with blades | 415 mm |
Rotor: bearing type and dimensions | "GB276-6306(R) GB276-6209(L)" |
Rotor: No. of sections | 8 |
No. of blades in each section | 4 |
Number of blades | 28 |
Blades: height/ width | 170 / 65 mm |
Blades: curved extension | 255 mm |
Blades: distance between holes | 45 mm |
Blades: diameter holes | 13 mm |
Blades: thickness | 6 mm |
Transmission case | Lombarda Ingranaggi 540 r/min (3-year warranty) |
Lateral displacement | 120 mm manual |
Direction of rotation PTO | Right side |
Rotor speed | 216 rpm |
Case oil | yes/ SAE 120 - ISO 72925 |
Blades: weight | 770 g |
Packaging dimensions | 1000*1650*900 mm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
