Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
CARDAN SHAFT INCLUDED
Deleks products take about 15 to 25 days. |

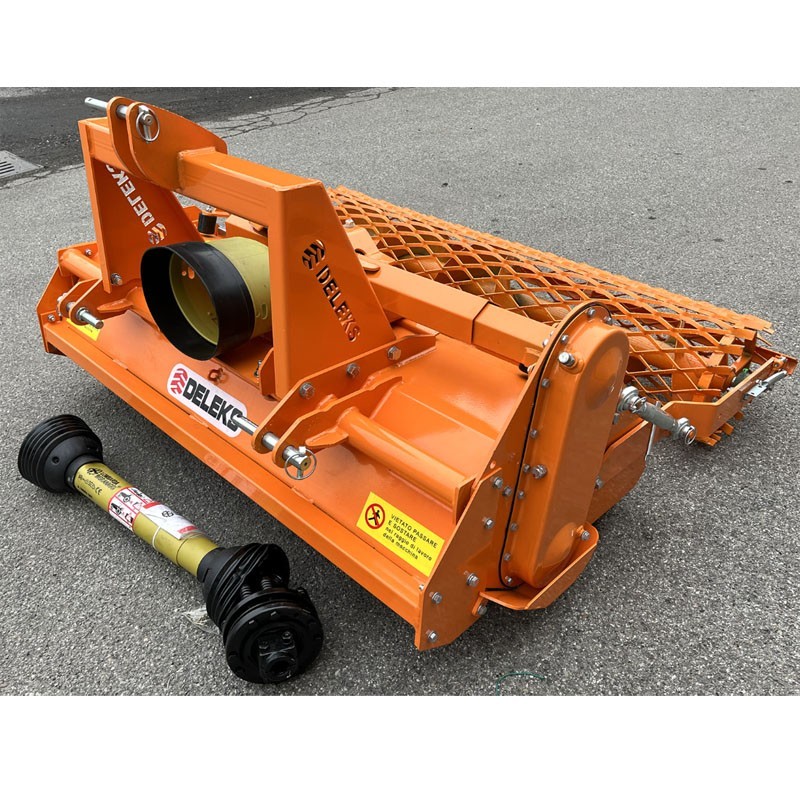

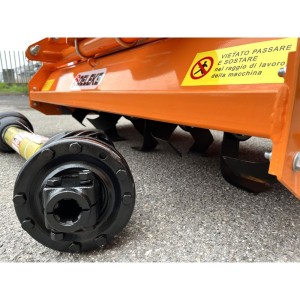

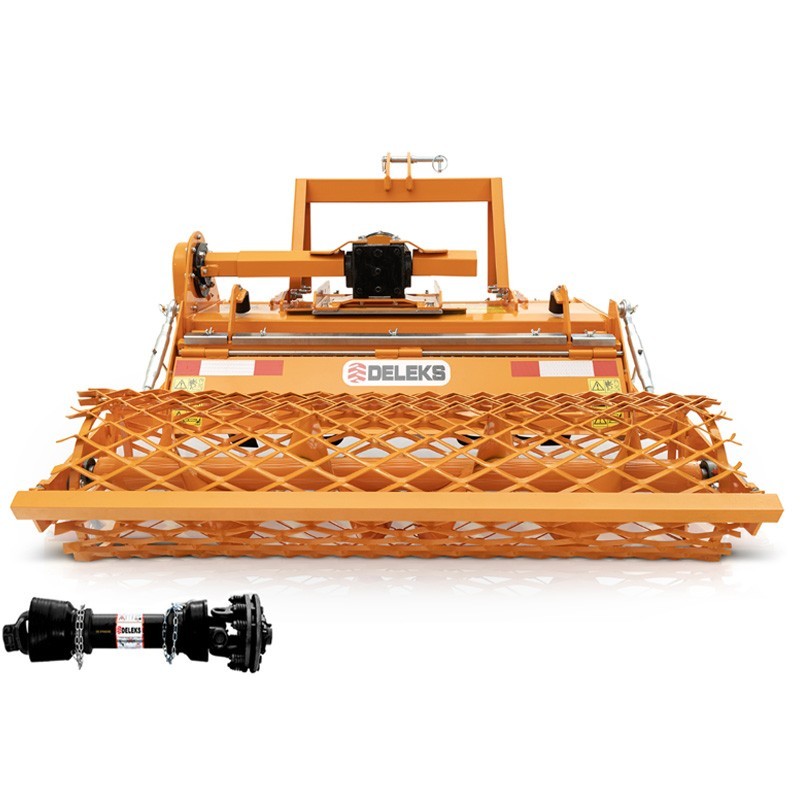

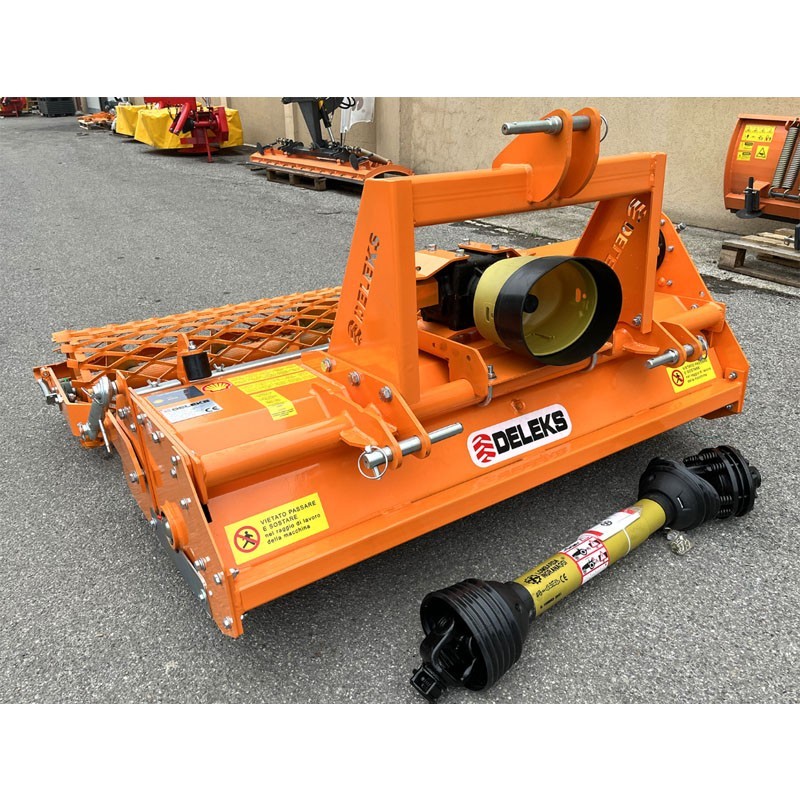

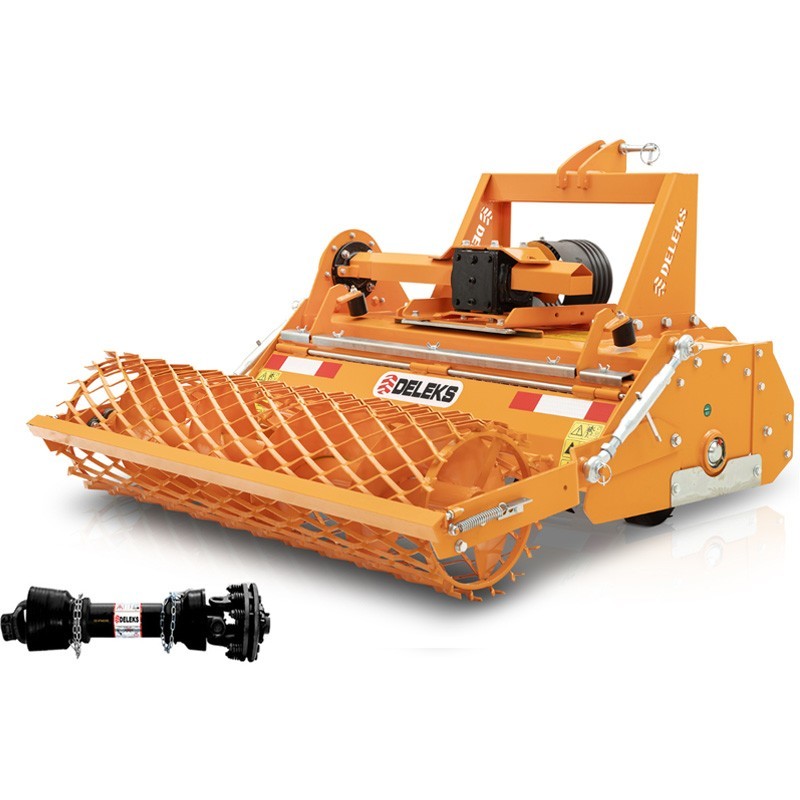

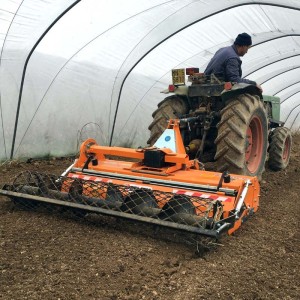

The DELEKS DFU Rotovator stone burier for tractors operates with compact tractors from the 18 to 50 HP of power, this rotovator is an ideal machine for the preparation of beds for sowing in all types of soil, it also tills compact and clayey soil.

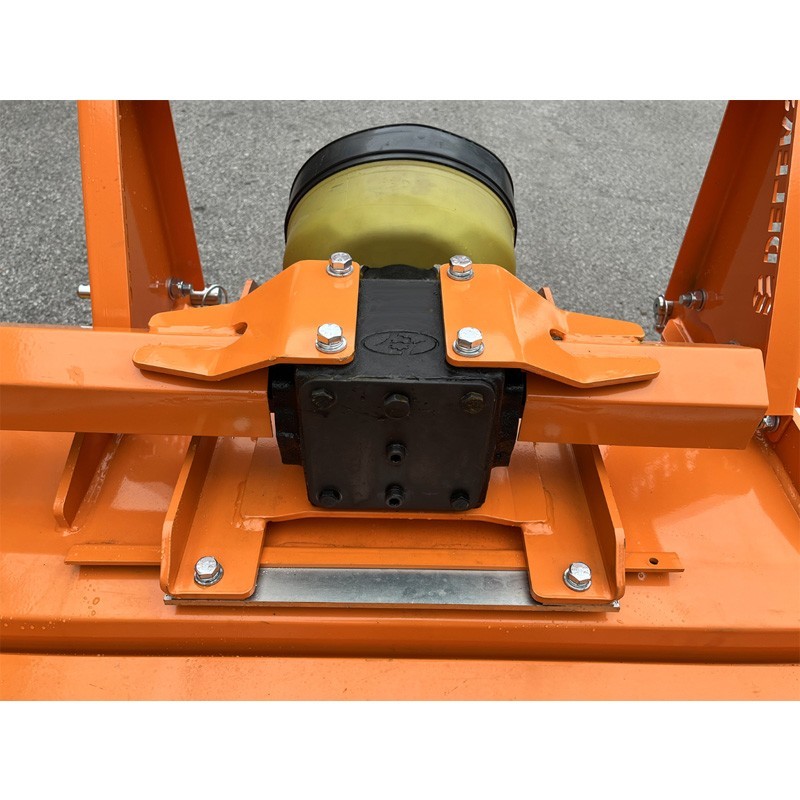

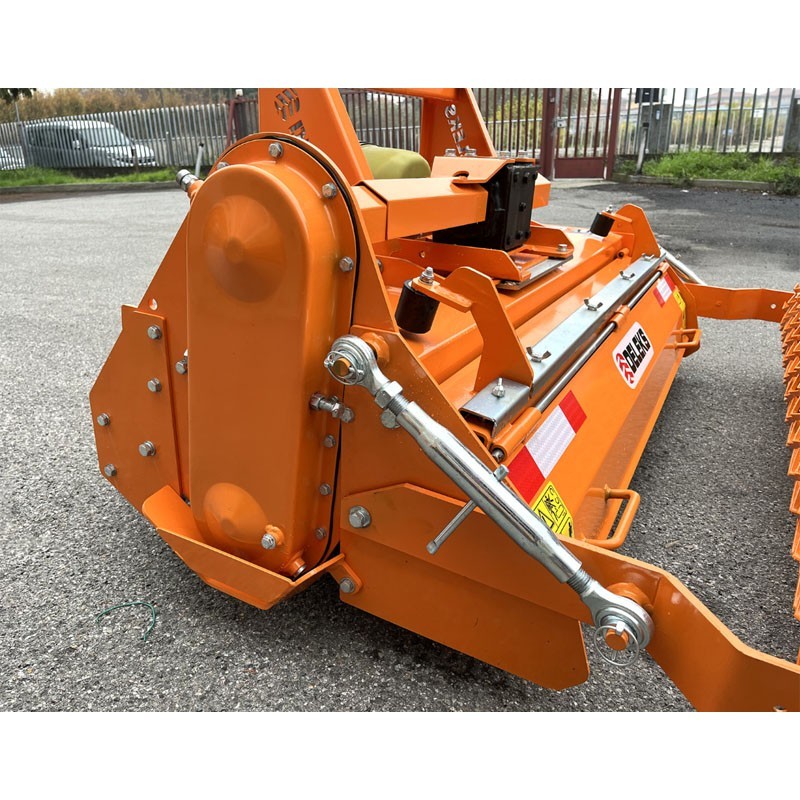

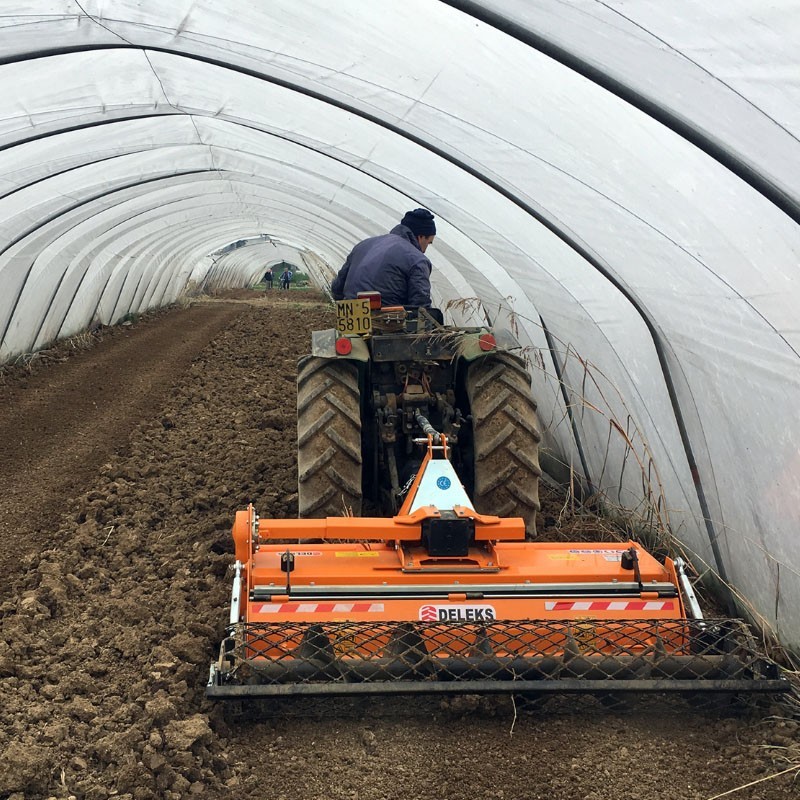

This rotovator is designed for soil preparation in enclosed plantations and for gardens 540 r/min transmission box. Its transmission is laterally by chain.
The direction of rotation of the blades is from front to back. The stones are buried only once, and it comes with a cE gimbal with friction included, its 3-point hitch allows you to move manually (120 mm).
It has reinforced blades for maximum strength and longevity, thus making it a versatile and useful tool for the job works properly under extreme working conditions.

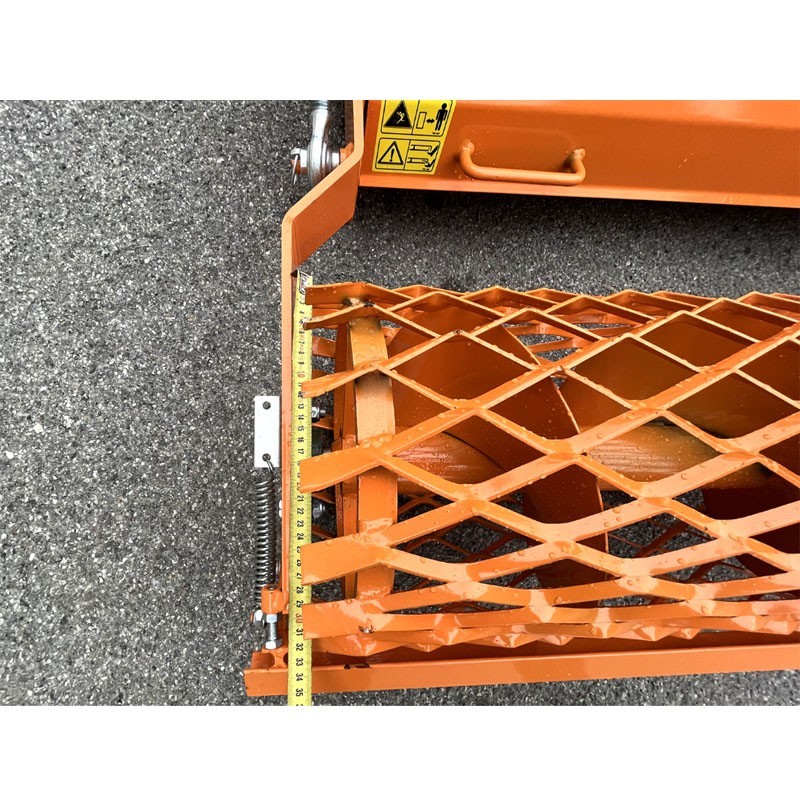

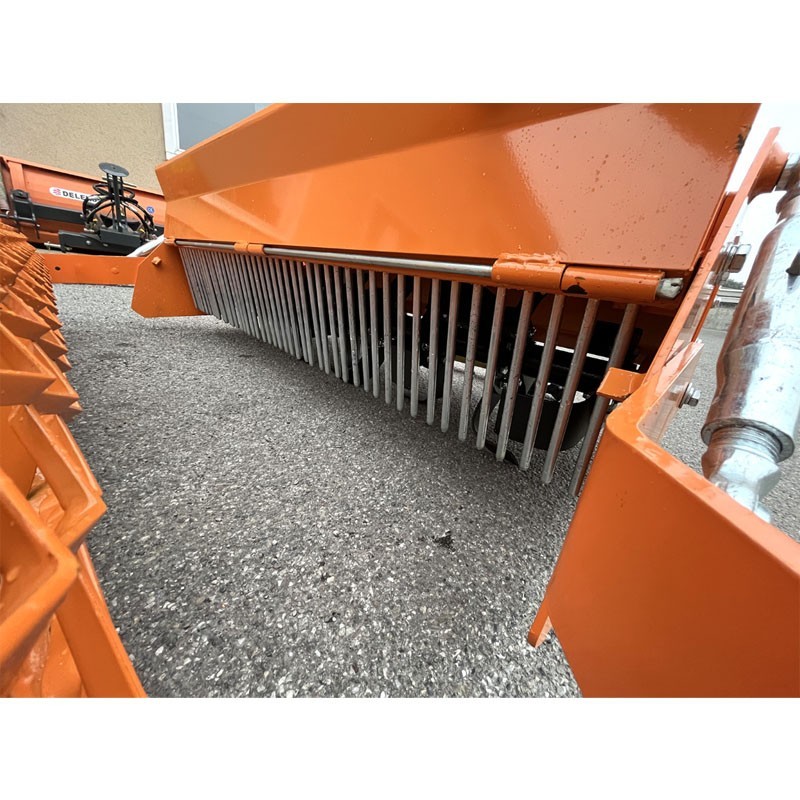

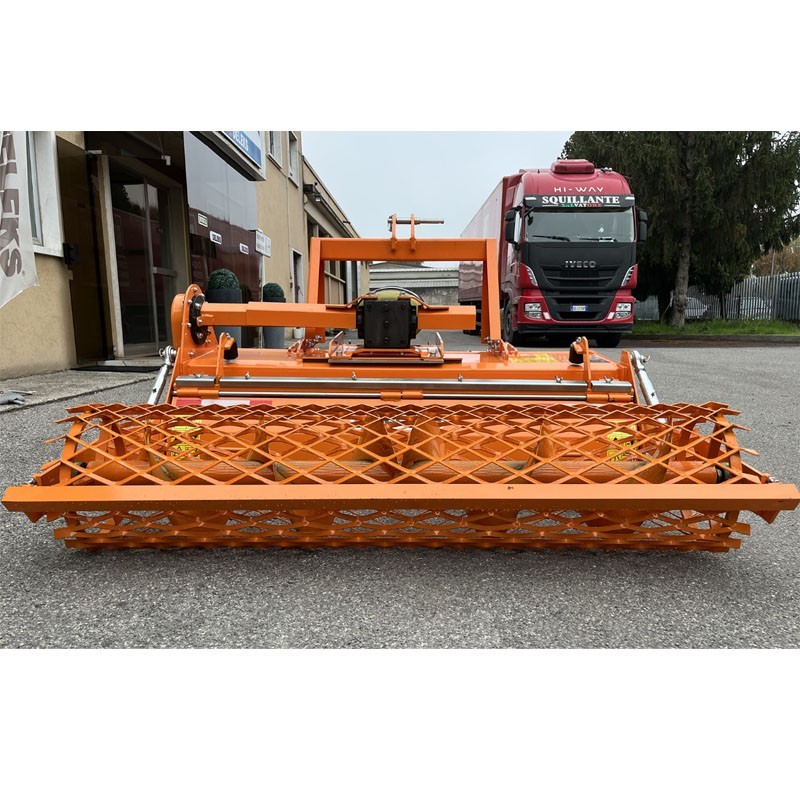

It has a automatic chain tension adjustment, its rear roller has a grid and an adjustable leveler, to be able to vary it and adapt it to the user's needs.
Model | DFU100 | DFU120 |
Overall width | 1180.0 mm | 1380.0 mm |
Weight | 290.0 kg | 310.0 kg |
Total height | 900.0 mm | 900.0 mm |
Tractor power | 18 - 45 hp | 25 - 50 hp |
3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm |
Position of the gearbox | Central | |
Distance between lower points | 580.0 - 830.0 mm | |
Total length | 1230.0 mm | |
Rotor: diameter | 64.0 mm | |
Rotor: blade thickness | 10.0 mm | |
Transmission | Chain | |
Working width | 950.0 mm | 1150.0 mm |
Working depth (min/max) | 160.0-200.0 mm | |
Gearbox to ground clearance | 470.0 mm | |
Cardan | CE 4x800 mm | |
Rotor: diameter with blades | 415.0 mm | |
Rotor: bearing type and dimensions | "GB276-6306(R) GB276-6209(L)" | |
Rotor: No. of sections | 6 | 7 |
No. of blades in each section | 4 | |
Number of blades | 20 | 24 |
Blades: height/ width | 170.0 / 65.0 mm | |
Blades: curved extension | 255.0 mm | |
Blades: distance between holes | 45.0 mm | |
Blades: diameter holes | 13.0 mm | |
Blades: thickness | 6.0 mm | |
Transmission case | Lombarda Ingranaggi 540 r/min (3-year warranty) | |
Lateral displacement | 120.0 mm manual | 120.0 mm manual |
Direction of rotation PTO | Right side | |
Rotor speed | 216 rpm | |
Case oil | Si/ SAE 120 - ISO 72925 | |
Blades: weight | 770.0 g | |
Packing dimensions | 100 x 125 x 90 cm | 100 x 145 x 90 cm |
Model | DFU140 | DFU160 |
Overall width | 1580.0 mm | 1780.0 mm |
Weight | 330.0 kg | 350.0 kg |
Total height | 900.0 mm | 900.0 mm |
Tractor power | 30 - 50 hp | 30 - 50 hp |
3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm |
Position of the gearbox | Central | Central |
Distance between lower points | 580.0 - 830.0 mm | |
Total length | 1230.0 mm | |
Rotor: diameter | 64.0 mm | |
Rotor: blade thickness | 10.0 mm | |
Transmission | Chain | |
Working width | 1350.0 mm | 1550.0 mm |
Working depth (min/max) | 160.0-200.0 mm | |
Gearbox to ground clearance | 470.0 mm | |
Cardan | CE 6x800 mm + Friction ø180mm | |
Rotor: diameter with blades | 415.0 mm | |
Rotor: bearing type and dimensions | "GB276-6306(R) GB276-6209(L)" | |
Rotor: No. of sections | 8 | 9 |
No. of blades in each section | 4 | |
Number of blades | 28 | 32 |
Blades: height/ width | 170.0 / 65.0 mm | |
Blades: curved extension | 255.0 mm | |
Blades: distance between holes | 45.0 mm | |
Blades: diameter holes | 13.0 mm | |
Blades: thickness | 6.0 mm | |
Transmission case | Lombarda Ingranaggi 540 r/min (3-year warranty) | |
Lateral displacement | 120.0 mm manual | 120.0 mm manual |
Direction of rotation PTO | Right side | |
Rotor speed | 216 rpm | |
Case oil | Si/ SAE 120 - ISO 72925 | |
Blades: weight | 770.0 g | |
Packing dimensions | 100 x 165 x 90 cm | 100 x 185 x 90 cm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
