CARDAN SHAFT INCLUDED
| Deleks products take about 15 to 25 days. |

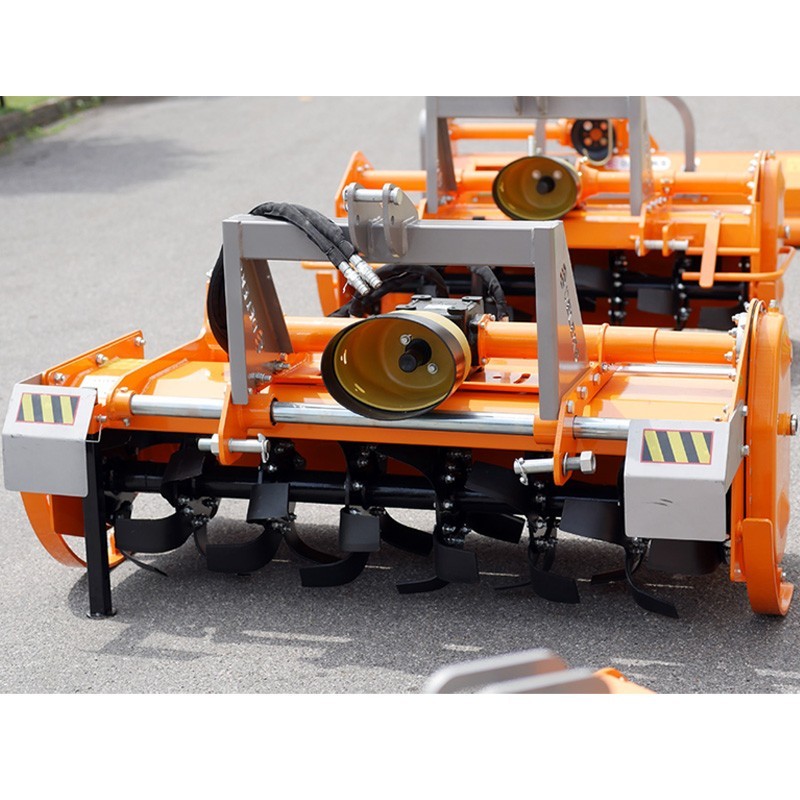

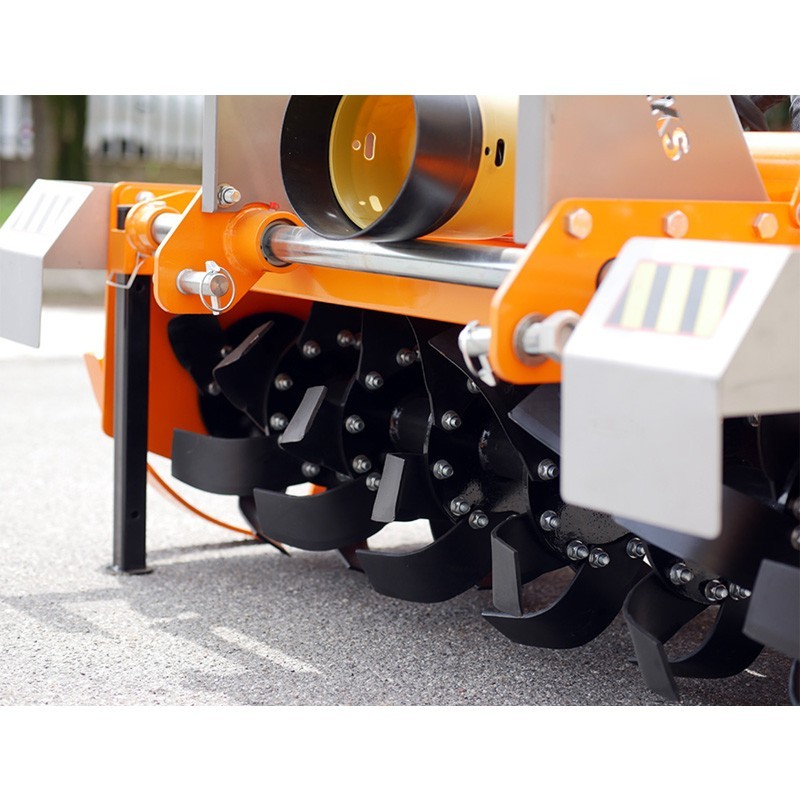

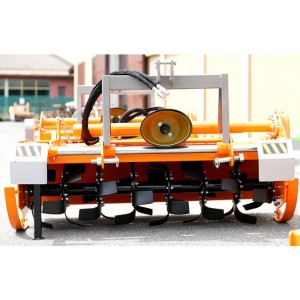

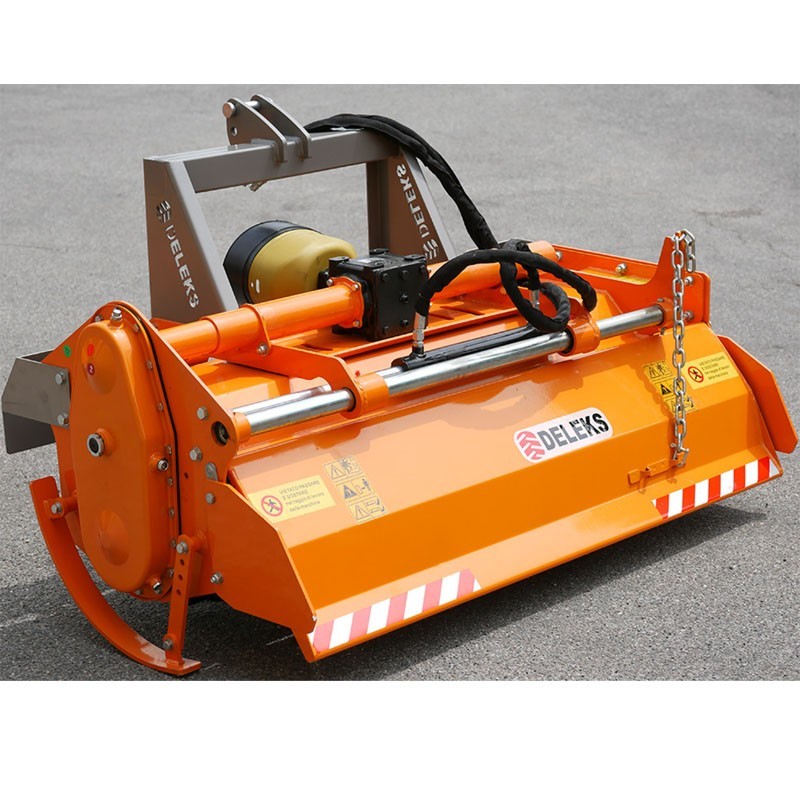

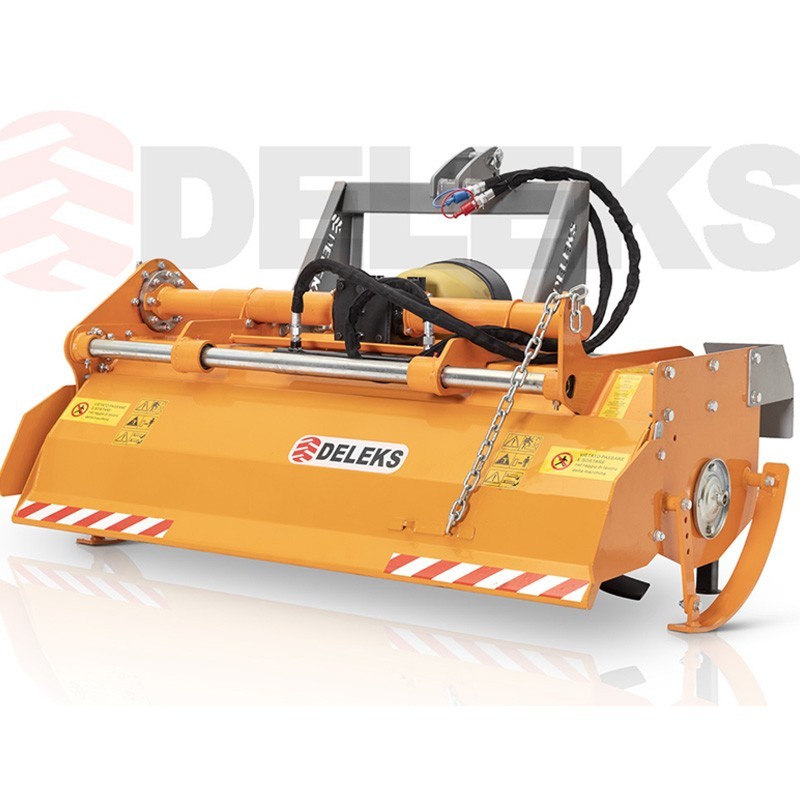

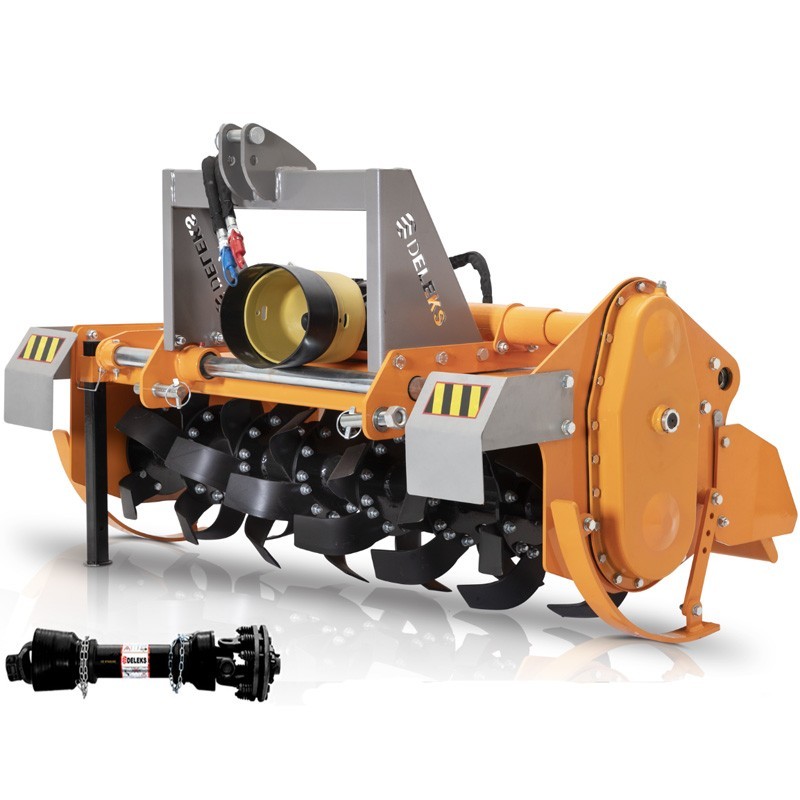

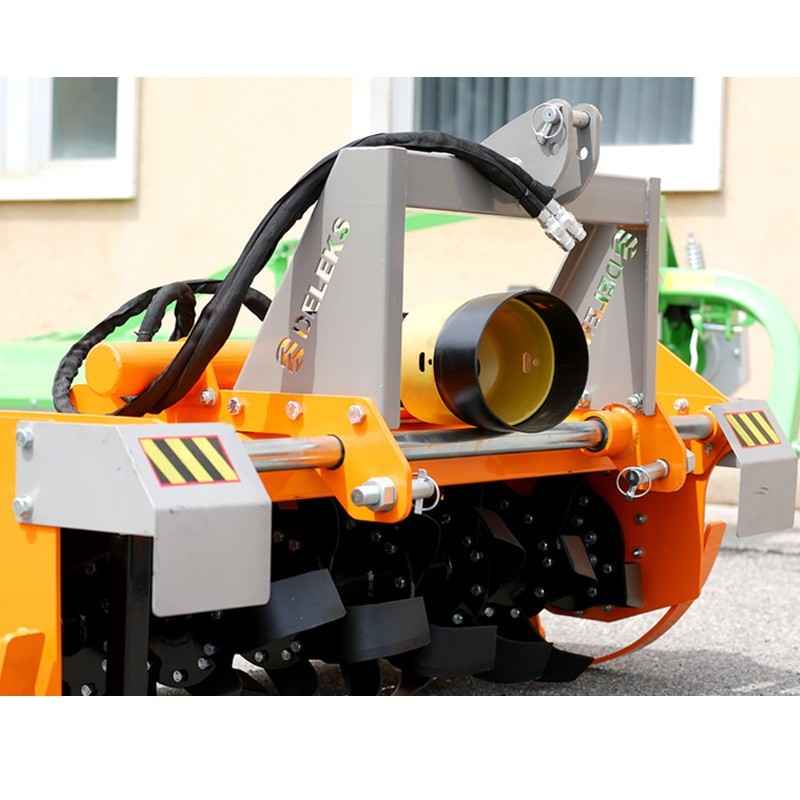

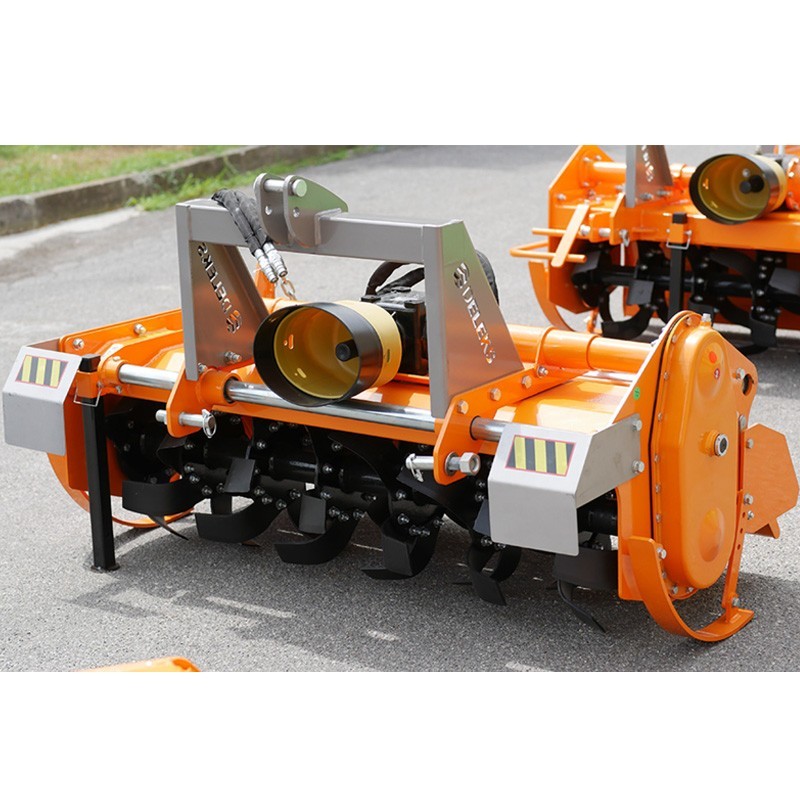

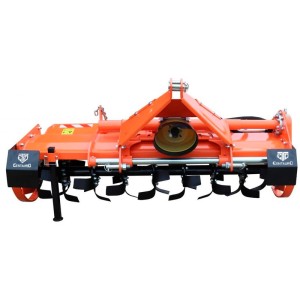

The DELEKS DFH-IDR Hydraulic Tractor Rotovator, is designed for soil preparation, such as in fields and orchards for gardening.
This Rotovator is used for tilling the soil and leaves it ready for seed beds or to remove weeds, adapted for most tractors with power ratings from 30/35/50 up to 60/70 HP, which makes this rotovator compatible with a wide range of tractors.
It has a category 2 3-point linkage, the transmission box has a hydraulic displacement, and its transmission box is equipped with 540 r/min, this is located on the lateral sides and has sprockets.
Your hydraulic displacement is 33 cm, each rotovator support has 6 blades, it has adjustable skids to be able to adjust the depth of the work depending on the need of the terrain.
| Model | DFH-IDR135 | DFH-IDR150 | DFH-IDR180 |
| Overall width | 1550.0 mm | 1700.0 mm | 2000.0 mm |
| Weight | 328.0 kg | 360.0 kg | 400.0 kg |
| Total height | 1030.0 mm | 1030.0 mm | 1030.0 mm |
| Tractor power | 30 - 60 hp | 35 - 60 hp | 50 - 70 hp |
| 3-point hitch | Cat. 2 (ø 25.0-28.0mm | Cat. 2 (ø 25.0-28.0mm | Cat. 2 (ø 25.0-28.0mm |
| Position of the gearbox | Central | Central | Central |
| Distance between lower points | 745.0 - 870.0 mm | ||
| Total length | 720.0 mm | ||
| Rotor: diameter | 76.0 mm | ||
| Rotor: blade thickness | 8.0 mm | ||
| Transmission | Gears | ||
| Working width | 1345.0 mm | 1495.0 mm | 1795.0 mm |
| Working depth (min/max) | 160.0-200.0 mm | ||
| Gearbox to ground clearance | 590.0 mm | ||
| Cardan | CE 6x800 mm + Friction ø180mm | ||
| Rotor: diameter with blades | 480.0 mm | ||
| Rotor: bearing type and dimensions | "GB276-6306(R) GB276-6309(L)" | ||
| Rotor: No. of sections | 7 | 8 | 9 |
| No. of blades in each section | 6 | ||
| Number of blades | 36 | 42 | 48 |
| Blades: height/ width | 180.0 / 83.0 mm | ||
| Blades: curved extension | 250.0 mm | ||
| Blades: distance between holes | 55.0 mm | ||
| Blades: diameter holes | 13.0 mm | ||
| Blades: thickness | 6.0 mm | ||
| Transmission case | Lombarda Ingranaggi 540 r/min (3-year warranty) | ||
| Lateral displacement | 330.0 mm Hydraulic | 330.0 mm Hydraulic | 330.0 mm Hydraulic |
| Direction of rotation PTO | Right side | ||
| Rotor speed | 210 rpm | ||
| Case oil | Si/ SAE 120 - ISO 72925 | ||
| Blades: weight | 810.0 g | ||
| Packing dimensions | 80 x 158 x 82 cm | 80 x 173 x 82 cm | 80 x 203x 82 cm |
